SAXSdb — 8y32

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Angiotensin-converting enzyme

Bos taurus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 19–804	Not recorded	Spike protein S1 RBD × 1 CL CHLORIDE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.13 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8Y32	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8XZ8 BA.2.86 Spike in complex with bovine ACE2 (bound 1 ACE2) Deposited 2024-01-21	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–804（804 aa）	Not recorded	ZN ZINC ION × 1 CL CHLORIDE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 36	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.65 Å
8XZA BA.2.86 Spike in complex with bovine ACE2 (Local refinement) Deposited 2024-01-21	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–804（804 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 ZN ZINC ION × 1 CL CHLORIDE ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.07 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q2HJI5_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–786； UniProt 19–804

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8y32
Deposition date deposition_date	2024-01-28
Structure title title	BA.2.86-V483 RBD in complex with bACE2
Keywords keywords	SARS-CoV-2, complex, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	32.70 Å
Radius of gyration Rg (electron density) rg_electron	32.25 Å
Forward intensity I(0) i0	136361000.00
Molecular weight molecular_weight	93170.0 kDa
Excluded volume excluded_volume	116490 Å³
Envelope volume envelope_volume	159540 Å³
Hydration-shell volume shell_volume	42308 Å³
Envelope diameter envelope_diameter	121.5 Å
Shell Rg shell_rg	38.33 Å
Envelope Rg envelope_rg	32.08 Å
Shape Rg shape_rg	32.21 Å
Total Rg total_rg	32.86 Å
Total atoms total_atoms	6571
Residues n_residues	791
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

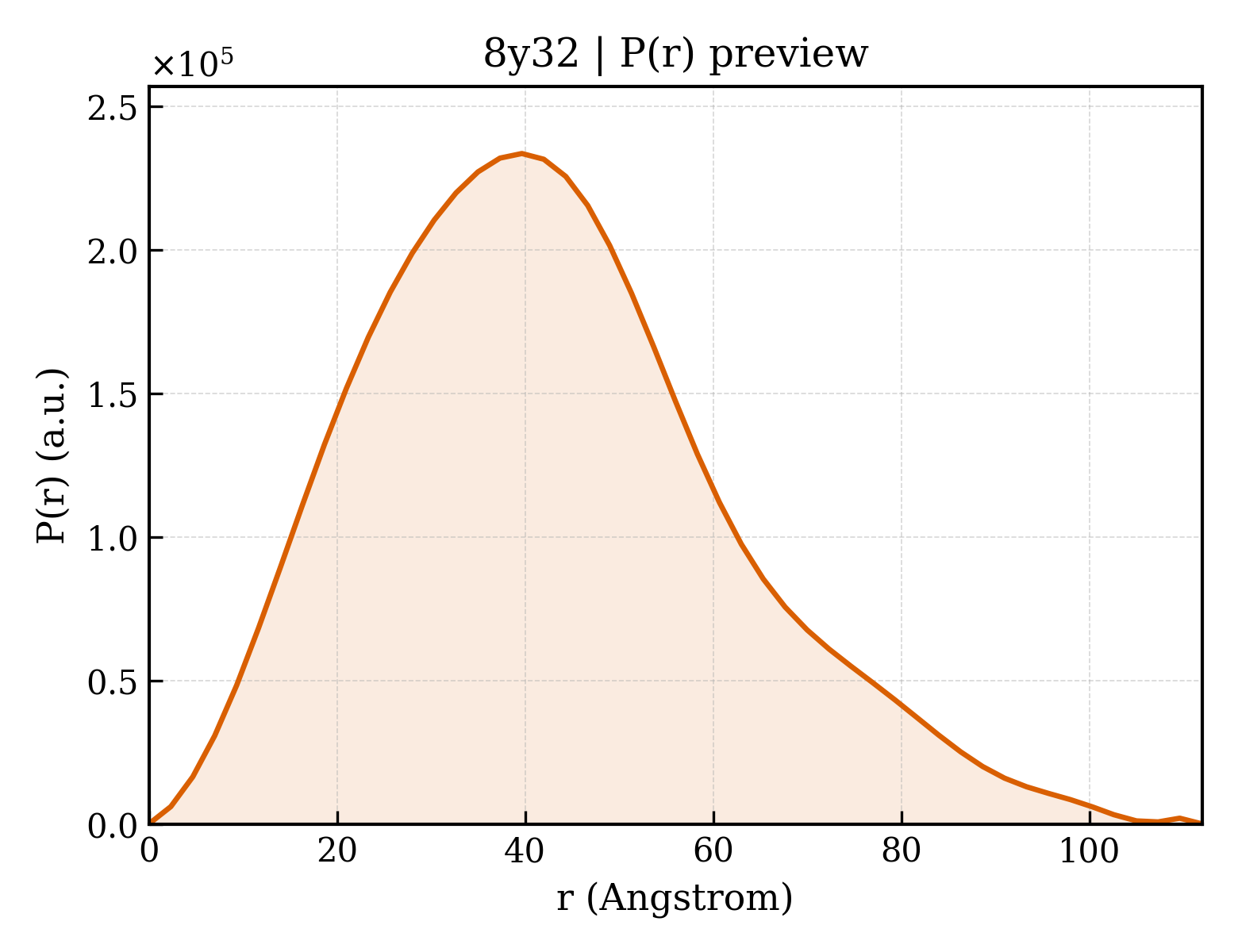

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	112.0 Å
Rg (real space) rg_real	32.80 Å
Rg uncertainty (real space) rg_real_error	0.89 Å
I(0) (real space) i0_real	1.3640e+08
I(0) uncertainty (real space) i0_real_error	2.3250e+06
Rg (reciprocal space) rg_reciprocal	32.76 Å
I(0) (reciprocal space) i0_reciprocal	136400000.0000
Solution quality estimate total_estimate	0.8509
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	39.7 Å
Skewness Skewness skewness	0.495
Kurtosis Kurtosis kurtosis	-0.015
Angular range angular_range	— – 0.2400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	34000000.0000
Real-space data points n_real_points	49
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.752; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.823

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Angiotensin-converting enzyme
Molecular weight formula_weight	91310.9 kDa
EC 编号 ec_number	3.4.-.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6571

STTEEQAKTFLEKFNHEAEDLSYQSSLASWNYNTNITDENVQKMNEARAKWSAFYEEQSRMAKTYSLEEIQNLTLKRQLKALQHSGTSALSAEKSKRLNTILNKMSTIYSTGKVLDPNTQECLALEPGLDDIMENSRDYNRRLWAWEGWRAEVGKQLRPLYEEYVVLENEMARANNYEDYGDYWRGDYEVTGAGDYDYSRDQLMKDVERTFAEIKPLYEQLHAYVRAKLMHTYPSYISPTGCLPAHLLGDMWGRFWTNLYSLTVPFEHKPSIDVTEKMENQSWDAERIFKEAEKFFVSISLPYMTQGFWDNSMLTEPGDGRKVVCHPTAWDLGKGDFRIKMCTKVTMDDFLTAHHEMGHIQYDMAYAAQPYLLRNGANEGFHEAVGEIMSLSAATPHYLKALGLLAPDFHEDNETEINFLLKQALTIVGTLPFTYMLEKWRWMVFKGEIPKQQWMEKWWEMKREIVGVVEPLPHDETYCDPACLFHVAEDYSFIRYYTRTIYQFQFHEALCKTAKHEGALFKCDISNSTEAGQRLLQMLRLGKSEPWTLALENIVGIKTMDVKPLLNYFEPLFTWLKEQNRNSFVGWSTEWTPYSDQSIKVRISLKSALGENAYEWNDNEMYLFQSSVAYAMRKYFSEARNETVLFGEDNVWVSDKKPRISFKFFVTSPNNVSDIIPRTEVENAIRLSRDRFNDVFQLDDNSLEFLGIQPTLGPPYEPPVTIWLIIFGVVMGVVVIGIVVLIFTGIRNRRKKNQASSEENPYGSVDLNKGENNSGFQNIDDVQTSL

来源 Source

来源生物 organism	Bos taurus
通用名 common_name	domestic cattle
NCBI Class编号 ncbi_taxonomy_id	9913
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Spike protein S1 RBD
Molecular weight formula_weight	23981.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

NVTNLCPFHEVFNATRFASVYAWNRTRISNCVADYSVLYNFAPFFAFKCYGVSPTKLNDLCFTNVYADSFVIKGNEVSQIAPGQTGNIADYNYKLPDDFTGCVIAWNSNKLDSKHSGNYDYWYRLFRKSKLKPFERDISTEIYQAGNKPCKGVKGPNCYFPLQSYGFRPTYGVGHQPYRVVVLSFELLHAPATVCGPKKSTNLVKNKCVNF

来源 Source

来源生物 organism	Severe acute respiratory syndrome coronavirus 2
NCBI Class编号 ncbi_taxonomy_id	2697049
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	7

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.13 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	597508

fit	/app/data/saxs_computation/y3/8y32/8y32.fit
pddf	/app/data/pr_computation/y3/8y32/8y32.pr.out
profile	/app/data/saxs_computation/y3/8y32/8y32.dat
