1. Protein Identity and Related Structures Protein Identity & Related Structures

WD repeat-containing protein 5

Mus musculus

UniProt P61965

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Homeobox protein NANOG × 2 （Q80Z64） water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	WDR5_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–313； UniProt 22–334 Author chain B； PDBConstruct 1–313； UniProt 22–334 Author chain C； PDBConstruct 1–313； UniProt 22–334

Homeobox protein NANOG

Mus musculus

UniProt Q80Z64

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	WD repeat-containing protein 5 × 3 （P61965） water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NANOG_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 2–61； UniProt 96–155 Author chain E； PDBConstruct 2–61； UniProt 96–155

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ydd
Deposition date deposition_date	2024-02-20
Structure title title	Crystal structure of Nanog(R100A) in complex with Wdr5
Keywords keywords	transcription factor, protein-protein interaction, NUCLEAR PROTEIN; NUCLEAR PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8ydd__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8ydd__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

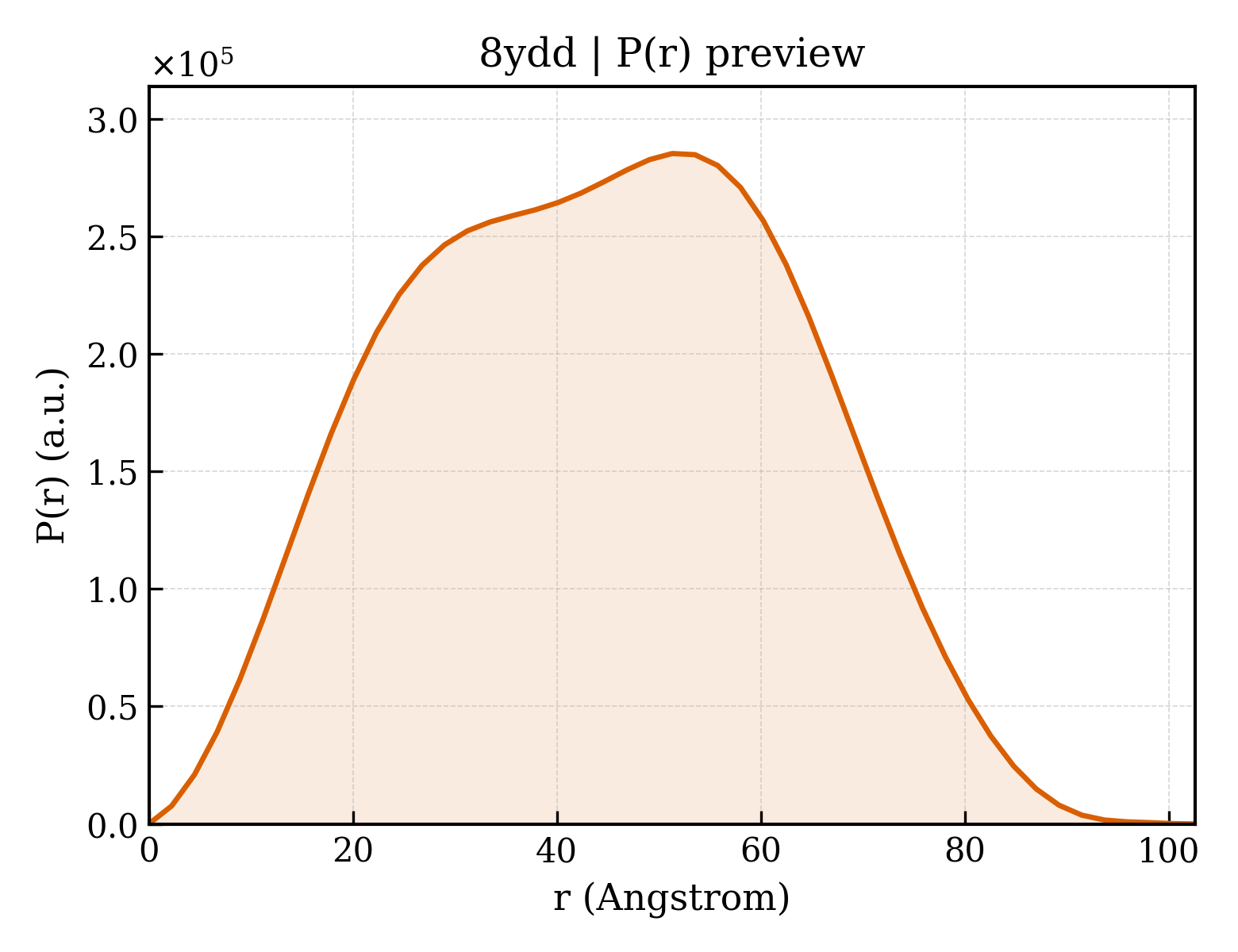

8ydd__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.11 Å
Rg (electron density)	33.35 Å
Total Rg	34.06 Å
Atom count	7985
Residues	1024
Excluded volume	142700 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8ydd__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	WD repeat-containing protein 5
Molecular weight formula_weight	34391.0 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	8454

SATQSKPTPVKPNYALKFTLAGHTKAVSSVKFSPNGEWLASSSADKLIKIWGAYDGKFEKTISGHKLGISDVAWSSDSNLLVSASDDKTLKIWDVSSGKCLKTLKGHSNYVFCCNFNPQSNLIVSGSFDESVRIWDVKTGKCLKTLPAHSDPVSAVHFNRDGSLIVSSSYDGLCRIWDTASGQCLKTLIDDDNPPVSFVKFSPNGKYILAATLDNTLKLWDYSKGKCLKTYTGHKNEKYCIFANFSVTGGKWIVSGSEDNLVYIWNLQTKEIVQKLQGHTDVVISTACHPTENIIASAALENDKTIKLWKSDC

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Homeobox protein NANOG
Molecular weight formula_weight	7443.8 kDa
Mutation mutation	R100A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E

SKQKMATVFSQAQLCALKDRFQKQKYLSLQQMQELSSILNLSYKQVKTWFQNQRMKCKRWQ

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	469

▶

Unit-cell length a length_a	85.667 Å
Unit-cell length b length_b	87.604 Å
Unit-cell length c length_c	96.874 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	91.81 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	37.570 Å
R factor r_factor	0.1755
R_work r_work	0.1736
R_free r_free	0.2214
