SAXSdb — 8yeg

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Major capsid protein L1

human papillomavirus 11

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	heavy chain of F5-187 × 1 light chain of F5-187 × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VL1_HPV11
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–452； UniProt 20–470 Author chain C； PDBConstruct 2–452； UniProt 20–470 Author chain D； PDBConstruct 2–452； UniProt 20–470 Author chain E； PDBConstruct 2–452； UniProt 20–470 Author chain F； PDBConstruct 2–452； UniProt 20–470

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8yeg
Deposition date deposition_date	2024-02-22
Structure title title	HPV11 L1 pentamer in complex with Fab F5-187
Keywords keywords	HPV, L1, antibody, VIRAL PROTEIN, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8yeg__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8yeg__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

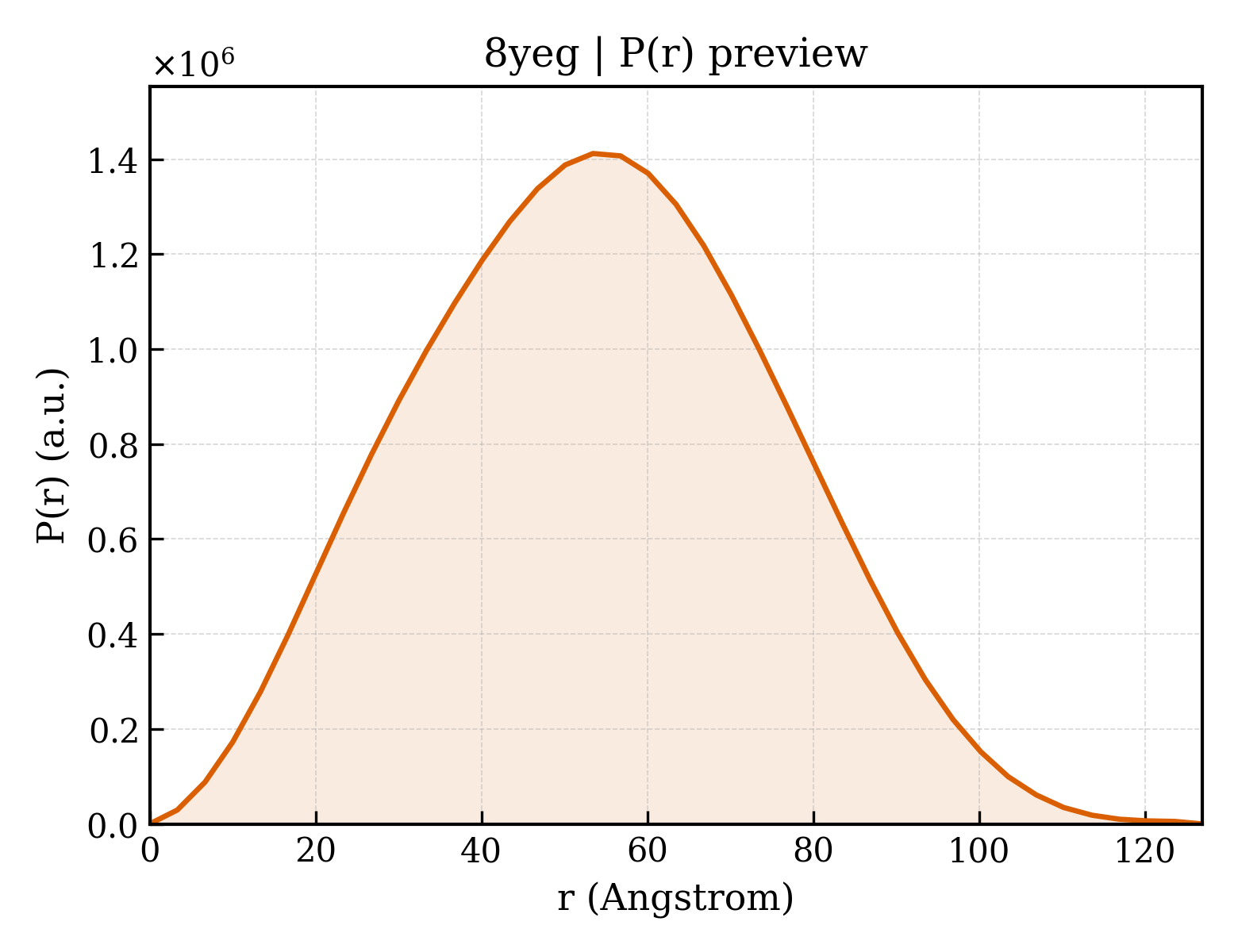

8yeg__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	41.32 Å
Rg (electron density)	40.76 Å
Total Rg	41.23 Å
Atom count	18221
Residues	2330
Excluded volume	322460 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8yeg__assembly_1__model_1`	heptameric （7）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	heavy chain of F5-187
Molecular weight formula_weight	13179.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	18221

EVQLLESGGGLVQPGGSLRLSCAASGLTFSSYAMSWVRQAPGKGLEWVSSISASGGSTYYADSVRGRFTISRDNSRTTLYLQMNILRAEDTAVYYCAKDRMGVRGSGWFDYWGQGTLVTVSS

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Major capsid protein L1
Molecular weight formula_weight	50384.6 kDa
Source method src_method	man
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,B,C,D,E

AVVATDAYVKRTNIFYHASSSRLLAVGHPYYSIKKVNKTVVPKVSGYQYRVFKVVLPDPNKFALPDSSLFDPTTQRLVWACTGLEVGRGQPLGVGVSGHPLLNKYDDVENSGGYGGNPGQDNRVNVGMDYKQTQLCMVGCAPPLGEHWGKGTQCSNTSVQNGDCPPLELITSVIQDGDMVDTGFGAMNFADLQTNKSDVPLDICGTVCKYPDYLQMAADPYGDRLFFYLRKEQMFARHFFNRAGTVGEPVPDDLLVKGGNNRSSVASSIYVHTPSGSLVSSEAQLFNKPYWLQKAQGHNNGICWGNHLFVTVVDTTRSTNMTLCASVSKSATYTNSDYKEYMRHVEEFDLQFIFQLCSITLSAEVMAYIHTMNPSVLEDWNFGLSPPPNGTLEDTYRYVQSQAITCQKPTPEKEKQDPYKDMSFWEVNLKEKFSSELDQFPLGRKFLLQSGY

Source Source

Source organism organism	human papillomavirus 11
NCBI taxonomy ID ncbi_taxonomy_id	10580
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	light chain of F5-187
Molecular weight formula_weight	12515.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

DIVMTQSPDSLAVSLGERATINCKSSQSILYSSSNKNYLAWYQQKPGQPPKLLIYWASTRESGVPDRFSGSGSGTDFTLTISSLLPEDVAVYYCQQYHSTPWTFGQGTKVEIK

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.10 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	216722
