8ygv

;F1 domain of Non-catalytic site depleted and epsilon C-terminal domain deleted FoF1-ATPase from Bacillus PS3,nucleotide depleted condition ;

Method: ELECTRON MICROSCOPY D_max: 137.4 Å Quality: GOOD

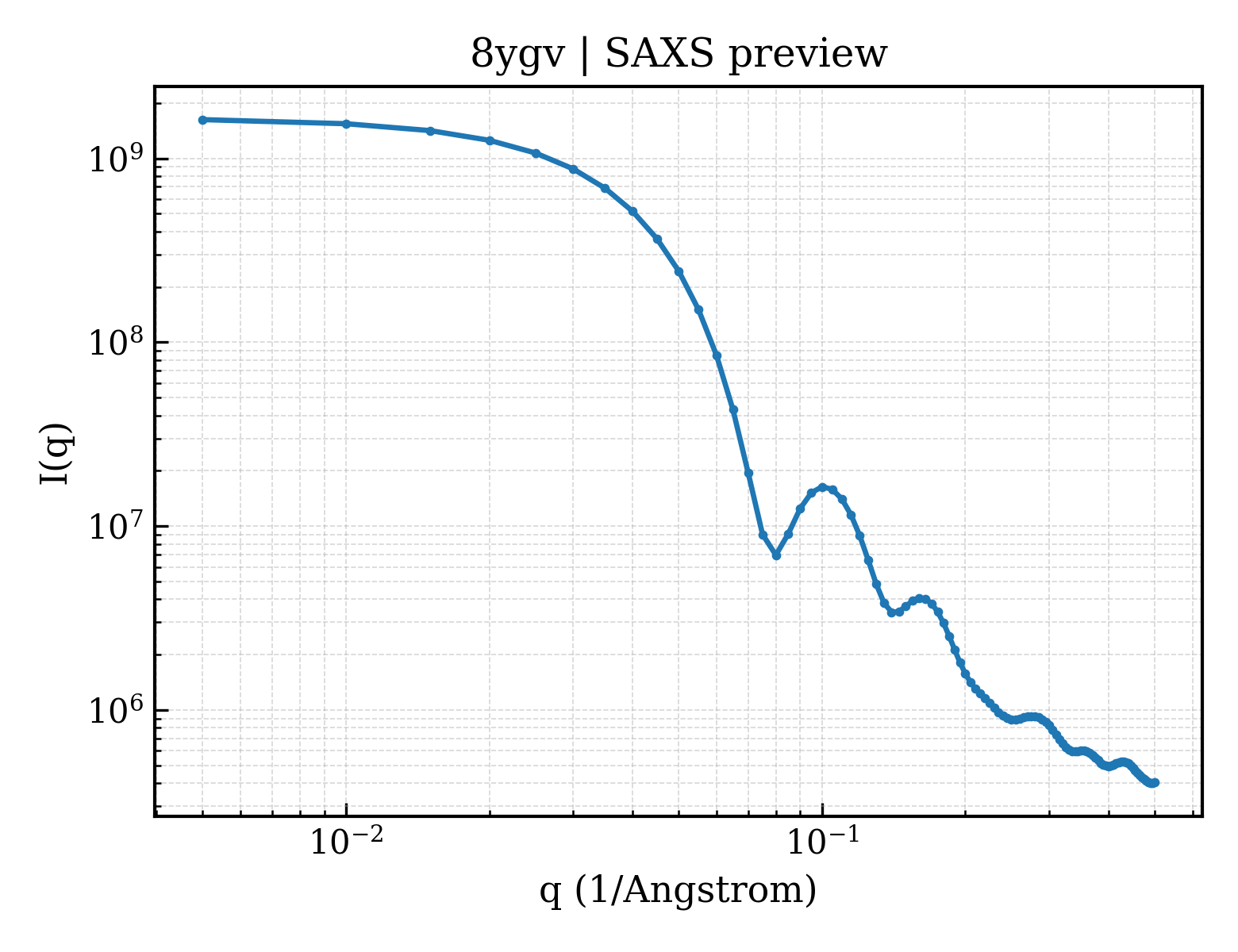

SAXS 散射曲线 SAXS Profile

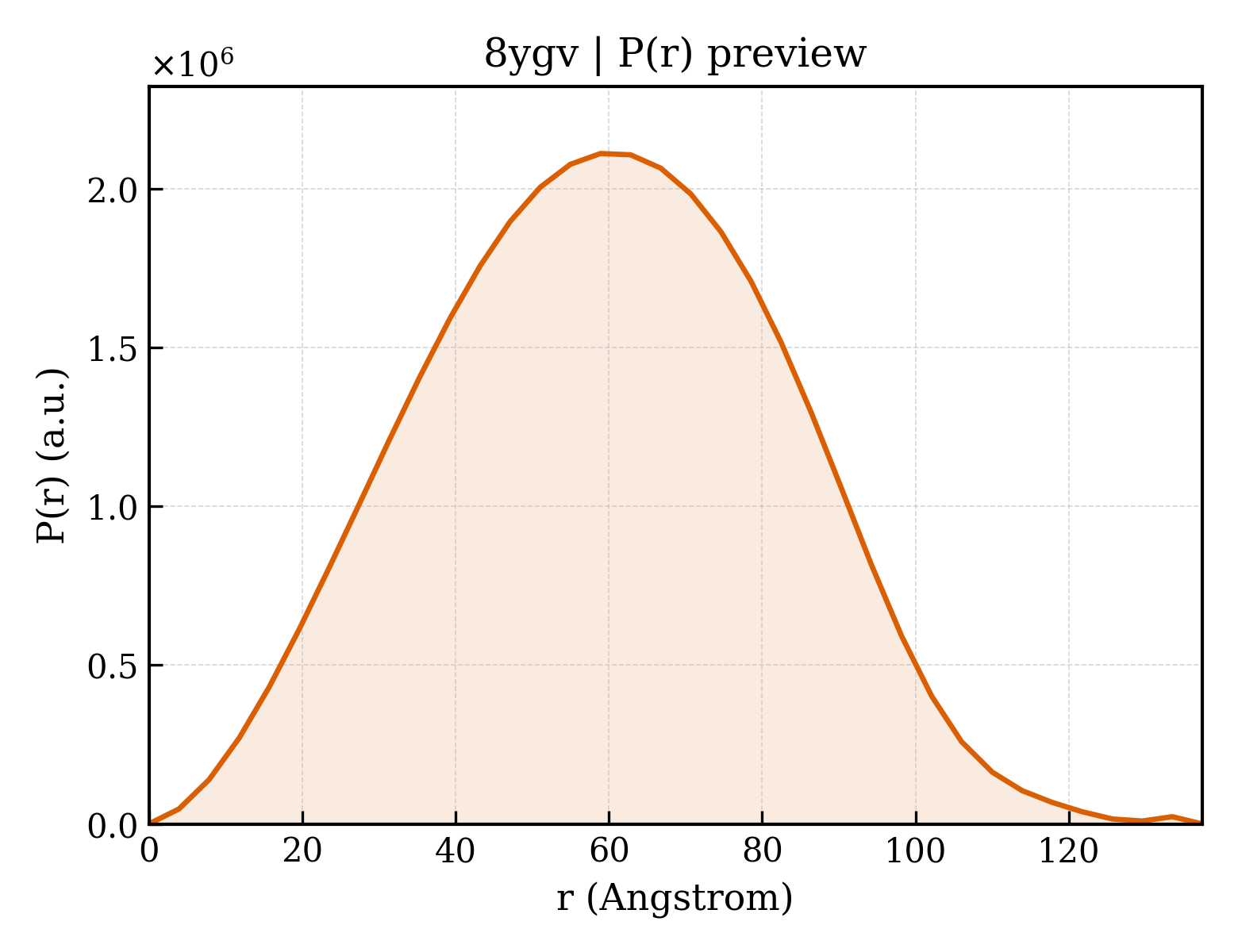

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8ygv
沉积日期 deposition_date	2024-02-27
结构标题 title	;F1 domain of Non-catalytic site depleted and epsilon C-terminal domain deleted FoF1-ATPase from Bacillus PS3,nucleotide depleted condition ;
关键词 keywords	Complex, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	45.45 Å
回转半径 Rg (电子) rg_electron	44.50 Å
零角强度 I(0) i0	1651020000.00
分子量 molecular_weight	341370.0 kDa
排除体积 excluded_volume	429410 Å³
包络体积 envelope_volume	592240 Å³
水化壳体积 shell_volume	104440 Å³
包络直径 envelope_diameter	154.1 Å
壳层 Rg shell_rg	54.46 Å
包络 Rg envelope_rg	43.43 Å
形状 Rg shape_rg	44.51 Å
总 Rg total_rg	44.85 Å
总原子数 total_atoms	24034
残基数 n_residues	3127
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	137.4 Å
Rg (实空间) rg_real	45.08 Å
Rg 误差 (实空间) rg_real_error	0.66 Å
I(0) (实空间) i0_real	1.6510e+09
I(0) 误差 (实空间) i0_real_error	2.8980e+07
Rg (倒空间) rg_reciprocal	45.44 Å
I(0) (倒空间) i0_reciprocal	1652000000.0000
解质量估计 total_estimate	0.8875
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	58.9 Å
偏度 Skewness skewness	0.049
峰度 Kurtosis kurtosis	-0.462
角度范围 angular_range	— – 0.1750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	319500000.0000
实空间数据点数 n_real_points	36
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.904; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.951; Smooth: 0.869

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	ATP synthase subunit alpha
分子量 formula_weight	54672.5 kDa
EC 编号 ec_number	7.1.2.2
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	24034

MSIRAEEISALIKQQIENYESQIQVSDVGTVIQVGDGIARAHGLDNVMSGELVEFANGVMGMALNLEENNVGIVILGPYTGIKEGDEVRRTGRIMEVPVGEALIGRVVNPLGQPVDGLGPVETTETRPIESPAPGVMDRRSVHEPLQTGIKAIDALVPIGRGQRELIIGDRQTGAASVAIDTIINQKDQNMISIYVAIGQKESTVRTVVETLRKHGALDYTIVVTASASQPAPLLFLAPYAGVAMGEYFMYKGKHVLVVYAALSKQAAAYRELSLLLRRPPGREAYPGDIFYLHSRLLERAAKLSDAKGGGSLTALPFVETQAGDISAYIPTNVISITDGQIFLQSDLFFSGVRPAINAGLSVSRVGGAAQIKAMKKVAGTLRLDLAAYRELEAFAQFGSDLDKATQAKLARGARTVEVLKQDLHQPIPVEKQVLIIYALTRGFLDDIPVEDVRRFEKEFYLFLDQNGQHLLEHIRTTKDLPNEDDLNKAIEAFKKTFVVSQ

来源 Source

来源生物 organism	Bacillus sp. PS3
NCBI 分类编号 ncbi_taxonomy_id	2334
宿主生物 host_organism	Escherichia coli K-12

Entity 2 polymer

描述 description	ATP synthase subunit beta
分子量 formula_weight	53424.6 kDa
EC 编号 ec_number	7.1.2.2
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,E,F

MHHHHHHHHHHMTRGRVIQVMGPVVDVKFENGHLPAIYNALKIQHKARNENEVDIDLTLEVALHLGDDTVRTIAMASTDGLIRGMEVIDTGAPISVPVGEVTLGRVFNVLGEPIDLEGDIPADARRDPIHRPAPKFEELATEVEILETGIKVVDLLAPYIKGGKIGLFGGAGVGKTVLIQELIHNIAQEHGGISVFAGVGERTREGNDLYHEMKDSGVISKTAMVFGQMNEPPGARMRVALTGLTMAEYFRDEQGQDVLLFIDNIFRFTQAGSEVSALLGRMPSAVGYQPTLATEMGQLQERITSTAKGSITSIQAIYVPADDYTDPAPATTFSHLDATTNLERKLAEMGIYPAVDPLASTSRALAPEIVGEEHYQVARKVQQTLQRYKELQDIIAILGMDELSDEDKLVVHRARRIQFFLSQNFHVAEQFTGQPGSYVPVKETVRGFKEILEGKYDHLPEDAFRLVGRIEEVVEKAKAMGVEV

来源 Source

来源生物 organism	Bacillus sp. PS3
NCBI 分类编号 ncbi_taxonomy_id	2334
宿主生物 host_organism	Escherichia coli K-12

Entity 3 polymer

描述 description	ATP synthase gamma chain
分子量 formula_weight	31859.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MASLRDIKTRINATKKTSQITKAMEMVSTSKLNRAEQNAKSFVPYMEKIQEVVANVALGAGGASHPMLVSRPVKKTGYLVITSDRGLAGAYNSNVLRLVYQTIQKRHASPDEYAIIVIGRVGLSFFRKRNMPVILDITRLPDQPSFADIKEIARKTVGLFADGTFDELYMYYNHYVSAIQQEVTERKLLPLTDLAENKQRTVYEFEPSQEEILDVLLPQYAESLIYGALLDAKASEHAARMTAMKNATDNANELIRTLTLSYNRARQAAITQEITEIVAGANALQ

来源 Source

来源生物 organism	Bacillus sp. PS3
NCBI 分类编号 ncbi_taxonomy_id	2334
宿主生物 host_organism	Escherichia coli K-12

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.30 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	66532

fit	/app/data/saxs_computation/yg/8ygv/8ygv.fit
pddf	/app/data/pr_computation/yg/8ygv/8ygv.pr.out
profile	/app/data/saxs_computation/yg/8ygv/8ygv.dat
