8yq0
Crystal structure of human phosphoribosyl pyrophosphate synthetase 1(PRPS1) chimera swapped with three residues from PRPS2

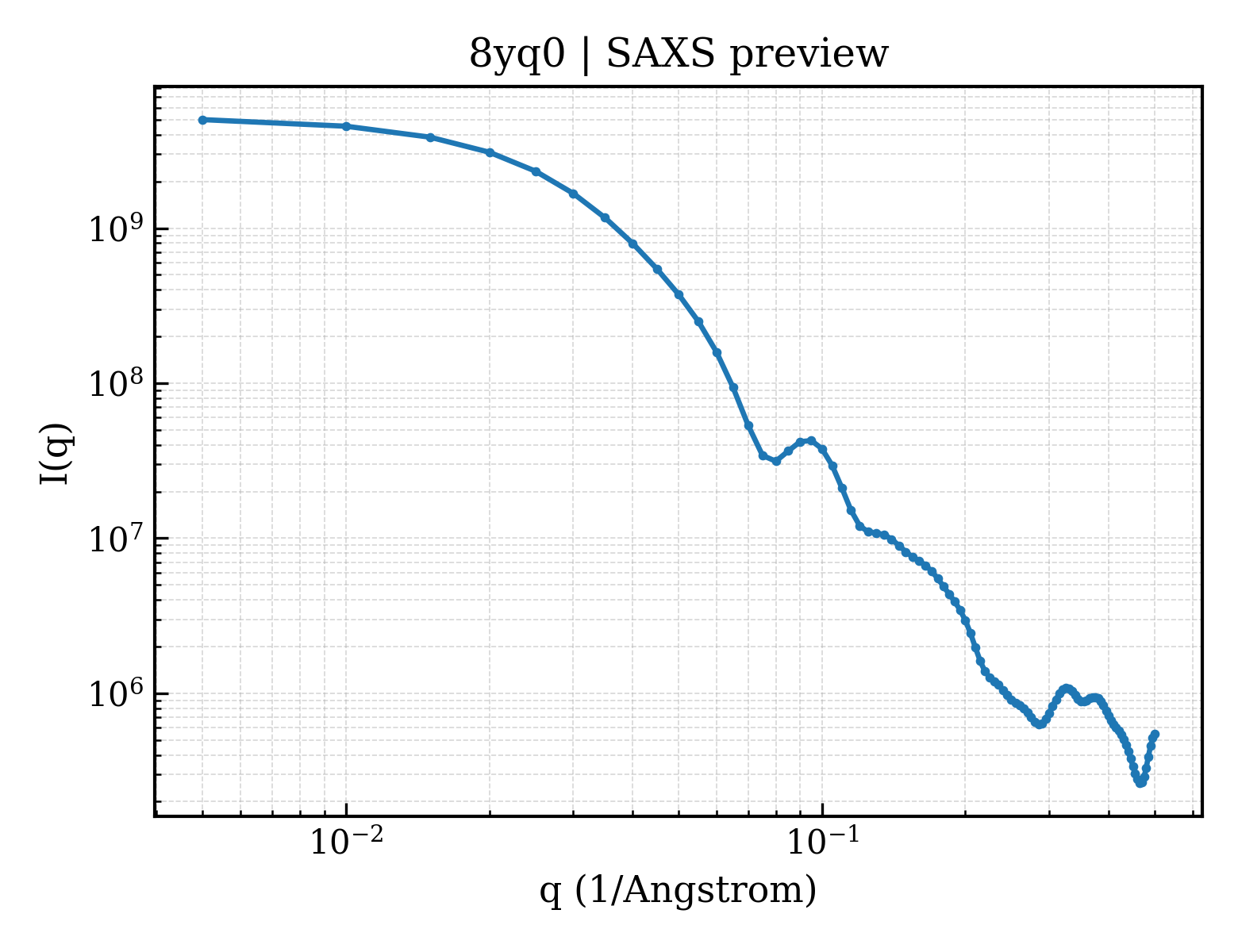

SAXS 散射曲线 SAXS Profile

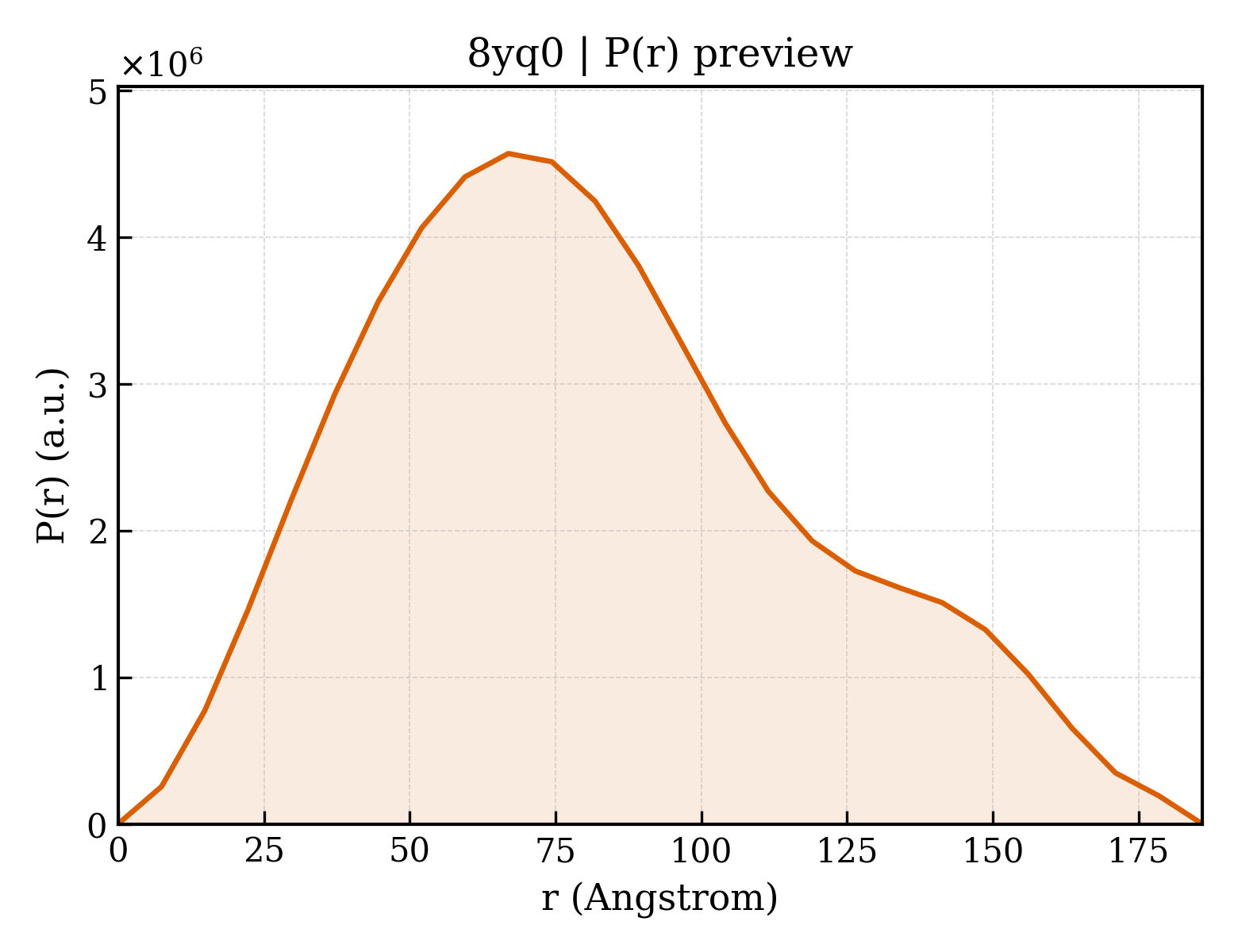

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 8yq0 |
| 沉积日期 deposition_date | 2024-03-18 |
| 结构标题 title | Crystal structure of human phosphoribosyl pyrophosphate synthetase 1(PRPS1) chimera swapped with three residues from PRPS2 |
| 关键词 keywords | Purine biosynthesis, BIOSYNTHETIC PROTEIN; BIOSYNTHETIC PROTEIN |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 62.46 Å |
| 回转半径 Rg (电子) rg_electron | 62.46 Å |
| 零角强度 I(0) i0 | 5176800000.00 |
| 分子量 molecular_weight | 603410.0 kDa |
| 排除体积 excluded_volume | 755150 ų |
| 包络体积 envelope_volume | 1040600 ų |
| 水化壳体积 shell_volume | 138210 ų |
| 包络直径 envelope_diameter | 200.5 Å |
| 壳层 Rg shell_rg | 62.77 Å |
| 包络 Rg envelope_rg | 61.60 Å |
| 形状 Rg shape_rg | 62.45 Å |
| 总 Rg total_rg | 62.52 Å |
| 总原子数 total_atoms | 42223 |
| 残基数 n_residues | 5533 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 185.9 Å |
| Rg (实空间) rg_real | 62.65 Å |
| Rg 误差 (实空间) rg_real_error | 1.04 Å |
| I(0) (实空间) i0_real | 5.1770e+09 |
| I(0) 误差 (实空间) i0_real_error | 1.0210e+08 |
| Rg (倒空间) rg_reciprocal | 62.25 Å |
| I(0) (倒空间) i0_reciprocal | 5173000000.0000 |
| 解质量估计 total_estimate | 0.8332 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 66.9 Å |
| 偏度 Skewness skewness | 0.429 |
| 峰度 Kurtosis kurtosis | -0.447 |
| 角度范围 angular_range | — – 0.1250 Å−1 |
| 当前正则化参数 α current_alpha | 0.0002 |
| 最高正则化参数 α highest_alpha | 585600000.0000 |
| 实空间数据点数 n_real_points | 26 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.942; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.001 |
