1. Protein Identity and Related Structures Protein Identity & Related Structures

Interferon regulatory factor 2-binding protein 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 497–578	Fragment：RING domain	Zinc finger and BTB domain-containing protein 16 × 1 （Q05516） ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M potassium thiocyanate and 30% (w/v) PEG MME 2000	Resolution 2.40 Å R-free 0.281

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8YTH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8YTF Crystal structures of human IRF2BP2 RING domain in complex with VGLL4 peptide Deposited 2024-03-25	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 497–578（82 aa） Fragment：RING domain	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20% 2-proponal, 0.1 M MES (pH 6.0) and 20% (w/v) PEG MME 2000	Resolution 1.59 Å R-free 0.173
8YTG Crystal structures of human IRF2BP2 RING domain in complex with IRF2 peptide Deposited 2024-03-25	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 497–578（82 aa） Fragment：RING domain	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2.5 M ammonium sulfate and 0.1 M sodium acetate (pH 4.6)	Resolution 1.45 Å R-free 0.189

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	I2BP2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–83； UniProt 497–578

Zinc finger and BTB domain-containing protein 16

OrganismNot specified

UniProt Q05516

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 285–292	Not recorded	Interferon regulatory factor 2-binding protein 2 × 1 （Q7Z5L9） ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M potassium thiocyanate and 30% (w/v) PEG MME 2000	Resolution 2.40 Å R-free 0.281

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8YTH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BUO BTB DOMAIN FROM PLZF Deposited 1998-09-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 6–126（121 aa） Fragment：BTB DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；0.15 M CACL2, 0.1 M HEPES (PH 7.5), 4% ISOPROPANOL,	Resolution 1.90 Å R-free 0.252
1CS3 STRUCTURE OF BTB/POZ TRANSCRIPTION REPRESSION DOMAIN FROM PROMELOCYTIC LEUKEMIA ZINC FINGER ONCOPROTEIN Deposited 1999-08-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 7–122（116 aa） Fragment：BTB/POZ	Not recorded	MG MAGNESIUM ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；VAPOR DIFFUSION BY 8% ISOPROPANOL, 600mM MAGNESIUM CHLORIDE, 50mM HEPES 7.5 and 50mM TRIS 8.5, pH 8.00	Resolution 2.00 Å R-free 0.272
1CS3 STRUCTURE OF BTB/POZ TRANSCRIPTION REPRESSION DOMAIN FROM PROMELOCYTIC LEUKEMIA ZINC FINGER ONCOPROTEIN Deposited 1999-08-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 7–122（116 aa） Fragment：BTB/POZ	Not recorded	MG MAGNESIUM ION × 2 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8；VAPOR DIFFUSION BY 8% ISOPROPANOL, 600mM MAGNESIUM CHLORIDE, 50mM HEPES 7.5 and 50mM TRIS 8.5, pH 8.00	Resolution 2.00 Å R-free 0.272

2 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ZBT16_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–8； UniProt 285–292

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8yth
Deposition date deposition_date	2024-03-25
Structure title title	Crystal structures of human IRF2BP2 RING domain in complex with ZBTB16 peptide
Keywords keywords	IRF2BP2, RING domain, ZBTB16, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	12.41 Å
Radius of gyration Rg (electron density) rg_electron	11.16 Å
Forward intensity I(0) i0	1669610.00
Molecular weight molecular_weight	8208.0 kDa
Excluded volume excluded_volume	9993 Å³
Envelope volume envelope_volume	10734 Å³
Hydration-shell volume shell_volume	8421 Å³
Envelope diameter envelope_diameter	38.4 Å
Shell Rg shell_rg	16.48 Å
Envelope Rg envelope_rg	11.48 Å
Shape Rg shape_rg	11.17 Å
Total Rg total_rg	12.44 Å
Total atoms total_atoms	560
Residues n_residues	76
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	39.7 Å
Rg (real space) rg_real	12.33 Å
Rg uncertainty (real space) rg_real_error	0.29 Å
I(0) (real space) i0_real	1.6700e+06
I(0) uncertainty (real space) i0_real_error	1.7420e+04
Rg (reciprocal space) rg_reciprocal	12.33 Å
I(0) (reciprocal space) i0_reciprocal	1670000.0000
Solution quality estimate total_estimate	0.8846
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	15.6 Å
Skewness Skewness skewness	0.112
Kurtosis Kurtosis kurtosis	-0.340
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	190100.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.850; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.952

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Interferon regulatory factor 2-binding protein 2
Molecular weight formula_weight	8867.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	561

GSLATSAPLCCTLCHERLEDTHFVQCPSVPSHKFCFPCSRQSIKQQGASGEVYCPSGEKCPLVGSNVPWAFMQGEIATILAGD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Zinc finger and BTB domain-containing protein 16
Molecular weight formula_weight	820.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

RSSVITSA

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	47.315 Å
Unit-cell length b length_b	47.315 Å
Unit-cell length c length_c	57.489 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 64
Space-group number int_tables_number	172
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	33.370 Å
R factor r_factor	0.2447
R_work r_work	0.2430
R_free r_free	0.2807

fit	/app/data/saxs_computation/yt/8yth/8yth.fit
pddf	/app/data/pr_computation/yt/8yth/8yth.pr.out
profile	/app/data/saxs_computation/yt/8yth/8yth.dat

Crystal structures of human IRF2BP2 RING domain in complex with ZBTB16 peptide

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interferon regulatory factor 2-binding protein 2

State in the Current Structure

Other States of the Same Protein in the Database

Zinc finger and BTB domain-containing protein 16

State in the Current Structure

Other States of the Same Protein in the Database

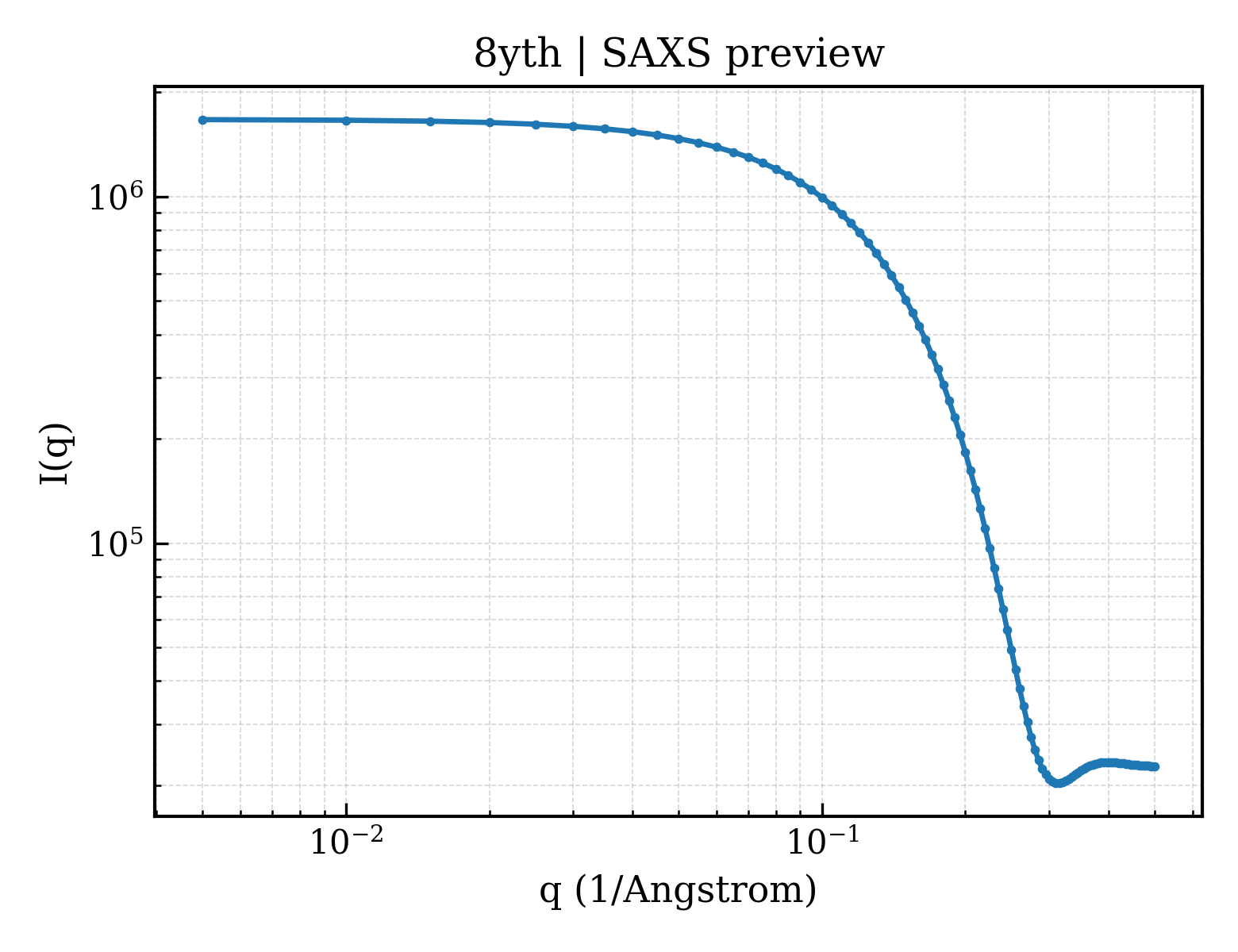

SAXS scattering curve SAXS Profile
