1. Protein Identity and Related Structures Protein Identity & Related Structures

Interferon regulatory factor 2-binding protein 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 497–578	Fragment：RING domain	Transcription cofactor vestigial-like protein 4 × 1 （Q14135） ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；20% 2-proponal, 0.1 M MES (pH 6.0) and 20% (w/v) PEG MME 2000	Resolution 1.59 Å R-free 0.173

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8YTF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8YTG Crystal structures of human IRF2BP2 RING domain in complex with IRF2 peptide Deposited 2024-03-25	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 497–578（82 aa） Fragment：RING domain	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2.5 M ammonium sulfate and 0.1 M sodium acetate (pH 4.6)	Resolution 1.45 Å R-free 0.189
8YTH Crystal structures of human IRF2BP2 RING domain in complex with ZBTB16 peptide Deposited 2024-03-25	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 497–578（82 aa） Fragment：RING domain	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M potassium thiocyanate and 30% (w/v) PEG MME 2000	Resolution 2.40 Å R-free 0.281

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	I2BP2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–83； UniProt 497–578

Transcription cofactor vestigial-like protein 4

OrganismNot specified

UniProt Q14135

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 161–168	Not recorded	Interferon regulatory factor 2-binding protein 2 × 1 （Q7Z5L9） ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；20% 2-proponal, 0.1 M MES (pH 6.0) and 20% (w/v) PEG MME 2000	Resolution 1.59 Å R-free 0.173

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	VGLL4_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–8； UniProt 161–168

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ytf
Deposition date deposition_date	2024-03-25
Structure title title	Crystal structures of human IRF2BP2 RING domain in complex with VGLL4 peptide
Keywords keywords	IRF2BP2, RING domain, VGLL4, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	13.98 Å
Radius of gyration Rg (electron density) rg_electron	12.76 Å
Forward intensity I(0) i0	2117600.00
Molecular weight molecular_weight	9464.0 kDa
Excluded volume excluded_volume	11586 Å³
Envelope volume envelope_volume	12989 Å³
Hydration-shell volume shell_volume	9185 Å³
Envelope diameter envelope_diameter	49.4 Å
Shell Rg shell_rg	17.80 Å
Envelope Rg envelope_rg	13.33 Å
Shape Rg shape_rg	12.66 Å
Total Rg total_rg	14.14 Å
Total atoms total_atoms	648
Residues n_residues	86
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	51.4 Å
Rg (real space) rg_real	14.00 Å
Rg uncertainty (real space) rg_real_error	0.47 Å
I(0) (real space) i0_real	2.1180e+06
I(0) uncertainty (real space) i0_real_error	2.4820e+04
Rg (reciprocal space) rg_reciprocal	14.00 Å
I(0) (reciprocal space) i0_reciprocal	2118000.0000
Solution quality estimate total_estimate	0.8134
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	16.3 Å
Skewness Skewness skewness	0.458
Kurtosis Kurtosis kurtosis	0.190
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	261900.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.562; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.913; Smooth: 0.972

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Interferon regulatory factor 2-binding protein 2
Molecular weight formula_weight	8867.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	776

GSLATSAPLCCTLCHERLEDTHFVQCPSVPSHKFCFPCSRQSIKQQGASGEVYCPSGEKCPLVGSNVPWAFMQGEIATILAGD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Transcription cofactor vestigial-like protein 4
Molecular weight formula_weight	847.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

RPSVITCA

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	128

▶

8. Citations (1)

▶

Unit-cell length a length_a	33.372 Å
Unit-cell length b length_b	43.209 Å
Unit-cell length c length_c	55.761 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.590 Å
Low-resolution limit resolution_low	23.430 Å
R factor r_factor	0.1536
R_work r_work	0.1527
R_free r_free	0.1727

fit	/app/data/saxs_computation/yt/8ytf/8ytf.fit
pddf	/app/data/pr_computation/yt/8ytf/8ytf.pr.out
profile	/app/data/saxs_computation/yt/8ytf/8ytf.dat

Crystal structures of human IRF2BP2 RING domain in complex with VGLL4 peptide

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interferon regulatory factor 2-binding protein 2

State in the Current Structure

Other States of the Same Protein in the Database

Transcription cofactor vestigial-like protein 4

State in the Current Structure

Other States of the Same Protein in the Database

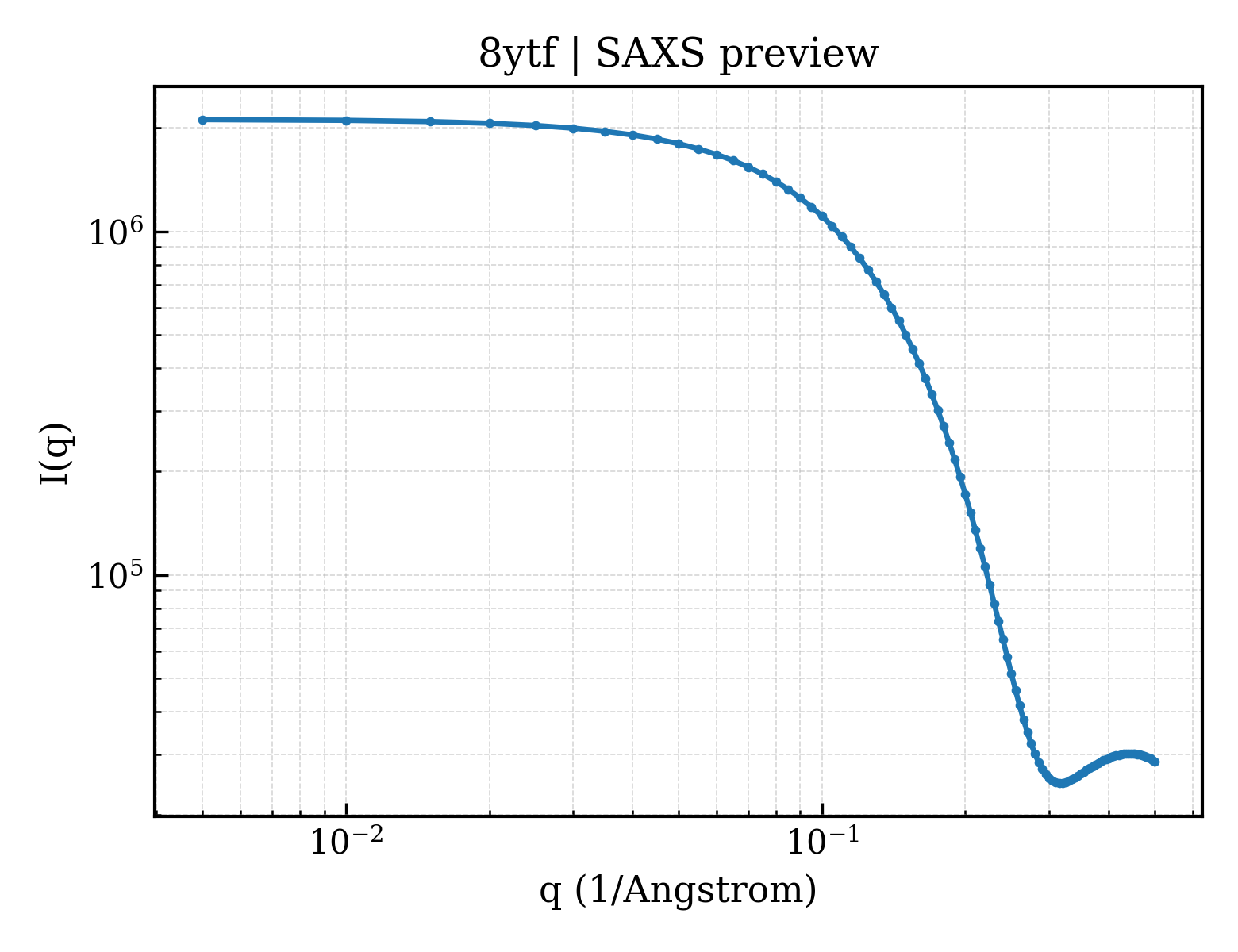

SAXS scattering curve SAXS Profile

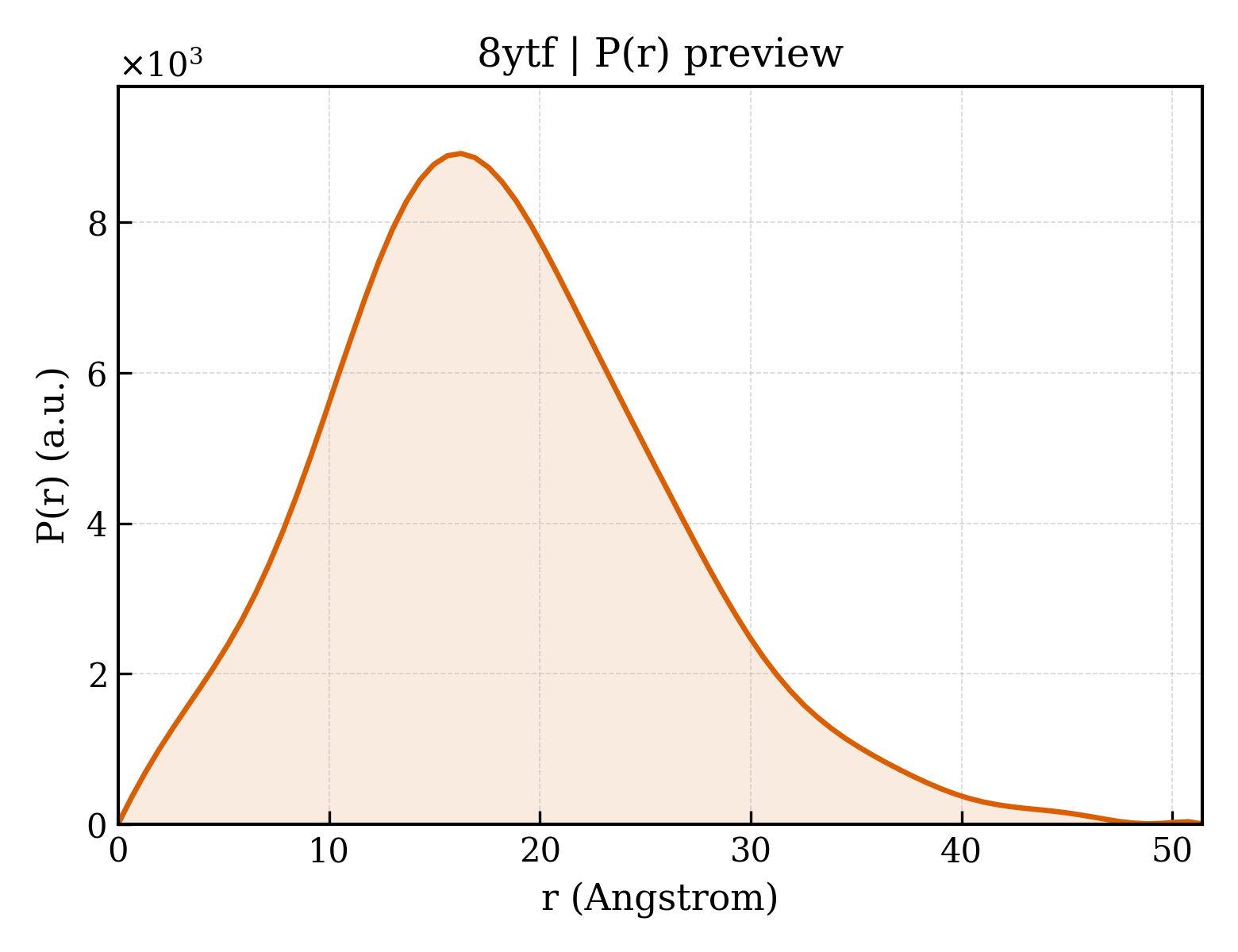

P(r) Distance Distribution P(r) Distribution
