1. Protein Identity and Related Structures Protein Identity & Related Structures

Sonic hedgehog protein N-product

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 29–197	Not recorded	Heavy chain of antibody 5E1 × 1 Light chain of antibody 5E1 × 1 GOL GLYCEROL × 1 NO3 NITRATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293.15 K；200mM KNO3, 20% PEG 3350	Resolution 1.75 Å R-free 0.207

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8Z3A	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3HO5 Crystal structure of Hedgehog-interacting protein (HHIP) and Sonic hedgehog (SHH) complex Deposited 2009-06-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 29–197（169 aa） Fragment：UNP residues 29-197	Not recorded	ZN ZINC ION × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；292 K；0.1 M bis-Tris propane pH 7.0 and 2.2-2.5 M sodium formate, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 3.01 Å R-free 0.287
3M1N Crystal structure of Human Sonic Hedgehog N-terminal domain Deposited 2010-03-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 23–197（175 aa） Fragment：Sonic hedgehog protein N-product	Mutation：A23I, C24I	ZN ZINC ION × 1 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；273 K；21-24% PEG 4000, 200 mM LiSO4, and 100 mM Tris, pH = 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 1.85 Å R-free 0.260
3M1N Crystal structure of Human Sonic Hedgehog N-terminal domain Deposited 2010-03-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 23–197（175 aa） Fragment：Sonic hedgehog protein N-product	Mutation：A23I, C24I	ZN ZINC ION × 1 SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；273 K；21-24% PEG 4000, 200 mM LiSO4, and 100 mM Tris, pH = 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 1.85 Å R-free 0.260
3MXW Crystal structure Sonic hedgehog bound to the 5E1 fab fragment Deposited 2010-05-07	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 29–197（169 aa）	Not recorded	ZN ZINC ION × 1 CA CALCIUM ION × 2 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；292 K；protein solution (20 mM Hepes, pH 7.2, 0.1 M NaCl, 5 mM CaCl2) was mixed with equal volume of well solution (0.2 M lithium sulfate, 100 mM Hepes, pH 7.5, and 22% w/v PEG 4000), VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 1.83 Å R-free 0.218
6DMY Cryo-EM structure of human Ptch1 and ShhN complex Deposited 2018-06-05	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 24–197（174 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 Y01 CHOLESTEROL HEMISUCCINATE × 2 SER SERINE × 1 ZN ZINC ION × 1 CA CALCIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
6E1H Structure of 2:1 human Ptch1-Shh-N complex Deposited 2018-07-09	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 24–197（174 aa）	Not recorded	ZN ZINC ION × 1 CA CALCIUM ION × 2 PLM PALMITIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7	Resolution 3.50 Å
6N7G Cryo-EM structure of tetrameric Ptch1 in complex with ShhNp (form I) Deposited 2018-11-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 24–197（174 aa） Chain F 24–197（174 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 20 CLR CHOLESTEROL × 10 ZN ZINC ION × 2 CA CALCIUM ION × 4 PLM PALMITIC ACID × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.80 Å
6N7H Cryo-EM structure of the 2:1 hPtch1-Shhp complex Deposited 2018-11-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 24–197（174 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 10 CLR CHOLESTEROL × 5 ZN ZINC ION × 1 CA CALCIUM ION × 2 PLM PALMITIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
6N7K Cryo-EM structure of tetrameric Ptch1 in complex with ShhNp (form II) Deposited 2018-11-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 24–197（174 aa） Chain F 24–197（174 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 20 CLR CHOLESTEROL × 10 ZN ZINC ION × 2 CA CALCIUM ION × 4 PLM PALMITIC ACID × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.50 Å
6OEV Structure of human Patched1 in complex with native Sonic Hedgehog Deposited 2019-03-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 23–197（175 aa） Fragment：residues 24-197	Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7	Resolution 3.80 Å
6PJV Structure of Human Sonic Hedgehog in complex with Zinc and Magnesium Deposited 2019-06-28	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 29–197（169 aa）	Not recorded	DMS DIMETHYL SULFOXIDE × 3 GOL GLYCEROL × 1 MG MAGNESIUM ION × 2 ZN ZINC ION × 1 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；24% (w/v) polyethylene glycol 8000, 0.10 M TRIS pH 7.0, and 0.24 M MgCl2	Resolution 1.43 Å R-free 0.139
6RMG Structure of PTCH1 bound to a modified Hedgehog ligand ShhN-C24II Deposited 2019-05-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 21–197（177 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 Y01 CHOLESTEROL HEMISUCCINATE × 11 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
6RVD Revised cryo-EM structure of the human 2:1 Ptch1-Shh complex Deposited 2019-05-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 24–197（174 aa）	Not recorded	CLR CHOLESTEROL × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 PLM PALMITIC ACID × 1 ZN ZINC ION × 1 CA CALCIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；20 mM Hepes pH 7.5, 150 mM NaCl, 0.06% Digitonin, 1mM CaCl2. cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7E2I Cryo-EM structure of hDisp1NNN-ShhN Deposited 2021-02-05	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 1–462（462 aa）	Not recorded	ZN ZINC ION × 1 Y01 CHOLESTEROL HEMISUCCINATE × 7 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.07 Å
7MHZ Human Hedgehog acyltransferase (HHAT) in complex with a palmitoylated Hedgehog peptide product and a Fab antibody fragment Deposited 2021-04-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 24–31（8 aa） Fragment：UNP residues 24-31	Not recorded	PLM PALMITIC ACID × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 PKZ Palmitoyl-CoA × 3 AJP Digitonin × 10	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7RHQ Cryo-EM structure of Xenopus Patched-1 in complex with GAS1 and Sonic Hedgehog Deposited 2021-07-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 24–197（174 aa）	Not recorded	CLR CHOLESTEROL × 2 Y01 CHOLESTEROL HEMISUCCINATE × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ZN ZINC ION × 1 CA CALCIUM ION × 2 PLM PALMITIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.53 Å
8YYZ Crystal structure of Sonic hedgehog in complex with antibody 5E1 mutant H-R102A in the absence of metals Deposited 2024-04-04	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 29–197（169 aa）	Not recorded	CL CHLORIDE ION × 5 GOL GLYCEROL × 1 IOD IODIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.2M Ammonium iodide, 20% w/v Polyethylene glycol 3350	Resolution 1.90 Å R-free 0.222
8Z2V Crystal structure of Sonic hedgehog in complex with antibody 5E1 mutant H-R102A with metals Deposited 2024-04-13	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 29–197（169 aa）	Not recorded	CL CHLORIDE ION × 1 ZN ZINC ION × 1 CA CALCIUM ION × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；200mM MgCl2, 20% PEG 3350	Resolution 1.89 Å R-free 0.225
8Z39 Crystal structure of Sonic hedgehog in complex with antibody 5E1 mutant L-T56A with metals Deposited 2024-04-14	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 29–197（169 aa）	Not recorded	CA CALCIUM ION × 2 ZN ZINC ION × 1 CL CHLORIDE ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；200mM NaCl, 20% PEG 3350	Resolution 1.80 Å R-free 0.208

18 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SHH_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–169； UniProt 29–197

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8z3a
Deposition date deposition_date	2024-04-15
最后修订 last_revision	2025-04-16
Structure title title	Crystal structure of Sonic hedgehog in complex with antibody 5E1 without metals
Keywords keywords	Sonic hedgehog protein (SHH), antibody, flexible/fluctuated epitope, affinity improvement, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	28.88 Å
Radius of gyration Rg (electron density) rg_electron	28.51 Å
Forward intensity I(0) i0	66544300.00
Molecular weight molecular_weight	63507.0 kDa
Excluded volume excluded_volume	79155 Å³
Envelope volume envelope_volume	97782 Å³
Hydration-shell volume shell_volume	29902 Å³
Envelope diameter envelope_diameter	99.6 Å
Shell Rg shell_rg	34.42 Å
Envelope Rg envelope_rg	28.26 Å
Shape Rg shape_rg	28.46 Å
Total Rg total_rg	29.23 Å
Total atoms total_atoms	4477
Residues n_residues	574
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	94.5 Å
Rg (real space) rg_real	29.01 Å
Rg uncertainty (real space) rg_real_error	0.76 Å
I(0) (real space) i0_real	6.6540e+07
I(0) uncertainty (real space) i0_real_error	1.0930e+06
Rg (reciprocal space) rg_reciprocal	28.96 Å
I(0) (reciprocal space) i0_reciprocal	66540000.0000
Solution quality estimate total_estimate	0.8663
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	92.8 Å
Skewness Skewness skewness	0.475
Kurtosis Kurtosis kurtosis	-0.282
Angular range angular_range	— – 0.2750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	12920000.0000
Real-space data points n_real_points	56
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.880; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.898; Smooth: 0.718

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Sonic hedgehog protein N-product
Molecular weight formula_weight	19122.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5139

GFGKRRHPKKLTPLAYKQFIPNVAEKTLGASGRYEGKISRNSERFKELTPNYNPDIIFKDEENTGADRLMTQRCKDKLNALAISVMNQWPGVKLRVTEGWDEDGHHSEESLHYEGRAVDITTSDRDRSKYGMLARLAVEAGFDWVYYESKAHIHCSVKAENSVAAKSGG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Heavy chain of antibody 5E1
Molecular weight formula_weight	26318.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

QVQLQQSGPELVRPGVSVKISCKGSGYTFIDEALHWVKQSHAESLEWIGVIRPYSGETNYNQKFKDKATMTVDISSSTAYLELARLTSEDSAIYYCARDWERGDFFDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKEQKLISEEDLNSAVDHHHHHH

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Light chain of antibody 5E1
Molecular weight formula_weight	26008.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

DIVMTQTPKFLLVSAGDKVTITCKASQSVSNDLTWYQQKPGQSPKLLIYYASNRYTGVPDRFTGSGYGTDFTFTISTVQAEDLAVYFCQQDYGSPPTFGGGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGECEQKLISEEDLNSAVDHHHHHH

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	NITRATE ION
Molecular weight formula_weight	62.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	572

▶

8. Citations (1)

▶

Unit-cell length a length_a	69.370 Å
Unit-cell length b length_b	83.990 Å
Unit-cell length c length_c	126.850 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.750 Å
Low-resolution limit resolution_low	50.670 Å
R factor r_factor	0.1768
R_work r_work	0.1755
R_free r_free	0.2074

fit	/app/data/saxs_computation/z3/8z3a/8z3a.fit
pddf	/app/data/pr_computation/z3/8z3a/8z3a.pr.out
profile	/app/data/saxs_computation/z3/8z3a/8z3a.dat

Crystal structure of Sonic hedgehog in complex with antibody 5E1 without metals

1. Protein Identity and Related Structures Protein Identity & Related Structures

Sonic hedgehog protein N-product

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

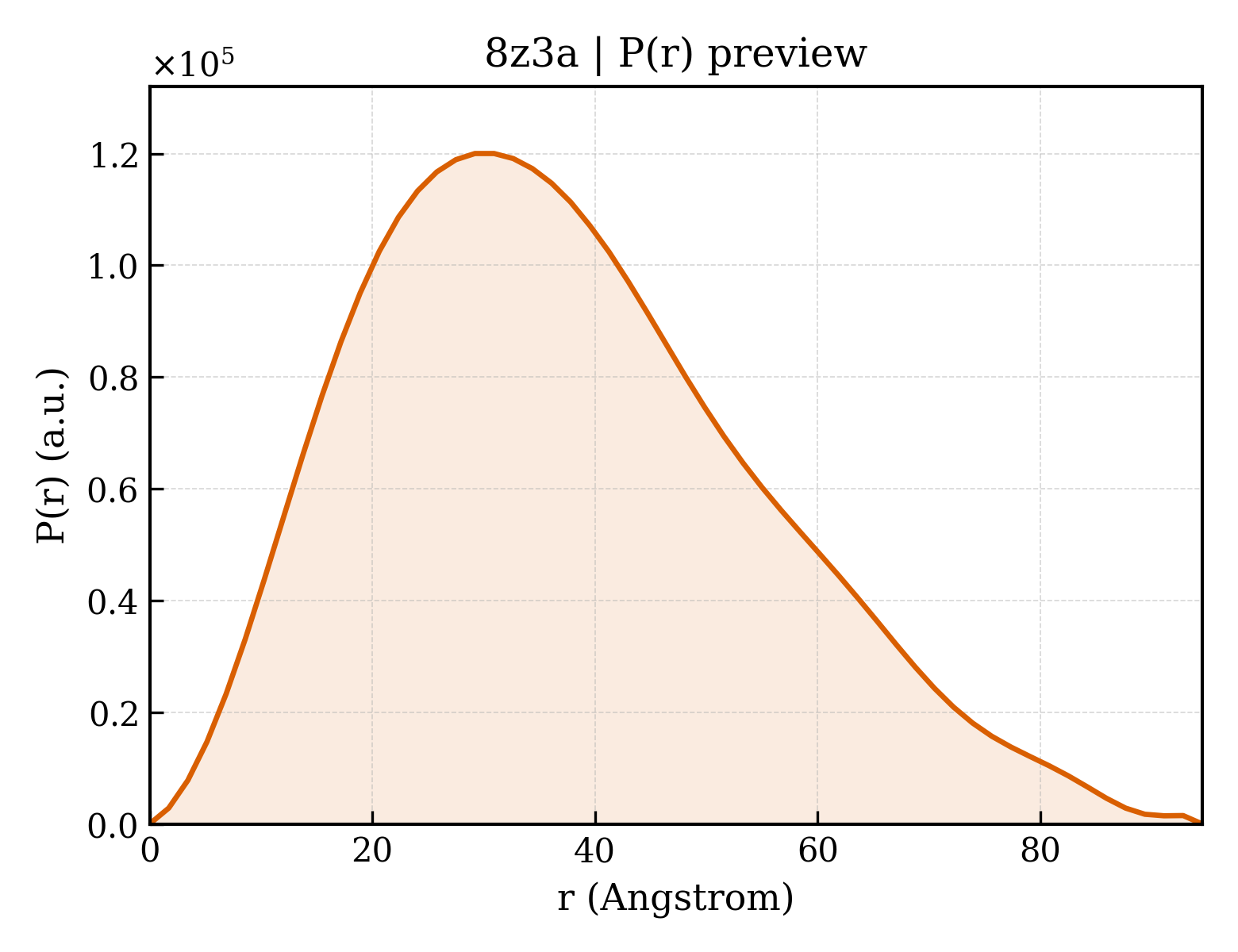

P(r) Distance Distribution P(r) Distribution
