8z3h

Benzbromarone interferes with the interaction between Hsp90 and Aha1 by interacting with both of them

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Activator of 90 kDa heat shock protein ATPase homolog 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AHSA1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–132； UniProt 204–335

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8z3h
Deposition date deposition_date	2024-04-15
Structure title title	Benzbromarone interferes with the interaction between Hsp90 and Aha1 by interacting with both of them
Keywords keywords	Holdase, activator of HSP90, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8z3h__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8z3h__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

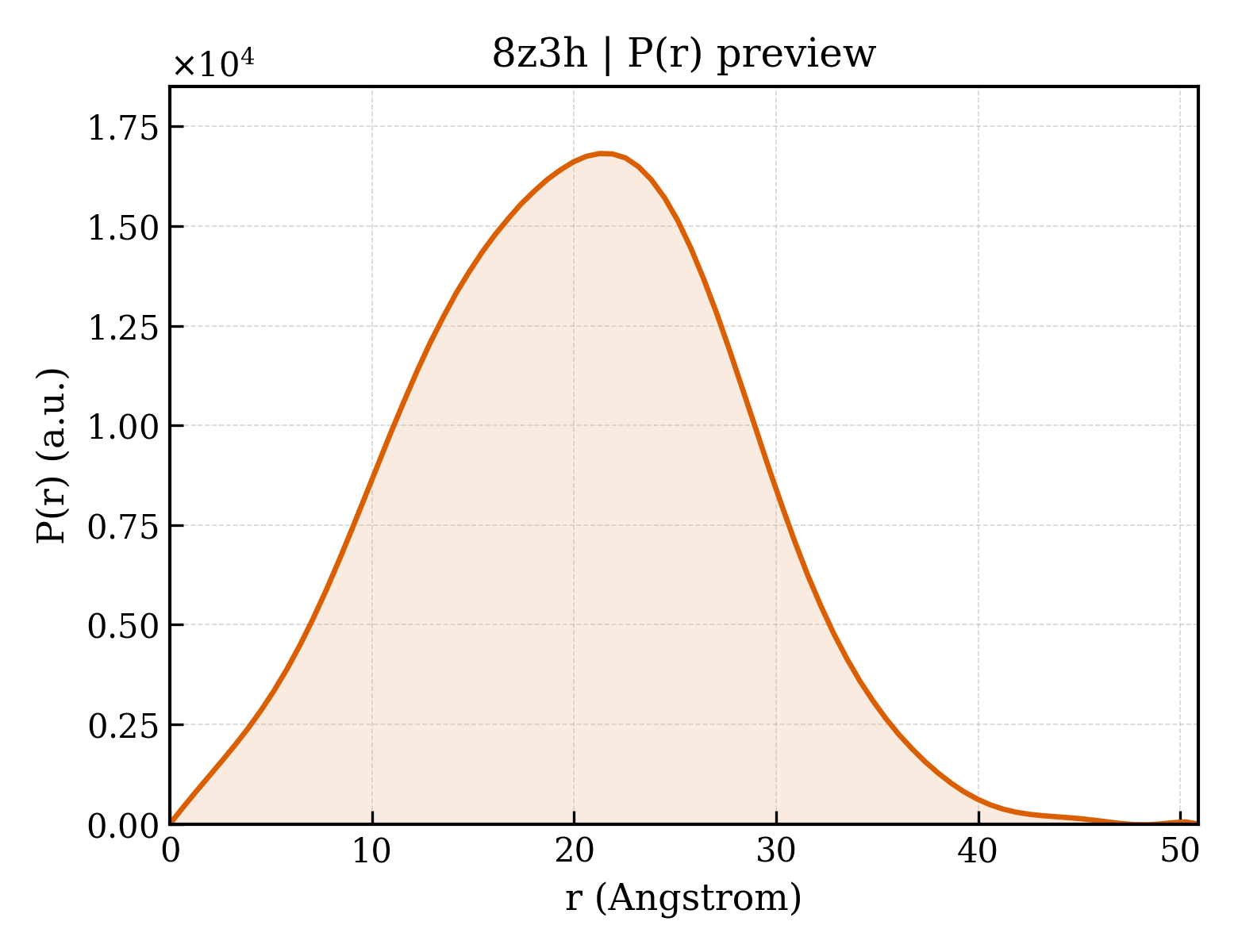

8z3h__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	15.38 Å
Rg (electron density)	13.87 Å
Total Rg	15.13 Å
Atom count	1070
Residues	132
Excluded volume	18995 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8z3h__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▶

Unit-cell length a length_a	54.200 Å
Unit-cell length b length_b	66.340 Å
Unit-cell length c length_c	68.270 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	I 2 2 2
Space-group number int_tables_number	23
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	42.450 Å
R factor r_factor	0.1806
R_work r_work	0.1785
R_free r_free	0.2185

Description description	Activator of 90 kDa heat shock protein ATPase homolog 1
Molecular weight formula_weight	15185.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1140

Benzbromarone interferes with the interaction between Hsp90 and Aha1 by interacting with both of them

1. Protein Identity and Related Structures Protein Identity & Related Structures

Activator of 90 kDa heat shock protein ATPase homolog 1

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

8z3h__assembly_1__model_1

8z3h__assembly_1__model_1 | I(q)

8z3h__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

7. Citations (1)

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Eschenbachia

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	70
