SAXSdb — 8zq7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Fusion glycoprotein F0,Fibritin

Enterobacteria phage T6

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 458–484 Chain C； UniProt 458–484 Chain F； UniProt 458–484	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；291 K；8% Tacsimate pH6.0+20% PEG 3350	Resolution 2.77 Å R-free 0.242
2	Insufficient information Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 458–484 Chain D； UniProt 458–484 Chain E； UniProt 458–484	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；291 K；8% Tacsimate pH6.0+20% PEG 3350	Resolution 2.77 Å R-free 0.242

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8ZQ7	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8WLU Cryo-EM structure of bat RsSHC014 spike glycoprotein Deposited 2023-10-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 458–483（26 aa） Chain B 458–483（26 aa） Chain C 458–483（26 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.87 Å
8WLY Cryo-EM structure of bat WIV1 spike glycoprotein Deposited 2023-10-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 458–483（26 aa） Chain B 458–483（26 aa） Chain C 458–483（26 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 19	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.96 Å
8WLZ Cryo-EM structure of the WIV1 S-hACE2 complex Deposited 2023-10-01	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 458–483（26 aa） Chain B 458–483（26 aa） Chain C 458–483（26 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 21	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.45 Å
8ZHD SARS-CoV-2 spike trimer (6P) in complex with two R1-26 Fabs Deposited 2024-05-10	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 458–484（27 aa） Chain B 458–484（27 aa） Chain C 458–484（27 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 30	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.41 Å
8ZHE SARS-CoV-2 spike trimer (6P) in complex with three R1-26 Fabs Deposited 2024-05-10	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain A 458–484（27 aa） Chain B 458–484（27 aa） Chain C 458–484（27 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 30	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.16 Å
8ZHF SARS-CoV-2 spike trimer (6P) in complex with R1-26 Fab, head-to-head aggregate Deposited 2024-05-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 18 PDB declaration: octadecameric	Chain A 458–484（27 aa） Chain B 458–484（27 aa） Chain C 458–484（27 aa） Chain D 458–484（27 aa） Chain E 458–484（27 aa） Chain I 458–484（27 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 60	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.26 Å
8ZHG SARS-CoV-2 spike trimer (6P) in complex with R1-26 Fab, focused refinement of RBD-Fab region Deposited 2024-05-10	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 458–484（27 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.51 Å
8ZHH SARS-CoV-2 spike trimer (6P) in complex with two H18 Fabs Deposited 2024-05-10	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 458–484（27 aa） Chain B 458–484（27 aa） Chain C 458–484（27 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 33	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.55 Å
8ZHI SARS-CoV-2 spike trimer (6P) in complex with three H18 Fabs Deposited 2024-05-11	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric	Chain A 458–484（27 aa） Chain B 458–484（27 aa） Chain C 458–484（27 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 33	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.05 Å
8ZHJ SARS-CoV-2 spike trimer (6P) in complex with three H18 Fabs, head-to-head aggregate (C1 symmetry) Deposited 2024-05-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 18 PDB declaration: octadecameric	Chain A 458–484（27 aa） Chain B 458–484（27 aa） Chain C 458–484（27 aa） Chain G 458–484（27 aa） Chain H 458–484（27 aa） Chain I 458–484（27 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 66	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.45 Å
8ZHK SARS-CoV-2 spike trimer (6P) in complex with three H18 Fabs, head-to-head aggregate (C3 symmetry) Deposited 2024-05-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 18 PDB declaration: octadecameric	Chain A 458–484（27 aa） Chain B 458–484（27 aa） Chain C 458–484（27 aa） Chain G 458–484（27 aa） Chain H 458–484（27 aa） Chain I 458–484（27 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 66	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.30 Å
8ZHL SARS-CoV-2 spike trimer (6P) in complex with two H18 and two R1-32 Fabs Deposited 2024-05-11	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 11 PDB declaration: undecameric	Chain A 458–484（27 aa） Chain B 458–484（27 aa） Chain C 458–484（27 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 33	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.96 Å
8ZHM SARS-CoV-2 spike trimer (6P) in complex with three H18 and three R1-32 Fabs Deposited 2024-05-11	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 15 PDB declaration: pentadecameric	Chain A 458–484（27 aa） Chain B 458–484（27 aa） Chain C 458–484（27 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 33	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.39 Å
8ZHN SARS-CoV-2 spike trimer (6P) in complex with three H18 and three R1-32 Fabs (one RBD rotated) Deposited 2024-05-11	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 15 PDB declaration: pentadecameric	Chain A 458–484（27 aa） Chain B 458–484（27 aa） Chain C 458–484（27 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 33	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.12 Å
8ZPY Crystal structure of prefusion F of RSV Deposited 2024-05-31	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 458–484（27 aa） Chain B 458–484（27 aa） Chain C 458–484（27 aa） Chain D 458–484（27 aa） Chain E 458–484（27 aa） Chain F 458–484（27 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1M Sodium citrate tribasic dihydrate pH5.0+30% Jaffamine ED-2001 pH7.0	Resolution 2.92 Å R-free 0.255
8ZPY Crystal structure of prefusion F of RSV Deposited 2024-05-31	Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 458–484（27 aa） Chain B 458–484（27 aa） Chain E 458–484（27 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1M Sodium citrate tribasic dihydrate pH5.0+30% Jaffamine ED-2001 pH7.0	Resolution 2.92 Å R-free 0.255
8ZPY Crystal structure of prefusion F of RSV Deposited 2024-05-31	Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric	Chain C 458–484（27 aa） Chain D 458–484（27 aa） Chain F 458–484（27 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1M Sodium citrate tribasic dihydrate pH5.0+30% Jaffamine ED-2001 pH7.0	Resolution 2.92 Å R-free 0.255
8ZQ6 preF6P of RSV glycoprotein Deposited 2024-06-01	Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 458–484（27 aa） Chain B 458–484（27 aa） Chain F 458–484（27 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1M Sodium citrate tribasic dihydrate pH5.5, 24% Jaffamine ED-2001 pH7.0	Resolution 2.77 Å R-free 0.237
8ZQ6 preF6P of RSV glycoprotein Deposited 2024-06-01	Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric	Chain C 458–484（27 aa） Chain D 458–484（27 aa） Chain E 458–484（27 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1M Sodium citrate tribasic dihydrate pH5.5, 24% Jaffamine ED-2001 pH7.0	Resolution 2.77 Å R-free 0.237
9UE3 The structure of FIPV spike glycoprotein Deposited 2025-04-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 458–484（27 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 15	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.78 Å

17 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A346FJN8_BPT6
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 488–514； UniProt 458–484 Author chain B； PDBConstruct 488–514； UniProt 458–484 Author chain C； PDBConstruct 488–514； UniProt 458–484 Author chain D； PDBConstruct 488–514； UniProt 458–484 Author chain E； PDBConstruct 488–514； UniProt 458–484 Author chain F； PDBConstruct 488–514； UniProt 458–484

Fusion glycoprotein F0,Fibritin

Enterobacteria phage T6

UniProt P12568

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 26–99 Chain A； UniProt 136–513 Chain C； UniProt 26–99 Chain C； UniProt 136–513 Chain F； UniProt 26–99 Chain F； UniProt 136–513	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；291 K；8% Tacsimate pH6.0+20% PEG 3350	Resolution 2.77 Å R-free 0.242
2	Insufficient information Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 26–99 Chain B； UniProt 136–513 Chain D； UniProt 26–99 Chain D； UniProt 136–513 Chain E； UniProt 26–99 Chain E； UniProt 136–513	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；291 K；8% Tacsimate pH6.0+20% PEG 3350	Resolution 2.77 Å R-free 0.242

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8ZQ7	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8T7A Cryo-EM structure of RSV preF in complex with Fab 2.4K Deposited 2023-06-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 26–109（84 aa） Chain B 26–109（84 aa） Chain C 26–109（84 aa） Chain a 137–513（377 aa） Chain b 137–513（377 aa） Chain c 137–513（377 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
8ZPY Crystal structure of prefusion F of RSV Deposited 2024-05-31	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 26–99（74 aa） Chain A 136–513（378 aa） Chain B 26–99（74 aa） Chain B 136–513（378 aa） Chain C 26–99（74 aa） Chain C 136–513（378 aa） Chain D 26–99（74 aa） Chain D 136–513（378 aa） Chain E 26–99（74 aa） Chain E 136–513（378 aa） Chain F 26–99（74 aa） Chain F 136–513（378 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1M Sodium citrate tribasic dihydrate pH5.0+30% Jaffamine ED-2001 pH7.0	Resolution 2.92 Å R-free 0.255
8ZPY Crystal structure of prefusion F of RSV Deposited 2024-05-31	Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 26–99（74 aa） Chain A 136–513（378 aa） Chain B 26–99（74 aa） Chain B 136–513（378 aa） Chain E 26–99（74 aa） Chain E 136–513（378 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1M Sodium citrate tribasic dihydrate pH5.0+30% Jaffamine ED-2001 pH7.0	Resolution 2.92 Å R-free 0.255
8ZPY Crystal structure of prefusion F of RSV Deposited 2024-05-31	Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric	Chain C 26–99（74 aa） Chain C 136–513（378 aa） Chain D 26–99（74 aa） Chain D 136–513（378 aa） Chain F 26–99（74 aa） Chain F 136–513（378 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1M Sodium citrate tribasic dihydrate pH5.0+30% Jaffamine ED-2001 pH7.0	Resolution 2.92 Å R-free 0.255

2 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FUS_HRSV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 17–90； UniProt 26–99 Author chain A； PDBConstruct 106–483； UniProt 136–513 Author chain B； PDBConstruct 17–90； UniProt 26–99 Author chain B； PDBConstruct 106–483； UniProt 136–513 Author chain C； PDBConstruct 17–90； UniProt 26–99 Author chain C； PDBConstruct 106–483； UniProt 136–513 Author chain D； PDBConstruct 17–90； UniProt 26–99 Author chain D； PDBConstruct 106–483； UniProt 136–513 Author chain E； PDBConstruct 17–90； UniProt 26–99 Author chain E； PDBConstruct 106–483； UniProt 136–513 Author chain F； PDBConstruct 17–90； UniProt 26–99 Author chain F； PDBConstruct 106–483； UniProt 136–513

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8zq7
Deposition date deposition_date	2024-06-01
Structure title title	Crystal structure of prefusion RSV F protein
Keywords keywords	RSV, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	47.18 Å
Radius of gyration Rg (electron density) rg_electron	47.05 Å
Forward intensity I(0) i0	1270470000.00
Molecular weight molecular_weight	301080.0 kDa
Excluded volume excluded_volume	379110 Å³
Envelope volume envelope_volume	510930 Å³
Hydration-shell volume shell_volume	88025 Å³
Envelope diameter envelope_diameter	151.4 Å
Shell Rg shell_rg	53.13 Å
Envelope Rg envelope_rg	46.39 Å
Shape Rg shape_rg	47.03 Å
Total Rg total_rg	47.35 Å
Total atoms total_atoms	21095
Residues n_residues	2742
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	146.3 Å
Rg (real space) rg_real	47.12 Å
Rg uncertainty (real space) rg_real_error	0.99 Å
I(0) (real space) i0_real	1.2700e+09
I(0) uncertainty (real space) i0_real_error	2.1950e+07
Rg (reciprocal space) rg_reciprocal	47.18 Å
I(0) (reciprocal space) i0_reciprocal	1271000000.0000
Solution quality estimate total_estimate	0.8655
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	48.8 Å
Skewness Skewness skewness	0.262
Kurtosis Kurtosis kurtosis	-0.637
Angular range angular_range	— – 0.1650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	376600000.0000
Real-space data points n_real_points	34
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.938; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.437

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▶

8. Citations (1)

▶

Unit-cell length a length_a	158.423 Å
Unit-cell length b length_b	168.696 Å
Unit-cell length c length_c	190.683 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.770 Å
Low-resolution limit resolution_low	126.350 Å
R factor r_factor	0.2076
R_work r_work	0.2069
R_free r_free	0.2419

Description description	Fusion glycoprotein F0,Fibritin
Molecular weight formula_weight	57295.3 kDa
Source method src_method	man
Copy count entity_count	6

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	21095

Crystal structure of prefusion RSV F protein

1. Protein Identity and Related Structures Protein Identity & Related Structures

Fusion glycoprotein F0,Fibritin

State in the Current Structure

Other States of the Same Protein in the Database

Fusion glycoprotein F0,Fibritin

State in the Current Structure

Other States of the Same Protein in the Database

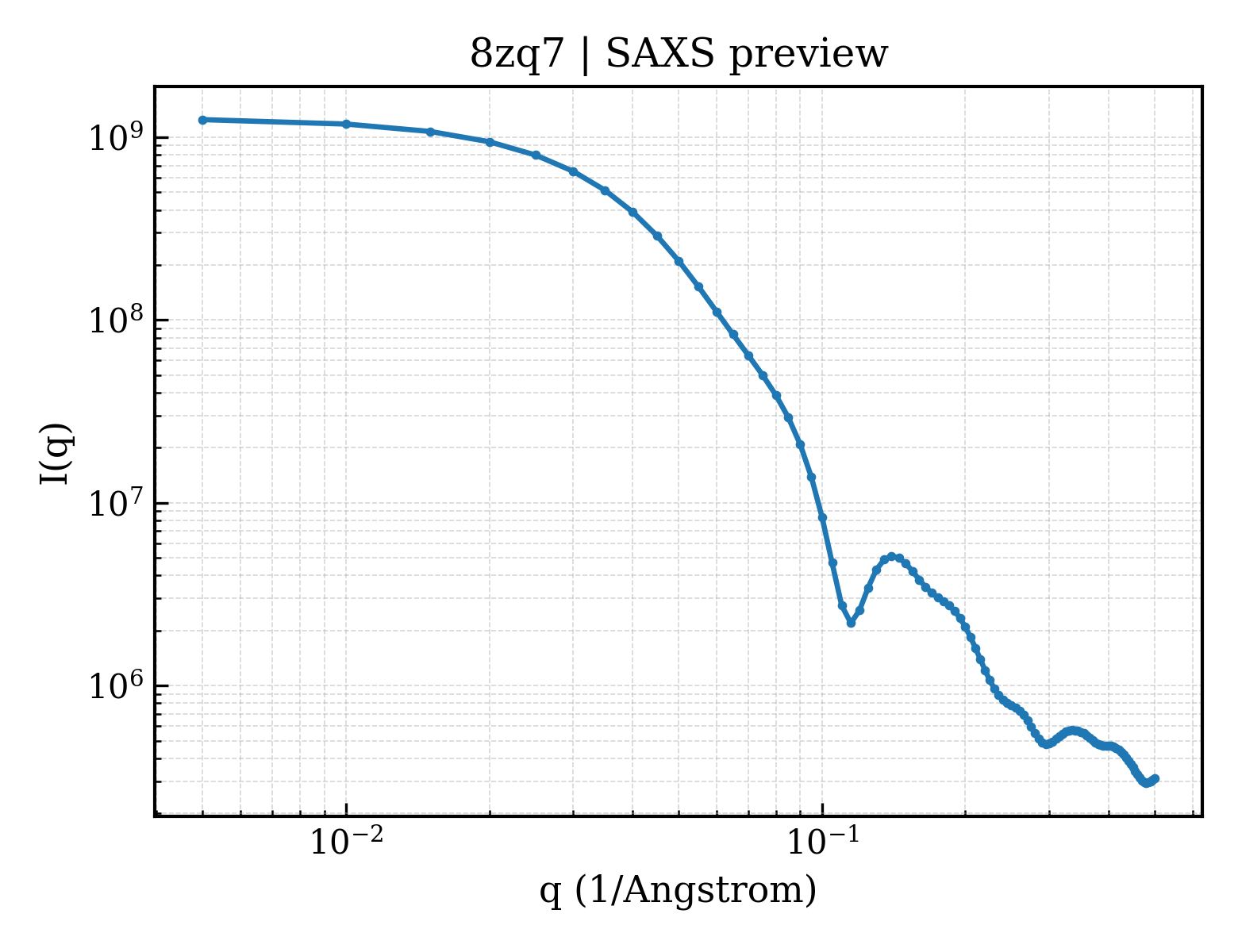

SAXS scattering curve SAXS Profile

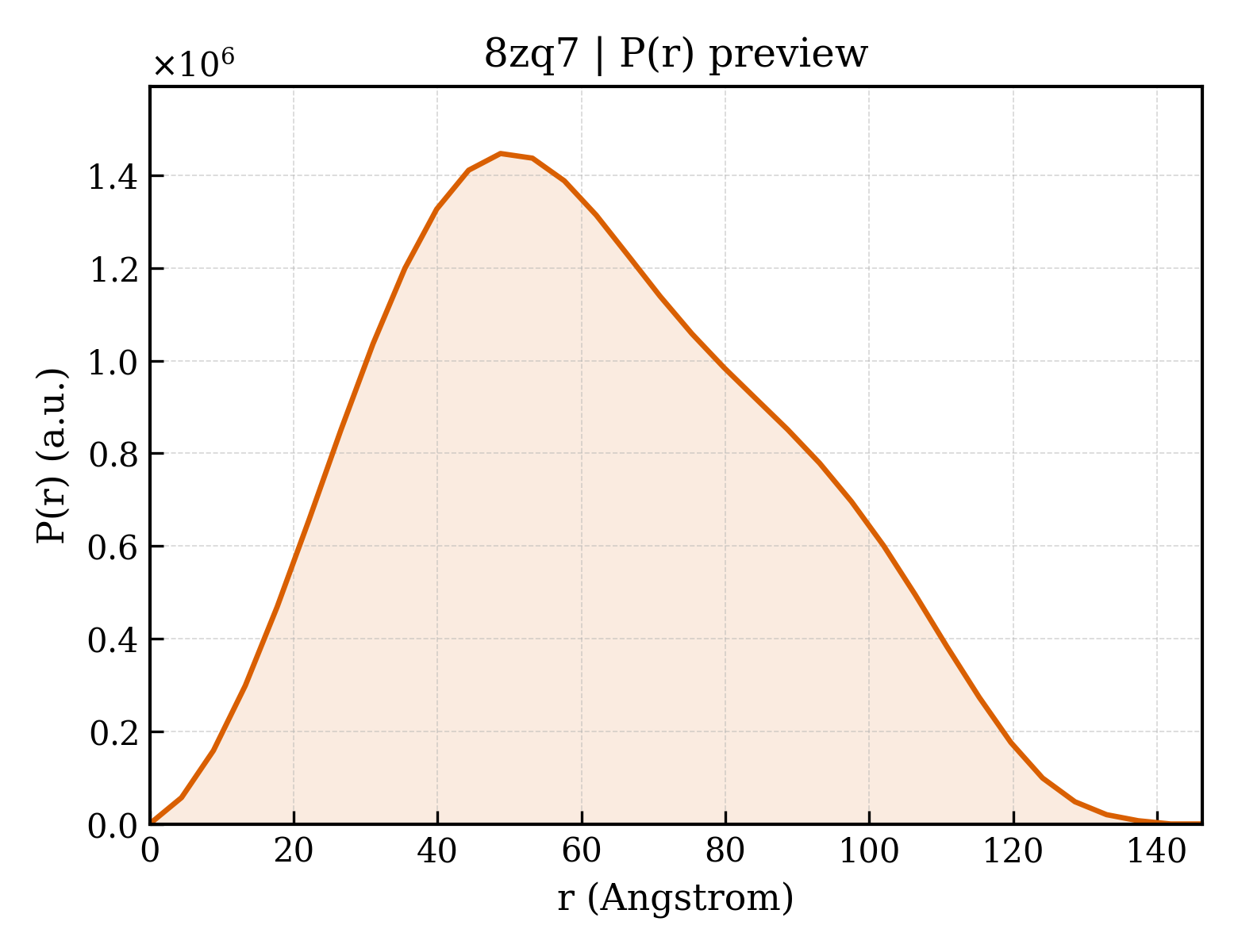

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Enterobacteria phage T6
NCBI Class编号 ncbi_taxonomy_id	10666
宿主生物 host_organism	Homo sapiens

fit	/app/data/saxs_computation/zq/8zq7/8zq7.fit
pddf	/app/data/pr_computation/zq/8zq7/8zq7.pr.out
profile	/app/data/saxs_computation/zq/8zq7/8zq7.dat
