SAXSdb — 8zpy

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Fusion glycoprotein F0,Fibritin

Enterobacteria phage T6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 6	No other associated polymer	Consistent with protein count
2	Insufficient information	Homooligomer	Protein 3	No other associated polymer	Consistent with protein count
3	Insufficient information	Homooligomer	Protein 3	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A346FJN8_BPT6
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 488–514； UniProt 458–484 Author chain B； PDBConstruct 488–514； UniProt 458–484 Author chain C； PDBConstruct 488–514； UniProt 458–484 Author chain D； PDBConstruct 488–514； UniProt 458–484 Author chain E； PDBConstruct 488–514； UniProt 458–484 Author chain F； PDBConstruct 488–514； UniProt 458–484

Fusion glycoprotein F0,Fibritin

Enterobacteria phage T6

UniProt P12568

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 6	No other associated polymer	Consistent with protein count
2	Insufficient information	Homooligomer	Protein 3	No other associated polymer	Consistent with protein count
3	Insufficient information	Homooligomer	Protein 3	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FUS_HRSV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 17–90； UniProt 26–99 Author chain A； PDBConstruct 106–483； UniProt 136–513 Author chain B； PDBConstruct 17–90； UniProt 26–99 Author chain B； PDBConstruct 106–483； UniProt 136–513 Author chain C； PDBConstruct 17–90； UniProt 26–99 Author chain C； PDBConstruct 106–483； UniProt 136–513 Author chain D； PDBConstruct 17–90； UniProt 26–99 Author chain D； PDBConstruct 106–483； UniProt 136–513 Author chain E； PDBConstruct 17–90； UniProt 26–99 Author chain E； PDBConstruct 106–483； UniProt 136–513 Author chain F； PDBConstruct 17–90； UniProt 26–99 Author chain F； PDBConstruct 106–483； UniProt 136–513

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8zpy
Deposition date deposition_date	2024-05-31
Structure title title	Crystal structure of prefusion F of RSV
Keywords keywords	RSV, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8zpy__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

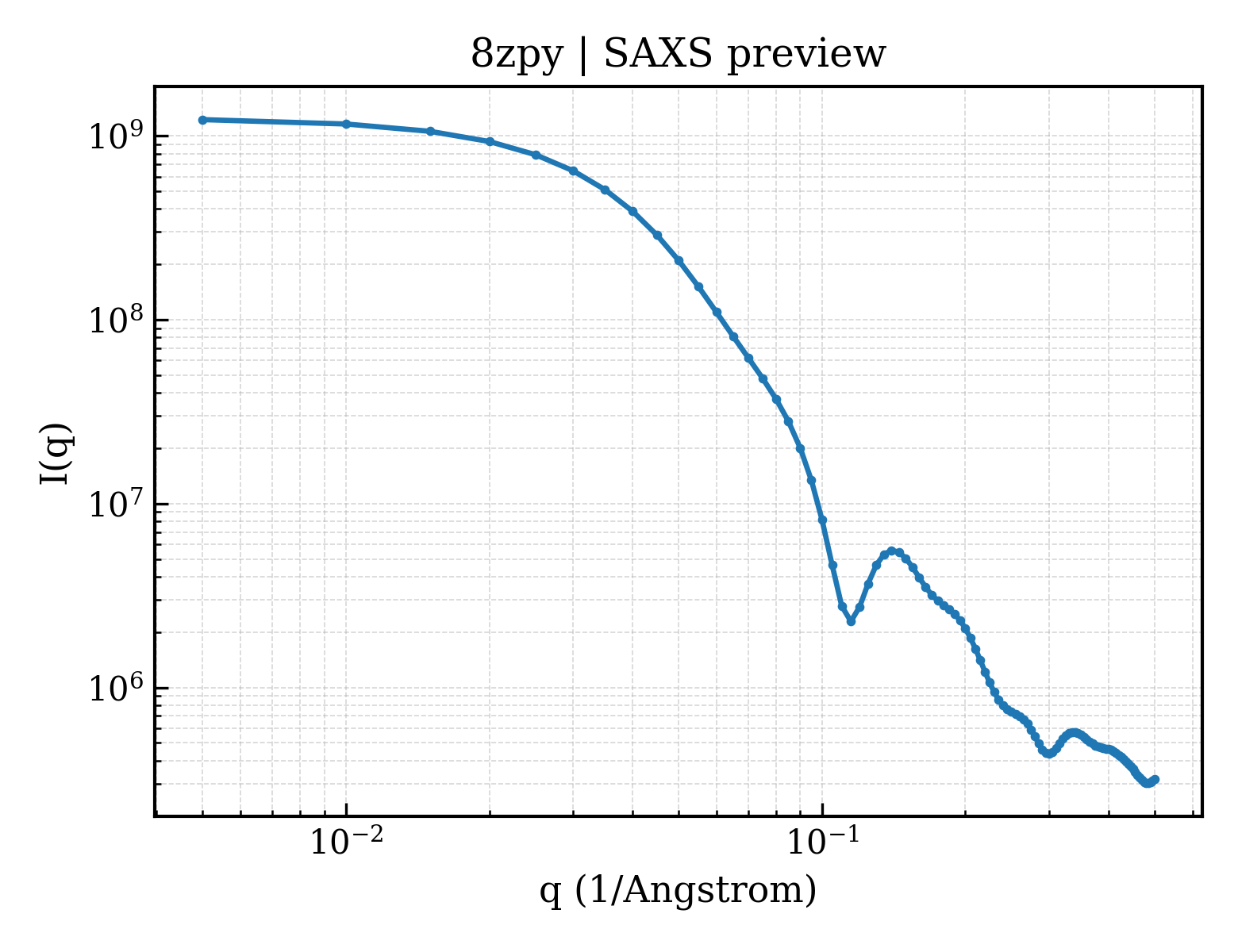

8zpy__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

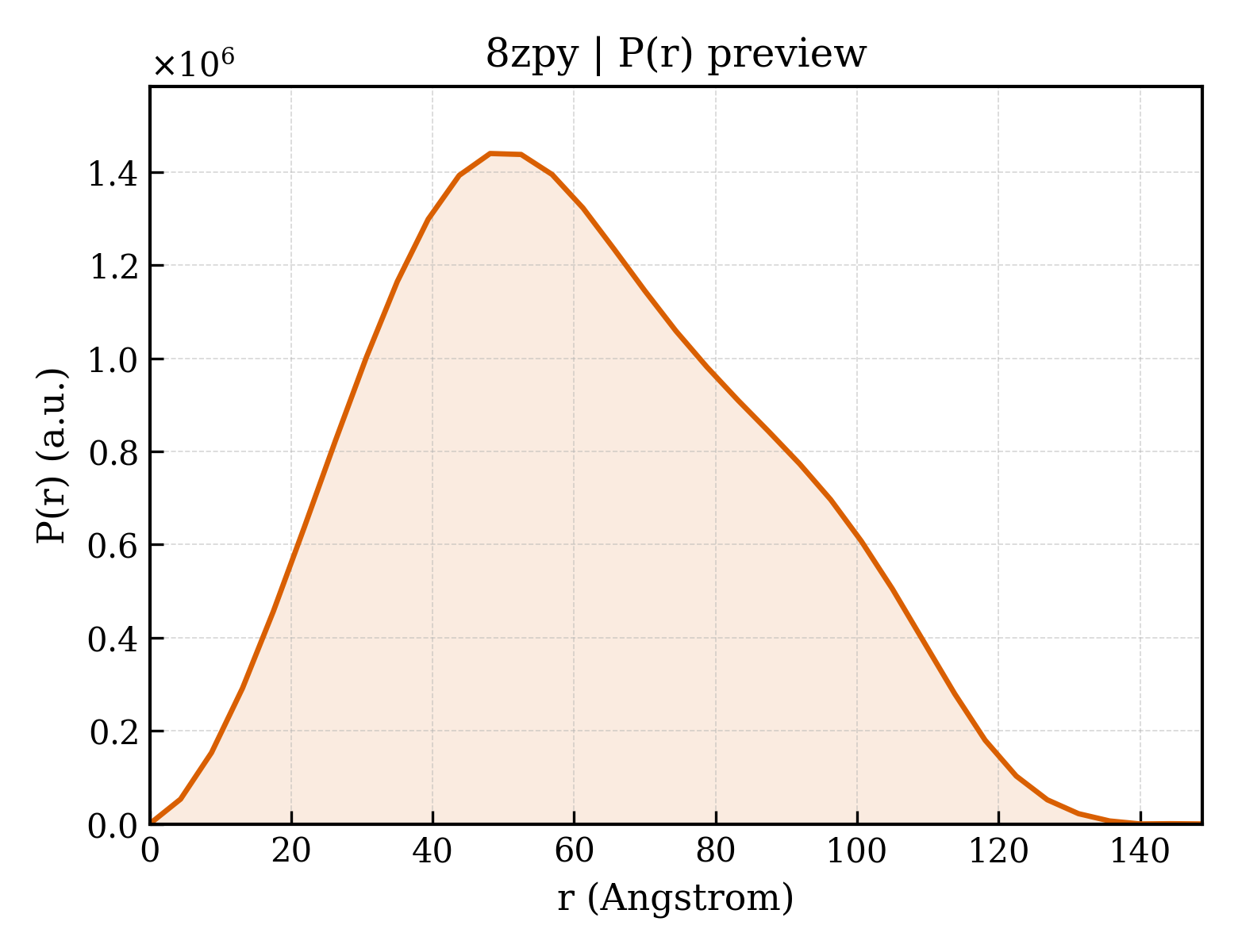

8zpy__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	46.81 Å
Rg (electron density)	46.63 Å
Total Rg	46.93 Å
Atom count	20848
Residues	2702
Excluded volume	374680 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8zpy__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8zpy__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`8zpy__assembly_3__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▶

Unit-cell length a length_a	159.329 Å
Unit-cell length b length_b	168.674 Å
Unit-cell length c length_c	189.568 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	2.920 Å
Low-resolution limit resolution_low	126.010 Å
R factor r_factor	0.1986
R_work r_work	0.1971
R_free r_free	0.2549

Description description	Fusion glycoprotein F0,Fibritin
Molecular weight formula_weight	57312.3 kDa
Source method src_method	man
Copy count entity_count	6

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	20848

Crystal structure of prefusion F of RSV

1. Protein Identity and Related Structures Protein Identity & Related Structures

Fusion glycoprotein F0,Fibritin

State in the Current Structure

Other States of the Same Protein in the Database

Fusion glycoprotein F0,Fibritin

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

8zpy__assembly_1__model_1

8zpy__assembly_1__model_1 | I(q)

8zpy__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

7. Citations (1)

Source organism organism	Enterobacteria phage T6
Common name common_name	Bacteriophage T6
NCBI taxonomy ID ncbi_taxonomy_id	10666
Host organism host_organism	Homo sapiens
