SAXSdb — 9awe

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone chaperone ASF1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Fab Heavy Chain × 1 Fab Light Chain × 1 Immunoglobulin G-binding protein G × 1 （P19909） water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ASF1_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 2–159； UniProt 2–159

Immunoglobulin G-binding protein G

;Streptococcus sp. 'group G' ;

UniProt P19909

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Fab Heavy Chain × 1 Fab Light Chain × 1 Histone chaperone ASF1 × 1 （P32447） water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPG2_STRSG
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain C； PDBConstruct 1–63； UniProt 368–430

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9awe
Deposition date deposition_date	2024-03-05
Last revision last_revision	2025-02-05
Structure title title	The crystal structure of an engineered Protein GF with Human Kappa Fab
Keywords keywords	antibody, protein G, Fab, ASF1, Histone chaperone, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9awe__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9awe__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

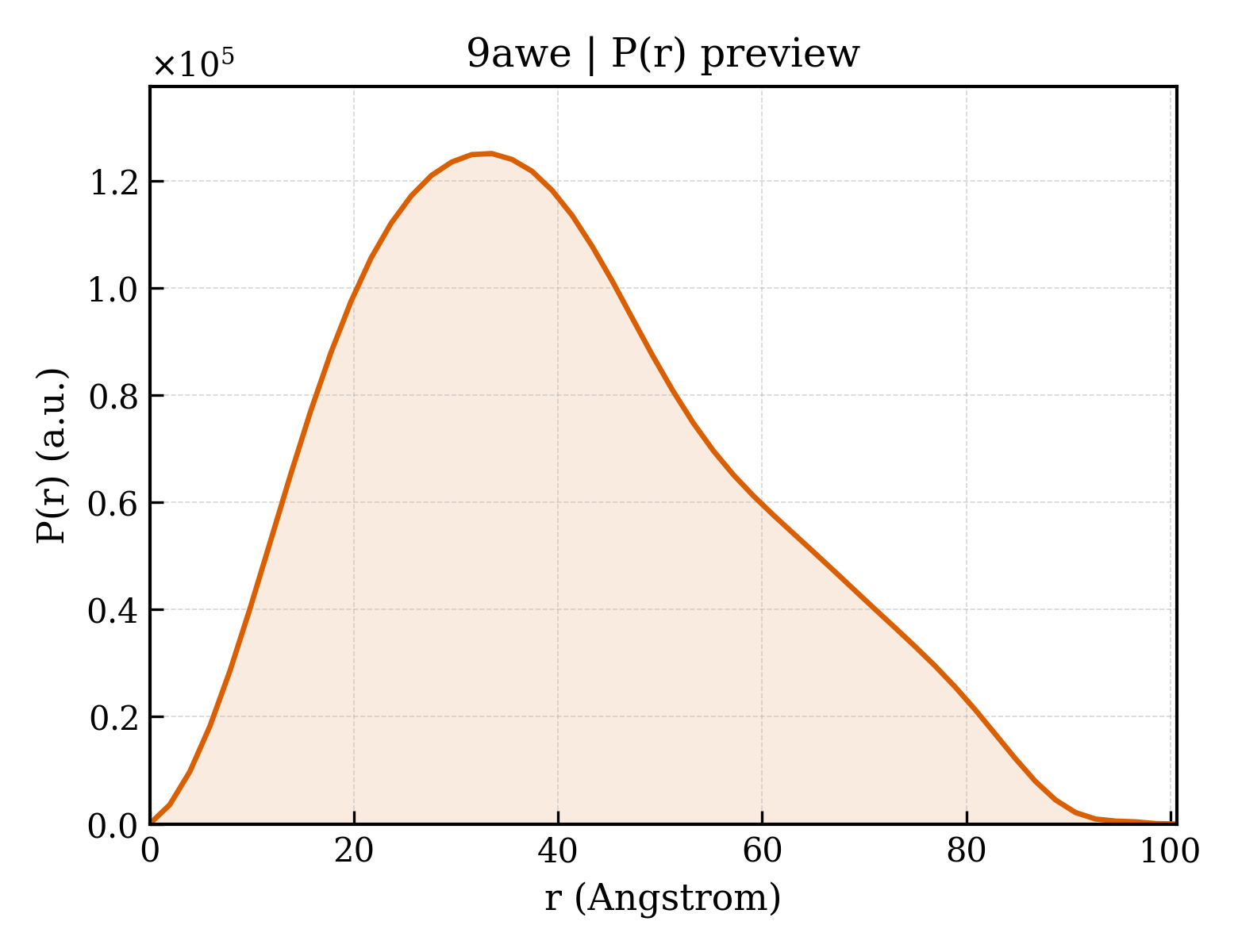

9awe__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.94 Å
Rg (electron density)	30.53 Å
Total Rg	31.06 Å
Atom count	4808
Residues	633
Excluded volume	85116 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9awe__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Fab Heavy Chain
Molecular weight formula_weight	24177.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	4822

EISEVQLVESGGGLVQPGGSLRLSCAASGFNVSYYSIHWVRQAPGKGLEWVASIYPYYGSTSYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAVYYCARGYGWALDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHT

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	Fab Light Chain
Molecular weight formula_weight	23397.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

SDIQMTQSPSSLSASVGDRVTITCRASQSVSSAVAWYQQKPGKAPKLLIYSASSLYSGVPSRFSGSRSGTDFTLTISSLQPEDFATYYCQQDGWSLITFGQGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 3 Entity 3 polymer

Description description	Histone chaperone ASF1
Molecular weight formula_weight	18244.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

SSIVSLLGIKVLNNPAKFTDPYEFEITFECLESLKHDLEWKLTYVGSSRSLDHDQELDSILVGPVPVGVNKFVFSADPPSAELIPASELVSVTVILLSCSYDGREFVRVGYYVNNEYDEEELRENPPAKVQVDHIVRNILAEKPRVTRFNIVWDNENEGLE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	Immunoglobulin G-binding protein G
Molecular weight formula_weight	7090.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

TPAVTTYKLVINGRTLSGYTTTTAVDAATAEKVFKQYAFGNGVDGEWTYDDATKTFTVTEKPEKL

Source Source

Source organism organism	;Streptococcus sp. 'group G' ;
NCBI taxonomy ID ncbi_taxonomy_id	1320
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	14

▶

Unit-cell length a length_a	57.869 Å
Unit-cell length b length_b	85.660 Å
Unit-cell length c length_c	180.110 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 2 21 21
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	90.050 Å
R factor r_factor	0.2526
R_work r_work	0.2503
R_free r_free	0.2927

The crystal structure of an engineered Protein GF with Human Kappa Fab
