9b0i

;Cryo-EM Structure of Sf9 produced recombinant N-acetyltransferase 10 (NAT10) in complex with cytidine-amide-CoA bisubstrate probe and ADP/Mg2+. ;

Method: ELECTRON MICROSCOPY D_max: 142.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9b0i
沉积日期 deposition_date	2024-03-12
最后修订 last_revision	2024-09-11
结构标题 title	;Cryo-EM Structure of Sf9 produced recombinant N-acetyltransferase 10 (NAT10) in complex with cytidine-amide-CoA bisubstrate probe and ADP/Mg2+. ;
关键词 keywords	RNA binding protein, ac4C modification, RNA acetyltransferase; RNA BINDING PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	43.08 Å
回转半径 Rg (电子) rg_electron	42.80 Å
零角强度 I(0) i0	487496000.00
分子量 molecular_weight	185380.0 kDa
排除体积 excluded_volume	233880 Å³
包络体积 envelope_volume	328850 Å³
水化壳体积 shell_volume	63621 Å³
包络直径 envelope_diameter	145.6 Å
壳层 Rg shell_rg	48.37 Å
包络 Rg envelope_rg	42.14 Å
形状 Rg shape_rg	42.79 Å
总 Rg total_rg	43.11 Å
总原子数 total_atoms	13040
残基数 n_residues	1628
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

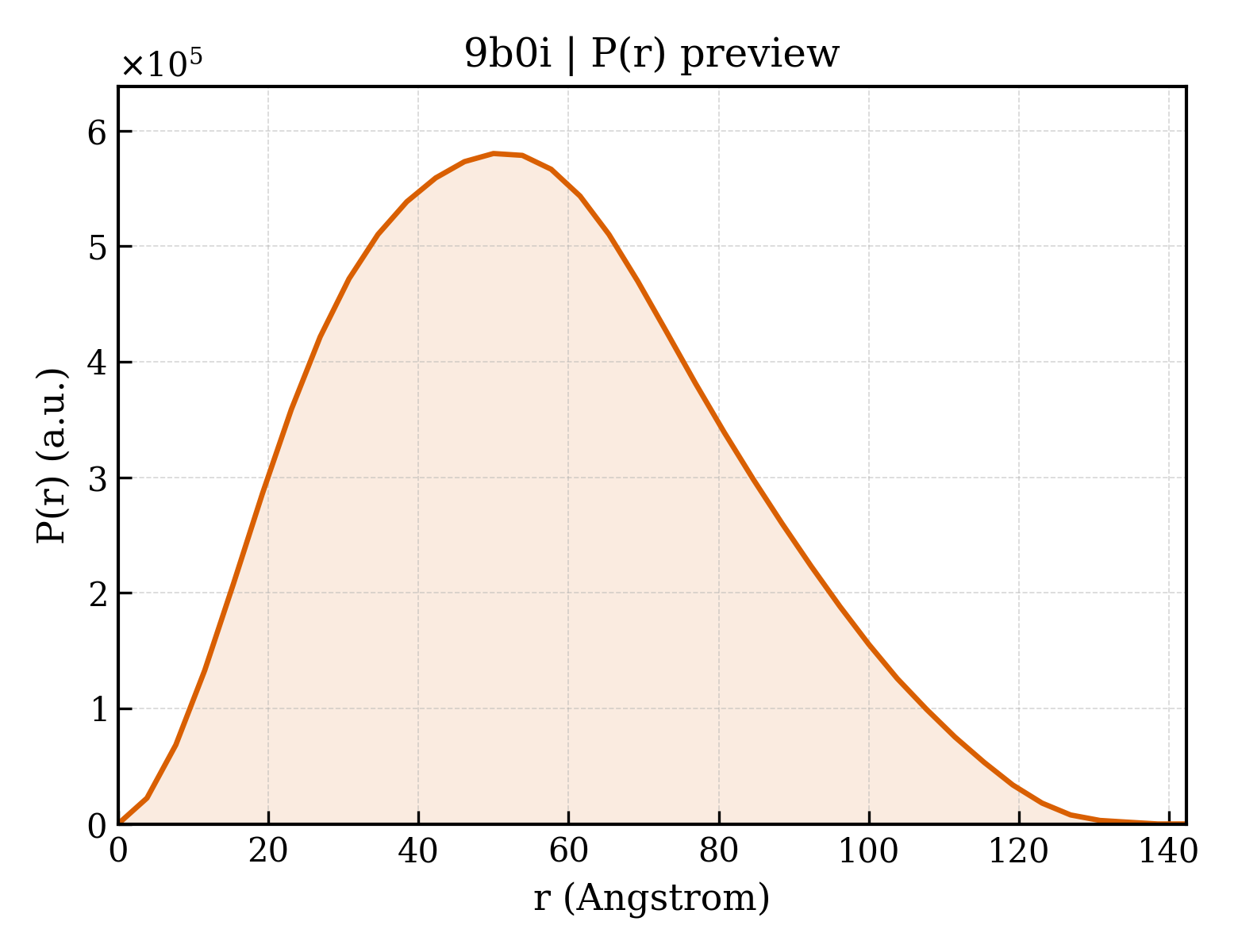

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	142.3 Å
Rg (实空间) rg_real	43.09 Å
Rg 误差 (实空间) rg_real_error	1.18 Å
I(0) (实空间) i0_real	4.8750e+08
I(0) 误差 (实空间) i0_real_error	8.9070e+06
Rg (倒空间) rg_reciprocal	43.08 Å
I(0) (倒空间) i0_reciprocal	487500000.0000
解质量估计 total_estimate	0.8242
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	50.0 Å
偏度 Skewness skewness	0.318
峰度 Kurtosis kurtosis	-0.472
角度范围 angular_range	— – 0.1850 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	130200000.0000
实空间数据点数 n_real_points	38
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.905; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	RNA cytidine acetyltransferase
分子量 formula_weight	121475.9 kDa
EC 编号 ec_number	2.3.1.-
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	13040

HHHHHHENLYFQGMTVQKTVDSRIPTLIRNGLQTKKRSFFVVVGDHAKEAIVHLYYIMSSMDVRQNKSVLWAYKKELLGFTSHRKKREAKIKKEIKRGIREPNQADPFELFISLNDIRYCYYKETDKILGNTYGMCILQDFEAITPNILARTIETVEGGGLVVLLLKGMTSLKQLYTMTMDVHARYRTEAHDDVIARFNERFLLSLGSCESCLVIDDELNVLPISGGKGVKPLPPPDEDEELSPAAKELKKIKDELEDTQPIGSLIKLARTVDQAKALLTFVDAIAEKTLRNTVTLTAARGRGKSAAMGVAIAAAVAYGYSNIFITSPSPENLKTLFEFVFKGFDALDYKDHADYTIIQSTNPEFNKAIVRVNIHRNHRQTIQYIRPQDAHVLGQAELVVIDEAAAIPLPLVKKLMGPYLVFMASTISGYEGTGRSLSLKLIKQLREQSRAGANPNGGNAVEVDRSTLKATKETTSVGGRSLKEITLSEPIRYAQGDNVEKWLNTLLCLDATLPRSKISTTGCPDPSQCELLHVNRDTLFSFHPVSEKFLQQMVALYVASHYKNSPNDLQLMSDAPAHELFVLTGPIQEGRLPEPLCVIQVSLEGKISKQSILKSLSRGQQPAGDLIPWLVSQQFQDDEFASLSGARIVRIATNPDYMSMGYGSKALQLLVDYYEGKFADLSEDAAAEVPRSIPRVTDAELSKGSLFDDIKVRDMHELPPLFSKLSERRPEKLDYVGVSYGLTQQLHKFWKRAQFVPVYLRQTANDLTGEHTCVMIRPLQDGNDPSWLGAFAADFHKRFLSLLSYKFREFPSILALTIEESANAGAMLDPSNAPTELTKAELDQLFTPFDHKRLESYANGLLDYHVVLDLMPTIAQLYFTGRLREAVKLSGLQQAILLALGLQRKDIDTLATELNLPGSQVLAIFMKIMRKVTQHFGALVSGAIAAELPDPNKTVGVSKENAMGIHDDEVVGLKFEALEQRLEDELDEGGDEALRELRKKQRELIDSLPLDQYEIDGDDDAWKEAEKRVASAAKSGKKVDGTLVSVPSAKAAKRKAEEMAALRDELEKMEKGKERGSKKAKKEKRR

来源 Source

来源生物 organism	Thermochaetoides thermophila DSM 1495
NCBI 分类编号 ncbi_taxonomy_id	759272
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 non-polymer

描述 description	ADENOSINE-5'-DIPHOSPHATE
分子量 formula_weight	427.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	;[[(2~{R},3~{S},4~{S},5~{R})-5-(6-aminopurin-9-yl)-4-oxidanyl-3-phosphonooxy-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] [(3~{R})-4-[[3-[2-[2-[[1-[(2~{R},3~{S},4~{R},5~{R})-5-(hydroxymethyl)-3,4-bis(oxidanyl)oxolan-2-yl]-2-oxidanylidene-pyrimidin-4-yl]amino]-2-oxidanylidene-ethyl]sulfanylethylamino]-3-oxidanylidene-propyl]amino]-2,2-dimethyl-3-oxidanyl-4-oxidanylidene-butyl] hydrogen phosphate ;
分子量 formula_weight	1050.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.02 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	162769
