Full-length cross-linked Contactin 2 (CNTN2)

Method: ELECTRON MICROSCOPY D_max: 231.8 Å Quality: GOOD

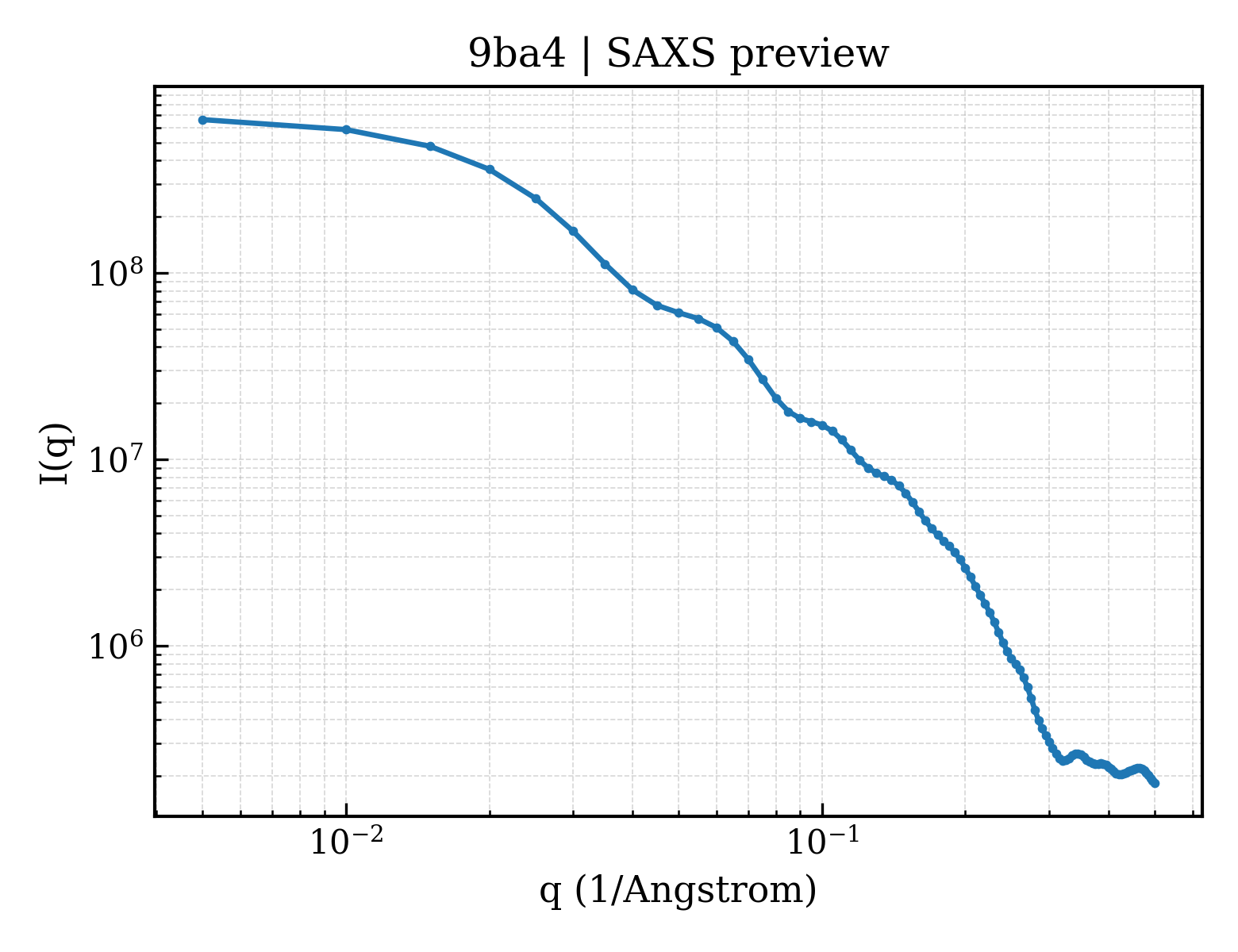

SAXS 散射曲线 SAXS Profile

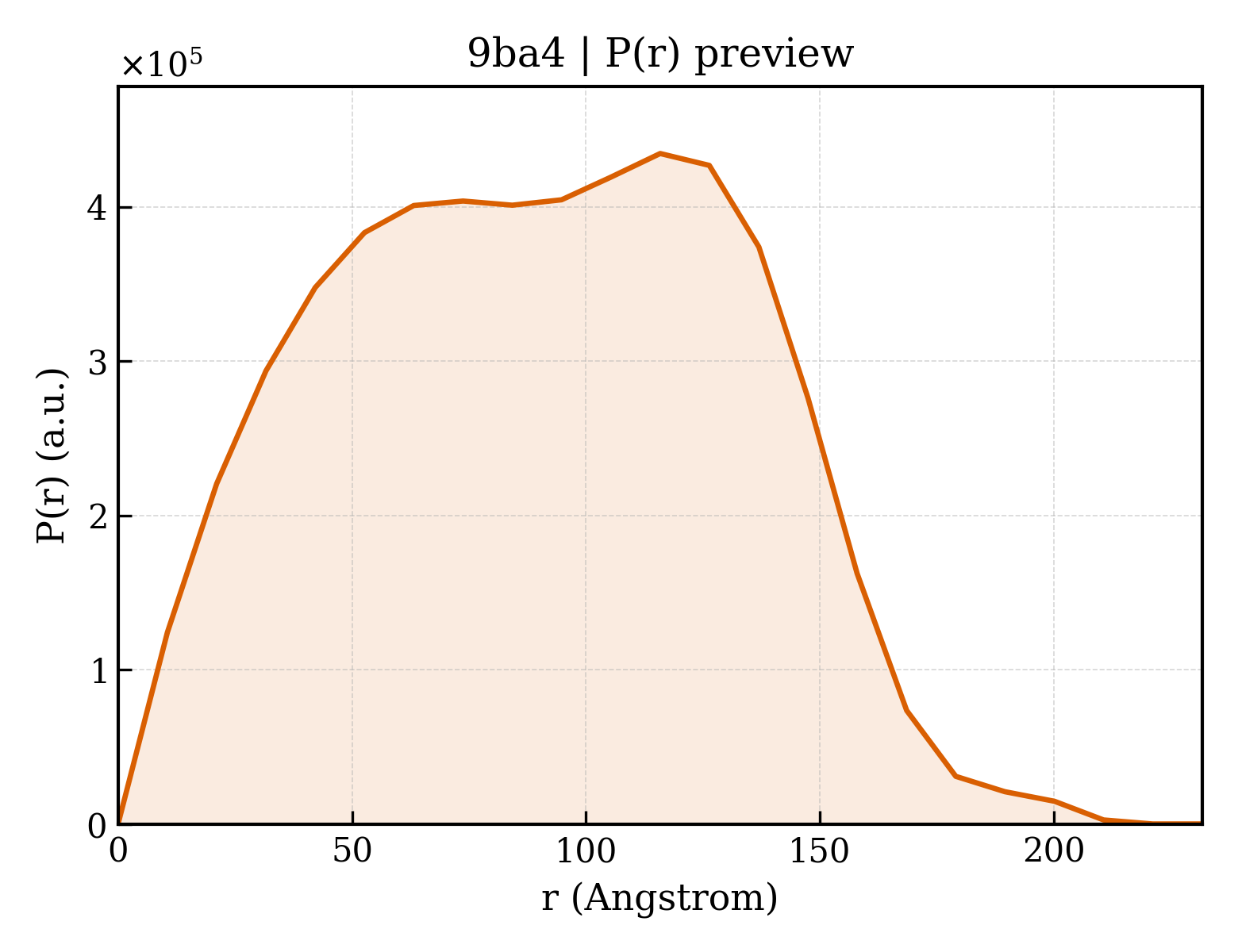

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9ba4
沉积日期 deposition_date	2024-04-03
结构标题 title	Full-length cross-linked Contactin 2 (CNTN2)
关键词 keywords	contactins, adhesion molecule, protein structure, conformational changes, homodimer, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	70.16 Å
回转半径 Rg (电子) rg_electron	70.59 Å
零角强度 I(0) i0	690476000.00
分子量 molecular_weight	215720.0 kDa
排除体积 excluded_volume	268540 Å³
包络体积 envelope_volume	554450 Å³
水化壳体积 shell_volume	72094 Å³
包络直径 envelope_diameter	228.1 Å
壳层 Rg shell_rg	59.19 Å
包络 Rg envelope_rg	69.20 Å
形状 Rg shape_rg	70.64 Å
总 Rg total_rg	70.11 Å
总原子数 total_atoms	15204
残基数 n_residues	1940
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	231.8 Å
Rg (实空间) rg_real	70.12 Å
Rg 误差 (实空间) rg_real_error	2.63 Å
I(0) (实空间) i0_real	6.9050e+08
I(0) 误差 (实空间) i0_real_error	1.6030e+07
Rg (倒空间) rg_reciprocal	70.08 Å
I(0) (倒空间) i0_reciprocal	690300000.0000
解质量估计 total_estimate	0.8553
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	115.9 Å
偏度 Skewness skewness	0.044
峰度 Kurtosis kurtosis	-0.821
角度范围 angular_range	— – 0.1100 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	31370000.0000
实空间数据点数 n_real_points	23
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.827; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.634

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Contactin-2
分子量 formula_weight	108697.3 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	15204

ELGTGLESQTTFGPVFEDQPLSVLFPEESTEEQVLLACRARASPPATYRWKMNGTEMKLEPGSRHQLVGGNLVIMNPTKAQDAGVYQCLASNPVGTVVSREAILRFGFLQEFSKEERDPVKAHEGWGVMLPCNPPAHYPGLSYRWLLNEFPNFIPTDGRHFVSQTTGNLYIARTNASDLGNYSCLATSHMDFSTKSVFSKFAQLNLAAEDTRLFAPSIKARFPAETYALVGQQVTLECFAFGNPVPRIKWRKVDGSLSPQWTTAEPTLQIPSVSFEDEGTYECEAENSKGRDTVQGRIIVQAQPEWLKVISDTEADIGSNLRWGCAAAGKPRPTVRWLRNGEPLASQNRVEVLAGDLRFSKLSLEDSGMYQCVAENKHGTIYASAELAVQALAPDFRLNPVRRLIPAARGGEILIPCQPRAAPKAVVLWSKGTEILVNSSRVTVTPDGTLIIRNISRSDEGKYTCFAENFMGKANSTGILSVRDATKITLAPSSADINLGDNLTLQCHASHDPTMDLTFTWTLDDFPIDFDKPGGHYRRTNVKETIGDLTILNAQLRHGGKYTCMAQTVVDSASKEATVLVRGPPGPPGGVVVRDIGDTTIQLSWSRGFDNHSPIAKYTLQARTPPAGKWKQVRTNPANIEGNAETAQVLGLTPWMDYEFRVIASNILGTGEPSGPSSKIRTREAAPSVAPSGLSGGGGAPGELIVNWTPMSREYQNGDGFGYLLSFRRQGSTHWQTARVPGADAQYFVYSNESVRPYTPFEVKIRSYNRRGDGPESLTALVYSAEEEPRVAPTKVWAKGVSSSEMNVTWEPVQQDMNGILLGYEIRYWKAGDKEAAADRVRTAGLDTSARVSGLHPNTKYHVTVRAYNRAGTGPASPSANATTMKPPPRRPPGNISWTFSSSSLSIKWDPVVPFRNESAVTGYKMLYQNDLHLTPTLHLTGKNWIEIPVPEDIGHALVQIRTTGPGGDGIPAEVHIVRNGSASTSHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 2 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 3 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.54 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	86023
