9bol

Crystal structure of the complex between VHL, ElonginB, ElonginC, and compound 5

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Elongin-B

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Elongin-C × 1 （Q15369） von Hippel-Lindau disease tumor suppressor × 1 （P40337） 1,2-ETHANEDIOL × 3 DIMETHYL SULFOXIDE × 1 CHLORIDE ION × 1 ;(4R)-1-[(2S)-2-(4-cyclopropyl-1H-1,2,3-triazol-1-yl)-3,3-dimethylbutanoyl]-4-hydroxy-N-{[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-L-prolinamide ; × 1 water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	Elongin-C × 1 （Q15369） von Hippel-Lindau disease tumor suppressor × 1 （P40337） 1,2-ETHANEDIOL × 2 DIMETHYL SULFOXIDE × 1 CHLORIDE ION × 1 ;(4R)-1-[(2S)-2-(4-cyclopropyl-1H-1,2,3-triazol-1-yl)-3,3-dimethylbutanoyl]-4-hydroxy-N-{[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-L-prolinamide ; × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ELOB_HUMAN
Isoform	Q15370-2
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–104； UniProt 1–104 Author chain D； PDBConstruct 1–104； UniProt 1–104

Elongin-C

Homo sapiens

UniProt Q15369

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Elongin-B × 1 （Q15370） von Hippel-Lindau disease tumor suppressor × 1 （P40337） 1,2-ETHANEDIOL × 3 DIMETHYL SULFOXIDE × 1 CHLORIDE ION × 1 ;(4R)-1-[(2S)-2-(4-cyclopropyl-1H-1,2,3-triazol-1-yl)-3,3-dimethylbutanoyl]-4-hydroxy-N-{[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-L-prolinamide ; × 1 water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	Elongin-B × 1 （Q15370） von Hippel-Lindau disease tumor suppressor × 1 （P40337） 1,2-ETHANEDIOL × 2 DIMETHYL SULFOXIDE × 1 CHLORIDE ION × 1 ;(4R)-1-[(2S)-2-(4-cyclopropyl-1H-1,2,3-triazol-1-yl)-3,3-dimethylbutanoyl]-4-hydroxy-N-{[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-L-prolinamide ; × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ELOC_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–96； UniProt 17–112 Author chain E； PDBConstruct 1–96； UniProt 17–112

von Hippel-Lindau disease tumor suppressor

Homo sapiens

UniProt P40337

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Elongin-B × 1 （Q15370） Elongin-C × 1 （Q15369） 1,2-ETHANEDIOL × 3 DIMETHYL SULFOXIDE × 1 CHLORIDE ION × 1 ;(4R)-1-[(2S)-2-(4-cyclopropyl-1H-1,2,3-triazol-1-yl)-3,3-dimethylbutanoyl]-4-hydroxy-N-{[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-L-prolinamide ; × 1 water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	Elongin-B × 1 （Q15370） Elongin-C × 1 （Q15369） 1,2-ETHANEDIOL × 2 DIMETHYL SULFOXIDE × 1 CHLORIDE ION × 1 ;(4R)-1-[(2S)-2-(4-cyclopropyl-1H-1,2,3-triazol-1-yl)-3,3-dimethylbutanoyl]-4-hydroxy-N-{[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-L-prolinamide ; × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VHL_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 17–176； UniProt 54–213 Author chain F； PDBConstruct 17–176； UniProt 54–213

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9bol
Deposition date deposition_date	2024-05-03
Structure title title	Crystal structure of the complex between VHL, ElonginB, ElonginC, and compound 5
Keywords keywords	VHL, degradation, degrader, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9bol__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9bol__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

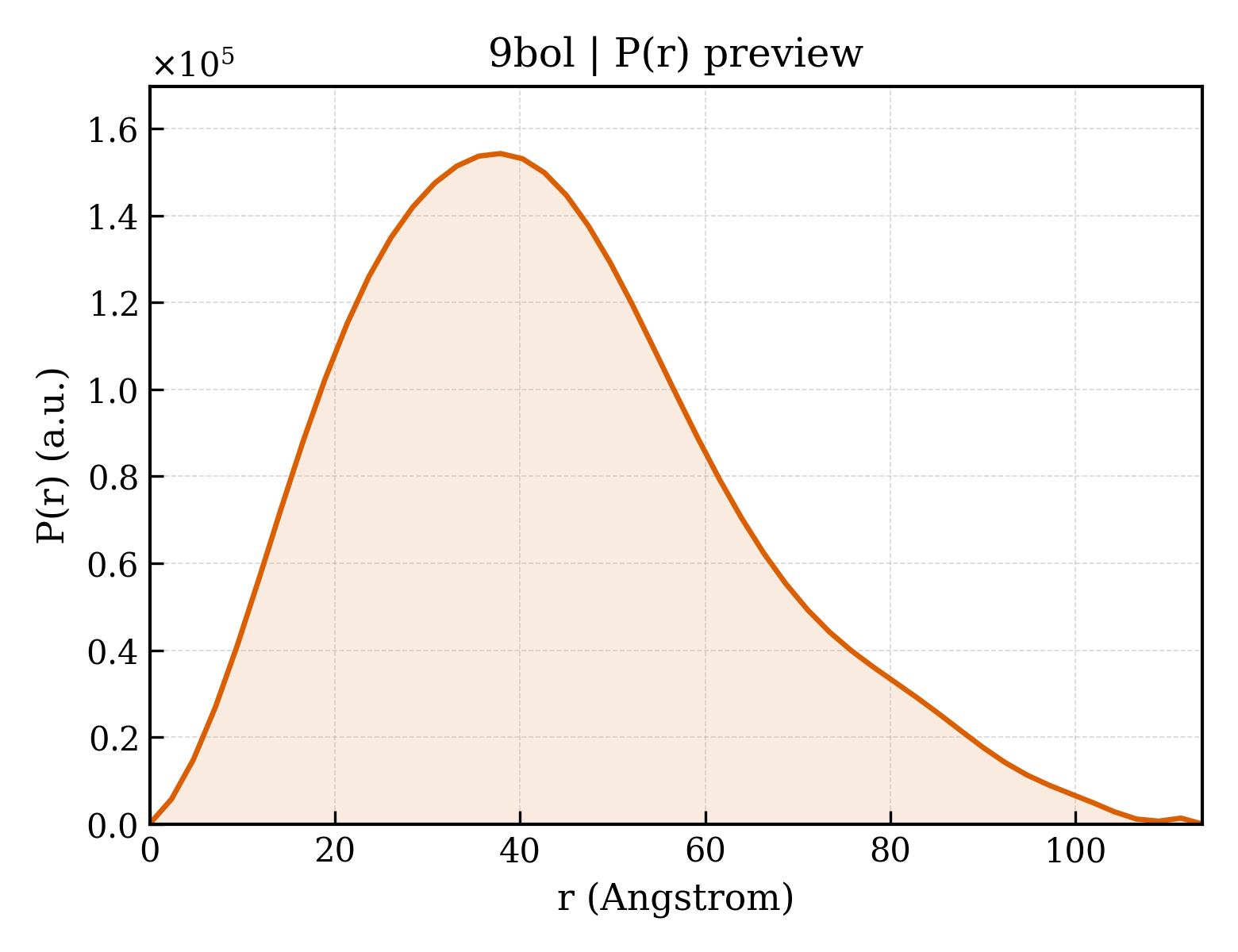

9bol__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.16 Å
Rg (electron density)	24.21 Å
Total Rg	24.86 Å
Atom count	2808
Residues	342
Excluded volume	50178 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9bol__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`9bol__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Elongin-B
Molecular weight formula_weight	11748.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	5970

MDVFLMIRRHKTTIFTDAKESSTVFELKRIVEGILKRPPDEQRLYKDDQLLDDGKTLGECGFTSQTARPQAPATVGLAFRADDTFEALCIEPFSSPPELPDVMK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Elongin-C
Molecular weight formula_weight	10843.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E

MYVKLISSDGHEFIVKREHALTSGTIKAMLSGPGQFAENETNEVNFREIPSHVLSKVCMYFTYKVRYTNSSTEIPEFPIAPEIALELLMAANFLDC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	von Hippel-Lindau disease tumor suppressor
Molecular weight formula_weight	20514.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F

MHHHHHHGENLYFQGSMEAGRPRPVLRSVNSREPSQVIFCNRSPRVVLPVWLNFDGEPQPYPTLPPGTGRRIHSYRGHLWLFRDAGTHDGLLVNQTELFVPSLNVDGQPIFANITLPVYTLKERCLQVVRSLVKPENYRRLDIVRSLYEDLEDHPNVQKDLERLTQERIAHQRMGD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 5 Entity 5 non-polymer

Description description	DIMETHYL SULFOXIDE
Molecular weight formula_weight	78.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	;(4R)-1-[(2S)-2-(4-cyclopropyl-1H-1,2,3-triazol-1-yl)-3,3-dimethylbutanoyl]-4-hydroxy-N-{[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-L-prolinamide ;
Molecular weight formula_weight	522.7 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	349

▶

Unit-cell length a length_a	47.460 Å
Unit-cell length b length_b	47.740 Å
Unit-cell length c length_c	100.350 Å
Unit-cell angle α angle_alpha	103.62 °
Unit-cell angle β angle_beta	94.66 °
Unit-cell angle γ angle_gamma	98.33 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.990 Å
Low-resolution limit resolution_low	46.660 Å
R factor r_factor	0.2039
R_work r_work	0.2017
R_free r_free	0.2479
