2jz3

SOCS box elonginBC ternary complex

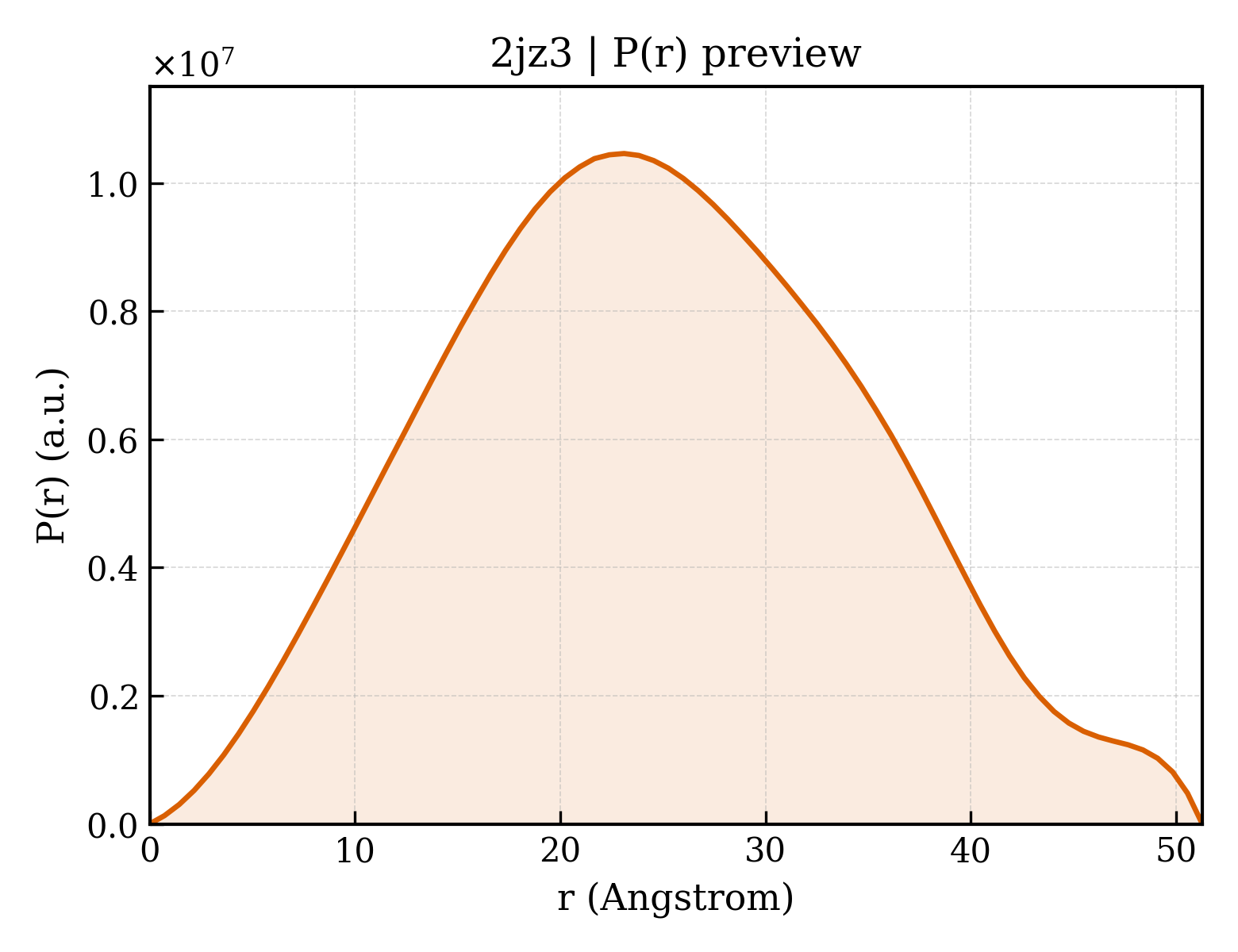

Method: SOLUTION NMR Dmax: 51.3 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Suppressor of cytokine signaling 3

Mus musculus

UniProt O35718

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count Chain A； UniProt 186–225 Fragment：SOCS box, UNP residues 186-225 Transcription elongation factor B polypeptide 2 × 1 （Q15370） Transcription elongation factor B polypeptide 1 × 1 （P83940） SOLUTION NMR NMR measurement conditions：pH 6.7；310 K；Ionic strength (raw mmCIF value) 0.05；Pressure ambient NMR sample composition：1mM [U-100% 13C; U-100% 15N] socs box; 1mM elonginB; 1mM elonginC; 50mM potassium chloride; 90% H2O/10% D2O | 90% H2O/10% D2O Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2JZ3 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2BBU solution structure of mouse socs3 in complex with a phosphopeptide from the gp130 receptor Deposited 2005-10-17 Different construct Different oligomeric state Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 22–185（164 aa） Fragment：KIR/ESS/SH2 DOMAIN/PEST MOTIF
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.7；298 K；Ionic strength (raw mmCIF value) 50mM；Pressure 1
NMR sample composition 0.3mM U-15N-13C-SOCS3/0.3mM phophopeptide, 20mM Na-phosphate, pH 6.7, 2mM DTT, 1mM edta, 50mM glutamate, 50mM Arginine, 5% D2O | 95% H20, 5% D2O
NMR sample composition 0.3mM U-15N-SOCS3/0.3mM phophopeptide, 20mM Na-phosphate, pH 6.7, 2mM DTT, 1mM edta, 50mM glutamate, 50mM Arginine, 5% D2O | 95% H20, 5% D2O
NMR sample composition 0.3mM U-13C-SOCS3/0.3mM phophopeptide, 20mM Na-phosphate, pH 6.7, 2mM DTT, 1mM edta, 50mM glutamate, 50mM Arginine, 5% D2O | 95% H20, 5% D2O
NMR sample composition 0.3mM SOCS3/0.3mM phophopeptide, 20mM Na-phosphate, pH 6.7, 2mM DTT, 1mM edta, 50mM glutamate, 50mM Arginine, 5% D2O | 95% H20, 5% D2O
NMR sample composition 0.3mM SOCS3/0.3mM phophopeptide, 20mM Na-phosphate, pH 6.7, 2mM DTT, 1mM edta, 50mM glutamate, 50mM Arginine, 5% D2O | 100% D2O
Resolution not provided
2HMH Crystal structure of SOCS3 in complex with gp130(pTyr757) phosphopeptide. Deposited 2006-07-11 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 15–130（116 aa）
Chain A 154–185（32 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；297 K；30% PEG8000, 0.1 M Sodium Cacodylate, 0.2 M Sodium Acetate, VAPOR DIFFUSION, HANGING DROP, temperature 297K, pH 6.50
Resolution 2.00 Å R-free 0.291
4GL9 Crystal structure of inhibitory protein SOCS3 in complex with JAK2 kinase domain and fragment of GP130 intracellular domain Deposited 2012-08-14 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 38–128（91 aa） Fragment：chimeric fusion of Intracellular domain (unp residues 22-128 and 163-185)
Not recorded IZA 2-TERT-BUTYL-9-FLUORO-3,6-DIHYDRO-7H-BENZ[H]-IMIDAZ[4,5-F]ISOQUINOLINE-7-ONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；298 K；0.33M di-potassium hydrogen phosphate, 1.67M sodium dihydrogen phosphate, 0.1M phosphate-citrate, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.90 Å R-free 0.281
4GL9 Crystal structure of inhibitory protein SOCS3 in complex with JAK2 kinase domain and fragment of GP130 intracellular domain Deposited 2012-08-14 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 38–128（91 aa） Fragment：chimeric fusion of Intracellular domain (unp residues 22-128 and 163-185)
Not recorded IZA 2-TERT-BUTYL-9-FLUORO-3,6-DIHYDRO-7H-BENZ[H]-IMIDAZ[4,5-F]ISOQUINOLINE-7-ONE × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；298 K；0.33M di-potassium hydrogen phosphate, 1.67M sodium dihydrogen phosphate, 0.1M phosphate-citrate, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.90 Å R-free 0.281
4GL9 Crystal structure of inhibitory protein SOCS3 in complex with JAK2 kinase domain and fragment of GP130 intracellular domain Deposited 2012-08-14 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 38–128（91 aa） Fragment：chimeric fusion of Intracellular domain (unp residues 22-128 and 163-185)
Not recorded IZA 2-TERT-BUTYL-9-FLUORO-3,6-DIHYDRO-7H-BENZ[H]-IMIDAZ[4,5-F]ISOQUINOLINE-7-ONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；298 K；0.33M di-potassium hydrogen phosphate, 1.67M sodium dihydrogen phosphate, 0.1M phosphate-citrate, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.90 Å R-free 0.281
4GL9 Crystal structure of inhibitory protein SOCS3 in complex with JAK2 kinase domain and fragment of GP130 intracellular domain Deposited 2012-08-14 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 38–128（91 aa） Fragment：chimeric fusion of Intracellular domain (unp residues 22-128 and 163-185)
Not recorded IZA 2-TERT-BUTYL-9-FLUORO-3,6-DIHYDRO-7H-BENZ[H]-IMIDAZ[4,5-F]ISOQUINOLINE-7-ONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；298 K；0.33M di-potassium hydrogen phosphate, 1.67M sodium dihydrogen phosphate, 0.1M phosphate-citrate, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.90 Å R-free 0.281

3 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name SOCS3_MOUSE
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–40； UniProt 186–225

Transcription elongation factor B polypeptide 2

Homo sapiens

UniProt Q15370

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count Chain B； UniProt 1–118 Not recorded Suppressor of cytokine signaling 3 × 1 （O35718） Transcription elongation factor B polypeptide 1 × 1 （P83940） SOLUTION NMR NMR measurement conditions：pH 6.7；310 K；Ionic strength (raw mmCIF value) 0.05；Pressure ambient NMR sample composition：1mM [U-100% 13C; U-100% 15N] socs box; 1mM elonginB; 1mM elonginC; 50mM potassium chloride; 90% H2O/10% D2O | 90% H2O/10% D2O Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2JZ3 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1LM8 Structure of a HIF-1a-pVHL-ElonginB-ElonginC Complex Deposited 2002-04-30 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–118（118 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；pH 6.5
Resolution 1.85 Å R-free 0.236
1LQB Crystal structure of a hydroxylated HIF-1 alpha peptide bound to the pVHL/elongin-C/elongin-B complex Deposited 2002-05-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–118（118 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；298 K；HEPES, PEG2000 monomethylester, ammonium sulfate, pH 7.4, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.00 Å R-free 0.277
1LQB Crystal structure of a hydroxylated HIF-1 alpha peptide bound to the pVHL/elongin-C/elongin-B complex Deposited 2002-05-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–118（118 aa）
Not recorded SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；298 K；HEPES, PEG2000 monomethylester, ammonium sulfate, pH 7.4, VAPOR DIFFUSION, SITTING DROP, temperature 298K
Resolution 2.00 Å R-free 0.277
1VCB THE VHL-ELONGINC-ELONGINB STRUCTURE Deposited 1999-03-13 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–118（118 aa） Fragment：RESIDUES 1-120
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.7；10-15% PEG 2000, 200MM MAGNESIUM ACETATE, 100MM SODIUM CACODYLATE PH 5.7
Resolution 2.70 Å R-free 0.289
1VCB THE VHL-ELONGINC-ELONGINB STRUCTURE Deposited 1999-03-13 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–118（118 aa） Fragment：RESIDUES 1-120
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.7；10-15% PEG 2000, 200MM MAGNESIUM ACETATE, 100MM SODIUM CACODYLATE PH 5.7
Resolution 2.70 Å R-free 0.289
1VCB THE VHL-ELONGINC-ELONGINB STRUCTURE Deposited 1999-03-13 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–118（118 aa） Fragment：RESIDUES 1-120
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.7；10-15% PEG 2000, 200MM MAGNESIUM ACETATE, 100MM SODIUM CACODYLATE PH 5.7
Resolution 2.70 Å R-free 0.289
1VCB THE VHL-ELONGINC-ELONGINB STRUCTURE Deposited 1999-03-13 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–118（118 aa） Fragment：RESIDUES 1-120
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.7；10-15% PEG 2000, 200MM MAGNESIUM ACETATE, 100MM SODIUM CACODYLATE PH 5.7
Resolution 2.70 Å R-free 0.289
2C9W CRYSTAL STRUCTURE OF SOCS-2 IN COMPLEX WITH ELONGIN-B AND ELONGIN-C AT 1.9A RESOLUTION Deposited 2005-12-14 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–118（118 aa）
Not recorded SO4 SULFATE ION × 3 NI NICKEL (II) ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；2M AMSO4 0.2M NACL, 0.1M CACODYLATE PH 6.5 300 NL SITTING DROPS AT 4 DEGREES
Resolution 1.90 Å R-free 0.225
2IZV CRYSTAL STRUCTURE OF SOCS-4 IN COMPLEX WITH ELONGIN-B AND ELONGIN-C AT 2.55A RESOLUTION Deposited 2006-07-26 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–118（118 aa）
Not recorded NA SODIUM ION × 1 EDO 1,2-ETHANEDIOL × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；150 UL SITTING DROP 2M NACL 10% PEK6K
Resolution 2.55 Å R-free 0.223
2MA9 HIV-1 Vif SOCS-box and Elongin BC solution structure Deposited 2013-07-01 Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–118（118 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 50；Pressure ambient
NMR sample composition 0.2 mM [U-99% 13C; U-99% 15N] Vif SOCS, 0.2 mM Elongin B, 0.2 mM Elongin C, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 0.2 mM Vif SOCS, 0.2 mM [U-99% 13C; U-99% 15N] Elongin B, 0.2 mM [U-99% 13C; U-99% 15N] Elongin C, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 0.2 mM Vif SOCS, 0.2 mM [U-99% 13C; U-99% 15N] Elongin B, 0.2 mM [U-99% 13C; U-99% 15N] Elongin C, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
3DCG Crystal Structure of the HIV Vif BC-box in Complex with Human ElonginB and ElonginC Deposited 2008-06-03 Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–118（118 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；295 K；0.1M Tris HCl pH 7.0, 40% PEG 350 MME, VAPOR DIFFUSION, SITTING DROP, temperature 295K
Resolution 2.40 Å R-free 0.232
3DCG Crystal Structure of the HIV Vif BC-box in Complex with Human ElonginB and ElonginC Deposited 2008-06-03 Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–118（118 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；295 K；0.1M Tris HCl pH 7.0, 40% PEG 350 MME, VAPOR DIFFUSION, SITTING DROP, temperature 295K
Resolution 2.40 Å R-free 0.232
3ZKJ Crystal Structure of Ankyrin Repeat and Socs Box-Containing Protein 9 (Asb9) in Complex with Elonginb and Elonginc Deposited 2013-01-23 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–118（118 aa） Fragment：RESIDUES 221-338
Not recorded EDO 1,2-ETHANEDIOL × 1 PEG DI(HYDROXYETHYL)ETHER × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.2M NA2SO4, 0.1M BTPROP 6.5, 20% PEG 3350, 10% ETGLY
Resolution 2.58 Å R-free 0.265
3ZKJ Crystal Structure of Ankyrin Repeat and Socs Box-Containing Protein 9 (Asb9) in Complex with Elonginb and Elonginc Deposited 2013-01-23 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 1–118（118 aa） Fragment：RESIDUES 221-338
Not recorded EDO 1,2-ETHANEDIOL × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.2M NA2SO4, 0.1M BTPROP 6.5, 20% PEG 3350, 10% ETGLY
Resolution 2.58 Å R-free 0.265
3ZNG Ankyrin repeat and SOCS-box protein 9 (ASB9) in complex with ElonginB and ElonginC Deposited 2013-02-14 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–118（118 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M BIS-TRIS PROPANE, PH 6.7, 0.2 M SODIUM MALONATE, 22% PEG 3350, 10% ETHYLENE GLYCOL
Resolution 2.85 Å R-free 0.242
3ZNG Ankyrin repeat and SOCS-box protein 9 (ASB9) in complex with ElonginB and ElonginC Deposited 2013-02-14 Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 1–118（118 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M BIS-TRIS PROPANE, PH 6.7, 0.2 M SODIUM MALONATE, 22% PEG 3350, 10% ETHYLENE GLYCOL
Resolution 2.85 Å R-free 0.242
3ZRC pVHL54-213-EloB-EloC complex (4R)-4-HYDROXY-1-[(3-METHYLISOXAZOL-5-YL)ACETYL]-N-[4-(1,3-OXAZOL-5-YL)BENZYL]-L-PROLINAMIDE bound Deposited 2011-06-15 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–118（118 aa）
Not recorded L8B (4R)-4-HYDROXY-1-[(3-METHYLISOXAZOL-5-YL)ACETYL]-N-[4-(1,3-OXAZOL-5-YL)BENZYL]-L-PROLINAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1.M NA CITRATE PH 5.6, 0.2 M MG ACETATE, 15% PEG 8000, 50.MM DTT.
Resolution 2.90 Å R-free 0.350
3ZRC pVHL54-213-EloB-EloC complex (4R)-4-HYDROXY-1-[(3-METHYLISOXAZOL-5-YL)ACETYL]-N-[4-(1,3-OXAZOL-5-YL)BENZYL]-L-PROLINAMIDE bound Deposited 2011-06-15 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–118（118 aa）
Not recorded L8B (4R)-4-HYDROXY-1-[(3-METHYLISOXAZOL-5-YL)ACETYL]-N-[4-(1,3-OXAZOL-5-YL)BENZYL]-L-PROLINAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1.M NA CITRATE PH 5.6, 0.2 M MG ACETATE, 15% PEG 8000, 50.MM DTT.
Resolution 2.90 Å R-free 0.350
3ZRC pVHL54-213-EloB-EloC complex (4R)-4-HYDROXY-1-[(3-METHYLISOXAZOL-5-YL)ACETYL]-N-[4-(1,3-OXAZOL-5-YL)BENZYL]-L-PROLINAMIDE bound Deposited 2011-06-15 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–118（118 aa）
Not recorded L8B (4R)-4-HYDROXY-1-[(3-METHYLISOXAZOL-5-YL)ACETYL]-N-[4-(1,3-OXAZOL-5-YL)BENZYL]-L-PROLINAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1.M NA CITRATE PH 5.6, 0.2 M MG ACETATE, 15% PEG 8000, 50.MM DTT.
Resolution 2.90 Å R-free 0.350
3ZRC pVHL54-213-EloB-EloC complex (4R)-4-HYDROXY-1-[(3-METHYLISOXAZOL-5-YL)ACETYL]-N-[4-(1,3-OXAZOL-5-YL)BENZYL]-L-PROLINAMIDE bound Deposited 2011-06-15 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–118（118 aa）
Not recorded L8B (4R)-4-HYDROXY-1-[(3-METHYLISOXAZOL-5-YL)ACETYL]-N-[4-(1,3-OXAZOL-5-YL)BENZYL]-L-PROLINAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1.M NA CITRATE PH 5.6, 0.2 M MG ACETATE, 15% PEG 8000, 50.MM DTT.
Resolution 2.90 Å R-free 0.350
3ZRF pVHL54-213-EloB-EloC complex_apo Deposited 2011-06-16 Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–118（118 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CACODYLATE PH 5.8, 0.2 M MG ACETATE, 15% PEG8000, 5MM DTT.
Resolution 2.80 Å R-free 0.320
3ZRF pVHL54-213-EloB-EloC complex_apo Deposited 2011-06-16 Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–118（118 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CACODYLATE PH 5.8, 0.2 M MG ACETATE, 15% PEG8000, 5MM DTT.
Resolution 2.80 Å R-free 0.320
3ZRF pVHL54-213-EloB-EloC complex_apo Deposited 2011-06-16 Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–118（118 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CACODYLATE PH 5.8, 0.2 M MG ACETATE, 15% PEG8000, 5MM DTT.
Resolution 2.80 Å R-free 0.320
3ZRF pVHL54-213-EloB-EloC complex_apo Deposited 2011-06-16 Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–118（118 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CACODYLATE PH 5.8, 0.2 M MG ACETATE, 15% PEG8000, 5MM DTT.
Resolution 2.80 Å R-free 0.320
3ZTC pVHL54-213-EloB-EloC complex _ (2S,4R)-N-((1,1'-biphenyl)-4-ylmethyl)- 4-hydroxy-1-(2-(3-methylisoxazol-5-yl)acetyl)pyrrolidine-2- carboxamide Deposited 2011-07-06 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–118（118 aa）
Not recorded TR0 (4R)-N-(BIPHENYL-4-YLMETHYL)-4-HYDROXY-1-[(3-METHYLISOXAZOL-5-YL)ACETYL]-L-PROLINAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CITRATE PH 5.7, 0.2 M MG ACETATE, 15% PEG8000, 50MM DTT.
Resolution 2.65 Å R-free 0.317
3ZTC pVHL54-213-EloB-EloC complex _ (2S,4R)-N-((1,1'-biphenyl)-4-ylmethyl)- 4-hydroxy-1-(2-(3-methylisoxazol-5-yl)acetyl)pyrrolidine-2- carboxamide Deposited 2011-07-06 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–118（118 aa）
Not recorded TR0 (4R)-N-(BIPHENYL-4-YLMETHYL)-4-HYDROXY-1-[(3-METHYLISOXAZOL-5-YL)ACETYL]-L-PROLINAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CITRATE PH 5.7, 0.2 M MG ACETATE, 15% PEG8000, 50MM DTT.
Resolution 2.65 Å R-free 0.317
3ZTC pVHL54-213-EloB-EloC complex _ (2S,4R)-N-((1,1'-biphenyl)-4-ylmethyl)- 4-hydroxy-1-(2-(3-methylisoxazol-5-yl)acetyl)pyrrolidine-2- carboxamide Deposited 2011-07-06 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–118（118 aa）
Not recorded TR0 (4R)-N-(BIPHENYL-4-YLMETHYL)-4-HYDROXY-1-[(3-METHYLISOXAZOL-5-YL)ACETYL]-L-PROLINAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CITRATE PH 5.7, 0.2 M MG ACETATE, 15% PEG8000, 50MM DTT.
Resolution 2.65 Å R-free 0.317
3ZTC pVHL54-213-EloB-EloC complex _ (2S,4R)-N-((1,1'-biphenyl)-4-ylmethyl)- 4-hydroxy-1-(2-(3-methylisoxazol-5-yl)acetyl)pyrrolidine-2- carboxamide Deposited 2011-07-06 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–118（118 aa）
Not recorded TR0 (4R)-N-(BIPHENYL-4-YLMETHYL)-4-HYDROXY-1-[(3-METHYLISOXAZOL-5-YL)ACETYL]-L-PROLINAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CITRATE PH 5.7, 0.2 M MG ACETATE, 15% PEG8000, 50MM DTT.
Resolution 2.65 Å R-free 0.317
3ZTD pVHL54-213-EloB-EloC complex _ methyl 4-(((2S,4R)-4-hydroxy-1-(2-(3- methylisoxazol-5-yl)acetyl)pyrrolidine-2-carboxamido)methyl)benzoate Deposited 2011-07-07 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–118（118 aa）
Not recorded ZTD METHYL 4-[({(4R)-4-HYDROXY-1-[(3-METHYLISOXAZOL-5-YL)ACETYL]-L-PROLYL}AMINO)METHYL]BENZOATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CITRATE PH 5.7, 0.2 M MG ACETATE, 15% PEG8000, 50 MM DTT.
Resolution 2.79 Å R-free 0.309
3ZTD pVHL54-213-EloB-EloC complex _ methyl 4-(((2S,4R)-4-hydroxy-1-(2-(3- methylisoxazol-5-yl)acetyl)pyrrolidine-2-carboxamido)methyl)benzoate Deposited 2011-07-07 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–118（118 aa）
Not recorded ZTD METHYL 4-[({(4R)-4-HYDROXY-1-[(3-METHYLISOXAZOL-5-YL)ACETYL]-L-PROLYL}AMINO)METHYL]BENZOATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CITRATE PH 5.7, 0.2 M MG ACETATE, 15% PEG8000, 50 MM DTT.
Resolution 2.79 Å R-free 0.309
3ZTD pVHL54-213-EloB-EloC complex _ methyl 4-(((2S,4R)-4-hydroxy-1-(2-(3- methylisoxazol-5-yl)acetyl)pyrrolidine-2-carboxamido)methyl)benzoate Deposited 2011-07-07 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–118（118 aa）
Not recorded ZTD METHYL 4-[({(4R)-4-HYDROXY-1-[(3-METHYLISOXAZOL-5-YL)ACETYL]-L-PROLYL}AMINO)METHYL]BENZOATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CITRATE PH 5.7, 0.2 M MG ACETATE, 15% PEG8000, 50 MM DTT.
Resolution 2.79 Å R-free 0.309
3ZTD pVHL54-213-EloB-EloC complex _ methyl 4-(((2S,4R)-4-hydroxy-1-(2-(3- methylisoxazol-5-yl)acetyl)pyrrolidine-2-carboxamido)methyl)benzoate Deposited 2011-07-07 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–118（118 aa）
Not recorded ZTD METHYL 4-[({(4R)-4-HYDROXY-1-[(3-METHYLISOXAZOL-5-YL)ACETYL]-L-PROLYL}AMINO)METHYL]BENZOATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CITRATE PH 5.7, 0.2 M MG ACETATE, 15% PEG8000, 50 MM DTT.
Resolution 2.79 Å R-free 0.309
3ZUN pVHL54-213-EloB-EloC complex_(2S,4R)-4-hydroxy-1-(2-(3-methylisoxazol- 5-yl)acetyl)-N-(4-nitrobenzyl)pyrrolidine-2-carboxamide bound Deposited 2011-07-19 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–118（118 aa）
Not recorded GOL GLYCEROL × 1 ZUN (4R)-4-hydroxy-1-[(3-methyl-1,2-oxazol-5-yl)acetyl]-N-[(4-nitrophenyl)methyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CITRATE PH 5.8, 0.2 M MG ACETATE, 15% PEG 8000, 50 MM DTT.
Resolution 2.50 Å R-free 0.302
3ZUN pVHL54-213-EloB-EloC complex_(2S,4R)-4-hydroxy-1-(2-(3-methylisoxazol- 5-yl)acetyl)-N-(4-nitrobenzyl)pyrrolidine-2-carboxamide bound Deposited 2011-07-19 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–118（118 aa）
Not recorded ZUN (4R)-4-hydroxy-1-[(3-methyl-1,2-oxazol-5-yl)acetyl]-N-[(4-nitrophenyl)methyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CITRATE PH 5.8, 0.2 M MG ACETATE, 15% PEG 8000, 50 MM DTT.
Resolution 2.50 Å R-free 0.302
3ZUN pVHL54-213-EloB-EloC complex_(2S,4R)-4-hydroxy-1-(2-(3-methylisoxazol- 5-yl)acetyl)-N-(4-nitrobenzyl)pyrrolidine-2-carboxamide bound Deposited 2011-07-19 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–118（118 aa）
Not recorded ZUN (4R)-4-hydroxy-1-[(3-methyl-1,2-oxazol-5-yl)acetyl]-N-[(4-nitrophenyl)methyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CITRATE PH 5.8, 0.2 M MG ACETATE, 15% PEG 8000, 50 MM DTT.
Resolution 2.50 Å R-free 0.302
3ZUN pVHL54-213-EloB-EloC complex_(2S,4R)-4-hydroxy-1-(2-(3-methylisoxazol- 5-yl)acetyl)-N-(4-nitrobenzyl)pyrrolidine-2-carboxamide bound Deposited 2011-07-19 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–118（118 aa）
Not recorded ZUN (4R)-4-hydroxy-1-[(3-methyl-1,2-oxazol-5-yl)acetyl]-N-[(4-nitrophenyl)methyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CITRATE PH 5.8, 0.2 M MG ACETATE, 15% PEG 8000, 50 MM DTT.
Resolution 2.50 Å R-free 0.302
4AJY von Hippel-Lindau protein-ElonginB-ElonginC complex, bound to Hif1- alpha peptide Deposited 2012-02-21 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–118（118 aa）
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M K PHOSPHATE PH 6.6 0.2 M (NH4)2SO4 20% PEG MME 5000 5 MM DTT
Resolution 1.73 Å R-free 0.232
4AWJ pVHL:EloB:EloC complex, in complex with capped Hydroxyproline Deposited 2012-06-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa） Fragment：RESIDUES 1-104
Non-standard monomer：Yes (specific site not provided by mmCIF) ACT ACETATE ION × 3 V6F (4R)-1-acetyl-4-hydroxy-N-methyl-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；0.1 M NA CACODYLATE PH 6.0, 0.2 M MG ACETATE, 15% PEG3350, 5 MM DTT
Resolution 2.50 Å R-free 0.264
4AWJ pVHL:EloB:EloC complex, in complex with capped Hydroxyproline Deposited 2012-06-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa） Fragment：RESIDUES 1-104
Non-standard monomer：Yes (specific site not provided by mmCIF) ACT ACETATE ION × 1 V6F (4R)-1-acetyl-4-hydroxy-N-methyl-L-prolinamide × 1 ACY ACETIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；0.1 M NA CACODYLATE PH 6.0, 0.2 M MG ACETATE, 15% PEG3350, 5 MM DTT
Resolution 2.50 Å R-free 0.264
4AWJ pVHL:EloB:EloC complex, in complex with capped Hydroxyproline Deposited 2012-06-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa） Fragment：RESIDUES 1-104
Non-standard monomer：Yes (specific site not provided by mmCIF) ACT ACETATE ION × 1 V6F (4R)-1-acetyl-4-hydroxy-N-methyl-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；0.1 M NA CACODYLATE PH 6.0, 0.2 M MG ACETATE, 15% PEG3350, 5 MM DTT
Resolution 2.50 Å R-free 0.264
4AWJ pVHL:EloB:EloC complex, in complex with capped Hydroxyproline Deposited 2012-06-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa） Fragment：RESIDUES 1-104
Non-standard monomer：Yes (specific site not provided by mmCIF) ACT ACETATE ION × 1 V6F (4R)-1-acetyl-4-hydroxy-N-methyl-L-prolinamide × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；0.1 M NA CACODYLATE PH 6.0, 0.2 M MG ACETATE, 15% PEG3350, 5 MM DTT
Resolution 2.50 Å R-free 0.264
4B95 pVHL-EloB-EloB-EloC complex_(2S,4R)-1-(2-chlorophenyl)carbonyl-N-[(4-chlorophenyl)methyl]-4-oxidanyl-pyrrolidine-2-carboxamide bound Deposited 2012-08-31 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–118（118 aa）
Not recorded ACT ACETATE ION × 1 UCK (2S,4R)-1-(2-chlorophenyl)carbonyl-N-[(4-chlorophenyl)methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CITRATE PH 5.7, 0.2 M MG ACETATE, 15 % PEG8000, 50MM DTT
Resolution 2.80 Å R-free 0.236
4B95 pVHL-EloB-EloB-EloC complex_(2S,4R)-1-(2-chlorophenyl)carbonyl-N-[(4-chlorophenyl)methyl]-4-oxidanyl-pyrrolidine-2-carboxamide bound Deposited 2012-08-31 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–118（118 aa）
Not recorded UCK (2S,4R)-1-(2-chlorophenyl)carbonyl-N-[(4-chlorophenyl)methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CITRATE PH 5.7, 0.2 M MG ACETATE, 15 % PEG8000, 50MM DTT
Resolution 2.80 Å R-free 0.236
4B95 pVHL-EloB-EloB-EloC complex_(2S,4R)-1-(2-chlorophenyl)carbonyl-N-[(4-chlorophenyl)methyl]-4-oxidanyl-pyrrolidine-2-carboxamide bound Deposited 2012-08-31 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–118（118 aa）
Not recorded UCK (2S,4R)-1-(2-chlorophenyl)carbonyl-N-[(4-chlorophenyl)methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CITRATE PH 5.7, 0.2 M MG ACETATE, 15 % PEG8000, 50MM DTT
Resolution 2.80 Å R-free 0.236
4B95 pVHL-EloB-EloB-EloC complex_(2S,4R)-1-(2-chlorophenyl)carbonyl-N-[(4-chlorophenyl)methyl]-4-oxidanyl-pyrrolidine-2-carboxamide bound Deposited 2012-08-31 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–118（118 aa）
Not recorded UCK (2S,4R)-1-(2-chlorophenyl)carbonyl-N-[(4-chlorophenyl)methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CITRATE PH 5.7, 0.2 M MG ACETATE, 15 % PEG8000, 50MM DTT
Resolution 2.80 Å R-free 0.236
4B9K pVHL-ELOB-ELOC complex_(2S,4R)-1-(3-amino-2-methylbenzoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide bound Deposited 2012-09-05 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa） Fragment：RESIDUES 1-104
Non-standard monomer：Yes (specific site not provided by mmCIF) TG0 (2S,4R)-1-(3-amino-2-methylbenzoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CACODYLATE, PH 6.0, 0.2 M MG ACTETATE, 15% PEG3350, 5MM DTT
Resolution 2.00 Å R-free 0.220
4B9K pVHL-ELOB-ELOC complex_(2S,4R)-1-(3-amino-2-methylbenzoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide bound Deposited 2012-09-05 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa） Fragment：RESIDUES 1-104
Non-standard monomer：Yes (specific site not provided by mmCIF) TG0 (2S,4R)-1-(3-amino-2-methylbenzoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide × 1 ACT ACETATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CACODYLATE, PH 6.0, 0.2 M MG ACTETATE, 15% PEG3350, 5MM DTT
Resolution 2.00 Å R-free 0.220
4B9K pVHL-ELOB-ELOC complex_(2S,4R)-1-(3-amino-2-methylbenzoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide bound Deposited 2012-09-05 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa） Fragment：RESIDUES 1-104
Non-standard monomer：Yes (specific site not provided by mmCIF) TG0 (2S,4R)-1-(3-amino-2-methylbenzoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide × 1 ACT ACETATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CACODYLATE, PH 6.0, 0.2 M MG ACTETATE, 15% PEG3350, 5MM DTT
Resolution 2.00 Å R-free 0.220
4B9K pVHL-ELOB-ELOC complex_(2S,4R)-1-(3-amino-2-methylbenzoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide bound Deposited 2012-09-05 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa） Fragment：RESIDUES 1-104
Non-standard monomer：Yes (specific site not provided by mmCIF) TG0 (2S,4R)-1-(3-amino-2-methylbenzoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide × 1 ACT ACETATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1 M NA CACODYLATE, PH 6.0, 0.2 M MG ACTETATE, 15% PEG3350, 5MM DTT
Resolution 2.00 Å R-free 0.220
4BKS von Hippel Lindau protein:ElonginB:ElonginC complex, in complex with (2S,4R)-1-ethanoyl-N-[[4-(1,3-oxazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide Deposited 2013-04-29 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa） Fragment：RESIDUES 1-104
Non-standard monomer：Yes (specific site not provided by mmCIF) X6C (2S,4R)-1-ethanoyl-N-[[4-(1,3-oxazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1M NA CACODYALATE PH 6.0, 0.2M MG ACETATE, 15%PEG3350, 5MM DTT
Resolution 2.20 Å R-free 0.225
4BKS von Hippel Lindau protein:ElonginB:ElonginC complex, in complex with (2S,4R)-1-ethanoyl-N-[[4-(1,3-oxazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide Deposited 2013-04-29 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa） Fragment：RESIDUES 1-104
Non-standard monomer：Yes (specific site not provided by mmCIF) X6C (2S,4R)-1-ethanoyl-N-[[4-(1,3-oxazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1M NA CACODYALATE PH 6.0, 0.2M MG ACETATE, 15%PEG3350, 5MM DTT
Resolution 2.20 Å R-free 0.225
4BKS von Hippel Lindau protein:ElonginB:ElonginC complex, in complex with (2S,4R)-1-ethanoyl-N-[[4-(1,3-oxazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide Deposited 2013-04-29 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa） Fragment：RESIDUES 1-104
Not recorded X6C (2S,4R)-1-ethanoyl-N-[[4-(1,3-oxazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1M NA CACODYALATE PH 6.0, 0.2M MG ACETATE, 15%PEG3350, 5MM DTT
Resolution 2.20 Å R-free 0.225
4BKS von Hippel Lindau protein:ElonginB:ElonginC complex, in complex with (2S,4R)-1-ethanoyl-N-[[4-(1,3-oxazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide Deposited 2013-04-29 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa） Fragment：RESIDUES 1-104
Not recorded X6C (2S,4R)-1-ethanoyl-N-[[4-(1,3-oxazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1M NA CACODYALATE PH 6.0, 0.2M MG ACETATE, 15%PEG3350, 5MM DTT
Resolution 2.20 Å R-free 0.225
4BKT von Hippel Lindau protein:ElonginB:ElonginC complex, in complex with (2S,4R)-N-methyl-1-[2-(3-methyl-1,2-oxazol-5-yl)ethanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide Deposited 2013-04-29 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa） Fragment：RESIDUES 1-104
Non-standard monomer：Yes (specific site not provided by mmCIF) QD0 (2S,4R)-N-methyl-1-[2-(3-methyl-1,2-oxazol-5-yl)ethanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1M NA CACODYLATE PH 6.0, 0.2 M MG ACETATE, 15% PEG3350, 5 MM DTT
Resolution 2.35 Å R-free 0.228
4BKT von Hippel Lindau protein:ElonginB:ElonginC complex, in complex with (2S,4R)-N-methyl-1-[2-(3-methyl-1,2-oxazol-5-yl)ethanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide Deposited 2013-04-29 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa） Fragment：RESIDUES 1-104
Non-standard monomer：Yes (specific site not provided by mmCIF) QD0 (2S,4R)-N-methyl-1-[2-(3-methyl-1,2-oxazol-5-yl)ethanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 ARG ARGININE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1M NA CACODYLATE PH 6.0, 0.2 M MG ACETATE, 15% PEG3350, 5 MM DTT
Resolution 2.35 Å R-free 0.228
4BKT von Hippel Lindau protein:ElonginB:ElonginC complex, in complex with (2S,4R)-N-methyl-1-[2-(3-methyl-1,2-oxazol-5-yl)ethanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide Deposited 2013-04-29 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa） Fragment：RESIDUES 1-104
Non-standard monomer：Yes (specific site not provided by mmCIF) QD0 (2S,4R)-N-methyl-1-[2-(3-methyl-1,2-oxazol-5-yl)ethanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1M NA CACODYLATE PH 6.0, 0.2 M MG ACETATE, 15% PEG3350, 5 MM DTT
Resolution 2.35 Å R-free 0.228
4BKT von Hippel Lindau protein:ElonginB:ElonginC complex, in complex with (2S,4R)-N-methyl-1-[2-(3-methyl-1,2-oxazol-5-yl)ethanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide Deposited 2013-04-29 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa） Fragment：RESIDUES 1-104
Non-standard monomer：Yes (specific site not provided by mmCIF) QD0 (2S,4R)-N-methyl-1-[2-(3-methyl-1,2-oxazol-5-yl)ethanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 GLU GLUTAMIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions 0.1M NA CACODYLATE PH 6.0, 0.2 M MG ACETATE, 15% PEG3350, 5 MM DTT
Resolution 2.35 Å R-free 0.228
4N9F Crystal structure of the Vif-CBFbeta-CUL5-ElOB-ElOC pentameric complex Deposited 2013-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain X 1–102（102 aa） Fragment：UNP residues 1-102
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；0.22M potassium sulfate, 18% (w/v) polyethylene glycol (PEG) 3350, 100mM Tris HCl, pH 8.0., VAPOR DIFFUSION, HANGING DROP, temperature 277.0K
Resolution 3.30 Å R-free 0.324
4N9F Crystal structure of the Vif-CBFbeta-CUL5-ElOB-ElOC pentameric complex Deposited 2013-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 10 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain 4 1–102（102 aa） Fragment：UNP residues 1-102
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；0.22M potassium sulfate, 18% (w/v) polyethylene glycol (PEG) 3350, 100mM Tris HCl, pH 8.0., VAPOR DIFFUSION, HANGING DROP, temperature 277.0K
Resolution 3.30 Å R-free 0.324
4N9F Crystal structure of the Vif-CBFbeta-CUL5-ElOB-ElOC pentameric complex Deposited 2013-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 11 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain e 1–102（102 aa） Fragment：UNP residues 1-102
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；0.22M potassium sulfate, 18% (w/v) polyethylene glycol (PEG) 3350, 100mM Tris HCl, pH 8.0., VAPOR DIFFUSION, HANGING DROP, temperature 277.0K
Resolution 3.30 Å R-free 0.324
4N9F Crystal structure of the Vif-CBFbeta-CUL5-ElOB-ElOC pentameric complex Deposited 2013-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 12 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain H 1–102（102 aa） Fragment：UNP residues 1-102
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；0.22M potassium sulfate, 18% (w/v) polyethylene glycol (PEG) 3350, 100mM Tris HCl, pH 8.0., VAPOR DIFFUSION, HANGING DROP, temperature 277.0K
Resolution 3.30 Å R-free 0.324
4N9F Crystal structure of the Vif-CBFbeta-CUL5-ElOB-ElOC pentameric complex Deposited 2013-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–102（102 aa） Fragment：UNP residues 1-102
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；0.22M potassium sulfate, 18% (w/v) polyethylene glycol (PEG) 3350, 100mM Tris HCl, pH 8.0., VAPOR DIFFUSION, HANGING DROP, temperature 277.0K
Resolution 3.30 Å R-free 0.324
4N9F Crystal structure of the Vif-CBFbeta-CUL5-ElOB-ElOC pentameric complex Deposited 2013-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain J 1–102（102 aa） Fragment：UNP residues 1-102
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；0.22M potassium sulfate, 18% (w/v) polyethylene glycol (PEG) 3350, 100mM Tris HCl, pH 8.0., VAPOR DIFFUSION, HANGING DROP, temperature 277.0K
Resolution 3.30 Å R-free 0.324
4N9F Crystal structure of the Vif-CBFbeta-CUL5-ElOB-ElOC pentameric complex Deposited 2013-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain P 1–102（102 aa） Fragment：UNP residues 1-102
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；0.22M potassium sulfate, 18% (w/v) polyethylene glycol (PEG) 3350, 100mM Tris HCl, pH 8.0., VAPOR DIFFUSION, HANGING DROP, temperature 277.0K
Resolution 3.30 Å R-free 0.324
4N9F Crystal structure of the Vif-CBFbeta-CUL5-ElOB-ElOC pentameric complex Deposited 2013-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain W 1–102（102 aa） Fragment：UNP residues 1-102
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；0.22M potassium sulfate, 18% (w/v) polyethylene glycol (PEG) 3350, 100mM Tris HCl, pH 8.0., VAPOR DIFFUSION, HANGING DROP, temperature 277.0K
Resolution 3.30 Å R-free 0.324
4N9F Crystal structure of the Vif-CBFbeta-CUL5-ElOB-ElOC pentameric complex Deposited 2013-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain g 1–102（102 aa） Fragment：UNP residues 1-102
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；0.22M potassium sulfate, 18% (w/v) polyethylene glycol (PEG) 3350, 100mM Tris HCl, pH 8.0., VAPOR DIFFUSION, HANGING DROP, temperature 277.0K
Resolution 3.30 Å R-free 0.324
4N9F Crystal structure of the Vif-CBFbeta-CUL5-ElOB-ElOC pentameric complex Deposited 2013-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain m 1–102（102 aa） Fragment：UNP residues 1-102
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；0.22M potassium sulfate, 18% (w/v) polyethylene glycol (PEG) 3350, 100mM Tris HCl, pH 8.0., VAPOR DIFFUSION, HANGING DROP, temperature 277.0K
Resolution 3.30 Å R-free 0.324
4N9F Crystal structure of the Vif-CBFbeta-CUL5-ElOB-ElOC pentameric complex Deposited 2013-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 8 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain s 1–102（102 aa） Fragment：UNP residues 1-102
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；0.22M potassium sulfate, 18% (w/v) polyethylene glycol (PEG) 3350, 100mM Tris HCl, pH 8.0., VAPOR DIFFUSION, HANGING DROP, temperature 277.0K
Resolution 3.30 Å R-free 0.324
4N9F Crystal structure of the Vif-CBFbeta-CUL5-ElOB-ElOC pentameric complex Deposited 2013-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 9 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain y 1–102（102 aa） Fragment：UNP residues 1-102
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；0.22M potassium sulfate, 18% (w/v) polyethylene glycol (PEG) 3350, 100mM Tris HCl, pH 8.0., VAPOR DIFFUSION, HANGING DROP, temperature 277.0K
Resolution 3.30 Å R-free 0.324
4W9C pVHL:EloB:EloC in complex with (2S,4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(oxazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 2) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JG (4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-[4-(1,3-oxazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.251
4W9C pVHL:EloB:EloC in complex with (2S,4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(oxazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 2) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JG (4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-[4-(1,3-oxazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.251
4W9C pVHL:EloB:EloC in complex with (2S,4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(oxazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 2) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JG (4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-[4-(1,3-oxazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.251
4W9C pVHL:EloB:EloC in complex with (2S,4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(oxazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 2) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JG (4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-[4-(1,3-oxazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.251
4W9D pVHL:EloB:EloC in complex with (2S,4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methyloxazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 3) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JK (4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-[4-(4-methyl-1,3-oxazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.236
4W9D pVHL:EloB:EloC in complex with (2S,4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methyloxazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 3) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JK (4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-[4-(4-methyl-1,3-oxazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.236
4W9D pVHL:EloB:EloC in complex with (2S,4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methyloxazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 3) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JK (4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-[4-(4-methyl-1,3-oxazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.236
4W9D pVHL:EloB:EloC in complex with (2S,4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methyloxazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 3) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JK (4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-[4-(4-methyl-1,3-oxazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.236
4W9E pVHL:EloB:EloC in complex with (2S,4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(thiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 4) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JT (4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-[4-(1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.60 Å R-free 0.261
4W9E pVHL:EloB:EloC in complex with (2S,4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(thiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 4) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JT (4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-[4-(1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.60 Å R-free 0.261
4W9E pVHL:EloB:EloC in complex with (2S,4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(thiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 4) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JT (4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-[4-(1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.60 Å R-free 0.261
4W9E pVHL:EloB:EloC in complex with (2S,4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(thiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 4) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JT (4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-[4-(1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.60 Å R-free 0.261
4W9F pVHL:EloB:EloC in complex with (2S,4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 5) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: Trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JU (4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.10 Å R-free 0.229
4W9F pVHL:EloB:EloC in complex with (2S,4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 5) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: Trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JU (4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.10 Å R-free 0.229
4W9F pVHL:EloB:EloC in complex with (2S,4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 5) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: Trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JU (4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.10 Å R-free 0.229
4W9F pVHL:EloB:EloC in complex with (2S,4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 5) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: Trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JU (4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.10 Å R-free 0.229
4W9G pVHL:EloB:EloC in complex with (2S,4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-(3-methyl-4-(thiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 6) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JV (4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-[3-methyl-4-(1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.70 Å R-free 0.264
4W9G pVHL:EloB:EloC in complex with (2S,4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-(3-methyl-4-(thiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 6) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JV (4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-[3-methyl-4-(1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.70 Å R-free 0.264
4W9G pVHL:EloB:EloC in complex with (2S,4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-(3-methyl-4-(thiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 6) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JV (4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-[3-methyl-4-(1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.70 Å R-free 0.264
4W9G pVHL:EloB:EloC in complex with (2S,4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-(3-methyl-4-(thiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 6) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JV (4R)-1-(3,3-dimethylbutanoyl)-4-hydroxy-N-[3-methyl-4-(1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.70 Å R-free 0.264
4W9H pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-acetamido-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 7) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JF N-acetyl-3-methyl-L-valyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.10 Å R-free 0.253
4W9H pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-acetamido-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 7) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JF N-acetyl-3-methyl-L-valyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.10 Å R-free 0.253
4W9H pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-acetamido-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 7) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JF N-acetyl-3-methyl-L-valyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.10 Å R-free 0.253
4W9H pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-acetamido-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 7) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JF N-acetyl-3-methyl-L-valyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.10 Å R-free 0.253
4W9I pVHL:EloB:EloC in complex with (2S,4R)-1-((2S,4R)-1-acetyl-4-hydroxypyrrolidine-2-carbonyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 10) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JS (4R)-1-acetyl-4-hydroxy-L-prolyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.40 Å R-free 0.275
4W9I pVHL:EloB:EloC in complex with (2S,4R)-1-((2S,4R)-1-acetyl-4-hydroxypyrrolidine-2-carbonyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 10) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JS (4R)-1-acetyl-4-hydroxy-L-prolyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.40 Å R-free 0.275
4W9I pVHL:EloB:EloC in complex with (2S,4R)-1-((2S,4R)-1-acetyl-4-hydroxypyrrolidine-2-carbonyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 10) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JS (4R)-1-acetyl-4-hydroxy-L-prolyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.40 Å R-free 0.275
4W9I pVHL:EloB:EloC in complex with (2S,4R)-1-((2S,4R)-1-acetyl-4-hydroxypyrrolidine-2-carbonyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 10) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JS (4R)-1-acetyl-4-hydroxy-L-prolyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.40 Å R-free 0.275
4W9J pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-((S)-2-acetamido-4-methylpentanamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 13) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: Trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JH N-acetyl-L-leucyl-3-methyl-L-valyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.265
4W9J pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-((S)-2-acetamido-4-methylpentanamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 13) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: Trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JH N-acetyl-L-leucyl-3-methyl-L-valyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.265
4W9J pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-((S)-2-acetamido-4-methylpentanamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 13) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: Trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JH N-acetyl-L-leucyl-3-methyl-L-valyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.265
4W9J pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-((S)-2-acetamido-4-methylpentanamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 13) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: Trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JH N-acetyl-L-leucyl-3-methyl-L-valyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.265
4W9K pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-((S)-2-acetamido-3-phenylpropanamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 14) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: Trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JO N-acetyl-L-phenylalanyl-3-methyl-L-valyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.10 Å R-free 0.260
4W9K pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-((S)-2-acetamido-3-phenylpropanamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 14) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: Trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JO N-acetyl-L-phenylalanyl-3-methyl-L-valyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.10 Å R-free 0.260
4W9K pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-((S)-2-acetamido-3-phenylpropanamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 14) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: Trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JO N-acetyl-L-phenylalanyl-3-methyl-L-valyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.10 Å R-free 0.260
4W9K pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-((S)-2-acetamido-3-phenylpropanamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 14) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: Trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JO N-acetyl-L-phenylalanyl-3-methyl-L-valyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.10 Å R-free 0.260
4W9L pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-((S)-2-acetamido-3,3-dimethylbutanamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 15) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: Trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JJ N-acetyl-3-methyl-L-valyl-3-methyl-L-valyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.243
4W9L pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-((S)-2-acetamido-3,3-dimethylbutanamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 15) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: Trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JJ N-acetyl-3-methyl-L-valyl-3-methyl-L-valyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.243
4W9L pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-((S)-2-acetamido-3,3-dimethylbutanamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 15) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: Trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JJ N-acetyl-3-methyl-L-valyl-3-methyl-L-valyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.243
4W9L pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-((S)-2-acetamido-3,3-dimethylbutanamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 15) Deposited 2014-08-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: Trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 3JJ N-acetyl-3-methyl-L-valyl-3-methyl-L-valyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.243
4WQO Structure of VHL-EloB-EloC-Cul2 Deposited 2014-10-22 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–118（118 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；298 K；4M Na formate
Resolution 3.20 Å R-free 0.249
5BO4 Structure of SOCS2:Elongin C:Elongin B from DMSO-treated crystals Deposited 2015-05-27 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；291 K；PEG 3350, CaOAc, Sodium cacodylate, Glycerol
Resolution 2.90 Å R-free 0.287
5BO4 Structure of SOCS2:Elongin C:Elongin B from DMSO-treated crystals Deposited 2015-05-27 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；291 K；PEG 3350, CaOAc, Sodium cacodylate, Glycerol
Resolution 2.90 Å R-free 0.287
5BO4 Structure of SOCS2:Elongin C:Elongin B from DMSO-treated crystals Deposited 2015-05-27 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；291 K；PEG 3350, CaOAc, Sodium cacodylate, Glycerol
Resolution 2.90 Å R-free 0.287
5BO4 Structure of SOCS2:Elongin C:Elongin B from DMSO-treated crystals Deposited 2015-05-27 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain K 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；291 K；PEG 3350, CaOAc, Sodium cacodylate, Glycerol
Resolution 2.90 Å R-free 0.287
5BO4 Structure of SOCS2:Elongin C:Elongin B from DMSO-treated crystals Deposited 2015-05-27 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain N 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；291 K；PEG 3350, CaOAc, Sodium cacodylate, Glycerol
Resolution 2.90 Å R-free 0.287
5BO4 Structure of SOCS2:Elongin C:Elongin B from DMSO-treated crystals Deposited 2015-05-27 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain Q 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；291 K；PEG 3350, CaOAc, Sodium cacodylate, Glycerol
Resolution 2.90 Å R-free 0.287
5LLI pVHL:EloB:EloC in complex with VH298 Deposited 2016-07-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 6Z3 (2~{S},4~{R})-1-[(2~{S})-2-[(1-cyanocyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.40 Å R-free 0.252
5LLI pVHL:EloB:EloC in complex with VH298 Deposited 2016-07-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 6Z3 (2~{S},4~{R})-1-[(2~{S})-2-[(1-cyanocyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.40 Å R-free 0.252
5LLI pVHL:EloB:EloC in complex with VH298 Deposited 2016-07-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 6Z3 (2~{S},4~{R})-1-[(2~{S})-2-[(1-cyanocyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.40 Å R-free 0.252
5LLI pVHL:EloB:EloC in complex with VH298 Deposited 2016-07-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 6Z3 (2~{S},4~{R})-1-[(2~{S})-2-[(1-cyanocyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.40 Å R-free 0.252
5N4W Crystal structure of the Cul2-Rbx1-EloBC-VHL ubiquitin ligase complex Deposited 2017-02-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–104（104 aa）
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；0.1 M Tris pH 7.6, 0.15 M ammonium sulphate, 15% polyethyleneglycol 4000 and 3% 1,4-dioxane or 4% acetonitrile. The sample was crystallised in the presence of a 19-mer peptide mimicking the substrate HIF-1alpha - residues 559-577 (DEALAPYIPMDDDFQLRSF, with the mutations L559D and M561A and P564 is hydroxyproline).
Resolution 3.90 Å R-free 0.346
5NVV pVHL:EloB:EloC in complex with (2S,4R)-4-hydroxy-1-((S)-2-(2-hydroxyacetamido)-3,3-dimethylbutanoyl)-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 3) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9BT (2~{S},4~{R})-1-[(2~{S})-3,3-dimethyl-2-(2-oxidanylethanoylamino)butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.10 Å R-free 0.245
5NVV pVHL:EloB:EloC in complex with (2S,4R)-4-hydroxy-1-((S)-2-(2-hydroxyacetamido)-3,3-dimethylbutanoyl)-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 3) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9BT (2~{S},4~{R})-1-[(2~{S})-3,3-dimethyl-2-(2-oxidanylethanoylamino)butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.10 Å R-free 0.245
5NVV pVHL:EloB:EloC in complex with (2S,4R)-4-hydroxy-1-((S)-2-(2-hydroxyacetamido)-3,3-dimethylbutanoyl)-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 3) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9BT (2~{S},4~{R})-1-[(2~{S})-3,3-dimethyl-2-(2-oxidanylethanoylamino)butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.10 Å R-free 0.245
5NVV pVHL:EloB:EloC in complex with (2S,4R)-4-hydroxy-1-((S)-2-(2-hydroxyacetamido)-3,3-dimethylbutanoyl)-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 3) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9BT (2~{S},4~{R})-1-[(2~{S})-3,3-dimethyl-2-(2-oxidanylethanoylamino)butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.10 Å R-free 0.245
5NVW pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(cyclopropanecarboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 6) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9BW (2~{S},4~{R})-1-[(2~{S})-2-(cyclopropylcarbonylamino)-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.249
5NVW pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(cyclopropanecarboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 6) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9BW (2~{S},4~{R})-1-[(2~{S})-2-(cyclopropylcarbonylamino)-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.249
5NVW pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(cyclopropanecarboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 6) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9BW (2~{S},4~{R})-1-[(2~{S})-2-(cyclopropylcarbonylamino)-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.249
5NVW pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(cyclopropanecarboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 6) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9BW (2~{S},4~{R})-1-[(2~{S})-2-(cyclopropylcarbonylamino)-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.249
5NVX pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(1-fluorocyclopropanecarboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 10) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 4YY N-[(1-fluorocyclopropyl)carbonyl]-3-methyl-L-valyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.245
5NVX pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(1-fluorocyclopropanecarboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 10) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 4YY N-[(1-fluorocyclopropyl)carbonyl]-3-methyl-L-valyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.245
5NVX pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(1-fluorocyclopropanecarboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 10) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 4YY N-[(1-fluorocyclopropyl)carbonyl]-3-methyl-L-valyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.245
5NVX pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(1-fluorocyclopropanecarboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 10) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 4YY N-[(1-fluorocyclopropyl)carbonyl]-3-methyl-L-valyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.245
5NVY pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-acetamidopropanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl) pyrrolidine-2-carboxamide (ligand 11) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9B5 (2~{S},4~{R})-1-[(2~{S})-2-acetamidopropanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.90 Å R-free 0.269
5NVY pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-acetamidopropanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl) pyrrolidine-2-carboxamide (ligand 11) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9B5 (2~{S},4~{R})-1-[(2~{S})-2-acetamidopropanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.90 Å R-free 0.269
5NVY pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-acetamidopropanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl) pyrrolidine-2-carboxamide (ligand 11) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9B5 (2~{S},4~{R})-1-[(2~{S})-2-acetamidopropanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.90 Å R-free 0.269
5NVY pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-acetamidopropanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl) pyrrolidine-2-carboxamide (ligand 11) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9B5 (2~{S},4~{R})-1-[(2~{S})-2-acetamidopropanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.90 Å R-free 0.269
5NVZ pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(1-acetylcyclopropanecarboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 16) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9BN (2~{S},4~{R})-1-[(2~{S})-2-[(1-ethanoylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.70 Å R-free 0.270
5NVZ pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(1-acetylcyclopropanecarboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 16) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9BN (2~{S},4~{R})-1-[(2~{S})-2-[(1-ethanoylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.70 Å R-free 0.270
5NVZ pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(1-acetylcyclopropanecarboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 16) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9BN (2~{S},4~{R})-1-[(2~{S})-2-[(1-ethanoylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.70 Å R-free 0.270
5NVZ pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(1-acetylcyclopropanecarboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 16) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9BN (2~{S},4~{R})-1-[(2~{S})-2-[(1-ethanoylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.70 Å R-free 0.270
5NW0 pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(1-acetamidocyclopropanecarboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 17) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9BK (2~{S},4~{R})-1-[(2~{S})-2-[(1-acetamidocyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.30 Å R-free 0.238
5NW0 pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(1-acetamidocyclopropanecarboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 17) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9BK (2~{S},4~{R})-1-[(2~{S})-2-[(1-acetamidocyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.30 Å R-free 0.238
5NW0 pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(1-acetamidocyclopropanecarboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 17) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9BK (2~{S},4~{R})-1-[(2~{S})-2-[(1-acetamidocyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.30 Å R-free 0.238
5NW0 pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(1-acetamidocyclopropanecarboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 17) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9BK (2~{S},4~{R})-1-[(2~{S})-2-[(1-acetamidocyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.30 Å R-free 0.238
5NW1 pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(cyclobutanecarboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 18) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9BH (2~{S},4~{R})-1-[(2~{S})-2-(cyclobutylcarbonylamino)-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.10 Å R-free 0.238
5NW1 pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(cyclobutanecarboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 18) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9BH (2~{S},4~{R})-1-[(2~{S})-2-(cyclobutylcarbonylamino)-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.10 Å R-free 0.238
5NW1 pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(cyclobutanecarboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 18) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9BH (2~{S},4~{R})-1-[(2~{S})-2-(cyclobutylcarbonylamino)-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.10 Å R-free 0.238
5NW1 pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(cyclobutanecarboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 18) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9BH (2~{S},4~{R})-1-[(2~{S})-2-(cyclobutylcarbonylamino)-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.10 Å R-free 0.238
5NW2 pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-3,3-dimethyl-2-(oxetane-3-carboxamido)butanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 19) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9B8 (2~{S},4~{R})-1-[(2~{S})-3,3-dimethyl-2-(oxetan-3-ylcarbonylamino)butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.242
5NW2 pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-3,3-dimethyl-2-(oxetane-3-carboxamido)butanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 19) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9B8 (2~{S},4~{R})-1-[(2~{S})-3,3-dimethyl-2-(oxetan-3-ylcarbonylamino)butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.242
5NW2 pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-3,3-dimethyl-2-(oxetane-3-carboxamido)butanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 19) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9B8 (2~{S},4~{R})-1-[(2~{S})-3,3-dimethyl-2-(oxetan-3-ylcarbonylamino)butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.242
5NW2 pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-3,3-dimethyl-2-(oxetane-3-carboxamido)butanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide (ligand 19) Deposited 2017-05-04 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) 9B8 (2~{S},4~{R})-1-[(2~{S})-3,3-dimethyl-2-(oxetan-3-ylcarbonylamino)butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.20 Å R-free 0.242
5T35 The PROTAC MZ1 in complex with the second bromodomain of Brd4 and pVHL:ElonginC:ElonginB Deposited 2016-08-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–104（104 aa）
Not recorded 759 (2~{S},4~{R})-1-[(2~{S})-2-[2-[2-[2-[2-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoylamino]ethoxy]ethoxy]ethoxy]ethanoylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-2,3-dihydro-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；293 K；PEG 8000, Sodium citrate
Resolution 2.70 Å R-free 0.231
5T35 The PROTAC MZ1 in complex with the second bromodomain of Brd4 and pVHL:ElonginC:ElonginB Deposited 2016-08-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 1–104（104 aa）
Not recorded 759 (2~{S},4~{R})-1-[(2~{S})-2-[2-[2-[2-[2-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoylamino]ethoxy]ethoxy]ethoxy]ethanoylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-2,3-dihydro-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；293 K；PEG 8000, Sodium citrate
Resolution 2.70 Å R-free 0.231
6BVB Crystal structure of HIF-2alpha-pVHL-elongin B-elongin C Deposited 2017-12-12 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–118（118 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；26% (v/v) PEG-3350, 0.2 M Li2SO4, 0.1 M Bis-Tris. 7 mg/mL protein complex.
Resolution 2.00 Å R-free 0.235
6C5X Crystal Structure of SOCS1 in complex with ElonginB and ElonginC Deposited 2018-01-17 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–118（118 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；281 K；18% PEG3350, 200 mM sodium fluoride, 100 mM Tris, pH 7.5
Resolution 3.10 Å R-free 0.271
6C5X Crystal Structure of SOCS1 in complex with ElonginB and ElonginC Deposited 2018-01-17 Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–118（118 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；281 K；18% PEG3350, 200 mM sodium fluoride, 100 mM Tris, pH 7.5
Resolution 3.10 Å R-free 0.271
6FMI pVHL:EloB:EloC in complex with N-((S)-1-((2S,4R)-4-Hydroxy-2-((4-(4-methylthiazol-5-yl)benzyl)carbamothioyl) pyrrolidin-1-yl)-1-oxopropan-2-yl)acetamide (ligand 2) Deposited 2018-01-31 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) DV2 ~{N}-[(2~{S})-1-[(2~{S},4~{R})-2-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methylcarbamothioyl]-4-oxidanyl-pyrrolidin-1-yl]-1-oxidanylidene-propan-2-yl]ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.80 Å R-free 0.256
6FMI pVHL:EloB:EloC in complex with N-((S)-1-((2S,4R)-4-Hydroxy-2-((4-(4-methylthiazol-5-yl)benzyl)carbamothioyl) pyrrolidin-1-yl)-1-oxopropan-2-yl)acetamide (ligand 2) Deposited 2018-01-31 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) DV2 ~{N}-[(2~{S})-1-[(2~{S},4~{R})-2-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methylcarbamothioyl]-4-oxidanyl-pyrrolidin-1-yl]-1-oxidanylidene-propan-2-yl]ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.80 Å R-free 0.256
6FMJ pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-Acetamidopropanethioyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl) benzyl)pyrrolidine-2-carboxamide (ligand 3) Deposited 2018-01-31 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) DV5 (2~{S},4~{R})-1-[(2~{S})-2-acetamidopropanethioyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.45 Å R-free 0.265
6FMJ pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-Acetamidopropanethioyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl) benzyl)pyrrolidine-2-carboxamide (ligand 3) Deposited 2018-01-31 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) DV5 (2~{S},4~{R})-1-[(2~{S})-2-acetamidopropanethioyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.45 Å R-free 0.265
6FMJ pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-Acetamidopropanethioyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl) benzyl)pyrrolidine-2-carboxamide (ligand 3) Deposited 2018-01-31 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) DV5 (2~{S},4~{R})-1-[(2~{S})-2-acetamidopropanethioyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.45 Å R-free 0.265
6FMJ pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-Acetamidopropanethioyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl) benzyl)pyrrolidine-2-carboxamide (ligand 3) Deposited 2018-01-31 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) DV5 (2~{S},4~{R})-1-[(2~{S})-2-acetamidopropanethioyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.45 Å R-free 0.265
6FMK pVHL:EloB:EloC in complex with N-((S)-1-((2S,4R)-4-hydroxy-2-((4-(4-methylthiazol-5-yl)benzyl)carbamothioyl) pyrrolidin-1-yl)-1-thioxopropan-2-yl)acetamide (ligand 4) Deposited 2018-01-31 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) DV8 ~{N}-[(2~{S})-1-[(2~{S},4~{R})-2-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methylcarbamothioyl]-4-oxidanyl-pyrrolidin-1-yl]-1-sulfanylidene-propan-2-yl]ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.75 Å R-free 0.260
6FMK pVHL:EloB:EloC in complex with N-((S)-1-((2S,4R)-4-hydroxy-2-((4-(4-methylthiazol-5-yl)benzyl)carbamothioyl) pyrrolidin-1-yl)-1-thioxopropan-2-yl)acetamide (ligand 4) Deposited 2018-01-31 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) DV8 ~{N}-[(2~{S})-1-[(2~{S},4~{R})-2-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methylcarbamothioyl]-4-oxidanyl-pyrrolidin-1-yl]-1-sulfanylidene-propan-2-yl]ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.75 Å R-free 0.260
6FMK pVHL:EloB:EloC in complex with N-((S)-1-((2S,4R)-4-hydroxy-2-((4-(4-methylthiazol-5-yl)benzyl)carbamothioyl) pyrrolidin-1-yl)-1-thioxopropan-2-yl)acetamide (ligand 4) Deposited 2018-01-31 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) DV8 ~{N}-[(2~{S})-1-[(2~{S},4~{R})-2-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methylcarbamothioyl]-4-oxidanyl-pyrrolidin-1-yl]-1-sulfanylidene-propan-2-yl]ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.75 Å R-free 0.260
6FMK pVHL:EloB:EloC in complex with N-((S)-1-((2S,4R)-4-hydroxy-2-((4-(4-methylthiazol-5-yl)benzyl)carbamothioyl) pyrrolidin-1-yl)-1-thioxopropan-2-yl)acetamide (ligand 4) Deposited 2018-01-31 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) DV8 ~{N}-[(2~{S})-1-[(2~{S},4~{R})-2-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methylcarbamothioyl]-4-oxidanyl-pyrrolidin-1-yl]-1-sulfanylidene-propan-2-yl]ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.75 Å R-free 0.260
6GFX pVHL:EloB:EloC in complex with modified HIF-1a CODD peptide containing (3R,4S)-3-fluoro-4-hydroxyproline (ligand 13a) Deposited 2018-05-02 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–104（104 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；20-22% PEG MME 5000, 0.2 M ammonium sulfate, 0.1 M potassium phosphate, 10 mM DTT
Resolution 1.83 Å R-free 0.212
6GFY pVHL:EloB:EloC in complex with modified VH032 containing (3R,4S)-3-fluoro-4-hydroxyproline (ligand 14a) Deposited 2018-05-02 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) EXH (2~{R},3~{R},4~{S})-1-[(2~{S})-2-acetamido-3,3-dimethyl-butanoyl]-3-fluoranyl-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.70 Å R-free 0.258
6GFY pVHL:EloB:EloC in complex with modified VH032 containing (3R,4S)-3-fluoro-4-hydroxyproline (ligand 14a) Deposited 2018-05-02 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) EXH (2~{R},3~{R},4~{S})-1-[(2~{S})-2-acetamido-3,3-dimethyl-butanoyl]-3-fluoranyl-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.70 Å R-free 0.258
6GFY pVHL:EloB:EloC in complex with modified VH032 containing (3R,4S)-3-fluoro-4-hydroxyproline (ligand 14a) Deposited 2018-05-02 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) EXH (2~{R},3~{R},4~{S})-1-[(2~{S})-2-acetamido-3,3-dimethyl-butanoyl]-3-fluoranyl-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.70 Å R-free 0.258
6GFY pVHL:EloB:EloC in complex with modified VH032 containing (3R,4S)-3-fluoro-4-hydroxyproline (ligand 14a) Deposited 2018-05-02 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) EXH (2~{R},3~{R},4~{S})-1-[(2~{S})-2-acetamido-3,3-dimethyl-butanoyl]-3-fluoranyl-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.70 Å R-free 0.258
6GFZ pVHL:EloB:EloC in complex with modified VH032 containing (3S,4S)-3-fluoro-4-hydroxyproline (ligand 14b) Deposited 2018-05-02 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) EXE (2~{R},3~{S},4~{S})-1-[(2~{S})-2-acetamido-3,3-dimethyl-butanoyl]-3-fluoranyl-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.30 Å R-free 0.245
6GFZ pVHL:EloB:EloC in complex with modified VH032 containing (3S,4S)-3-fluoro-4-hydroxyproline (ligand 14b) Deposited 2018-05-02 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) EXE (2~{R},3~{S},4~{S})-1-[(2~{S})-2-acetamido-3,3-dimethyl-butanoyl]-3-fluoranyl-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.30 Å R-free 0.245
6GFZ pVHL:EloB:EloC in complex with modified VH032 containing (3S,4S)-3-fluoro-4-hydroxyproline (ligand 14b) Deposited 2018-05-02 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) EXE (2~{R},3~{S},4~{S})-1-[(2~{S})-2-acetamido-3,3-dimethyl-butanoyl]-3-fluoranyl-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.30 Å R-free 0.245
6GFZ pVHL:EloB:EloC in complex with modified VH032 containing (3S,4S)-3-fluoro-4-hydroxyproline (ligand 14b) Deposited 2018-05-02 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) EXE (2~{R},3~{S},4~{S})-1-[(2~{S})-2-acetamido-3,3-dimethyl-butanoyl]-3-fluoranyl-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；291 K；PEG 3350, MgOAc, Sodium cacodylate, DTT
Resolution 2.30 Å R-free 0.245
6GMN pVHL:EloB:EloC in complex with methyl 4H-furo[3,2-b]pyrrole-5-carboxylate Deposited 2018-05-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ACT ACETATE ION × 2 F4E methyl 4~{H}-furo[3,2-b]pyrrole-5-carboxylate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；285 K；0.1 M Na cacodylate pH 6.0, 0.2 M Mg acetate, 15% PEG3350, 5mM DTT
Resolution 1.94 Å R-free 0.244
6GMN pVHL:EloB:EloC in complex with methyl 4H-furo[3,2-b]pyrrole-5-carboxylate Deposited 2018-05-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；285 K；0.1 M Na cacodylate pH 6.0, 0.2 M Mg acetate, 15% PEG3350, 5mM DTT
Resolution 1.94 Å R-free 0.244
6GMN pVHL:EloB:EloC in complex with methyl 4H-furo[3,2-b]pyrrole-5-carboxylate Deposited 2018-05-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；285 K；0.1 M Na cacodylate pH 6.0, 0.2 M Mg acetate, 15% PEG3350, 5mM DTT
Resolution 1.94 Å R-free 0.244
6GMN pVHL:EloB:EloC in complex with methyl 4H-furo[3,2-b]pyrrole-5-carboxylate Deposited 2018-05-27 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ACT ACETATE ION × 1 F4E methyl 4~{H}-furo[3,2-b]pyrrole-5-carboxylate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；285 K；0.1 M Na cacodylate pH 6.0, 0.2 M Mg acetate, 15% PEG3350, 5mM DTT
Resolution 1.94 Å R-free 0.244
6GMQ pVHL:EloB:EloC in complex with (4-(1H-pyrrol-1-yl)phenyl)methanol Deposited 2018-05-28 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；285 K；0.1 M Na cacodylate pH 6.0, 0.2 M Mg acetate, 15% PEG3350, 5mM DTT
Resolution 2.75 Å R-free 0.279
6GMQ pVHL:EloB:EloC in complex with (4-(1H-pyrrol-1-yl)phenyl)methanol Deposited 2018-05-28 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；285 K；0.1 M Na cacodylate pH 6.0, 0.2 M Mg acetate, 15% PEG3350, 5mM DTT
Resolution 2.75 Å R-free 0.279
6GMQ pVHL:EloB:EloC in complex with (4-(1H-pyrrol-1-yl)phenyl)methanol Deposited 2018-05-28 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ACT ACETATE ION × 1 F4K (4-pyrrol-1-ylphenyl)methanol × 1 IPA ISOPROPYL ALCOHOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；285 K；0.1 M Na cacodylate pH 6.0, 0.2 M Mg acetate, 15% PEG3350, 5mM DTT
Resolution 2.75 Å R-free 0.279
6GMQ pVHL:EloB:EloC in complex with (4-(1H-pyrrol-1-yl)phenyl)methanol Deposited 2018-05-28 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ACT ACETATE ION × 1 F4K (4-pyrrol-1-ylphenyl)methanol × 1 IPA ISOPROPYL ALCOHOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；285 K；0.1 M Na cacodylate pH 6.0, 0.2 M Mg acetate, 15% PEG3350, 5mM DTT
Resolution 2.75 Å R-free 0.279
6GMR pVHL:EloB:EloC in complex with (4-(1H-pyrrol-1-yl)phenyl)methanol Deposited 2018-05-28 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–118（118 aa）
Not recorded SO4 SULFATE ION × 1 F4K (4-pyrrol-1-ylphenyl)methanol × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；0.1 M K phosphate pH 6.6, 0.2 M AS, 20% PEG MME 5000, 5% DTT
Resolution 1.75 Å R-free 0.235
6GMX pVHL:EloB:EloC in complex with 6-chlorothiochroman-4-one Deposited 2018-05-28 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) F7B 6-chloranyl-2,3-dihydrothiochromen-4-one × 1 IPA ISOPROPYL ALCOHOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；285 K；0.1 M Na cacodylate pH 6.0, 0.2 M Mg acetate, 15% PEG3350, 5mM DTT
Resolution 2.53 Å R-free 0.361
6GMX pVHL:EloB:EloC in complex with 6-chlorothiochroman-4-one Deposited 2018-05-28 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) IPA ISOPROPYL ALCOHOL × 1 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；285 K；0.1 M Na cacodylate pH 6.0, 0.2 M Mg acetate, 15% PEG3350, 5mM DTT
Resolution 2.53 Å R-free 0.361
6GMX pVHL:EloB:EloC in complex with 6-chlorothiochroman-4-one Deposited 2018-05-28 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) IPA ISOPROPYL ALCOHOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；285 K；0.1 M Na cacodylate pH 6.0, 0.2 M Mg acetate, 15% PEG3350, 5mM DTT
Resolution 2.53 Å R-free 0.361
6GMX pVHL:EloB:EloC in complex with 6-chlorothiochroman-4-one Deposited 2018-05-28 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) F7B 6-chloranyl-2,3-dihydrothiochromen-4-one × 1 IPA ISOPROPYL ALCOHOL × 1 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；285 K；0.1 M Na cacodylate pH 6.0, 0.2 M Mg acetate, 15% PEG3350, 5mM DTT
Resolution 2.53 Å R-free 0.361
6HAX Crystal structure of PROTAC 2 in complex with the bromodomain of human SMARCA2 and pVHL:ElonginC:ElonginB Deposited 2018-08-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–104（104 aa）
Not recorded EDO 1,2-ETHANEDIOL × 8 FWZ (2~{S},4~{R})-~{N}-[[2-[2-[4-[[4-[3-azanyl-6-(2-hydroxyphenyl)pyridazin-4-yl]piperazin-1-yl]methyl]phenyl]ethoxy]-4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.75；277 K；13% (w/v) PEG 3350, 0.2 M sodium formate, 0.1 M HEPES, pH 8.0
Resolution 2.35 Å R-free 0.268
6HAX Crystal structure of PROTAC 2 in complex with the bromodomain of human SMARCA2 and pVHL:ElonginC:ElonginB Deposited 2018-08-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain H 1–104（104 aa）
Not recorded EDO 1,2-ETHANEDIOL × 6 FWZ (2~{S},4~{R})-~{N}-[[2-[2-[4-[[4-[3-azanyl-6-(2-hydroxyphenyl)pyridazin-4-yl]piperazin-1-yl]methyl]phenyl]ethoxy]-4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.75；277 K；13% (w/v) PEG 3350, 0.2 M sodium formate, 0.1 M HEPES, pH 8.0
Resolution 2.35 Å R-free 0.268
6HAY Crystal structure of PROTAC 1 in complex with the bromodomain of human SMARCA2 and pVHL:ElonginC:ElonginB Deposited 2018-08-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–104（104 aa）
Not recorded FX8 (2~{S},4~{R})-~{N}-[[2-[2-[2-[2-[4-[3-azanyl-6-(2-hydroxyphenyl)pyridazin-4-yl]piperazin-1-yl]ethoxy]ethoxy]ethoxy]-4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 EDO 1,2-ETHANEDIOL × 11 FMT FORMIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.75；277 K；18% (w/v) PEG 3350, 0.2 M sodium formate, 0.1 M HEPES, pH 7.75
Resolution 2.24 Å R-free 0.223
6HAY Crystal structure of PROTAC 1 in complex with the bromodomain of human SMARCA2 and pVHL:ElonginC:ElonginB Deposited 2018-08-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain H 1–104（104 aa）
Not recorded FX8 (2~{S},4~{R})-~{N}-[[2-[2-[2-[2-[4-[3-azanyl-6-(2-hydroxyphenyl)pyridazin-4-yl]piperazin-1-yl]ethoxy]ethoxy]ethoxy]-4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 EDO 1,2-ETHANEDIOL × 11 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.75；277 K；18% (w/v) PEG 3350, 0.2 M sodium formate, 0.1 M HEPES, pH 7.75
Resolution 2.24 Å R-free 0.223
6HR2 Crystal structure of PROTAC 2 in complex with the bromodomain of human SMARCA4 and pVHL:ElonginC:ElonginB Deposited 2018-09-26 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–104（104 aa）
Not recorded FWZ (2~{S},4~{R})-~{N}-[[2-[2-[4-[[4-[3-azanyl-6-(2-hydroxyphenyl)pyridazin-4-yl]piperazin-1-yl]methyl]phenyl]ethoxy]-4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；20% (w/v) PEG1500, 0.1 M MIB Buffer, pH 6.0
Resolution 1.76 Å R-free 0.236
6HR2 Crystal structure of PROTAC 2 in complex with the bromodomain of human SMARCA4 and pVHL:ElonginC:ElonginB Deposited 2018-09-26 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain H 1–104（104 aa）
Not recorded FWZ (2~{S},4~{R})-~{N}-[[2-[2-[4-[[4-[3-azanyl-6-(2-hydroxyphenyl)pyridazin-4-yl]piperazin-1-yl]methyl]phenyl]ethoxy]-4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 DMS DIMETHYL SULFOXIDE × 1 EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；20% (w/v) PEG1500, 0.1 M MIB Buffer, pH 6.0
Resolution 1.76 Å R-free 0.236
6I4X Crystal structure of SOCS2:Elongin C:Elongin B in complex with erythropoietin receptor peptide Deposited 2018-11-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；Sodium cacodylate, ethanol, HEPES, magnesium chloride
Resolution 2.69 Å R-free 0.235
6I5J Crystal structure of SOCS2:Elongin C:Elongin B in complex with growth hormone receptor peptide Deposited 2018-11-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) CO COBALT (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；sodium cacodylate, cobalt chloride, MES, ammonium sulphate
Resolution 2.80 Å R-free 0.264
6I5J Crystal structure of SOCS2:Elongin C:Elongin B in complex with growth hormone receptor peptide Deposited 2018-11-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) CO COBALT (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；sodium cacodylate, cobalt chloride, MES, ammonium sulphate
Resolution 2.80 Å R-free 0.264
6I5N Crystal structure of SOCS2:Elongin C:Elongin B in complex with growth hormone receptor peptide Deposited 2018-11-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) CO COBALT (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；Sodium cacodylate, cobalt chloride, MES, ammonium sulphate
Resolution 1.98 Å R-free 0.226
6I5N Crystal structure of SOCS2:Elongin C:Elongin B in complex with growth hormone receptor peptide Deposited 2018-11-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) CO COBALT (II) ION × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；Sodium cacodylate, cobalt chloride, MES, ammonium sulphate
Resolution 1.98 Å R-free 0.226
6I7Q Structure of pVHL-elongin B-elongin C (VCB) in complex with hydroxylated-HIF-2alpha (523-542) in the C2221 form Deposited 2018-11-17 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–118（118 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.8；293 K；0.1M Cacodyl-Na pH 5.8, 0.1M Mg formate, 50 mM Cystamine, 22 % PEG3350
Resolution 1.80 Å R-free 0.237
6I7R Structure of pVHL-elongin B-elongin C (VCB) in complex with hydroxylated-HIF-2alpha (523-542) in the P43212 form Deposited 2018-11-17 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–118（118 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) FMT FORMIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.8；293 K；0.1M Cacodyl-Na pH 5.8, 0.1M Mg Formate, 50mM Cystamine, 22% PEG3350
Resolution 1.95 Å R-free 0.203
6P59 Crystal structure of SIVrcm Vif-CBFbeta-ELOB-ELOC complex Deposited 2019-05-29 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain W 1–118（118 aa）
Not recorded ZN ZINC ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；MES (pH 6), PEG 6000, Dichloromethane
Resolution 2.94 Å R-free 0.268
6P59 Crystal structure of SIVrcm Vif-CBFbeta-ELOB-ELOC complex Deposited 2019-05-29 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–118（118 aa）
Not recorded ZN ZINC ION × 1 GOL GLYCEROL × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；MES (pH 6), PEG 6000, Dichloromethane
Resolution 2.94 Å R-free 0.268
6R6H Structural basis of Cullin-2 RING E3 ligase regulation by the COP9 signalosome Deposited 2019-03-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain P 1–104（104 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；15 mM Hepes pH 7.5 100 mM NaCl 0.5 mM DTT 1% glycerol
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 8.40 Å
6R7F Structural basis of Cullin-2 RING E3 ligase regulation by the COP9 signalosome Deposited 2019-03-28 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric
Chain P 1–118（118 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；15 mM HEPES pH 7.5 100 mM NaCL 0.5 mM DTT 1% Glycerol
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.20 Å
6R7H Structural basis of Cullin-2 RING E3 ligase regulation by the COP9 signalosome Deposited 2019-03-28 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain P 1–104（104 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；15 mM HEPES pH 7.5 100 mM NaCl 0.5 mM DTT 1% Glycerol
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.80 Å
6R7I Structural basis of Cullin-2 RING E3 ligase regulation by the COP9 signalosome Deposited 2019-03-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric
Chain P 1–106（106 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.90 Å
6R7N Structural basis of Cullin-2 RING E3 ligase regulation by the COP9 signalosome Deposited 2019-03-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain P 1–104（104 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；15 mM HEPES pH 7.5 100 mM NaCl 0.5 mM DTT 1% Glycerol
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.50 Å
6SIS Crystal structure of macrocyclic PROTAC 1 in complex with the second bromodomain of human Brd4 and pVHL:ElonginC:ElonginB Deposited 2019-08-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–104（104 aa）
Not recorded LFE ~{N}-[(5~{S},7~{R},11~{S},23~{S})-11-~{tert}-butyl-34-(4-methyl-1,3-thiazol-5-yl)-7-oxidanyl-4,10,13-tris(oxidanylidene)-15,18,21,25,28,31-hexaoxa-3,9,12-triazatricyclo[30.4.0.0^{5,9}]hexatriaconta-1(32),33,35-trien-23-yl]-2-[(7~{S},9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,10,12-tetraen-9-yl]ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；10% (w/v) PEG 8000, 0.1 M Tris-HCl (pH 7.5) and 0.1 M MgCl2
Resolution 3.50 Å R-free 0.247
6SIS Crystal structure of macrocyclic PROTAC 1 in complex with the second bromodomain of human Brd4 and pVHL:ElonginC:ElonginB Deposited 2019-08-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 1–104（104 aa）
Not recorded LFE ~{N}-[(5~{S},7~{R},11~{S},23~{S})-11-~{tert}-butyl-34-(4-methyl-1,3-thiazol-5-yl)-7-oxidanyl-4,10,13-tris(oxidanylidene)-15,18,21,25,28,31-hexaoxa-3,9,12-triazatricyclo[30.4.0.0^{5,9}]hexatriaconta-1(32),33,35-trien-23-yl]-2-[(7~{S},9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,10,12-tetraen-9-yl]ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；10% (w/v) PEG 8000, 0.1 M Tris-HCl (pH 7.5) and 0.1 M MgCl2
Resolution 3.50 Å R-free 0.247
6V9H Ankyrin repeat and SOCS-box protein 9 (ASB9), ElonginB (ELOB), and ElonginC (ELOC) bound to its substrate Brain-type Creatine Kinase (CKB) Deposited 2019-12-13 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain E 1–118（118 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；4 second blot, blot force 20
Resolution 4.10 Å
6ZHC PROTAC6 mediated complex of VHL:EloB:EloC and Bcl-xL Deposited 2020-06-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain BBB 1–107（107 aa）
Not recorded QL8 2-[8-(1,3-benzothiazol-2-ylcarbamoyl)-3,4-dihydro-1~{H}-isoquinolin-2-yl]-5-[3-[4-[3-[2-[2-[2-[2-[2-[3-[[(2~{S})-3,3-dimethyl-1-[(2~{S},4~{R})-2-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methylcarbamoyl]-4-oxidanyl-pyrrolidin-1-yl]-1-oxidanylidene-butan-2-yl]amino]-3-oxidanylidene-propoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]prop-1-ynyl]phenoxy]propyl]-1,3-thiazole-4-carboxylic acid × 1 EDO 1,2-ETHANEDIOL × 17 GOL GLYCEROL × 9 IOD IODIDE ION × 12 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；291 K；0.2 M Potassium iodide, 0.1 M MES pH 6.5, 23% PEG 4000
Resolution 1.92 Å R-free 0.196
7CJB VHL recognizes hydroxyproline in RIPK1 Deposited 2020-07-09 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–118（118 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 6.5；289 K；sodium cacodylate pH 6.5, 100 mM magnesium acetate, 15%(w/v) PEG 6000
Resolution 2.80 Å R-free 0.259
7CJB VHL recognizes hydroxyproline in RIPK1 Deposited 2020-07-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 1–118（118 aa）
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 6.5；289 K；sodium cacodylate pH 6.5, 100 mM magnesium acetate, 15%(w/v) PEG 6000
Resolution 2.80 Å R-free 0.259
7CJB VHL recognizes hydroxyproline in RIPK1 Deposited 2020-07-09 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain J 1–118（118 aa）
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 6.5；289 K；sodium cacodylate pH 6.5, 100 mM magnesium acetate, 15%(w/v) PEG 6000
Resolution 2.80 Å R-free 0.259
7CJB VHL recognizes hydroxyproline in RIPK1 Deposited 2020-07-09 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain N 1–118（118 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 6.5；289 K；sodium cacodylate pH 6.5, 100 mM magnesium acetate, 15%(w/v) PEG 6000
Resolution 2.80 Å R-free 0.259
7JTO Crystal structure of Protac MS33 in complex with the WD repeat-containing protein 5 and pVHL:ElonginC:ElonginB Deposited 2020-08-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain J 1–104（104 aa）
Not recorded SCN THIOCYANATE ION × 4 EDO 1,2-ETHANEDIOL × 5 VKA 3-methyl-N-(11-{[2-(4-{[4'-(4-methylpiperazin-1-yl)-3'-{[6-oxo-4-(trifluoromethyl)-5,6-dihydropyridine-3-carbonyl]amino}[1,1'-biphenyl]-3-yl]methyl}piperazin-1-yl)ethyl]amino}-11-oxoundecanoyl)-L-valyl-(4R)-4-hydroxy-N-{[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-L-prolinamide × 1 GOL GLYCEROL × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293.15 K；0.1 M HEPES sodium, pH 7.5-8.0, 1.3-1.6 M sodium thiocyanate, 15-20% PEG3350
Resolution 1.70 Å R-free 0.225
7JTP Crystal structure of Protac MS67 in complex with the WD repeat-containing protein 5 and pVHL:ElonginC:ElonginB Deposited 2020-08-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain J 1–104（104 aa）
Not recorded GOL GLYCEROL × 1 X6M N-(6-fluoro-3'-{[6-oxo-4-(trifluoromethyl)-1,6-dihydropyridine-3-carbonyl]amino}-4'-[(3R,5S)-3,4,5-trimethylpiperazin-1-yl][1,1'-biphenyl]-3-carbonyl)glycyl-3-methyl-L-valyl-(4R)-4-hydroxy-N-{(1S)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl}-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293.15 K；0.1 M Tris, pH 8.5, 30% PEG300
Resolution 2.12 Å R-free 0.224
7KHH Ternary complex of VHL/BRD4-BD1/Compound9 (4-(3,5-difluoropyridin-2-yl)-N-(11-(((S)-1-((2S,4R)-4-hydroxy-2-((4-(4-methylthiazol-5-yl)benzyl)carbamoyl)pyrrolidin-1-yl)-3,3-dimethyl-1-oxobutan-2-yl)amino)-11-oxoundecyl)-10-methyl-7-((methylsulfonyl)methyl)-11-oxo-3,4,10,11-tetrahydro-1H-1,4,10-triazadibenzo[cd,f]azulene-6-carboxamide) Deposited 2020-10-21 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–118（118 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) WEP N-[11-({7-(3,5-difluoropyridin-2-yl)-2-methyl-10-[(methylsulfonyl)methyl]-3-oxo-3,4,6,7-tetrahydro-2H-2,4,7-triazadibenzo[cd,f]azulene-9-carbonyl}amino)undecanoyl]-3-methyl-L-valyl-(4R)-4-hydroxy-N-{[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 8；291 K；18% w/v PEG 8K, 10% v/v PEG 200, 0.1 M BIS-TRIS propane pH 9.0
Resolution 2.28 Å R-free 0.229
7M6T Crystal structure of SOCS2/ElonginB/ElonginC bound to a non-canonical peptide that enhances phospho-peptide binding Deposited 2021-03-26 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–118（118 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；281 K；2M ammonium sulphate Bis-Tris pH6.5
Resolution 3.19 Å R-free 0.267
7PI4 FAK Protac GSK215 in complex with FAK and pVHL:ElonginC:ElonginB Deposited 2021-08-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain BBB 1–105（105 aa）
Not recorded 7QB (2S,4R)-4-hydroxy-1-((S)-2-(2-(4-(3-methoxy-4-((4-((2-(methylcarbamoyl)phenyl)amino)-5-(trifluoromethyl)pyridin-2-yl)amino)phenyl)piperazin-1-yl)acetamido)-3,3-dimethylbutanoyl)-N-((S)-1-(4-(4-methylthiazol-5-yl)phenyl)ethyl)pyrrolidine-2-carboxamide × 1 PEG DI(HYDROXYETHYL)ETHER × 4 EDO 1,2-ETHANEDIOL × 14 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.05M CaCl, 0.1M MES pH 6.5, 45%v/v, PEG200
Resolution 2.24 Å R-free 0.251
7PLO H. sapiens replisome-CUL2/LRR1 complex Deposited 2021-09-01 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 24 PDB declaration: 26-meric
Chain P 1–118（118 aa）
Not recorded ZN ZINC ION × 8 MG MAGNESIUM ION × 3 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 3 SO4 SULFATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
7Q2J Quaternary Complex of human WDR5 and pVHL:ElonginC:ElonginB bound to PROTAC Homer Deposited 2021-10-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–104（104 aa）
Not recorded 8KH N-[5-[4-[[5-[[(2S)-3,3-dimethyl-1-[(2S,4R)-2-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methylcarbamoyl]-4-oxidanyl-pyrrolidin-1-yl]-1-oxidanylidene-butan-2-yl]amino]-5-oxidanylidene-pentyl]carbamoyl]phenyl]-2-(4-methylpiperazin-1-yl)phenyl]-6-oxidanylidene-4-(trifluoromethyl)-1H-pyridine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；293 K；21% PEG 3350 0.4 M KSCN 0.1 M HEPES 6.8
Resolution 2.50 Å R-free 0.293
7S4E Crystal Structure of ligand ACBi1 in complex with bromodomain of human Smarca2 and pVHL:ElonginC:ElonginB complex Deposited 2021-09-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–104（104 aa）
Not recorded EDO 1,2-ETHANEDIOL × 7 NA SODIUM ION × 4 PEG DI(HYDROXYETHYL)ETHER × 2 87A N-(1-fluorocyclopropane-1-carbonyl)-3-methyl-L-valyl-(4R)-N-{[2-{2-[4-({4-[3-amino-6-(2-hydroxyphenyl)pyridazin-4-yl]piperazin-1-yl}methyl)phenoxy]ethoxy}-4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-4-hydroxy-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.85；277.15 K；0.1 M HEPES, pH 7.85, 13% PEG 3350, 0.2 M sodium formate
Resolution 2.25 Å R-free 0.259
7S4E Crystal Structure of ligand ACBi1 in complex with bromodomain of human Smarca2 and pVHL:ElonginC:ElonginB complex Deposited 2021-09-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain H 1–104（104 aa）
Not recorded EDO 1,2-ETHANEDIOL × 2 NA SODIUM ION × 1 PEG DI(HYDROXYETHYL)ETHER × 1 87A N-(1-fluorocyclopropane-1-carbonyl)-3-methyl-L-valyl-(4R)-N-{[2-{2-[4-({4-[3-amino-6-(2-hydroxyphenyl)pyridazin-4-yl]piperazin-1-yl}methyl)phenoxy]ethoxy}-4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-4-hydroxy-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.85；277.15 K；0.1 M HEPES, pH 7.85, 13% PEG 3350, 0.2 M sodium formate
Resolution 2.25 Å R-free 0.259
7UPN Maedi visna virus Vif in complex with CypA and E3 ubiquitin ligase Deposited 2022-04-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain H 1–118（118 aa）
Chain I 1–118（118 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
7Z6L Crystal structure of PROTAC 5 in complex with the bromodomain of human SMARCA2 and pVHL:ElonginC:ElonginB Deposited 2022-03-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–104（104 aa）
Not recorded IEI (2~{S},4~{R})-~{N}-[[2-[3-[4-(4-bromanyl-7-cyclopentyl-5-oxidanylidene-benzimidazolo[1,2-a]quinazolin-9-yl)piperidin-1-yl]propoxy]-4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；33% (v/v) glycerol ethoxylate, 0.2 M ammonium chloride, 0.1 M HEPES, pH 7.5
Resolution 2.24 Å R-free 0.232
7Z76 Crystal structure of compound 10 in complex with the bromodomain of human SMARCA2 and pVHL:ElonginC:ElonginB Deposited 2022-03-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–104（104 aa）
Not recorded IOD IODIDE ION × 7 IFJ (2~{S},4~{R})-~{N}-[(1~{R})-2-[(2~{R})-1-[4-(4-bromanyl-7-cyclopentyl-5-oxidanylidene-benzimidazolo[1,2-a]quinazolin-9-yl)piperidin-1-yl]propan-2-yl]oxy-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-1-[(2~{S})-2-[[1-(dimethylamino)cyclopropyl]carbonylamino]-3,3-dimethyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.8；293 K；14.5 % PEG 3350, 0.1 M BIS-TRIS propane pH 5.8, 100 mM sodium iodide
Resolution 1.32 Å R-free 0.202
7Z77 Crystal structure of compound 6 in complex with the bromodomain of human SMARCA2 and pVHL:ElonginC:ElonginB Deposited 2022-03-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–104（104 aa）
Not recorded IFF (2~{S},4~{R})-~{N}-[(1~{S})-4-[4-(4-bromanyl-7-cyclopentyl-5-oxidanylidene-benzimidazolo[1,2-a]quinazolin-9-yl)piperidin-1-yl]-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]butyl]-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20 % PEG 3350, 0.1 M BIS_TRIS propane pH 7.5, 200 mM sodium formate
Resolution 1.97 Å R-free 0.251
7ZLM Crystal structure of SOCS2:ElonginB:ElonginC in complex with compound MN551 Deposited 2022-04-15 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–118（118 aa）
Not recorded JIH [4-[(2~{S})-3-[[3-(2-chloranylethanoylamino)phenyl]methylamino]-2-[2-(4-fluorophenyl)ethanoylamino]-3-oxidanylidene-propyl]phenyl] dihydrogen phosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2 M Potassium sodium tartrate tetrahydrate, 0.1 M Bis-Tris propane 6.5, 20 % w/v PEG 3350 with seeding
Resolution 1.79 Å R-free 0.217
7ZLM Crystal structure of SOCS2:ElonginB:ElonginC in complex with compound MN551 Deposited 2022-04-15 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–118（118 aa）
Not recorded JIH [4-[(2~{S})-3-[[3-(2-chloranylethanoylamino)phenyl]methylamino]-2-[2-(4-fluorophenyl)ethanoylamino]-3-oxidanylidene-propyl]phenyl] dihydrogen phosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2 M Potassium sodium tartrate tetrahydrate, 0.1 M Bis-Tris propane 6.5, 20 % w/v PEG 3350 with seeding
Resolution 1.79 Å R-free 0.217
7ZLM Crystal structure of SOCS2:ElonginB:ElonginC in complex with compound MN551 Deposited 2022-04-15 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 1–118（118 aa）
Not recorded JIH [4-[(2~{S})-3-[[3-(2-chloranylethanoylamino)phenyl]methylamino]-2-[2-(4-fluorophenyl)ethanoylamino]-3-oxidanylidene-propyl]phenyl] dihydrogen phosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2 M Potassium sodium tartrate tetrahydrate, 0.1 M Bis-Tris propane 6.5, 20 % w/v PEG 3350 with seeding
Resolution 1.79 Å R-free 0.217
7ZLM Crystal structure of SOCS2:ElonginB:ElonginC in complex with compound MN551 Deposited 2022-04-15 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain K 1–118（118 aa）
Not recorded JIH [4-[(2~{S})-3-[[3-(2-chloranylethanoylamino)phenyl]methylamino]-2-[2-(4-fluorophenyl)ethanoylamino]-3-oxidanylidene-propyl]phenyl] dihydrogen phosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2 M Potassium sodium tartrate tetrahydrate, 0.1 M Bis-Tris propane 6.5, 20 % w/v PEG 3350 with seeding
Resolution 1.79 Å R-free 0.217
7ZLN Crystal structure of SOCS2:ElonginB:ElonginC in complex with compound 11 Deposited 2022-04-15 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–118（118 aa）
Not recorded JI9 [4-[(2~{S})-3-[(4-fluoranyl-3-methyl-phenyl)methylamino]-2-[2-(4-fluorophenyl)ethanoylamino]-3-oxidanylidene-propyl]phenyl] dihydrogen phosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；100mM Tris-bicine, PEG8K (9-14%), ethylene glycol (26-20%) with seeding
Resolution 2.60 Å R-free 0.334
7ZLO Crystal structure of SOCS2:ElonginB:ElonginC in complex with compound 12 Deposited 2022-04-15 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–118（118 aa）
Not recorded JI0 [4-[(2~{S})-3-[(3-ethyl-4-fluoranyl-phenyl)methylamino]-2-[2-(4-fluorophenyl)ethanoylamino]-3-oxidanylidene-propyl]phenyl] dihydrogen phosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；100mM Tris-Bicine, PEG 8K(9-14%), Ethylene glycol (26-20%)
Resolution 2.22 Å R-free 0.250
7ZLP Crystal structure of SOCS2:ElonginB:ElonginC in complex with compound 9 Deposited 2022-04-15 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–118（118 aa）
Not recorded JHR [4-[(2~{S})-2-[2-(4-fluorophenyl)ethanoylamino]-3-[(4-fluorophenyl)methylamino]-3-oxidanylidene-propyl]phenyl] dihydrogen phosphate × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；100mM Tris-bicine pH(6.5-7), PEG 8K(9-14%), Ethylene glycol (26-20%)
Resolution 1.94 Å R-free 0.240
7ZLR Crystal structure of SOCS2:ElonginB:ElonginC in complex with compound 13 Deposited 2022-04-15 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–118（118 aa）
Not recorded JH9 [4-[(2~{S})-3-[(4-fluoranyl-3-prop-2-enyl-phenyl)methylamino]-2-[2-(4-fluorophenyl)ethanoylamino]-3-oxidanylidene-propyl]phenyl] dihydrogen phosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；100mM Tris-Bicine, PEG8K (9-14%), Ethylene glycol (26-20%) with seeding
Resolution 2.01 Å R-free 0.255
7ZLS co-crystal structure of SOCS2:ElonginB:ElonginC in complex with compound 13 Deposited 2022-04-15 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–118（118 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 JH9 [4-[(2~{S})-3-[(4-fluoranyl-3-prop-2-enyl-phenyl)methylamino]-2-[2-(4-fluorophenyl)ethanoylamino]-3-oxidanylidene-propyl]phenyl] dihydrogen phosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；0.2 M Potassium sodium tartrate tetrahydrate, 0.1 M Bis-Tris propane 6.5, 20 % w/v PEG 3350
Resolution 1.92 Å R-free 0.238
7ZLS co-crystal structure of SOCS2:ElonginB:ElonginC in complex with compound 13 Deposited 2022-04-15 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 1–118（118 aa）
Not recorded JH9 [4-[(2~{S})-3-[(4-fluoranyl-3-prop-2-enyl-phenyl)methylamino]-2-[2-(4-fluorophenyl)ethanoylamino]-3-oxidanylidene-propyl]phenyl] dihydrogen phosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；0.2 M Potassium sodium tartrate tetrahydrate, 0.1 M Bis-Tris propane 6.5, 20 % w/v PEG 3350
Resolution 1.92 Å R-free 0.238
7ZLS co-crystal structure of SOCS2:ElonginB:ElonginC in complex with compound 13 Deposited 2022-04-15 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain K 1–118（118 aa）
Not recorded JH9 [4-[(2~{S})-3-[(4-fluoranyl-3-prop-2-enyl-phenyl)methylamino]-2-[2-(4-fluorophenyl)ethanoylamino]-3-oxidanylidene-propyl]phenyl] dihydrogen phosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；0.2 M Potassium sodium tartrate tetrahydrate, 0.1 M Bis-Tris propane 6.5, 20 % w/v PEG 3350
Resolution 1.92 Å R-free 0.238
7ZLS co-crystal structure of SOCS2:ElonginB:ElonginC in complex with compound 13 Deposited 2022-04-15 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 1–118（118 aa）
Not recorded JH9 [4-[(2~{S})-3-[(4-fluoranyl-3-prop-2-enyl-phenyl)methylamino]-2-[2-(4-fluorophenyl)ethanoylamino]-3-oxidanylidene-propyl]phenyl] dihydrogen phosphate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；0.2 M Potassium sodium tartrate tetrahydrate, 0.1 M Bis-Tris propane 6.5, 20 % w/v PEG 3350
Resolution 1.92 Å R-free 0.238
7ZNT CRYSTAL STRUCTURE OF AT7 IN COMPLEX WITH THE SECOND BROMODOMAIN OF HUMAN BRD4 AND PVHL:ELONGINC:ELONGINB Deposited 2022-04-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–104（104 aa）
Not recorded IZR (2~{S},4~{R})-1-[(2~{R})-3-[6-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoylamino]hexylsulfanyl]-2-[(1-fluoranylcyclopropyl)carbonylamino]-3-methyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；10% (W/V) PEG 8000, 0.1 M TRIS-HCL (PH REMARK 280 7.5) AND 0.1 M MGCL2,
Resolution 3.00 Å R-free 0.255
7ZNT CRYSTAL STRUCTURE OF AT7 IN COMPLEX WITH THE SECOND BROMODOMAIN OF HUMAN BRD4 AND PVHL:ELONGINC:ELONGINB Deposited 2022-04-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–104（104 aa）
Not recorded IZR (2~{S},4~{R})-1-[(2~{R})-3-[6-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoylamino]hexylsulfanyl]-2-[(1-fluoranylcyclopropyl)carbonylamino]-3-methyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；10% (W/V) PEG 8000, 0.1 M TRIS-HCL (PH REMARK 280 7.5) AND 0.1 M MGCL2,
Resolution 3.00 Å R-free 0.255
8BB2 Structure of human WDR5 and pVHL:ElonginC:ElonginB bound to PROTAC with PEG linker (conformation #2) Deposited 2022-10-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain J 1–104（104 aa）
Not recorded SCN THIOCYANATE ION × 5 Q3X ~{N}-[5-[4-[2-[2-[2-[2-[3-[[3,3-dimethyl-1-[(2~{S},4~{R})-2-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methylcarbamoyl]-4-oxidanyl-pyrrolidin-1-yl]-1-oxidanylidene-butan-2-yl]amino]-3-oxidanylidene-propoxy]ethoxy]ethoxy]ethoxy]ethylcarbamoyl]phenyl]-2-(4-methylpiperazin-1-yl)phenyl]-6-oxidanylidene-4-(trifluoromethyl)-3~{H}-pyridine-3-carboxamide × 1 EDO 1,2-ETHANEDIOL × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；293 K；21-28% PEG 3350 0.4-1 M KSCN 0.1 M HEPES 6.8
Resolution 2.05 Å R-free 0.237
8BB3 Structure of human WDR5 and pVHL:ElonginC:ElonginB bound to PROTAC with PEG linker (conformation #1) Deposited 2022-10-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain J 1–104（104 aa）
Not recorded SCN THIOCYANATE ION × 15 EDO 1,2-ETHANEDIOL × 13 P6G HEXAETHYLENE GLYCOL × 1 Q3X ~{N}-[5-[4-[2-[2-[2-[2-[3-[[3,3-dimethyl-1-[(2~{S},4~{R})-2-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methylcarbamoyl]-4-oxidanyl-pyrrolidin-1-yl]-1-oxidanylidene-butan-2-yl]amino]-3-oxidanylidene-propoxy]ethoxy]ethoxy]ethoxy]ethylcarbamoyl]phenyl]-2-(4-methylpiperazin-1-yl)phenyl]-6-oxidanylidene-4-(trifluoromethyl)-3~{H}-pyridine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；293 K；21-26% PEG 3350 0.4-1 M KSCN 0.1 M HEPES
Resolution 1.80 Å R-free 0.227
8BB4 Structure of human WDR5 and pVHL:ElonginC:ElonginB bound to PROTAC with C3 linker Deposited 2022-10-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain I 1–104（104 aa）
Not recorded Q3R ~{N}-[5-[4-[[4-[[(2~{S})-3,3-dimethyl-1-[(2~{S},4~{R})-2-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methylcarbamoyl]-4-oxidanyl-pyrrolidin-1-yl]-1-oxidanylidene-butan-2-yl]amino]-4-oxidanylidene-butyl]carbamoyl]phenyl]-2-(4-methylpiperazin-1-yl)phenyl]-6-oxidanyl-4-(trifluoromethyl)pyridine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；293 K；21-28% PEG 3350 0.4 M KSCN 0.1 M HEPES pH 6.8
Resolution 2.80 Å R-free 0.279
8BB5 Structure of human WDR5 and pVHL:ElonginC:ElonginB bound to PROTAC with Aryl linker Deposited 2022-10-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–104（104 aa）
Not recorded SCN THIOCYANATE ION × 10 Q43 ~{N}-[5-[4-[[4-[2-[[(2~{S})-3,3-dimethyl-1-[(2~{S},4~{R})-2-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methylcarbamoyl]-4-oxidanyl-pyrrolidin-1-yl]-1-oxidanylidene-butan-2-yl]amino]-2-oxidanylidene-ethyl]phenyl]methylcarbamoyl]phenyl]-2-(4-methylpiperazin-1-yl)phenyl]-6-oxidanyl-4-(trifluoromethyl)pyridine-3-carboxamide × 1 EDO 1,2-ETHANEDIOL × 4 K POTASSIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；21% PEG 3350, 0.4-1 M KSCN 0.1 M HEPES pH 6.8
Resolution 2.20 Å R-free 0.248
8BDI VCB in complex with compound 32 Deposited 2022-10-19 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) QF7 (2~{S},4~{R})-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[(1~{S})-3-(methylamino)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]-3-oxidanylidene-propyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10-20% PEG 8000, 0.2 M magnesium acetate and 0.1 M sodium cacodylate pH 6.5, 1mM compound soak
Resolution 2.11 Å R-free 0.270
8BDI VCB in complex with compound 32 Deposited 2022-10-19 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Not recorded QF7 (2~{S},4~{R})-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[(1~{S})-3-(methylamino)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]-3-oxidanylidene-propyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10-20% PEG 8000, 0.2 M magnesium acetate and 0.1 M sodium cacodylate pH 6.5, 1mM compound soak
Resolution 2.11 Å R-free 0.270
8BDI VCB in complex with compound 32 Deposited 2022-10-19 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Not recorded QF7 (2~{S},4~{R})-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[(1~{S})-3-(methylamino)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]-3-oxidanylidene-propyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10-20% PEG 8000, 0.2 M magnesium acetate and 0.1 M sodium cacodylate pH 6.5, 1mM compound soak
Resolution 2.11 Å R-free 0.270
8BDI VCB in complex with compound 32 Deposited 2022-10-19 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Not recorded QF7 (2~{S},4~{R})-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[(1~{S})-3-(methylamino)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]-3-oxidanylidene-propyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10-20% PEG 8000, 0.2 M magnesium acetate and 0.1 M sodium cacodylate pH 6.5, 1mM compound soak
Resolution 2.11 Å R-free 0.270
8BDJ VCB in complex with compound 30 Deposited 2022-10-19 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Not recorded QE0 (2~{S},4~{R})-~{N}-[(1~{S})-1-[4-chloranyl-2-(2-methoxyethoxy)phenyl]ethyl]-1-[(2~{R})-3-methyl-2-(3-methyl-1,2-oxazol-5-yl)butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10-20% PEG 8000, 0.2 M magnesium acetate and 0.1 M sodium cacodylate pH 6.5, 1 mM Compound soak
Resolution 2.02 Å R-free 0.239
8BDJ VCB in complex with compound 30 Deposited 2022-10-19 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Not recorded QE0 (2~{S},4~{R})-~{N}-[(1~{S})-1-[4-chloranyl-2-(2-methoxyethoxy)phenyl]ethyl]-1-[(2~{R})-3-methyl-2-(3-methyl-1,2-oxazol-5-yl)butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10-20% PEG 8000, 0.2 M magnesium acetate and 0.1 M sodium cacodylate pH 6.5, 1 mM Compound soak
Resolution 2.02 Å R-free 0.239
8BDJ VCB in complex with compound 30 Deposited 2022-10-19 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Not recorded QE0 (2~{S},4~{R})-~{N}-[(1~{S})-1-[4-chloranyl-2-(2-methoxyethoxy)phenyl]ethyl]-1-[(2~{R})-3-methyl-2-(3-methyl-1,2-oxazol-5-yl)butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10-20% PEG 8000, 0.2 M magnesium acetate and 0.1 M sodium cacodylate pH 6.5, 1 mM Compound soak
Resolution 2.02 Å R-free 0.239
8BDJ VCB in complex with compound 30 Deposited 2022-10-19 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) QE0 (2~{S},4~{R})-~{N}-[(1~{S})-1-[4-chloranyl-2-(2-methoxyethoxy)phenyl]ethyl]-1-[(2~{R})-3-methyl-2-(3-methyl-1,2-oxazol-5-yl)butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10-20% PEG 8000, 0.2 M magnesium acetate and 0.1 M sodium cacodylate pH 6.5, 1 mM Compound soak
Resolution 2.02 Å R-free 0.239
8BDL VCB in complex with compound 27 Deposited 2022-10-19 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Not recorded QF3 (2~{S},4~{R})-~{N}-[(1~{S})-1-[2-(2-methoxyethoxy)-4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-1-[(2~{R})-3-methyl-2-(3-methyl-1,2-oxazol-5-yl)butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10-20% PEG 8000, 0.2 M magnesium acetate and 0.1 M sodium cacodylate pH 6.5, compound soaked at 1mM
Resolution 2.29 Å R-free 0.275
8BDL VCB in complex with compound 27 Deposited 2022-10-19 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Not recorded QF3 (2~{S},4~{R})-~{N}-[(1~{S})-1-[2-(2-methoxyethoxy)-4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-1-[(2~{R})-3-methyl-2-(3-methyl-1,2-oxazol-5-yl)butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10-20% PEG 8000, 0.2 M magnesium acetate and 0.1 M sodium cacodylate pH 6.5, compound soaked at 1mM
Resolution 2.29 Å R-free 0.275
8BDL VCB in complex with compound 27 Deposited 2022-10-19 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Not recorded QF3 (2~{S},4~{R})-~{N}-[(1~{S})-1-[2-(2-methoxyethoxy)-4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-1-[(2~{R})-3-methyl-2-(3-methyl-1,2-oxazol-5-yl)butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10-20% PEG 8000, 0.2 M magnesium acetate and 0.1 M sodium cacodylate pH 6.5, compound soaked at 1mM
Resolution 2.29 Å R-free 0.275
8BDL VCB in complex with compound 27 Deposited 2022-10-19 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Not recorded QF3 (2~{S},4~{R})-~{N}-[(1~{S})-1-[2-(2-methoxyethoxy)-4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-1-[(2~{R})-3-methyl-2-(3-methyl-1,2-oxazol-5-yl)butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10-20% PEG 8000, 0.2 M magnesium acetate and 0.1 M sodium cacodylate pH 6.5, compound soaked at 1mM
Resolution 2.29 Å R-free 0.275
8BDM VCB in complex with compound 26 Deposited 2022-10-19 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) QE9 (2~{S},4~{R})-~{N}-[[2-(2-methoxyethoxy)-4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-1-[(2~{R})-3-methyl-2-(3-methyl-1,2-oxazol-5-yl)butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10-20% PEG 8000, 0.2 M magnesium acetate and 0.1 M sodium cacodylate pH 6.5, soaked with 1mM compound
Resolution 2.02 Å R-free 0.255
8BDM VCB in complex with compound 26 Deposited 2022-10-19 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) QE9 (2~{S},4~{R})-~{N}-[[2-(2-methoxyethoxy)-4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-1-[(2~{R})-3-methyl-2-(3-methyl-1,2-oxazol-5-yl)butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10-20% PEG 8000, 0.2 M magnesium acetate and 0.1 M sodium cacodylate pH 6.5, soaked with 1mM compound
Resolution 2.02 Å R-free 0.255
8BDM VCB in complex with compound 26 Deposited 2022-10-19 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) QE9 (2~{S},4~{R})-~{N}-[[2-(2-methoxyethoxy)-4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-1-[(2~{R})-3-methyl-2-(3-methyl-1,2-oxazol-5-yl)butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10-20% PEG 8000, 0.2 M magnesium acetate and 0.1 M sodium cacodylate pH 6.5, soaked with 1mM compound
Resolution 2.02 Å R-free 0.255
8BDM VCB in complex with compound 26 Deposited 2022-10-19 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) QE9 (2~{S},4~{R})-~{N}-[[2-(2-methoxyethoxy)-4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-1-[(2~{R})-3-methyl-2-(3-methyl-1,2-oxazol-5-yl)butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10-20% PEG 8000, 0.2 M magnesium acetate and 0.1 M sodium cacodylate pH 6.5, soaked with 1mM compound
Resolution 2.02 Å R-free 0.255
8BDN VCB in complex with compound 23 Deposited 2022-10-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: trimeric
Chain A 1–104（104 aa）
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) QFR (2~{R})-3-methyl-1-[(2~{S},4~{R})-2-[(5~{R})-5-methyl-5-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]-4~{H}-1,2,4-oxadiazol-3-yl]-4-oxidanyl-pyrrolidin-1-yl]-2-(3-methyl-1,2-oxazol-5-yl)butan-1-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10-20% PEG 8000, 0.2 M magnesium acetate and 0.1 M sodium cacodylate pH 6.5, soaked with 1mM compound
Resolution 2.76 Å R-free 0.263
8BDN VCB in complex with compound 23 Deposited 2022-10-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) QFR (2~{R})-3-methyl-1-[(2~{S},4~{R})-2-[(5~{R})-5-methyl-5-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]-4~{H}-1,2,4-oxadiazol-3-yl]-4-oxidanyl-pyrrolidin-1-yl]-2-(3-methyl-1,2-oxazol-5-yl)butan-1-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10-20% PEG 8000, 0.2 M magnesium acetate and 0.1 M sodium cacodylate pH 6.5, soaked with 1mM compound
Resolution 2.76 Å R-free 0.263
8BDN VCB in complex with compound 23 Deposited 2022-10-19 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) QFR (2~{R})-3-methyl-1-[(2~{S},4~{R})-2-[(5~{R})-5-methyl-5-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]-4~{H}-1,2,4-oxadiazol-3-yl]-4-oxidanyl-pyrrolidin-1-yl]-2-(3-methyl-1,2-oxazol-5-yl)butan-1-one × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10-20% PEG 8000, 0.2 M magnesium acetate and 0.1 M sodium cacodylate pH 6.5, soaked with 1mM compound
Resolution 2.76 Å R-free 0.263
8BDO VCB in complex with compound 21 Deposited 2022-10-19 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) QFF (2~{S},4~{R})-1-[(2~{R})-3-methyl-2-(3-methyl-1,2-oxazol-5-yl)butanoyl]-~{N}-[4-(4-methyl-1,3-thiazol-5-yl)phenoxy]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；10-20% PEG 8000, 0.2 M magnesium acetate and 0.1 M sodium cacodylate pH 6.5, 1mM Compound soak
Resolution 2.80 Å R-free 0.321
8BDO VCB in complex with compound 21 Deposited 2022-10-19 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) QFF (2~{S},4~{R})-1-[(2~{R})-3-methyl-2-(3-methyl-1,2-oxazol-5-yl)butanoyl]-~{N}-[4-(4-methyl-1,3-thiazol-5-yl)phenoxy]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；10-20% PEG 8000, 0.2 M magnesium acetate and 0.1 M sodium cacodylate pH 6.5, 1mM Compound soak
Resolution 2.80 Å R-free 0.321
8BDS Ternary complex between VCB, BRD4-BD1 and PROTAC 48 Deposited 2022-10-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–104（104 aa）
Not recorded SO4 SULFATE ION × 4 EDO 1,2-ETHANEDIOL × 6 QIY (2S,4R)-N-[(1S)-1-(4-chlorophenyl)-3-[2-[2-[2-[2-[2-[(9S)-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8$l^{5},11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoylamino]ethoxy]ethoxy]ethoxy]ethylamino]-3-oxidanylidene-propyl]-1-[(2R)-3-methyl-2-(3-methyl-1,2-oxazol-5-yl)butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；1.4M Ammonium Sulfate, 4% (w/v) glycerol, 0.1M HEPES pH 7.5
Resolution 1.72 Å R-free 0.197
8BDT Ternary complex between VCB, BRD4-BD2 and PROTAC 51 Deposited 2022-10-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–104（104 aa）
Not recorded QLX (2~{S},4~{R})-~{N}-[(1~{S})-3-[2-[2-[2-[2-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoylamino]ethoxy]ethoxy]ethoxy]ethylamino]-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]-3-oxidanylidene-propyl]-1-[(2~{R})-3-methyl-2-(3-methyl-1,2-oxazol-5-yl)butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2M sodium malonate dibasic monohydrate, 20% (w/v) PEG 3350
Resolution 2.70 Å R-free 0.243
8BDT Ternary complex between VCB, BRD4-BD2 and PROTAC 51 Deposited 2022-10-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 1–104（104 aa）
Not recorded QLX (2~{S},4~{R})-~{N}-[(1~{S})-3-[2-[2-[2-[2-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoylamino]ethoxy]ethoxy]ethoxy]ethylamino]-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]-3-oxidanylidene-propyl]-1-[(2~{R})-3-methyl-2-(3-methyl-1,2-oxazol-5-yl)butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 MLI MALONATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2M sodium malonate dibasic monohydrate, 20% (w/v) PEG 3350
Resolution 2.70 Å R-free 0.243
8BDX Ternary complex between VCB, BRD4-BD2 and PROTAC 48 Deposited 2022-10-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–104（104 aa）
Not recorded QIY (2S,4R)-N-[(1S)-1-(4-chlorophenyl)-3-[2-[2-[2-[2-[2-[(9S)-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8$l^{5},11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoylamino]ethoxy]ethoxy]ethoxy]ethylamino]-3-oxidanylidene-propyl]-1-[(2R)-3-methyl-2-(3-methyl-1,2-oxazol-5-yl)butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；20% PEG 3350, 0.02M sodium/potassium phosphate, 0.1M bis-Tris propane pH 7.5
Resolution 2.93 Å R-free 0.258
8BDX Ternary complex between VCB, BRD4-BD2 and PROTAC 48 Deposited 2022-10-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 1–104（104 aa）
Not recorded QIY (2S,4R)-N-[(1S)-1-(4-chlorophenyl)-3-[2-[2-[2-[2-[2-[(9S)-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8$l^{5},11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoylamino]ethoxy]ethoxy]ethoxy]ethylamino]-3-oxidanylidene-propyl]-1-[(2R)-3-methyl-2-(3-methyl-1,2-oxazol-5-yl)butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；20% PEG 3350, 0.02M sodium/potassium phosphate, 0.1M bis-Tris propane pH 7.5
Resolution 2.93 Å R-free 0.258
8BEB Ternary complex between VCB, BRD4-BD1 and PROTAC 49 Deposited 2022-10-21 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–104（104 aa）
Not recorded SO4 SULFATE ION × 1 QIK (2~{S},4~{R})-~{N}-[(1~{S})-3-[4-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoylamino]butylamino]-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]-3-oxidanylidene-propyl]-1-[(2~{R})-3-methyl-2-(3-methyl-1,2-oxazol-5-yl)butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；1.8M ammonium sulfate, 4% (w/v) glycerol, 0.1M bis-Tris pH5.5
Resolution 3.18 Å R-free 0.274
8C13 Crystal structure of pVHL:ElonginC:ElonginB complex bound to PROTAC JW48 Deposited 2022-12-20 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–118（118 aa）
Not recorded SYF (2~{S},4~{R})-1-[(2~{S})-2-[3-[2-[2-[2-(acetamidomethyl)-4-(6,7-dihydro-5~{H}-pyrrolo[1,2-a]imidazol-2-yl)phenoxy]ethoxy]ethoxy]propanoylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；18% PEG 3350, HEPES pH7
Resolution 2.30 Å R-free 0.261
8CQE pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(1-Fluorocyclopropane-1-carboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-((S)-1-(2-methyl-4-(4-methylthiazol-5-yl)phenyl)ethyl)pyrrolidine-2-carboxamide (Compound 37) Deposited 2023-03-06 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) VFO (2~{S},4~{R})-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[(1~{S})-7-fluoranyl-6-(4-methyl-1,3-thiazol-5-yl)-1,2,3,4-tetrahydronaphthalen-1-yl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium cacodylate, pH 6.0-6.3, 15-20% polyethylene glycol 3350, 0.2 M magnesium acetate, 10 mM DTT
Resolution 2.85 Å R-free 0.297
8CQE pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(1-Fluorocyclopropane-1-carboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-((S)-1-(2-methyl-4-(4-methylthiazol-5-yl)phenyl)ethyl)pyrrolidine-2-carboxamide (Compound 37) Deposited 2023-03-06 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) VFO (2~{S},4~{R})-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[(1~{S})-7-fluoranyl-6-(4-methyl-1,3-thiazol-5-yl)-1,2,3,4-tetrahydronaphthalen-1-yl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium cacodylate, pH 6.0-6.3, 15-20% polyethylene glycol 3350, 0.2 M magnesium acetate, 10 mM DTT
Resolution 2.85 Å R-free 0.297
8CQE pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(1-Fluorocyclopropane-1-carboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-((S)-1-(2-methyl-4-(4-methylthiazol-5-yl)phenyl)ethyl)pyrrolidine-2-carboxamide (Compound 37) Deposited 2023-03-06 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) VFO (2~{S},4~{R})-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[(1~{S})-7-fluoranyl-6-(4-methyl-1,3-thiazol-5-yl)-1,2,3,4-tetrahydronaphthalen-1-yl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium cacodylate, pH 6.0-6.3, 15-20% polyethylene glycol 3350, 0.2 M magnesium acetate, 10 mM DTT
Resolution 2.85 Å R-free 0.297
8CQE pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(1-Fluorocyclopropane-1-carboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-((S)-1-(2-methyl-4-(4-methylthiazol-5-yl)phenyl)ethyl)pyrrolidine-2-carboxamide (Compound 37) Deposited 2023-03-06 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) VFO (2~{S},4~{R})-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[(1~{S})-7-fluoranyl-6-(4-methyl-1,3-thiazol-5-yl)-1,2,3,4-tetrahydronaphthalen-1-yl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium cacodylate, pH 6.0-6.3, 15-20% polyethylene glycol 3350, 0.2 M magnesium acetate, 10 mM DTT
Resolution 2.85 Å R-free 0.297
8CQK pVHL:EloB:EloC in complex with (2S,4R)-1-((S)-2-(1-Fluorocyclopropane-1-carboxamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-((S)-1-(2-methyl-4-(4-methylthiazol-5-yl)phenyl)ethyl)pyrrolidine-2-carboxamide (Compound 30) Deposited 2023-03-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 1–104（104 aa）
Chain D 1–104（104 aa）
Chain G 1–104（104 aa）
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) VYQ (2~{S},4~{R})-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[(1~{S})-1-[2-methyl-4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium cacodylate, 15-20% polyethylene glycol 3350, 0.2 M magnesium acetate,10 mM DTT
Resolution 2.62 Å R-free 0.290
8CQL pVHL:EloB:EloC in complex with (2S,4R)-N-((S)-1-(5-Fluoro-2-methoxy-4-(4-methylthiazol-5-yl)phenyl)ethyl)-1-((S)-2-(1-fluorocyclopropane-1-carboxamido)-3,3-dimethylbutanoyl)-4-hydroxypyrrolidine-2-carboxamide (Compound 33) Deposited 2023-03-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 1–104（104 aa）
Chain D 1–104（104 aa）
Chain G 1–104（104 aa）
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) VH3 (2~{S},4~{R})-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[(1~{S})-1-[5-fluoranyl-2-methoxy-4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；15-20% polyethylene glycol 3350, 0.2 M magnesium acetate, 10 mM DTT
Resolution 2.38 Å R-free 0.275
8CX0 Cryo-EM structure of human APOBEC3G/HIV-1 Vif/CBFbeta/ELOB/ELOC monomeric complex Deposited 2022-05-19 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 5 PDB declaration: hexameric
Chain D 1–118（118 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.70 Å
8CX1 Cryo-EM structure of human APOBEC3G/HIV-1 Vif/CBFbeta/ELOB/ELOC dimeric complex in State 1 Deposited 2022-05-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 1–118（118 aa）
Chain I 1–118（118 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8CX2 Cryo-EM structure of human APOBEC3G/HIV-1 Vif/CBFbeta/ELOB/ELOC dimeric complex in State 2 Deposited 2022-05-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain D 1–118（118 aa）
Chain I 1–118（118 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EBN Structure of KLHDC2-EloB/C tetrameric assembly Deposited 2022-08-31 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain C 1–104（104 aa）
Chain E 1–104（104 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；% PEG3350, 0.2 M KSCN, 0.1 M Tris, 0.1M Na/K Tartrate, 2.5% MPD, pH =6.8
Resolution 2.60 Å R-free 0.250
8EI3 Crystal structure of VHL in complex with H313, a Helicon Polypeptide Deposited 2022-09-14 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–118（118 aa）
Not recorded WHL N,N'-(1,4-phenylene)diacetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；0.1M Tris pH7.0, 20% w/v PEG 1000
Resolution 3.49 Å R-free 0.285
8EI3 Crystal structure of VHL in complex with H313, a Helicon Polypeptide Deposited 2022-09-14 Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–118（118 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；0.1M Tris pH7.0, 20% w/v PEG 1000
Resolution 3.49 Å R-free 0.285
8EWV DNA-encoded library (DEL)-enabled discovery of proximity inducing small molecules Deposited 2022-10-24 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–118（118 aa）
Not recorded X5K N-{3-[1-(4-{[3-(cyclopropylamino)-3-oxopropyl](methyl)amino}-6-{methyl[(1,3,5-trimethyl-1H-pyrazol-4-yl)methyl]amino}-1,3,5-triazin-2-yl)piperidin-4-yl]propanoyl}-3-methyl-L-valyl-(4R)-4-hydroxy-N-{[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；300 K；0.2 M NA2MALON, 20 %W/V PEG 3350
Resolution 3.40 Å R-free 0.324
8EWV DNA-encoded library (DEL)-enabled discovery of proximity inducing small molecules Deposited 2022-10-24 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 1–118（118 aa）
Not recorded X5K N-{3-[1-(4-{[3-(cyclopropylamino)-3-oxopropyl](methyl)amino}-6-{methyl[(1,3,5-trimethyl-1H-pyrazol-4-yl)methyl]amino}-1,3,5-triazin-2-yl)piperidin-4-yl]propanoyl}-3-methyl-L-valyl-(4R)-4-hydroxy-N-{[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；300 K；0.2 M NA2MALON, 20 %W/V PEG 3350
Resolution 3.40 Å R-free 0.324
8EWV DNA-encoded library (DEL)-enabled discovery of proximity inducing small molecules Deposited 2022-10-24 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain I 1–118（118 aa）
Not recorded X5K N-{3-[1-(4-{[3-(cyclopropylamino)-3-oxopropyl](methyl)amino}-6-{methyl[(1,3,5-trimethyl-1H-pyrazol-4-yl)methyl]amino}-1,3,5-triazin-2-yl)piperidin-4-yl]propanoyl}-3-methyl-L-valyl-(4R)-4-hydroxy-N-{[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；300 K；0.2 M NA2MALON, 20 %W/V PEG 3350
Resolution 3.40 Å R-free 0.324
8EWV DNA-encoded library (DEL)-enabled discovery of proximity inducing small molecules Deposited 2022-10-24 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain M 1–118（118 aa）
Not recorded X5K N-{3-[1-(4-{[3-(cyclopropylamino)-3-oxopropyl](methyl)amino}-6-{methyl[(1,3,5-trimethyl-1H-pyrazol-4-yl)methyl]amino}-1,3,5-triazin-2-yl)piperidin-4-yl]propanoyl}-3-methyl-L-valyl-(4R)-4-hydroxy-N-{[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；300 K；0.2 M NA2MALON, 20 %W/V PEG 3350
Resolution 3.40 Å R-free 0.324
8EWV DNA-encoded library (DEL)-enabled discovery of proximity inducing small molecules Deposited 2022-10-24 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain Q 1–118（118 aa）
Not recorded X5K N-{3-[1-(4-{[3-(cyclopropylamino)-3-oxopropyl](methyl)amino}-6-{methyl[(1,3,5-trimethyl-1H-pyrazol-4-yl)methyl]amino}-1,3,5-triazin-2-yl)piperidin-4-yl]propanoyl}-3-methyl-L-valyl-(4R)-4-hydroxy-N-{[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；300 K；0.2 M NA2MALON, 20 %W/V PEG 3350
Resolution 3.40 Å R-free 0.324
8EWV DNA-encoded library (DEL)-enabled discovery of proximity inducing small molecules Deposited 2022-10-24 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain U 1–118（118 aa）
Not recorded X5K N-{3-[1-(4-{[3-(cyclopropylamino)-3-oxopropyl](methyl)amino}-6-{methyl[(1,3,5-trimethyl-1H-pyrazol-4-yl)methyl]amino}-1,3,5-triazin-2-yl)piperidin-4-yl]propanoyl}-3-methyl-L-valyl-(4R)-4-hydroxy-N-{[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；300 K；0.2 M NA2MALON, 20 %W/V PEG 3350
Resolution 3.40 Å R-free 0.324
8FVI Human APOBEC3H bound to HIV-1 Vif in complex with CBF-beta, ELOB, ELOC, and CUL5 Deposited 2023-01-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 6 PDB declaration: octameric
Chain y 1–102（102 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.24 Å
8FVJ Dimeric form of HIV-1 Vif in complex with human CBF-beta, ELOB, ELOC, and CUL5 Deposited 2023-01-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain 3 1–102（102 aa）
Chain 8 1–102（102 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
8FY0 E3:PROTAC:target ternary complex structure (VCB/753b/BCL-xL) Deposited 2023-01-25 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–118（118 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) CAD CACODYLIC ACID × 1 GOL GLYCEROL × 2 YF8 N-[8-(4-{[(1R,3R,4S)-4-(4-chlorophenyl)-1-methyl-3-{[4-(4-{[4-{[(2R)-4-(morpholin-4-yl)-1-(phenylsulfanyl)butan-2-yl]amino}-3-(trifluoromethanesulfonyl)benzene-1-sulfonyl]carbamoyl}phenyl)piperazin-1-yl]methyl}cyclohexyl]methyl}piperazin-1-yl)-8-oxooctanoyl]-3-methyl-L-valyl-(4R)-4-hydroxy-N-{(1S)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl}-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；291 K；0.1 M Sodium Cacodylate pH 5.5, 0.2 M Sodium chloride, 6-8% PEG 8000 and 4% tert-Butanediol
Resolution 2.94 Å R-free 0.241
8FY1 E3:PROTAC:target ternary complex structure (VCB/753b/BCL-2) Deposited 2023-01-25 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–118（118 aa）
Not recorded YF8 N-[8-(4-{[(1R,3R,4S)-4-(4-chlorophenyl)-1-methyl-3-{[4-(4-{[4-{[(2R)-4-(morpholin-4-yl)-1-(phenylsulfanyl)butan-2-yl]amino}-3-(trifluoromethanesulfonyl)benzene-1-sulfonyl]carbamoyl}phenyl)piperazin-1-yl]methyl}cyclohexyl]methyl}piperazin-1-yl)-8-oxooctanoyl]-3-methyl-L-valyl-(4R)-4-hydroxy-N-{(1S)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl}-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；291 K；0.1 M Tris-Cl pH 8.7, 18% PEG 8000, 0.2 M MgCl2 and 3% 1,6-Hexanediol
Resolution 2.56 Å R-free 0.250
8FY2 E3:PROTAC:target ternary complex structure (VCB/WH244/BCL-2) Deposited 2023-01-25 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–118（118 aa）
Not recorded YFH N-({4-[2-(4-{[(4R)-4'-chloro-4-methyl-6-{[4-(4-{[4-{[(2R)-4-[(1R,4R)-2-oxa-5-azabicyclo[2.2.1]heptan-5-yl]-1-(phenylsulfanyl)butan-2-yl]amino}-3-(trifluoromethanesulfonyl)benzene-1-sulfonyl]carbamoyl}phenyl)piperazin-1-yl]methyl}-2,3,4,5-tetrahydro[1,1'-biphenyl]-4-yl]methyl}piperazin-1-yl)-2-oxoethyl]piperazin-1-yl}acetyl)-3-methyl-L-valyl-(4S)-4-hydroxy-N-{(1S)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl}-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；291 K；0.1 M Tris-Cl pH 8.7, 18% PEG 8000, 0.2 M MgCl2 and 3% 1,6-Hexanediol
Resolution 2.98 Å R-free 0.279
8G1P Co-crystal structure of Compound 11 in complex with the bromodomain of human SMARCA2 and pVHL:ElonginC:ElonginB Deposited 2023-02-02 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–118（118 aa）
Not recorded GOL GLYCEROL × 1 FWZ (2~{S},4~{R})-~{N}-[[2-[2-[4-[[4-[3-azanyl-6-(2-hydroxyphenyl)pyridazin-4-yl]piperazin-1-yl]methyl]phenyl]ethoxy]-4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；293 K；20% PEG 3350, 0.2M Sodium Chloride
Resolution 2.70 Å R-free 0.270
8G1P Co-crystal structure of Compound 11 in complex with the bromodomain of human SMARCA2 and pVHL:ElonginC:ElonginB Deposited 2023-02-02 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–118（118 aa）
Not recorded GOL GLYCEROL × 1 FWZ (2~{S},4~{R})-~{N}-[[2-[2-[4-[[4-[3-azanyl-6-(2-hydroxyphenyl)pyridazin-4-yl]piperazin-1-yl]methyl]phenyl]ethoxy]-4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；293 K；20% PEG 3350, 0.2M Sodium Chloride
Resolution 2.70 Å R-free 0.270
8G1Q Co-crystal structure of Compound 1 in complex with the bromodomain of human SMARCA4 and pVHL:ElonginC:ElonginB Deposited 2023-02-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–104（104 aa）
Not recorded NA SODIUM ION × 1 YHB N-(2-{4-[(6M)-3-amino-6-(2-hydroxyphenyl)pyridazin-4-yl]piperazin-1-yl}pyridine-4-carbonyl)-3-methyl-L-valyl-(4R)-4-hydroxy-N-{(1S)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl}-L-prolinamide × 1 PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；PEG 300 0.1M Bis-Tris 6.5
Resolution 3.73 Å R-free 0.326
8IJ1 Protomer 1 and 2 of the asymmetry trimer of the Cul2-Rbx1-EloBC-FEM1B ubiquitin ligase complex Deposited 2023-02-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain B 1–104（104 aa）
Chain G 1–104（104 aa）
Not recorded ZN ZINC ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8JAL Structure of CRL2APPBP2 bound with RxxGP degron (dimer) Deposited 2023-05-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain C 1–118（118 aa）
Chain G 1–118（118 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8JAQ Structure of CRL2APPBP2 bound with RxxGP degron (tetramer) Deposited 2023-05-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain C 1–118（118 aa）
Chain G 1–118（118 aa）
Chain M 1–118（118 aa）
Chain Q 1–118（118 aa）
Not recorded ZN ZINC ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.26 Å
8JAR Structure of CRL2APPBP2 bound with RxxGPAA degron (dimer) Deposited 2023-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain C 1–118（118 aa）
Chain G 1–118（118 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8JAS Structure of CRL2APPBP2 bound with RxxGPAA degron (tetramer) Deposited 2023-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain C 1–118（118 aa）
Chain G 1–118（118 aa）
Chain M 1–118（118 aa）
Chain Q 1–118（118 aa）
Not recorded ZN ZINC ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
8JAU Structure of CRL2APPBP2 bound with the C-degron of MRPL28 (dimer) Deposited 2023-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain C 1–118（118 aa）
Chain G 1–118（118 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.22 Å
8JAV Structure of CRL2APPBP2 bound with the C-degron of MRPL28 (tetramer) Deposited 2023-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain C 1–118（118 aa）
Chain G 1–118（118 aa）
Chain M 1–118（118 aa）
Chain Q 1–118（118 aa）
Not recorded ZN ZINC ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.44 Å
8JE1 An asymmetry dimer of the Cul2-Rbx1-EloBC-FEM1B ubiquitin ligase complexed with BEX2 Deposited 2023-05-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain B 1–104（104 aa）
Chain G 1–104（104 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.95 Å
8JE2 Cryo-EM structure of neddylated Cul2-Rbx1-EloBC-FEM1B complexed with FNIP1-FLCN Deposited 2023-05-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–104（104 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.63 Å
8OEV Structure of the mammalian Pol II-SPT6-Elongin complex, lacking ELOA latch (composite structure, structure 3) Deposited 2023-03-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 16 PDB declaration: nonadecameric
Chain Q 1–118（118 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.86 Å
8OEW Structure of the mammalian Pol II-Elongin complex, lacking the ELOA latch (composite structure, structure 2) Deposited 2023-03-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 15 PDB declaration: octadecameric
Chain Q 1–118（118 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8OF0 Structure of the mammalian Pol II-SPT6-Elongin complex, Structure 1 Deposited 2023-03-13 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 16 PDB declaration: nonadecameric
Chain Q 1–118（118 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.05 Å
8OKX Structure of cGAS in complex with SPSB3-ELOBC Deposited 2023-03-29 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–118（118 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS buffer
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.51 Å
8OL1 cGAS-Nucleosome in complex with SPSB3-ELOBC (composite structure) Deposited 2023-03-29 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric
Chain N 1–118（118 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS buffer
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8P0F Crystal structure of the VCB complex with compound 1. Deposited 2023-05-10 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–104（104 aa）
Not recorded WBN (3~{R},5~{R})-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-5-oxidanyl-2-oxidanylidene-1-pyridin-2-yl-piperidine-3-carboxamide × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；30 % PEG
Resolution 1.98 Å R-free 0.257
8P0F Crystal structure of the VCB complex with compound 1. Deposited 2023-05-10 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain F 1–104（104 aa）
Not recorded WBN (3~{R},5~{R})-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-5-oxidanyl-2-oxidanylidene-1-pyridin-2-yl-piperidine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；30 % PEG
Resolution 1.98 Å R-free 0.257
8PC2 SelDeg51 in complex with FKBP51FK1 domain and pVHL:EloB:EloC Deposited 2023-06-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–104（104 aa）
Not recorded XZW [(1~{R})-3-(3,4-dimethoxyphenyl)-1-[4-[[1-[3-[2-[[[(2~{S},4~{R})-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-4-oxidanyl-pyrrolidin-2-yl]carbonylamino]methyl]-5-(4-methyl-1,3-thiazol-5-yl)phenoxy]propyl]-1,2,3-triazol-4-yl]methoxy]phenyl]propyl] (2~{S})-1-[(2~{S})-2-cyclohexyl-2-(3,4,5-trimethoxyphenyl)ethanoyl]piperidine-2-carboxylate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；15% PEG3350, 0.2 M tri-sodium citrate, 0.1 M HEPES-NaOH pH 7.5 and 10% glycol
Resolution 2.80 Å R-free 0.261
8PC2 SelDeg51 in complex with FKBP51FK1 domain and pVHL:EloB:EloC Deposited 2023-06-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 1–104（104 aa）
Not recorded XZW [(1~{R})-3-(3,4-dimethoxyphenyl)-1-[4-[[1-[3-[2-[[[(2~{S},4~{R})-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-4-oxidanyl-pyrrolidin-2-yl]carbonylamino]methyl]-5-(4-methyl-1,3-thiazol-5-yl)phenoxy]propyl]-1,2,3-triazol-4-yl]methoxy]phenyl]propyl] (2~{S})-1-[(2~{S})-2-cyclohexyl-2-(3,4,5-trimethoxyphenyl)ethanoyl]piperidine-2-carboxylate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；15% PEG3350, 0.2 M tri-sodium citrate, 0.1 M HEPES-NaOH pH 7.5 and 10% glycol
Resolution 2.80 Å R-free 0.261
8PQL K48-linked ubiquitin chain formation with a cullin-RING E3 ligase and Cdc34: NEDD8-CUL2-RBX1-ELOB/C-FEM1C with trapped UBE2R2-donor UB-acceptor UB-SIL1 peptide Deposited 2023-07-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: nonameric
Chain G 1–118（118 aa）
Not recorded SY8 5-azanylpentan-2-one × 1 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.76 Å
8Q7R Ubiquitin ligation to substrate by a cullin-RING E3 ligase & Cdc34: NEDD8-CUL2-RBX1-ELOB/C-FEM1C with trapped UBE2R2~donor UB-Sil1 peptide Deposited 2023-08-16 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–118（118 aa）
Not recorded U9O 5-azanyl-1-oxidanyl-pentan-2-one × 1 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.71 Å
8QJR BRG1 bromodomain in complex with VBC via compound 17 Deposited 2023-09-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–104（104 aa）
Not recorded PO4 PHOSPHATE ION × 5 GOL GLYCEROL × 1 VLH (2S,4R)-1-[(2R)-2-[3-[2-[4-[3-[4-[(1R,5S)-3-[3-azanyl-6-(2-hydroxyphenyl)pyridazin-4-yl]-3,8-diazabicyclo[3.2.1]octan-8-yl]pyridin-2-yl]oxycyclobutyl]oxypiperidin-1-yl]ethoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-N-[(1S)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；27 mM HEPES pH 6.8, 73 mM HEPES pH 8.6, 1.0 M NaI
Resolution 3.17 Å R-free 0.278
8QJR BRG1 bromodomain in complex with VBC via compound 17 Deposited 2023-09-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–104（104 aa）
Not recorded PO4 PHOSPHATE ION × 2 VLH (2S,4R)-1-[(2R)-2-[3-[2-[4-[3-[4-[(1R,5S)-3-[3-azanyl-6-(2-hydroxyphenyl)pyridazin-4-yl]-3,8-diazabicyclo[3.2.1]octan-8-yl]pyridin-2-yl]oxycyclobutyl]oxypiperidin-1-yl]ethoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-N-[(1S)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；27 mM HEPES pH 6.8, 73 mM HEPES pH 8.6, 1.0 M NaI
Resolution 3.17 Å R-free 0.278
8QJS VHL/Elongin B/Elongin C complex with compound 155 Deposited 2023-09-13 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Not recorded VL6 (2S,4R)-1-[(2R)-2-[3-[2-(2-methoxyethoxy)ethoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-N-[(1S)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；100 mM Sodium Citrate pH 6.0, 200 mM Magnesium Acetate, 50 mM DTT, 14% PEG 8000
Resolution 3.19 Å R-free 0.274
8QJS VHL/Elongin B/Elongin C complex with compound 155 Deposited 2023-09-13 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Not recorded VL6 (2S,4R)-1-[(2R)-2-[3-[2-(2-methoxyethoxy)ethoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-N-[(1S)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；100 mM Sodium Citrate pH 6.0, 200 mM Magnesium Acetate, 50 mM DTT, 14% PEG 8000
Resolution 3.19 Å R-free 0.274
8QJS VHL/Elongin B/Elongin C complex with compound 155 Deposited 2023-09-13 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Not recorded VL6 (2S,4R)-1-[(2R)-2-[3-[2-(2-methoxyethoxy)ethoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-N-[(1S)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；100 mM Sodium Citrate pH 6.0, 200 mM Magnesium Acetate, 50 mM DTT, 14% PEG 8000
Resolution 3.19 Å R-free 0.274
8QJS VHL/Elongin B/Elongin C complex with compound 155 Deposited 2023-09-13 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Not recorded VL6 (2S,4R)-1-[(2R)-2-[3-[2-(2-methoxyethoxy)ethoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-N-[(1S)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；100 mM Sodium Citrate pH 6.0, 200 mM Magnesium Acetate, 50 mM DTT, 14% PEG 8000
Resolution 3.19 Å R-free 0.274
8QU8 PROTAC-mediated complex of KRAS with VHL/Elongin-B/Elongin-C/Cullin-2/Rbx1 Deposited 2023-10-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 2–118（117 aa）
Not recorded ZN ZINC ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 1 WYL (2S,4R)-1-[(2S)-2-[4-[4-[(3S)-4-[4-[5-[(4S)-2-azanyl-3-cyano-4-methyl-6,7-dihydro-5H-1-benzothiophen-4-yl]-1,2,4-oxadiazol-3-yl]pyrimidin-2-yl]-3-methyl-1,4-diazepan-1-yl]butoxy]-1,2,3-triazol-1-yl]-3-methyl-butanoyl]-N-[(1R)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]-2-oxidanyl-ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8QVU Crystal Structure of ligand ACBI3 in complex with KRAS G12D C118S GDP and pVHL:ElonginC:ElonginB complex Deposited 2023-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain H 1–104（104 aa）
Not recorded WYL (2S,4R)-1-[(2S)-2-[4-[4-[(3S)-4-[4-[5-[(4S)-2-azanyl-3-cyano-4-methyl-6,7-dihydro-5H-1-benzothiophen-4-yl]-1,2,4-oxadiazol-3-yl]pyrimidin-2-yl]-3-methyl-1,4-diazepan-1-yl]butoxy]-1,2,3-triazol-1-yl]-3-methyl-butanoyl]-N-[(1R)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]-2-oxidanyl-ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；20% w/v PEG 8000, 0.2 M lithium chloride, 0.1 M Tris pH 8.0
Resolution 2.24 Å R-free 0.287
8QVU Crystal Structure of ligand ACBI3 in complex with KRAS G12D C118S GDP and pVHL:ElonginC:ElonginB complex Deposited 2023-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–104（104 aa）
Not recorded PO4 PHOSPHATE ION × 1 WYL (2S,4R)-1-[(2S)-2-[4-[4-[(3S)-4-[4-[5-[(4S)-2-azanyl-3-cyano-4-methyl-6,7-dihydro-5H-1-benzothiophen-4-yl]-1,2,4-oxadiazol-3-yl]pyrimidin-2-yl]-3-methyl-1,4-diazepan-1-yl]butoxy]-1,2,3-triazol-1-yl]-3-methyl-butanoyl]-N-[(1R)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]-2-oxidanyl-ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；20% w/v PEG 8000, 0.2 M lithium chloride, 0.1 M Tris pH 8.0
Resolution 2.24 Å R-free 0.287
8QW6 Crystal Structure of compound 3 in complex with KRAS G12V C118S GDP and pVHL:ElonginC:ElonginB Deposited 2023-10-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain H 1–104（104 aa）
Mutation：delta 105-118 GDP GUANOSINE-5'-DIPHOSPHATE × 1 X4R (2S,4R)-1-[(2S)-2-[6-[(3S)-4-[4-[5-[(4S)-2-azanyl-3-cyano-4-methyl-6,7-dihydro-5H-1-benzothiophen-4-yl]-1,2,4-oxadiazol-3-yl]pyrimidin-2-yl]-3-methyl-1,4-diazepan-1-yl]hexanoylamino]-3,3-dimethyl-butanoyl]-N-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；200 mM sodium citrate, 100 mM BIS-TRIS propane pH 8.5, 20% w/v polyethylene glycol 3350
Resolution 2.20 Å R-free 0.295
8QW6 Crystal Structure of compound 3 in complex with KRAS G12V C118S GDP and pVHL:ElonginC:ElonginB Deposited 2023-10-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–104（104 aa）
Mutation：delta 105-118 GDP GUANOSINE-5'-DIPHOSPHATE × 1 X4R (2S,4R)-1-[(2S)-2-[6-[(3S)-4-[4-[5-[(4S)-2-azanyl-3-cyano-4-methyl-6,7-dihydro-5H-1-benzothiophen-4-yl]-1,2,4-oxadiazol-3-yl]pyrimidin-2-yl]-3-methyl-1,4-diazepan-1-yl]hexanoylamino]-3,3-dimethyl-butanoyl]-N-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；200 mM sodium citrate, 100 mM BIS-TRIS propane pH 8.5, 20% w/v polyethylene glycol 3350
Resolution 2.20 Å R-free 0.295
8QW7 Crystal Structure of compound 4 in complex with KRAS G12V C118S GDP and pVHL:ElonginC:ElonginB Deposited 2023-10-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–104（104 aa）
Mutation：delta 105-118 X53 (2S,4R)-1-[(2R)-2-[3-[4-[(3S)-4-[4-[5-[(4S)-2-azanyl-3-cyano-4-methyl-6,7-dihydro-5H-1-benzothiophen-4-yl]-1,2,4-oxadiazol-3-yl]pyrimidin-2-yl]-3-methyl-1,4-diazepan-1-yl]butoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-N-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；200 mM Lithium sulfate monohydrate, 100 mM BIS-TRIS propane pH 5.5, 25% w/v polyethylene glycol 3350
Resolution 2.36 Å R-free 0.273
8QW7 Crystal Structure of compound 4 in complex with KRAS G12V C118S GDP and pVHL:ElonginC:ElonginB Deposited 2023-10-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain H 1–104（104 aa）
Mutation：delta 105-118 X53 (2S,4R)-1-[(2R)-2-[3-[4-[(3S)-4-[4-[5-[(4S)-2-azanyl-3-cyano-4-methyl-6,7-dihydro-5H-1-benzothiophen-4-yl]-1,2,4-oxadiazol-3-yl]pyrimidin-2-yl]-3-methyl-1,4-diazepan-1-yl]butoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-N-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；200 mM Lithium sulfate monohydrate, 100 mM BIS-TRIS propane pH 5.5, 25% w/v polyethylene glycol 3350
Resolution 2.36 Å R-free 0.273
8R5H Ubiquitin ligation to neosubstrate by a cullin-RING E3 ligase & Cdc34: NEDD8-CUL2-RBX1-ELOB/C-VHL-MZ1 with trapped UBE2R2~donor UB-BRD4 BD2 Deposited 2023-11-16 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–118（118 aa）
Not recorded ZN ZINC ION × 3 SY8 5-azanylpentan-2-one × 1 759 (2~{S},4~{R})-1-[(2~{S})-2-[2-[2-[2-[2-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoylamino]ethoxy]ethoxy]ethoxy]ethanoylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-2,3-dihydro-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.44 Å
8RWZ Open non-crosslinked structure Brd4BD2-MZ1-(NEDD8)-CRL2VHL Deposited 2024-02-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–104（104 aa）
Not recorded 759 (2~{S},4~{R})-1-[(2~{S})-2-[2-[2-[2-[2-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoylamino]ethoxy]ethoxy]ethoxy]ethanoylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-2,3-dihydro-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8RX0 (NEDD8)-CRL2VHL-MZ1-Brd4BD2-Ub(G76S, K48C)-UBE2R1(C93K, S138C, C191S, C223S)-Ub Deposited 2024-02-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain C 1–104（104 aa）
Not recorded 759 (2~{S},4~{R})-1-[(2~{S})-2-[2-[2-[2-[2-[2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoylamino]ethoxy]ethoxy]ethoxy]ethanoylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-2,3-dihydro-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8SH2 KLHDC2 in complex with EloB and EloC Deposited 2023-04-13 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain E 1–104（104 aa）
Chain G 1–104（104 aa）
Chain I 1–104（104 aa）
Chain K 1–104（104 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.3
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.74 Å
8SZK The cryo-EM structure of PPP2R5A/HIV-1 Vif/CBFb/EloB/EloC complex Deposited 2023-05-30 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–118（118 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.58 Å
8VL9 Crystal structure of EloBC-VHL-CDO1 complex bound to compound 8 molecular glue Deposited 2024-01-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–118（118 aa）
Not recorded A1ACI N-acetyl-3-methyl-L-valyl-(4R)-4-hydroxy-N-{[(4P)-4-(1H-pyrazol-3-yl)naphthalen-1-yl]methyl}-L-prolinamide × 1 CIT CITRIC ACID × 1 FE2 FE (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；0.2M SODIUM CITRATE, 0.1M BIS-TRIS-PROPANE PH 6.5, 20% PEG3350
Resolution 2.50 Å R-free 0.216
8VLB Crystal structure of EloBC-VHL-CDO1 complex bound to compound 4 molecular glue Deposited 2024-01-11 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–118（118 aa）
Not recorded 3JF N-acetyl-3-methyl-L-valyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 CIT CITRIC ACID × 1 FE2 FE (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；0.2M SODIUM CITRATE, 0.1M BIS-TRIS-PROPANE PH 6.5, 20% PEG3350
Resolution 2.90 Å R-free 0.258
8WDK The complex structure of Cul2-VCB-Protac-Wee1 Deposited 2023-09-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–104（104 aa）
Not recorded W6U (2S,4R)-1-[(2S)-3,3-dimethyl-2-[3-[4-[4-[4-[[3-oxidanylidene-1-[6-(2-oxidanylpropan-2-yl)pyridin-2-yl]-2-prop-2-enyl-pyrazolo[3,4-d]pyrimidin-6-yl]amino]phenyl]piperazin-1-yl]butoxy]propanoylamino]butanoyl]-N-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.64 Å
8WQA Cryo-EM structure of CUL2-RBX1-ELOB-ELOC-FEM1B bound with the C-degron of CCDC89 (conformation 1) Deposited 2023-10-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain F 1–118（118 aa）
Chain H 1–118（118 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.39 Å
8WQB Cryo-EM structure of CUL2-RBX1-ELOB-ELOC-FEM1B bound with the C-degron of CCDC89 (conformation 2) Deposited 2023-10-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain D 1–118（118 aa）
Chain H 1–118（118 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.37 Å
8WQC cryo-EM structure of neddylated CUL2-RBX1-ELOB-ELOC-FEM1B bound with the C-degron of CDK5R1 Deposited 2023-10-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain D 1–118（118 aa）
Chain I 1–118（118 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.54 Å
8WQE Cryo-EM structure of CUL2-RBX1-ELOB-ELOC-FEM1B bound with the C-degron of CUX1 (conformation 1) Deposited 2023-10-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain F 1–118（118 aa）
Chain H 1–118（118 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.38 Å
8WQF cryo-EM structure of CUL2-RBX1-ELOB-ELOC-FEM1B bound with the C-degron of CUX1 (conformation 2) Deposited 2023-10-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain D 1–118（118 aa）
Chain H 1–118（118 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.27 Å
8WQG cryo-EM structure of neddylated CUL2-RBX1-ELOB-ELOC-FEM1B bound with the C-degron of CCDC89 (conformation 1) Deposited 2023-10-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain D 1–118（118 aa）
Chain I 1–118（118 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.09 Å
8WQH cryo-EM structure of neddylated CUL2-RBX1-ELOB-ELOC-FEM1B bound with the C-degron of CCDC89 (conformation 2) Deposited 2023-10-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain F 1–118（118 aa）
Chain K 1–118（118 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.44 Å
8Y1U Crystal structure of ASB7-Elongin B/C bound to the LZTS1-degron Deposited 2024-01-25 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–104（104 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1M DL-Malic acid pH7.0, 10% w/v polyethylene glycol 3350
Resolution 2.41 Å R-free 0.243
8YMB The crystal structure of SHD931 in complex with Brd4-BD2 and VCB Deposited 2024-03-08 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–118（118 aa）
Not recorded CL CHLORIDE ION × 5 A1LY0 SHD931 × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；1500 mM Ammonium sulfate, 100 mM Tris base/ Hydrochloric acid, pH 8.5, 12% (v/v) Glycerol
Resolution 2.95 Å R-free 0.270
8YMB The crystal structure of SHD931 in complex with Brd4-BD2 and VCB Deposited 2024-03-08 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 1–118（118 aa）
Not recorded CL CHLORIDE ION × 3 A1LY0 SHD931 × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；1500 mM Ammonium sulfate, 100 mM Tris base/ Hydrochloric acid, pH 8.5, 12% (v/v) Glycerol
Resolution 2.95 Å R-free 0.270
8ZV8 Crystal structure of VHL-EloB-EloC in complex with a fragment compound 7HC_2 (D7) Deposited 2024-06-11 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1L2C 4-(hydroxymethyl)-7-oxidanyl-chromen-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；287 K；12% PEG 8K, 0.1 M Na cacodylate-HCl pH 6.0, 0.2 M Mg acetate, 5 mM DTT
Resolution 2.46 Å R-free 0.287
8ZV8 Crystal structure of VHL-EloB-EloC in complex with a fragment compound 7HC_2 (D7) Deposited 2024-06-11 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1L2C 4-(hydroxymethyl)-7-oxidanyl-chromen-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；287 K；12% PEG 8K, 0.1 M Na cacodylate-HCl pH 6.0, 0.2 M Mg acetate, 5 mM DTT
Resolution 2.46 Å R-free 0.287
8ZV8 Crystal structure of VHL-EloB-EloC in complex with a fragment compound 7HC_2 (D7) Deposited 2024-06-11 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1L2C 4-(hydroxymethyl)-7-oxidanyl-chromen-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；287 K；12% PEG 8K, 0.1 M Na cacodylate-HCl pH 6.0, 0.2 M Mg acetate, 5 mM DTT
Resolution 2.46 Å R-free 0.287
8ZV8 Crystal structure of VHL-EloB-EloC in complex with a fragment compound 7HC_2 (D7) Deposited 2024-06-11 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1L2C 4-(hydroxymethyl)-7-oxidanyl-chromen-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；287 K；12% PEG 8K, 0.1 M Na cacodylate-HCl pH 6.0, 0.2 M Mg acetate, 5 mM DTT
Resolution 2.46 Å R-free 0.287
8ZVJ Crystal structure of VHL-EloB-EloC in complex with a fragment compound 7HC_1(DE22) Deposited 2024-06-11 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1L2D ethyl 7-oxidanyl-2-oxidanylidene-chromene-4-carboxylate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；287 K；12% PEG 8K, 0.1 M Na cacodylate-HCl pH 6.0, 0.2 M Mg acetate, 5 mM DTT
Resolution 2.60 Å R-free 0.285
8ZVJ Crystal structure of VHL-EloB-EloC in complex with a fragment compound 7HC_1(DE22) Deposited 2024-06-11 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；287 K；12% PEG 8K, 0.1 M Na cacodylate-HCl pH 6.0, 0.2 M Mg acetate, 5 mM DTT
Resolution 2.60 Å R-free 0.285
8ZVJ Crystal structure of VHL-EloB-EloC in complex with a fragment compound 7HC_1(DE22) Deposited 2024-06-11 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1L2D ethyl 7-oxidanyl-2-oxidanylidene-chromene-4-carboxylate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；287 K；12% PEG 8K, 0.1 M Na cacodylate-HCl pH 6.0, 0.2 M Mg acetate, 5 mM DTT
Resolution 2.60 Å R-free 0.285
8ZVJ Crystal structure of VHL-EloB-EloC in complex with a fragment compound 7HC_1(DE22) Deposited 2024-06-11 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1L2D ethyl 7-oxidanyl-2-oxidanylidene-chromene-4-carboxylate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；287 K；12% PEG 8K, 0.1 M Na cacodylate-HCl pH 6.0, 0.2 M Mg acetate, 5 mM DTT
Resolution 2.60 Å R-free 0.285
9BID human ZYG11B and EloginB/C complex Deposited 2024-04-23 Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–118（118 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.99 Å
9BIE human ZYG11B ElonginB/C complex binding to SARS-CoV2 Orf10 protein Deposited 2024-04-23 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–118（118 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9BJ8 human CRL2-ZYG11B complex Deposited 2024-04-25 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain B 1–118（118 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.78 Å
9BJ9 Human CRL-2 ZYG11B binding to human NLRP1 Gly/N degron Deposited 2024-04-25 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain B 1–118（118 aa）
Not recorded ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
9BJU Crystal structure of the complex between VHL, ElonginB, ElonginC, and compound 5 Deposited 2024-04-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–104（104 aa）
Not recorded TFA trifluoroacetic acid × 1 PEG DI(HYDROXYETHYL)ETHER × 1 EDO 1,2-ETHANEDIOL × 1 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 mM sodium cacodylate pH 5.7, 15% PEG8000, 0.2 M magnesium acetate, 5 mM DTT
Resolution 2.47 Å R-free 0.256
9BJU Crystal structure of the complex between VHL, ElonginB, ElonginC, and compound 5 Deposited 2024-04-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–104（104 aa）
Not recorded ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 mM sodium cacodylate pH 5.7, 15% PEG8000, 0.2 M magnesium acetate, 5 mM DTT
Resolution 2.47 Å R-free 0.256
9BJU Crystal structure of the complex between VHL, ElonginB, ElonginC, and compound 5 Deposited 2024-04-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 1–104（104 aa）
Not recorded ACT ACETATE ION × 1 DMS DIMETHYL SULFOXIDE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 mM sodium cacodylate pH 5.7, 15% PEG8000, 0.2 M magnesium acetate, 5 mM DTT
Resolution 2.47 Å R-free 0.256
9BJU Crystal structure of the complex between VHL, ElonginB, ElonginC, and compound 5 Deposited 2024-04-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain J 1–104（104 aa）
Not recorded TFA trifluoroacetic acid × 1 EDO 1,2-ETHANEDIOL × 1 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 mM sodium cacodylate pH 5.7, 15% PEG8000, 0.2 M magnesium acetate, 5 mM DTT
Resolution 2.47 Å R-free 0.256
9BOL Crystal structure of the complex between VHL, ElonginB, ElonginC, and compound 5 Deposited 2024-05-03 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Not recorded EDO 1,2-ETHANEDIOL × 3 DMS DIMETHYL SULFOXIDE × 1 CL CHLORIDE ION × 1 A1ARP (4R)-1-[(2S)-2-(4-cyclopropyl-1H-1,2,3-triazol-1-yl)-3,3-dimethylbutanoyl]-4-hydroxy-N-{[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 mM sodium cacodylate pH 5.7, 15% PEG8000, 0.2 M magnesium acetate, 5 mM DTT
Resolution 1.99 Å R-free 0.248
9BOL Crystal structure of the complex between VHL, ElonginB, ElonginC, and compound 5 Deposited 2024-05-03 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Not recorded EDO 1,2-ETHANEDIOL × 2 DMS DIMETHYL SULFOXIDE × 1 CL CHLORIDE ION × 1 A1ARP (4R)-1-[(2S)-2-(4-cyclopropyl-1H-1,2,3-triazol-1-yl)-3,3-dimethylbutanoyl]-4-hydroxy-N-{[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 mM sodium cacodylate pH 5.7, 15% PEG8000, 0.2 M magnesium acetate, 5 mM DTT
Resolution 1.99 Å R-free 0.248
9D1I Structure of Ubiquitin bound to KLHDC3-EloB/C Deposited 2024-08-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–104（104 aa）
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；10%PEG5KMME, 0.1M HEPES pH=7.0, 5% Tascsimate pH=7.0
Resolution 2.00 Å R-free 0.189
9D1Y Structure of G75R Ubiquitin bound to KLHDC3-EloB/C Deposited 2024-08-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–104（104 aa）
Not recorded GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；10%PEG5KMME, 5% Tacsimate pH=7.0, 0.1M HEPES pH=7.0
Resolution 2.60 Å R-free 0.216
9D1Z Structure of G75Q Ubiquitin bound to KLHDC3-EloB/C Deposited 2024-08-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–104（104 aa）
Not recorded MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；10%%KMME, 5% Tacsimate pH=7.0, 0.1M HEPES 7.0
Resolution 1.88 Å R-free 0.190
9D4B Discovery of SMD-3236, a Potent, Highly Selective and Efficacious SMARCA2 Degrader for the Treatment of SMARC4-Deficient Human Cancers Deposited 2024-08-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–104（104 aa）
Not recorded A1A1U (4R)-1-[(2S)-2-{4-[(1S,4S)-4-({4-[(12'S)-4'-chloro-5'-oxo-5'H-spiro[cyclohexane-1,7'-indolo[1,2-a]quinazolin]-10'-yl]piperidin-1-yl}methyl)cyclohexyl]-1H-1,2,3-triazol-1-yl}-3,3-dimethylbutanoyl]-4-hydroxy-N-[(1R)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]-2-(morpholin-4-yl)ethyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；281.15 K；0.25 M Calcium acetate 0.1 M Sodium cacodylate pH 5.5 8% w/v PEG 8000
Resolution 3.30 Å R-free 0.286
9D4B Discovery of SMD-3236, a Potent, Highly Selective and Efficacious SMARCA2 Degrader for the Treatment of SMARC4-Deficient Human Cancers Deposited 2024-08-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 1–104（104 aa）
Not recorded A1A1U (4R)-1-[(2S)-2-{4-[(1S,4S)-4-({4-[(12'S)-4'-chloro-5'-oxo-5'H-spiro[cyclohexane-1,7'-indolo[1,2-a]quinazolin]-10'-yl]piperidin-1-yl}methyl)cyclohexyl]-1H-1,2,3-triazol-1-yl}-3,3-dimethylbutanoyl]-4-hydroxy-N-[(1R)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]-2-(morpholin-4-yl)ethyl]-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；281.15 K；0.25 M Calcium acetate 0.1 M Sodium cacodylate pH 5.5 8% w/v PEG 8000
Resolution 3.30 Å R-free 0.286
9D8P Focused map of Cryo-EM structure of Ubiquitin C-degron bound to KLHDC10-EloB/C Deposited 2024-08-19 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–118（118 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9DTX Crystal structure of PRT3789 in complex with the bromodomain of human BRG1 (SMARCA4) and pVHL:ElonginC:ElonginB Deposited 2024-10-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–104（104 aa）
Not recorded A1BB4 (4R)-4-hydroxy-1-[(2R)-2-(3-{[(2S)-1-{(3R)-3-[(2M,6aS,11S)-2-(2-hydroxyphenyl)-5,6,6a,7,9,10-hexahydro-8H-pyrazino[1',2':4,5]pyrazino[2,3-c]pyridazin-8-yl]pyrrolidin-1-yl}propan-2-yl]oxy}-1,2-oxazol-5-yl)-3-methylbutanoyl]-N-{(1S)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl}-L-prolinamide × 1 GOL GLYCEROL × 1 EDO 1,2-ETHANEDIOL × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；0.1 M Bis-Tris propane, pH 8.5, 0.2 M potassium thiocyanate, 20% w/v PEG3350
Resolution 2.11 Å R-free 0.232
9DTY Crystal structure of PRT3789 in complex with the bromodomain of human BRM (SMARCA2) and pVHL:ElonginC:ElonginB Deposited 2024-10-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain D 1–104（104 aa）
Chain H 1–104（104 aa）
Chain L 1–104（104 aa）
Chain P 1–104（104 aa）
Chain T 1–104（104 aa）
Chain X 1–104（104 aa）
Chain b 1–104（104 aa）
Chain f 1–104（104 aa）
Chain j 1–104（104 aa）
Chain n 1–104（104 aa）
Not recorded A1BB4 (4R)-4-hydroxy-1-[(2R)-2-(3-{[(2S)-1-{(3R)-3-[(2M,6aS,11S)-2-(2-hydroxyphenyl)-5,6,6a,7,9,10-hexahydro-8H-pyrazino[1',2':4,5]pyrazino[2,3-c]pyridazin-8-yl]pyrrolidin-1-yl}propan-2-yl]oxy}-1,2-oxazol-5-yl)-3-methylbutanoyl]-N-{(1S)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl}-L-prolinamide × 10 CIT CITRIC ACID × 5 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.26；291 K；2% v/v Tacsimate, pH 5.0, 0.1 M tri-sodium citrate, pH 5.26, 11.36% w/v PEG3350, 0.1 M barium chloride dihydrate
Resolution 3.19 Å R-free 0.285
9E9V Structural Insights into HIV-1 Vif-Mediated Ubiquitination and Degradation of APOBEC3H Deposited 2024-11-08 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 9 PDB declaration: 13-meric
Chain m 1–102（102 aa）
Not recorded ZN ZINC ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
9EQJ Crystal structure of pVHL:EloB:EloC in complex with MP-1-39 Deposited 2024-03-21 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Not recorded A1H6O (2S,4R)-1-[(2R)-2-[(1-fluoranylcyclopropyl)carbonylamino]-3-methyl-3-[[cis-4-(morpholin-4-ylmethyl)cyclohexyl]methylsulfanyl]butanoyl]-N-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2 NaCl, 0.1M HEPES pH 7.5, and 25% PEG3350
Resolution 2.05 Å R-free 0.216
9EQJ Crystal structure of pVHL:EloB:EloC in complex with MP-1-39 Deposited 2024-03-21 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Not recorded A1H6O (2S,4R)-1-[(2R)-2-[(1-fluoranylcyclopropyl)carbonylamino]-3-methyl-3-[[cis-4-(morpholin-4-ylmethyl)cyclohexyl]methylsulfanyl]butanoyl]-N-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2 NaCl, 0.1M HEPES pH 7.5, and 25% PEG3350
Resolution 2.05 Å R-free 0.216
9EQM Crystal structure of pVHL:EloB:EloC in complex with MP-1-21 Deposited 2024-03-21 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Not recorded A1H9F (2S,4R)-1-[(2R)-2-[(1-fluoranylcyclopropyl)carbonylamino]-3-methyl-3-[[trans-4-(morpholin-4-ylmethyl)cyclohexyl]methylsulfanyl]butanoyl]-N-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.285 M sodium acetate, 0.1M Bis-Tris pH 5.5, and 5.9% PEG3350
Resolution 2.19 Å R-free 0.264
9GIO Crystal structure of the VHL-EloC-EloB complex with a covalent compound bound to C77 of VHL. Deposited 2024-08-19 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Not recorded 3JF N-acetyl-3-methyl-L-valyl-(4R)-4-hydroxy-N-[4-(4-methyl-1,3-thiazol-5-yl)benzyl]-L-prolinamide × 1 A1IMD N-[2-(dimethylsulfamoyl)-5-[(1-methylpyrazol-4-yl)methoxy]phenyl]propanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；12 % PEG8000 and 100 mM MES buffer (pH 6.5).
Resolution 1.49 Å R-free 0.233
9H30 VHL:ElonginC:ElonginB-PROTAC4 complex Deposited 2024-10-15 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Not recorded A1ISE N-[5-(1-{2-[4-({[(1S,2R,3S,5S,6S,16E,18E,20R,21S)-11-chloro-21-hydroxy-12,20-dimethoxy-2,5,9,16-tetramethyl-8,23-dioxo-4,24-dioxa-9,22-diazatetracyclo[19.3.1.1~10,14~.0~3,5~]hexacosa-10(26),11,13,16,18-pentaen-6-yl]oxy}carbonyl)phenyl]ethyl}-1H-1,2,3-triazol-4-yl)pentanoyl]-3-methyl-D-valyl-(4R)-4-hydroxy-N-{[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.7；277 K；9-11% PEG 8000, 0.2 M magnesium acetate and 0.1 M sodium cacodylate, pH 5.7
Resolution 2.50 Å R-free 0.250
9HYB CRYSTAL STRUCTURE OF THE SMARCA2-VCB-COMPLEX WITH PROTAC P3 Deposited 2025-01-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–104（104 aa）
Not recorded A1IYB (2~{S},4~{R})-~{N}-[(1~{R})-2-[2-[4-[4-bromanyl-7-cyclopentyl-5-oxidanylidene-10-[[(2~{S})-oxolan-2-yl]methoxy]-6~{H}-benzimidazolo[1,2-a]quinazolin-9-yl]piperidin-1-yl]ethoxy]-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-1-[(2~{S})-2-[[1-(dimethylamino)cyclopropyl]carbonylamino]-3,3-dimethyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1 M Bis-Tris propane, 20 % PEG 3350, 0.2 M tri-sodium citrate
Resolution 2.84 Å R-free 0.265
9HYB CRYSTAL STRUCTURE OF THE SMARCA2-VCB-COMPLEX WITH PROTAC P3 Deposited 2025-01-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–104（104 aa）
Not recorded A1IYB (2~{S},4~{R})-~{N}-[(1~{R})-2-[2-[4-[4-bromanyl-7-cyclopentyl-5-oxidanylidene-10-[[(2~{S})-oxolan-2-yl]methoxy]-6~{H}-benzimidazolo[1,2-a]quinazolin-9-yl]piperidin-1-yl]ethoxy]-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-1-[(2~{S})-2-[[1-(dimethylamino)cyclopropyl]carbonylamino]-3,3-dimethyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1 M Bis-Tris propane, 20 % PEG 3350, 0.2 M tri-sodium citrate
Resolution 2.84 Å R-free 0.265
9HYB CRYSTAL STRUCTURE OF THE SMARCA2-VCB-COMPLEX WITH PROTAC P3 Deposited 2025-01-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 1–104（104 aa）
Not recorded A1IYB (2~{S},4~{R})-~{N}-[(1~{R})-2-[2-[4-[4-bromanyl-7-cyclopentyl-5-oxidanylidene-10-[[(2~{S})-oxolan-2-yl]methoxy]-6~{H}-benzimidazolo[1,2-a]quinazolin-9-yl]piperidin-1-yl]ethoxy]-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-1-[(2~{S})-2-[[1-(dimethylamino)cyclopropyl]carbonylamino]-3,3-dimethyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1 M Bis-Tris propane, 20 % PEG 3350, 0.2 M tri-sodium citrate
Resolution 2.84 Å R-free 0.265
9HYB CRYSTAL STRUCTURE OF THE SMARCA2-VCB-COMPLEX WITH PROTAC P3 Deposited 2025-01-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain J 1–104（104 aa）
Not recorded A1IYB (2~{S},4~{R})-~{N}-[(1~{R})-2-[2-[4-[4-bromanyl-7-cyclopentyl-5-oxidanylidene-10-[[(2~{S})-oxolan-2-yl]methoxy]-6~{H}-benzimidazolo[1,2-a]quinazolin-9-yl]piperidin-1-yl]ethoxy]-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-1-[(2~{S})-2-[[1-(dimethylamino)cyclopropyl]carbonylamino]-3,3-dimethyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1 M Bis-Tris propane, 20 % PEG 3350, 0.2 M tri-sodium citrate
Resolution 2.84 Å R-free 0.265
9HYN CRYSTAL STRUCTURE OF THE SMARCA2-VCB-COMPLEX WITH PROTAC P1 Deposited 2025-01-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–104（104 aa）
Not recorded A1IYO (2~{S},4~{R})-~{N}-[[2-[2-[2-[4-[(6-bromanyl-3-methyl-5-oxidanylidene-4~{H}-imidazo[1,2-a]quinazolin-2-yl)methyl]piperazin-1-yl]ethoxy]ethoxy]-4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M K2HPO4 16 % PEG 8000 0.2 M sodium chloride
Resolution 2.37 Å R-free 0.262
9HYN CRYSTAL STRUCTURE OF THE SMARCA2-VCB-COMPLEX WITH PROTAC P1 Deposited 2025-01-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–104（104 aa）
Not recorded A1IYO (2~{S},4~{R})-~{N}-[[2-[2-[2-[4-[(6-bromanyl-3-methyl-5-oxidanylidene-4~{H}-imidazo[1,2-a]quinazolin-2-yl)methyl]piperazin-1-yl]ethoxy]ethoxy]-4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M K2HPO4 16 % PEG 8000 0.2 M sodium chloride
Resolution 2.37 Å R-free 0.262
9HYO CRYSTAL STRUCTURE OF THE SMARCA2-VCB-COMPLEX WITH PROTAC P4 Deposited 2025-01-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–104（104 aa）
Not recorded A1IYN (2~{S},4~{R})-~{N}-[[2-[2-[2-[2-[4-[7-(5-bromanyl-4-oxidanylidene-2,3-dihydro-1,3-benzoxazin-2-yl)-4-[cyclopropyl(methyl)amino]-5,6,8,9-tetrahydropyrimido[4,5-d]azepin-2-yl]piperazin-1-yl]ethoxy]ethoxy]ethoxy]-4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M HEPES pH 7.0 8% ethylene glycol 14% PEG 8K
Resolution 3.74 Å R-free 0.348
9HYP CRYSTAL STRUCTURE OF THE SMARCA2-VCB-COMPLEX WITH PROTAC P5 Deposited 2025-01-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–104（104 aa）
Not recorded A1IYM (2~{S},4~{R})-~{N}-[[2-[4-[4-(4-bromanyl-7-cyclopentyl-5-oxidanylidene-6~{H}-benzimidazolo[1,2-a]quinazolin-9-yl)piperidin-1-yl]butoxy]-4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；28% PEG 3350 0.2 M potassium thiocyanate 0.1 M Bis-Tris Propane pH 7.5
Resolution 2.20 Å R-free 0.254
9IPW Crystal structure of VHL-EloB-EloC in complex with a fragment compound 7HC_5(D3) Deposited 2024-07-11 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；287 K；12% PEG 8K,0.1M Na cacodylate-HCl pH 6.0, 0.2M Mg acetate, 5mM DTT
Resolution 3.00 Å R-free 0.273
9IPW Crystal structure of VHL-EloB-EloC in complex with a fragment compound 7HC_5(D3) Deposited 2024-07-11 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；287 K；12% PEG 8K,0.1M Na cacodylate-HCl pH 6.0, 0.2M Mg acetate, 5mM DTT
Resolution 3.00 Å R-free 0.273
9IPW Crystal structure of VHL-EloB-EloC in complex with a fragment compound 7HC_5(D3) Deposited 2024-07-11 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；287 K；12% PEG 8K,0.1M Na cacodylate-HCl pH 6.0, 0.2M Mg acetate, 5mM DTT
Resolution 3.00 Å R-free 0.273
9IPW Crystal structure of VHL-EloB-EloC in complex with a fragment compound 7HC_5(D3) Deposited 2024-07-11 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1L2Z 7-Hydroxy-4-methoxymethylcoumarin × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；287 K；12% PEG 8K,0.1M Na cacodylate-HCl pH 6.0, 0.2M Mg acetate, 5mM DTT
Resolution 3.00 Å R-free 0.273
9J63 Cryo-EM structure of neddylated Cul2-Rbx1-EloBC-FEM1B homodimer Deposited 2024-08-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–104（104 aa）
Chain G 1–104（104 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.93 Å
9J64 Cryo-EM structure of neddylated Cul2-Rbx1-EloBC-FEM1B homodimer complexed with FNIP1 degron Deposited 2024-08-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain G 1–104（104 aa）
Not recorded ZN ZINC ION × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.28 Å
9J77 Cryo-EM structure of CRL2-FEM1B (dimer 1) Deposited 2024-08-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain D 1–118（118 aa）
Chain H 1–118（118 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.56 Å
9J78 Cryo-EM structure of CRL2-FEM1B (dimer 2) Deposited 2024-08-18 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric
Chain D 1–118（118 aa）
Chain H 1–118（118 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.88 Å
9J79 Cryo-EM structure of CRL2-FEM1B bound with TOM20(tetramer) Deposited 2024-08-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain H 1–118（118 aa）
Chain M 1–118（118 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.08 Å
9L6F Crystal structure of KRas G12D (GDP) in complex with ASP3082 Deposited 2024-12-24 Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–118（118 aa）
Not recorded A1L66 ASP3082 × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；296 K；bis-tris propane, sodium formate, PEG3350
Resolution 3.18 Å R-free 0.305
9L6F Crystal structure of KRas G12D (GDP) in complex with ASP3082 Deposited 2024-12-24 Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–118（118 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；296 K；bis-tris propane, sodium formate, PEG3350
Resolution 3.18 Å R-free 0.305
9L6F Crystal structure of KRas G12D (GDP) in complex with ASP3082 Deposited 2024-12-24 Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain K 1–118（118 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；296 K；bis-tris propane, sodium formate, PEG3350
Resolution 3.18 Å R-free 0.305
9L6F Crystal structure of KRas G12D (GDP) in complex with ASP3082 Deposited 2024-12-24 Different experimental method Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain O 1–118（118 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；296 K；bis-tris propane, sodium formate, PEG3350
Resolution 3.18 Å R-free 0.305
9LAF Crystal structure of Elongin BC-EPOP peptide Deposited 2025-01-02 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–104（104 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；15% v/v 2-Propanol, 0.1 M Sodium citrate tribasic dihydrate pH 5.0, 10% w/v Polyethylene glycol 10,000
Resolution 2.14 Å R-free 0.231
9LK2 monomeric ZYG11B-EloB-EloC + substrate peptide GYIND Deposited 2025-01-15 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–118（118 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.37 Å
9LK6 dimeric ZYG11B-EloB-EloC + substrate peptide GYIND Deposited 2025-01-16 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–118（118 aa）
Chain E 1–118（118 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.27 Å
9LKY Dimer of CRL2-FEM1B bound with PLD6 Deposited 2025-01-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: 11-meric
Chain D 1–118（118 aa）
Chain H 1–118（118 aa）
Not recorded ZN ZINC ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.93 Å
9MR9 Crystal structure of AU-15330 in complex with the bromodomain of human BRM (SMARCA2) and pVHL:ElonginC:ElonginB Deposited 2025-01-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–104（104 aa）
Not recorded A1BNT N-({4-[(6M)-3-amino-6-(2-hydroxyphenyl)pyridazin-4-yl]piperazin-1-yl}acetyl)-3-methyl-L-valyl-(4R)-4-hydroxy-N-{(1S)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl}-L-prolinamide × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.05~0.2 M sodium formate, 0.1 M HEPES, pH 7.5~8.5, 10%~24% w/v PEG3350
Resolution 3.30 Å R-free 0.275
9MR9 Crystal structure of AU-15330 in complex with the bromodomain of human BRM (SMARCA2) and pVHL:ElonginC:ElonginB Deposited 2025-01-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain H 1–104（104 aa）
Not recorded A1BNT N-({4-[(6M)-3-amino-6-(2-hydroxyphenyl)pyridazin-4-yl]piperazin-1-yl}acetyl)-3-methyl-L-valyl-(4R)-4-hydroxy-N-{(1S)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl}-L-prolinamide × 1 EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.05~0.2 M sodium formate, 0.1 M HEPES, pH 7.5~8.5, 10%~24% w/v PEG3350
Resolution 3.30 Å R-free 0.275
9MR9 Crystal structure of AU-15330 in complex with the bromodomain of human BRM (SMARCA2) and pVHL:ElonginC:ElonginB Deposited 2025-01-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain L 1–104（104 aa）
Not recorded A1BNT N-({4-[(6M)-3-amino-6-(2-hydroxyphenyl)pyridazin-4-yl]piperazin-1-yl}acetyl)-3-methyl-L-valyl-(4R)-4-hydroxy-N-{(1S)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl}-L-prolinamide × 1 EDO 1,2-ETHANEDIOL × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.05~0.2 M sodium formate, 0.1 M HEPES, pH 7.5~8.5, 10%~24% w/v PEG3350
Resolution 3.30 Å R-free 0.275
9MR9 Crystal structure of AU-15330 in complex with the bromodomain of human BRM (SMARCA2) and pVHL:ElonginC:ElonginB Deposited 2025-01-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain P 1–104（104 aa）
Not recorded A1BNT N-({4-[(6M)-3-amino-6-(2-hydroxyphenyl)pyridazin-4-yl]piperazin-1-yl}acetyl)-3-methyl-L-valyl-(4R)-4-hydroxy-N-{(1S)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl}-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.05~0.2 M sodium formate, 0.1 M HEPES, pH 7.5~8.5, 10%~24% w/v PEG3350
Resolution 3.30 Å R-free 0.275
9MR9 Crystal structure of AU-15330 in complex with the bromodomain of human BRM (SMARCA2) and pVHL:ElonginC:ElonginB Deposited 2025-01-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain T 1–104（104 aa）
Not recorded A1BNT N-({4-[(6M)-3-amino-6-(2-hydroxyphenyl)pyridazin-4-yl]piperazin-1-yl}acetyl)-3-methyl-L-valyl-(4R)-4-hydroxy-N-{(1S)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl}-L-prolinamide × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.05~0.2 M sodium formate, 0.1 M HEPES, pH 7.5~8.5, 10%~24% w/v PEG3350
Resolution 3.30 Å R-free 0.275
9MR9 Crystal structure of AU-15330 in complex with the bromodomain of human BRM (SMARCA2) and pVHL:ElonginC:ElonginB Deposited 2025-01-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain X 1–104（104 aa）
Not recorded A1BNT N-({4-[(6M)-3-amino-6-(2-hydroxyphenyl)pyridazin-4-yl]piperazin-1-yl}acetyl)-3-methyl-L-valyl-(4R)-4-hydroxy-N-{(1S)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl}-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.05~0.2 M sodium formate, 0.1 M HEPES, pH 7.5~8.5, 10%~24% w/v PEG3350
Resolution 3.30 Å R-free 0.275
9MR9 Crystal structure of AU-15330 in complex with the bromodomain of human BRM (SMARCA2) and pVHL:ElonginC:ElonginB Deposited 2025-01-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain b 1–104（104 aa）
Not recorded A1BNT N-({4-[(6M)-3-amino-6-(2-hydroxyphenyl)pyridazin-4-yl]piperazin-1-yl}acetyl)-3-methyl-L-valyl-(4R)-4-hydroxy-N-{(1S)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl}-L-prolinamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.05~0.2 M sodium formate, 0.1 M HEPES, pH 7.5~8.5, 10%~24% w/v PEG3350
Resolution 3.30 Å R-free 0.275
9MR9 Crystal structure of AU-15330 in complex with the bromodomain of human BRM (SMARCA2) and pVHL:ElonginC:ElonginB Deposited 2025-01-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 8 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain f 1–104（104 aa）
Not recorded A1BNT N-({4-[(6M)-3-amino-6-(2-hydroxyphenyl)pyridazin-4-yl]piperazin-1-yl}acetyl)-3-methyl-L-valyl-(4R)-4-hydroxy-N-{(1S)-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl}-L-prolinamide × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.05~0.2 M sodium formate, 0.1 M HEPES, pH 7.5~8.5, 10%~24% w/v PEG3350
Resolution 3.30 Å R-free 0.275
9N88 PROTAC-induced IRE1 ternary complex Deposited 2025-02-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain D 68–73（6 aa） Fragment：68-73
Chain H 68–73（6 aa） Fragment：68-73
Not recorded A1BWF 3-methyl-N-(5-{4-[(1r,4S)-4-{[7-oxo-8-(propan-2-yl)-7,8-dihydropyrido[2,3-d]pyrimidin-2-yl]amino}cyclohexyl]piperazin-1-yl}pentanoyl)-L-valyl-(4R)-4-hydroxy-N-{[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl}-L-prolinamide × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2；I used 0.5 mM BS3 for crosslinking the protein complex, then diluted it to 0.05 mM for grid preparation.
cryo-EM vitrification conditions Cryogen ETHANE；7 force; 2 s blot time.
Resolution 2.60 Å
9OGB Cryo-EM structure of human exportin-1 conjugated with selinexor and bound to yeast RAN-GTP and human ASB8-ELOB/C Deposited 2025-04-30 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain F 1–118（118 aa）
Not recorded V6A selinexor, bound form × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；20 mM HEPES pH 7.4, 110 mM KOAc, 2 mM Mg(OAc)2, 2 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.25 Å
9OGC Cryo-EM structure of human exportin-1 conjugated with KPT-185 and bound to human ASB8-ELOB/C Deposited 2025-04-30 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 1–118（118 aa）
Not recorded K85 propan-2-yl 3-{3-[3-methoxy-5-(trifluoromethyl)phenyl]-1H-1,2,4-triazol-1-yl}propanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；20 mM HEPES pH 7.4, 110 mM KOAc, 2 mM Mg(OAc)2, 2 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.37 Å
9OGD Cryo-EM structure of human exportin-1 conjugated with selinexor and bound to human ASB8(R197A)-ELOB/C Deposited 2025-04-30 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 1–118（118 aa）
Not recorded V6A selinexor, bound form × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；20 mM HEPES pH 7.4, 110 mM KOAc, 2 mM Mg(OAc)2, 2 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.49 Å
9OGE Cryo-EM structure of human exportin-1 conjugated with KPT-127 and bound to human ASB8-ELOB/C Deposited 2025-04-30 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 1–118（118 aa）
Not recorded A1CBC propan-2-yl 3-[3-(3-chlorophenyl)-1H-1,2,4-triazol-1-yl]propanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；20 mM HEPES pH 7.4, 110 mM KOAc, 2 mM Mg(OAc)2, 2 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.28 Å
9OGF Cryo-EM structure of human exportin-1 conjugated with KPT-UTSW1 and bound to human ASB8-ELOB/C Deposited 2025-04-30 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 1–118（118 aa）
Not recorded A1CBB propan-2-yl 3-(3-phenyl-1H-1,2,4-triazol-1-yl)propanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；20 mM HEPES pH 7.4, 110 mM KOAc, 2 mM Mg(OAc)2, 2 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.21 Å
9OIM The von Hippel Lindau-ElonginB-ElonginC (VCB) complex with fragment 9 Deposited 2025-05-06 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1CBI 1-[5-[oxidanyl(oxidanylidene)-$l^{4}-azanyl]-2,3-dihydroindol-1-yl]ethanone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium cacodylate pH 5.5, 0.2 M magnesium acetate, 5 mM DTT and 14-20% PEG8000
Resolution 2.61 Å R-free 0.283
9OIM The von Hippel Lindau-ElonginB-ElonginC (VCB) complex with fragment 9 Deposited 2025-05-06 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1CBI 1-[5-[oxidanyl(oxidanylidene)-$l^{4}-azanyl]-2,3-dihydroindol-1-yl]ethanone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium cacodylate pH 5.5, 0.2 M magnesium acetate, 5 mM DTT and 14-20% PEG8000
Resolution 2.61 Å R-free 0.283
9OIM The von Hippel Lindau-ElonginB-ElonginC (VCB) complex with fragment 9 Deposited 2025-05-06 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1CBI 1-[5-[oxidanyl(oxidanylidene)-$l^{4}-azanyl]-2,3-dihydroindol-1-yl]ethanone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium cacodylate pH 5.5, 0.2 M magnesium acetate, 5 mM DTT and 14-20% PEG8000
Resolution 2.61 Å R-free 0.283
9OIM The von Hippel Lindau-ElonginB-ElonginC (VCB) complex with fragment 9 Deposited 2025-05-06 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1CBI 1-[5-[oxidanyl(oxidanylidene)-$l^{4}-azanyl]-2,3-dihydroindol-1-yl]ethanone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium cacodylate pH 5.5, 0.2 M magnesium acetate, 5 mM DTT and 14-20% PEG8000
Resolution 2.61 Å R-free 0.283
9OIN The von Hippel Lindau-ElonginB-ElonginC (VCB) complex with fragment 13 Deposited 2025-05-06 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium cacodylate pH 5.5, 0.2 M magnesium acetate, 5 mM DTT and 14-20% PEG8000
Resolution 2.41 Å R-free 0.283
9OIN The von Hippel Lindau-ElonginB-ElonginC (VCB) complex with fragment 13 Deposited 2025-05-06 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium cacodylate pH 5.5, 0.2 M magnesium acetate, 5 mM DTT and 14-20% PEG8000
Resolution 2.41 Å R-free 0.283
9OIN The von Hippel Lindau-ElonginB-ElonginC (VCB) complex with fragment 13 Deposited 2025-05-06 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium cacodylate pH 5.5, 0.2 M magnesium acetate, 5 mM DTT and 14-20% PEG8000
Resolution 2.41 Å R-free 0.283
9OIN The von Hippel Lindau-ElonginB-ElonginC (VCB) complex with fragment 13 Deposited 2025-05-06 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1CBJ 1-(propan-2-yl)-4-[(pyridin-2-yl)methyl]piperazine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium cacodylate pH 5.5, 0.2 M magnesium acetate, 5 mM DTT and 14-20% PEG8000
Resolution 2.41 Å R-free 0.283
9OIO The von Hippel Lindau-ElonginB-ElonginC (VCB) complex with fragments 9 and 14 Deposited 2025-05-06 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Not recorded A1CBL 1-[(2-fluorophenyl)methyl]-4-(propan-2-yl)piperazine × 1 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M sodium cacodylate pH 5.5, 0.2 M magnesium acetate, 5 mM DTT and 14-20% PEG8000
Resolution 2.30 Å R-free 0.249
9OIO The von Hippel Lindau-ElonginB-ElonginC (VCB) complex with fragments 9 and 14 Deposited 2025-05-06 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Not recorded A1CBL 1-[(2-fluorophenyl)methyl]-4-(propan-2-yl)piperazine × 1 DMS DIMETHYL SULFOXIDE × 2 A1CBK 1-[6-[oxidanyl(oxidanylidene)-$l^{4}-azanyl]-2,3-dihydroindol-1-yl]ethanone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M sodium cacodylate pH 5.5, 0.2 M magnesium acetate, 5 mM DTT and 14-20% PEG8000
Resolution 2.30 Å R-free 0.249
9OIO The von Hippel Lindau-ElonginB-ElonginC (VCB) complex with fragments 9 and 14 Deposited 2025-05-06 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Not recorded DMS DIMETHYL SULFOXIDE × 2 A1CBK 1-[6-[oxidanyl(oxidanylidene)-$l^{4}-azanyl]-2,3-dihydroindol-1-yl]ethanone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M sodium cacodylate pH 5.5, 0.2 M magnesium acetate, 5 mM DTT and 14-20% PEG8000
Resolution 2.30 Å R-free 0.249
9OIO The von Hippel Lindau-ElonginB-ElonginC (VCB) complex with fragments 9 and 14 Deposited 2025-05-06 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Not recorded A1CBL 1-[(2-fluorophenyl)methyl]-4-(propan-2-yl)piperazine × 1 DMS DIMETHYL SULFOXIDE × 1 A1CBK 1-[6-[oxidanyl(oxidanylidene)-$l^{4}-azanyl]-2,3-dihydroindol-1-yl]ethanone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M sodium cacodylate pH 5.5, 0.2 M magnesium acetate, 5 mM DTT and 14-20% PEG8000
Resolution 2.30 Å R-free 0.249
9OIQ The von Hippel Lindau-ElonginB-ElonginC (VCB) complex with fragment 15 Deposited 2025-05-06 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M sodium cacodylate pH 5.5, 0.2 M magnesium acetate, 5 mM DTT and 14-20% PEG8000
Resolution 2.66 Å R-free 0.275
9OIQ The von Hippel Lindau-ElonginB-ElonginC (VCB) complex with fragment 15 Deposited 2025-05-06 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M sodium cacodylate pH 5.5, 0.2 M magnesium acetate, 5 mM DTT and 14-20% PEG8000
Resolution 2.66 Å R-free 0.275
9OIQ The von Hippel Lindau-ElonginB-ElonginC (VCB) complex with fragment 15 Deposited 2025-05-06 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1CBM 2-(5-amino-1H-1,3-benzimidazol-1-yl)ethan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M sodium cacodylate pH 5.5, 0.2 M magnesium acetate, 5 mM DTT and 14-20% PEG8000
Resolution 2.66 Å R-free 0.275
9OIQ The von Hippel Lindau-ElonginB-ElonginC (VCB) complex with fragment 15 Deposited 2025-05-06 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1CBM 2-(5-amino-1H-1,3-benzimidazol-1-yl)ethan-1-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M sodium cacodylate pH 5.5, 0.2 M magnesium acetate, 5 mM DTT and 14-20% PEG8000
Resolution 2.66 Å R-free 0.275
9OMA Cryo-EM structure of PCMTD1-ELOBC-CUL5-RBX2 (CRL5-PCMTD1) Deposited 2025-05-13 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–118（118 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.14 Å
9OMF Cryo-EM structure of neddylated PCMTD1-ELOBC-CUL5-RBX2 (N8-CRL5-PCMTD1) Deposited 2025-05-13 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–118（118 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 9.72 Å
9QE4 VCB in complex with VHL-binding compound 114 Deposited 2025-03-07 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1I57 (2~{S},4~{R})-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[(1~{S})-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.7；277 K；0.1 M sodium cacodylate pH 5.7, 0.2 M magnesium acetate, 12% (w/v) PEG 3350, 5 mM DTT
Resolution 2.28 Å R-free 0.301
9QE4 VCB in complex with VHL-binding compound 114 Deposited 2025-03-07 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1I57 (2~{S},4~{R})-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[(1~{S})-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.7；277 K；0.1 M sodium cacodylate pH 5.7, 0.2 M magnesium acetate, 12% (w/v) PEG 3350, 5 mM DTT
Resolution 2.28 Å R-free 0.301
9QE4 VCB in complex with VHL-binding compound 114 Deposited 2025-03-07 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1I57 (2~{S},4~{R})-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[(1~{S})-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.7；277 K；0.1 M sodium cacodylate pH 5.7, 0.2 M magnesium acetate, 12% (w/v) PEG 3350, 5 mM DTT
Resolution 2.28 Å R-free 0.301
9QE4 VCB in complex with VHL-binding compound 114 Deposited 2025-03-07 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1I57 (2~{S},4~{R})-1-[(2~{S})-2-[(1-fluoranylcyclopropyl)carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[(1~{S})-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.7；277 K；0.1 M sodium cacodylate pH 5.7, 0.2 M magnesium acetate, 12% (w/v) PEG 3350, 5 mM DTT
Resolution 2.28 Å R-free 0.301
9QE5 VCB in complex with VHL-binding compound 82 Deposited 2025-03-07 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1I58 (2~{S},4~{R})-1-[(2~{S})-1-(1-fluoranylcyclopropyl)carbonylpiperidin-2-yl]carbonyl-~{N}-[(1~{S})-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.7；277 K；0.1 M sodium cacodylate pH 5.7, 0.2 M magnesium acetate, 12% (w/v) PEG 3350, 5 mM DTT
Resolution 2.50 Å R-free 0.273
9QE5 VCB in complex with VHL-binding compound 82 Deposited 2025-03-07 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1I58 (2~{S},4~{R})-1-[(2~{S})-1-(1-fluoranylcyclopropyl)carbonylpiperidin-2-yl]carbonyl-~{N}-[(1~{S})-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.7；277 K；0.1 M sodium cacodylate pH 5.7, 0.2 M magnesium acetate, 12% (w/v) PEG 3350, 5 mM DTT
Resolution 2.50 Å R-free 0.273
9QE5 VCB in complex with VHL-binding compound 82 Deposited 2025-03-07 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1I58 (2~{S},4~{R})-1-[(2~{S})-1-(1-fluoranylcyclopropyl)carbonylpiperidin-2-yl]carbonyl-~{N}-[(1~{S})-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.7；277 K；0.1 M sodium cacodylate pH 5.7, 0.2 M magnesium acetate, 12% (w/v) PEG 3350, 5 mM DTT
Resolution 2.50 Å R-free 0.273
9QE5 VCB in complex with VHL-binding compound 82 Deposited 2025-03-07 Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) A1I58 (2~{S},4~{R})-1-[(2~{S})-1-(1-fluoranylcyclopropyl)carbonylpiperidin-2-yl]carbonyl-~{N}-[(1~{S})-1-[4-(4-methyl-1,3-thiazol-5-yl)phenyl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.7；277 K；0.1 M sodium cacodylate pH 5.7, 0.2 M magnesium acetate, 12% (w/v) PEG 3350, 5 mM DTT
Resolution 2.50 Å R-free 0.273
9RK8 Crystal Structure of compound 3-mediated ternary complex of KRAS G12V C118S GDP with pVHL:ElonginC:ElonginB Deposited 2025-06-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–104（104 aa）
Not recorded A1JH1 (2~{S},4~{R})-1-[(2~{S})-2-[[1-[4-[(3~{S})-4-[4-[5-[(4~{S})-2-azanyl-3-cyano-4-methyl-6,7-dihydro-5~{H}-1-benzothiophen-4-yl]-1,2,4-oxadiazol-3-yl]pyrimidin-2-yl]-3-methyl-1,4-diazepan-1-yl]butanoyl]cyclopropyl]carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.1 M Tris pH 7.0, 0.2 M MgCl2, 10%w/v PEG 8000
Resolution 2.63 Å R-free 0.263
9RK8 Crystal Structure of compound 3-mediated ternary complex of KRAS G12V C118S GDP with pVHL:ElonginC:ElonginB Deposited 2025-06-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 1–104（104 aa）
Not recorded A1JH1 (2~{S},4~{R})-1-[(2~{S})-2-[[1-[4-[(3~{S})-4-[4-[5-[(4~{S})-2-azanyl-3-cyano-4-methyl-6,7-dihydro-5~{H}-1-benzothiophen-4-yl]-1,2,4-oxadiazol-3-yl]pyrimidin-2-yl]-3-methyl-1,4-diazepan-1-yl]butanoyl]cyclopropyl]carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.1 M Tris pH 7.0, 0.2 M MgCl2, 10%w/v PEG 8000
Resolution 2.63 Å R-free 0.263
9RKC Crystal Structure of ACBI4-mediated ternary complex of KRAS G12D C118S GDP with pVHL:ElonginC:ElonginB Deposited 2025-06-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–104（104 aa）
Not recorded A1JHI (2~{S},4~{R})-1-[(2~{S})-2-[(5~{S})-5-[3-[(3~{S})-4-[4-[5-[(4~{S})-2-azanyl-3-cyano-4-methyl-6,7-dihydro-5~{H}-1-benzothiophen-4-yl]-1,2,4-oxadiazol-3-yl]pyrimidin-2-yl]-3-methyl-1,4-diazepan-1-yl]propyl]-4,5,6,7-tetrahydrobenzotriazol-1-yl]-3-methyl-butanoyl]-~{N}-[(1-methylindazol-6-yl)methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.2 M Na2SO4, 15% w/v PEG 3,350, 0.1 M BIS-TRIS propane pH 7.79
Resolution 2.19 Å R-free 0.275
9RKC Crystal Structure of ACBI4-mediated ternary complex of KRAS G12D C118S GDP with pVHL:ElonginC:ElonginB Deposited 2025-06-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 1–104（104 aa）
Not recorded A1JHI (2~{S},4~{R})-1-[(2~{S})-2-[(5~{S})-5-[3-[(3~{S})-4-[4-[5-[(4~{S})-2-azanyl-3-cyano-4-methyl-6,7-dihydro-5~{H}-1-benzothiophen-4-yl]-1,2,4-oxadiazol-3-yl]pyrimidin-2-yl]-3-methyl-1,4-diazepan-1-yl]propyl]-4,5,6,7-tetrahydrobenzotriazol-1-yl]-3-methyl-butanoyl]-~{N}-[(1-methylindazol-6-yl)methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.2 M Na2SO4, 15% w/v PEG 3,350, 0.1 M BIS-TRIS propane pH 7.79
Resolution 2.19 Å R-free 0.275
9RKE Crystal Structure of compound 1-mediated ternary complex of KRAS G12R GCP with pVHL:ElonginC:ElonginB Deposited 2025-06-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–104（104 aa）
Not recorded GOL GLYCEROL × 1 X53 (2S,4R)-1-[(2R)-2-[3-[4-[(3S)-4-[4-[5-[(4S)-2-azanyl-3-cyano-4-methyl-6,7-dihydro-5H-1-benzothiophen-4-yl]-1,2,4-oxadiazol-3-yl]pyrimidin-2-yl]-3-methyl-1,4-diazepan-1-yl]butoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-N-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 FLC CITRATE ANION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；0.1 M Bis Tris pH 7.3, 0.3 M trisodium citrate, 20% PEG 3350
Resolution 2.83 Å R-free 0.286
9RKE Crystal Structure of compound 1-mediated ternary complex of KRAS G12R GCP with pVHL:ElonginC:ElonginB Deposited 2025-06-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 1–104（104 aa）
Not recorded X53 (2S,4R)-1-[(2R)-2-[3-[4-[(3S)-4-[4-[5-[(4S)-2-azanyl-3-cyano-4-methyl-6,7-dihydro-5H-1-benzothiophen-4-yl]-1,2,4-oxadiazol-3-yl]pyrimidin-2-yl]-3-methyl-1,4-diazepan-1-yl]butoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-N-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 FLC CITRATE ANION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277.15 K；0.1 M Bis Tris pH 7.3, 0.3 M trisodium citrate, 20% PEG 3350
Resolution 2.83 Å R-free 0.286
9RKJ Crystal Structure of compound 3-mediated ternary complex of KRAS G12R GCP with pVHL:ElonginC:ElonginB Deposited 2025-06-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–104（104 aa）
Not recorded FLC CITRATE ANION × 2 A1JH1 (2~{S},4~{R})-1-[(2~{S})-2-[[1-[4-[(3~{S})-4-[4-[5-[(4~{S})-2-azanyl-3-cyano-4-methyl-6,7-dihydro-5~{H}-1-benzothiophen-4-yl]-1,2,4-oxadiazol-3-yl]pyrimidin-2-yl]-3-methyl-1,4-diazepan-1-yl]butanoyl]cyclopropyl]carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.1 M Bis Tris pH 7.3, 0.167 M trisodium citrate, 17%(w/v) PEG 3350
Resolution 2.89 Å R-free 0.288
9RKJ Crystal Structure of compound 3-mediated ternary complex of KRAS G12R GCP with pVHL:ElonginC:ElonginB Deposited 2025-06-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 1–104（104 aa）
Not recorded A1JH1 (2~{S},4~{R})-1-[(2~{S})-2-[[1-[4-[(3~{S})-4-[4-[5-[(4~{S})-2-azanyl-3-cyano-4-methyl-6,7-dihydro-5~{H}-1-benzothiophen-4-yl]-1,2,4-oxadiazol-3-yl]pyrimidin-2-yl]-3-methyl-1,4-diazepan-1-yl]butanoyl]cyclopropyl]carbonylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.1 M Bis Tris pH 7.3, 0.167 M trisodium citrate, 17%(w/v) PEG 3350
Resolution 2.89 Å R-free 0.288
9RKN Crystal Structure of ACBI4-mediated ternary complex of KRAS G12R GCP with pVHL:ElonginC:ElonginB Deposited 2025-06-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–104（104 aa）
Not recorded SO4 SULFATE ION × 3 A1JHI (2~{S},4~{R})-1-[(2~{S})-2-[(5~{S})-5-[3-[(3~{S})-4-[4-[5-[(4~{S})-2-azanyl-3-cyano-4-methyl-6,7-dihydro-5~{H}-1-benzothiophen-4-yl]-1,2,4-oxadiazol-3-yl]pyrimidin-2-yl]-3-methyl-1,4-diazepan-1-yl]propyl]-4,5,6,7-tetrahydrobenzotriazol-1-yl]-3-methyl-butanoyl]-~{N}-[(1-methylindazol-6-yl)methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.14 M Ammonium sulfate, 25% w/v Polyethylene glycol 3,350, 0.1M BIS-TRIS pH 5.8
Resolution 2.85 Å R-free 0.275
9RKN Crystal Structure of ACBI4-mediated ternary complex of KRAS G12R GCP with pVHL:ElonginC:ElonginB Deposited 2025-06-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 1–104（104 aa）
Not recorded A1JHI (2~{S},4~{R})-1-[(2~{S})-2-[(5~{S})-5-[3-[(3~{S})-4-[4-[5-[(4~{S})-2-azanyl-3-cyano-4-methyl-6,7-dihydro-5~{H}-1-benzothiophen-4-yl]-1,2,4-oxadiazol-3-yl]pyrimidin-2-yl]-3-methyl-1,4-diazepan-1-yl]propyl]-4,5,6,7-tetrahydrobenzotriazol-1-yl]-3-methyl-butanoyl]-~{N}-[(1-methylindazol-6-yl)methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 GCP PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.14 M Ammonium sulfate, 25% w/v Polyethylene glycol 3,350, 0.1M BIS-TRIS pH 5.8
Resolution 2.85 Å R-free 0.275
9RWZ ZSWIM8-CUL3 complex bound to AGO2-miR-7-CYRANO Deposited 2025-07-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–RNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain B 1–118（118 aa）
Chain C 1–118（118 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8；25 mM HEPES, 50 mM NaCl, 1 mM TCEP, pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.10 Å
9SNO VHL/Elongin B/Elongin C complex with compound 59 Deposited 2025-09-11 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Not recorded A1JO9 (2~{S},4~{R})-1-[(2~{R})-2-[3-[2-(2-methoxyethoxy)ethoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-~{N}-[(1~{S})-1-[6-(4-methyl-1,3-thiazol-5-yl)pyridin-3-yl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；100 mM Sodium Citrate pH 6.0, 200 mM Magnesium Acetate, 50 mM DTT, 14% PEG 8000
Resolution 2.80 Å R-free 0.298
9SNO VHL/Elongin B/Elongin C complex with compound 59 Deposited 2025-09-11 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Not recorded A1JO9 (2~{S},4~{R})-1-[(2~{R})-2-[3-[2-(2-methoxyethoxy)ethoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-~{N}-[(1~{S})-1-[6-(4-methyl-1,3-thiazol-5-yl)pyridin-3-yl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；100 mM Sodium Citrate pH 6.0, 200 mM Magnesium Acetate, 50 mM DTT, 14% PEG 8000
Resolution 2.80 Å R-free 0.298
9SNO VHL/Elongin B/Elongin C complex with compound 59 Deposited 2025-09-11 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Not recorded A1JO9 (2~{S},4~{R})-1-[(2~{R})-2-[3-[2-(2-methoxyethoxy)ethoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-~{N}-[(1~{S})-1-[6-(4-methyl-1,3-thiazol-5-yl)pyridin-3-yl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；100 mM Sodium Citrate pH 6.0, 200 mM Magnesium Acetate, 50 mM DTT, 14% PEG 8000
Resolution 2.80 Å R-free 0.298
9SNO VHL/Elongin B/Elongin C complex with compound 59 Deposited 2025-09-11 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Not recorded A1JO9 (2~{S},4~{R})-1-[(2~{R})-2-[3-[2-(2-methoxyethoxy)ethoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-~{N}-[(1~{S})-1-[6-(4-methyl-1,3-thiazol-5-yl)pyridin-3-yl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；100 mM Sodium Citrate pH 6.0, 200 mM Magnesium Acetate, 50 mM DTT, 14% PEG 8000
Resolution 2.80 Å R-free 0.298
9SNP VHL/Elongin B/Elongin C complex with compound 60 Deposited 2025-09-11 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Not recorded A1JO8 (2~{S},4~{R})-1-[(2~{R})-2-[3-[2-(2-methoxyethoxy)ethoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-~{N}-[(1~{S})-1-[4-(2-methylimidazol-1-yl)phenyl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；100 mM Sodium Citrate pH 6.0, 200 mM Magnesium Acetate, 50 mM DTT, 14% PEG 8000
Resolution 2.70 Å R-free 0.259
9SNP VHL/Elongin B/Elongin C complex with compound 60 Deposited 2025-09-11 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Not recorded A1JO8 (2~{S},4~{R})-1-[(2~{R})-2-[3-[2-(2-methoxyethoxy)ethoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-~{N}-[(1~{S})-1-[4-(2-methylimidazol-1-yl)phenyl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；100 mM Sodium Citrate pH 6.0, 200 mM Magnesium Acetate, 50 mM DTT, 14% PEG 8000
Resolution 2.70 Å R-free 0.259
9SNP VHL/Elongin B/Elongin C complex with compound 60 Deposited 2025-09-11 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Not recorded A1JO8 (2~{S},4~{R})-1-[(2~{R})-2-[3-[2-(2-methoxyethoxy)ethoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-~{N}-[(1~{S})-1-[4-(2-methylimidazol-1-yl)phenyl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；100 mM Sodium Citrate pH 6.0, 200 mM Magnesium Acetate, 50 mM DTT, 14% PEG 8000
Resolution 2.70 Å R-free 0.259
9SNP VHL/Elongin B/Elongin C complex with compound 60 Deposited 2025-09-11 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Not recorded A1JO8 (2~{S},4~{R})-1-[(2~{R})-2-[3-[2-(2-methoxyethoxy)ethoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-~{N}-[(1~{S})-1-[4-(2-methylimidazol-1-yl)phenyl]ethyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；100 mM Sodium Citrate pH 6.0, 200 mM Magnesium Acetate, 50 mM DTT, 14% PEG 8000
Resolution 2.70 Å R-free 0.259
9SNQ VHL/Elongin B/Elongin C complex with compound 61 Deposited 2025-09-11 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–104（104 aa）
Not recorded A1JO1 (2~{S},4~{R})-~{N}-[(1~{S})-1-(4-cyanophenyl)ethyl]-1-[(2~{R})-2-[3-[2-(2-methoxyethoxy)ethoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；100 mM Sodium Citrate pH 6.0, 200 mM Magnesium Acetate, 50 mM DTT, 14% PEG 8000
Resolution 2.60 Å R-free 0.257
9SNQ VHL/Elongin B/Elongin C complex with compound 61 Deposited 2025-09-11 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–104（104 aa）
Not recorded A1JO1 (2~{S},4~{R})-~{N}-[(1~{S})-1-(4-cyanophenyl)ethyl]-1-[(2~{R})-2-[3-[2-(2-methoxyethoxy)ethoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；100 mM Sodium Citrate pH 6.0, 200 mM Magnesium Acetate, 50 mM DTT, 14% PEG 8000
Resolution 2.60 Å R-free 0.257
9SNQ VHL/Elongin B/Elongin C complex with compound 61 Deposited 2025-09-11 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 1–104（104 aa）
Not recorded A1JO1 (2~{S},4~{R})-~{N}-[(1~{S})-1-(4-cyanophenyl)ethyl]-1-[(2~{R})-2-[3-[2-(2-methoxyethoxy)ethoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；100 mM Sodium Citrate pH 6.0, 200 mM Magnesium Acetate, 50 mM DTT, 14% PEG 8000
Resolution 2.60 Å R-free 0.257
9SNQ VHL/Elongin B/Elongin C complex with compound 61 Deposited 2025-09-11 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain J 1–104（104 aa）
Not recorded A1JO1 (2~{S},4~{R})-~{N}-[(1~{S})-1-(4-cyanophenyl)ethyl]-1-[(2~{R})-2-[3-[2-(2-methoxyethoxy)ethoxy]-1,2-oxazol-5-yl]-3-methyl-butanoyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；100 mM Sodium Citrate pH 6.0, 200 mM Magnesium Acetate, 50 mM DTT, 14% PEG 8000
Resolution 2.60 Å R-free 0.257
9SV3 Local refinement of EloB/EloC/VHL/CV2a/14-3-3zeta/ERa from pose 1 Deposited 2025-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain C 1–104（104 aa）
Not recorded A1JQT ~{N}'-[(2~{S})-3,3-dimethyl-1-[(2~{S},4~{R})-2-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methylcarbamoyl]-4-oxidanyl-pyrrolidin-1-yl]-1-oxidanylidene-butan-2-yl]-~{N}-[(2~{S})-2-[(1~{E},3~{R},4~{S},8~{R},9~{R},10~{R},11~{S},14~{S})-14-(methoxymethyl)-3,10-dimethyl-8-[(2~{S},3~{R},4~{S},5~{S},6~{R})-6-(2-methylbut-3-en-2-yloxymethyl)-3,4,5-tris(oxidanyl)oxan-2-yl]oxy-4,9-bis(oxidanyl)-6-tricyclo[9.3.0.0^{3,7}]tetradeca-1,6-dienyl]propyl]tridecanediamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
9T32 The Cullin 2 RING VHL E3 ligase dimerised by the homoPROTAC CM11 Deposited 2025-10-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain D 1–103（103 aa）
Chain F 1–103（103 aa）
Not recorded A1JTC (2~{S},4~{R})-1-[(2~{S})-2-[2-[2-[2-[2-[2-[2-[2-[[(2~{S})-3,3-dimethyl-1-[(2~{S},4~{R})-2-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methylcarbamoyl]-4-oxidanyl-pyrrolidin-1-yl]-1-oxidanylidene-butan-2-yl]amino]-2-oxidanylidene-ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethanoylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.90 Å
9T7V Structure of LRRC58-EloB/C-CDO1 in complex with NEDD8-CUL5-RBX2-ARIH2-Ub Deposited 2025-11-12 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain I 1–118（118 aa）
Not recorded FE FE (III) ION × 1 SY8 5-azanylpentan-2-one × 1 ZN ZINC ION × 8 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.95 Å
9UA3 Cryo-EM structure of neddylated CUL2-RBX1-FEM1C-ELOB-ELOC Deposited 2025-03-31 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain C 1–118（118 aa）
Chain G 1–118（118 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.28 Å

228 other PDB entries and 478 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ELOB_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–118； UniProt 1–118

Transcription elongation factor B polypeptide 1

Mus musculus

UniProt P83940

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count Chain C； UniProt 17–112 Fragment：UNP residues 17-112 Suppressor of cytokine signaling 3 × 1 （O35718） Transcription elongation factor B polypeptide 2 × 1 （Q15370） SOLUTION NMR NMR measurement conditions：pH 6.7；310 K；Ionic strength (raw mmCIF value) 0.05；Pressure ambient NMR sample composition：1mM [U-100% 13C; U-100% 15N] socs box; 1mM elonginB; 1mM elonginC; 50mM potassium chloride; 90% H2O/10% D2O | 90% H2O/10% D2O Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2JZ3 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2FNJ Crystal structure of a B30.2/SPRY domain-containing protein GUSTAVUS in complex with Elongin B and Elongin C Deposited 2006-01-11 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 17–112（96 aa） Fragment：residues 17-112
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；295 K；0.2M di-Ammonium Tartrate, 20% w/v Polyethylene Glycol 3350, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 1.80 Å R-free 0.247
4JGH Structure of the SOCS2-Elongin BC complex bound to an N-terminal fragment of Cullin5 Deposited 2013-03-01 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 17–112（96 aa） Fragment：unp residues 17-112
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295.15 K；0.25 M sodium citrate and 18 % (w/v) PEG 3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 295.15K
Resolution 3.00 Å R-free 0.248
4JGH Structure of the SOCS2-Elongin BC complex bound to an N-terminal fragment of Cullin5 Deposited 2013-03-01 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 17–112（96 aa） Fragment：unp residues 17-112
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；295.15 K；0.25 M sodium citrate and 18 % (w/v) PEG 3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 295.15K
Resolution 3.00 Å R-free 0.248
9RP9 Crystal structure of mouse pVHL-ElonginB-ElonginC complex Deposited 2025-06-24 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 17–112（96 aa）
Not recorded PGE TRIETHYLENE GLYCOL × 1 IOD IODIDE ION × 3 EDO 1,2-ETHANEDIOL × 4 PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；20 mM Hepes, pH 7.5, 100 mM NaCl, 1 mM DTT
Resolution 2.10 Å R-free 0.222

3 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name ELOC_MOUSE
Isoform —
PDB entities 3
Chains and sequence ranges Author chain C； PDBConstruct 1–96； UniProt 17–112

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 2jz3

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 2jz3
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2jz3
Deposition date deposition_date2007-12-27
Structure title titleSOCS box elonginBC ternary complex
Keywords keywords;socs proteins, elongins, cytokine signaling, Growth regulation, Phosphoprotein, SH2 domain, Signal transduction inhibitor, Ubl conjugation pathway, Nucleus, Transcription, Transcription regulation, signaling protein, TRANSCRIPTION INHIBITOR-TRANSCRIPTION COMPLEX ;; TRANSCRIPTION INHIBITOR/TRANSCRIPTION
Experimental Method methodSOLUTION NMR
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier19.71 Å
Radius of gyration Rg (electron density) rg_electron18.84 Å
Forward intensity I(0) i03674020000.00
Molecular weight molecular_weight512340.0 kDa
Excluded volume excluded_volume640060 ų
Envelope volume envelope_volume105060 ų
Hydration-shell volume shell_volume33206 ų
Envelope diameter envelope_diameter91.3 Å
Shell Rg shell_rg33.88 Å
Envelope Rg envelope_rg27.10 Å
Shape Rg shape_rg18.84 Å
Total Rg total_rg19.11 Å
Total atoms total_atoms71560
Residues n_residues4580
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax51.3 Å
Rg (real space) rg_real18.77 Å
Rg uncertainty (real space) rg_real_error0.06 Å
I(0) (real space) i0_real3.4980e+09
I(0) uncertainty (real space) i0_real_error3.0440e+07
Rg (reciprocal space) rg_reciprocal19.70 Å
I(0) (reciprocal space) i0_reciprocal3674000000.0000
Solution quality estimate total_estimate0.6849
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary23.1 Å
Skewness Skewness skewness0.150
Kurtosis Kurtosis kurtosis-0.499
Angular range angular_range— – 0.4050 Å−1
Current regularization parameter α current_alpha3.7120
Highest regularization parameter α highest_alpha1592000.0000
Real-space data points n_real_points72
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.002; Oscil: 0.998; Stabil: 0.973; Sysdev: 0.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_idd2jz3b_
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamilyd.15.1 — Ubiquitin-like
Family Family familyd.15.1.1 — Ubiquitin-related
Domain ID domain_idd2jz3c_
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.42 — POZ domain
Superfamily Superfamily superfamilyd.42.1 — POZ domain
Family Family familyd.42.1.1 — BTB/POZ domain

CATH v4.4 (2 domains)

Domain ID domain_id2jz3B01
Class class3 — Alpha Beta
Architecture architecture10 — Roll
Topology topology20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1
Domain ID domain_id2jz3C00
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology710 — Potassium Channel Kv1.1; Chain A
Homologous superfamily homologous superfamily10 — Potassium Channel Kv1.1; Chain A
▶

8. Citations (1)

▶

9. Files and Curves (10)
