SAXSdb — 2fnj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CG2944-PF, isoform F

Drosophila melanogaster

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Transcription elongation factor B polypeptide 2 × 1 （P62869） Transcription elongation factor B polypeptide 1 × 1 （P83940） water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q7KRQ1_DROME
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–226； UniProt 29–253

Transcription elongation factor B polypeptide 2

Mus musculus

UniProt P62869

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	CG2944-PF, isoform F × 1 （Q7KRQ1） Transcription elongation factor B polypeptide 1 × 1 （P83940） water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ELOB_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–118； UniProt 1–118

Transcription elongation factor B polypeptide 1

Mus musculus

UniProt P83940

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	CG2944-PF, isoform F × 1 （Q7KRQ1） Transcription elongation factor B polypeptide 2 × 1 （P62869） water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ELOC_MOUSE
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–96； UniProt 17–112

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2fnj
Deposition date deposition_date	2006-01-11
Structure title title	Crystal structure of a B30.2/SPRY domain-containing protein GUSTAVUS in complex with Elongin B and Elongin C
Keywords keywords	Beta-sandwich, Lectin-like, B30.2, SPRY, PROTEIN TRANSPORT-SIGNALING PROTEIN COMPLEX; PROTEIN TRANSPORT/SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2fnj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2fnj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

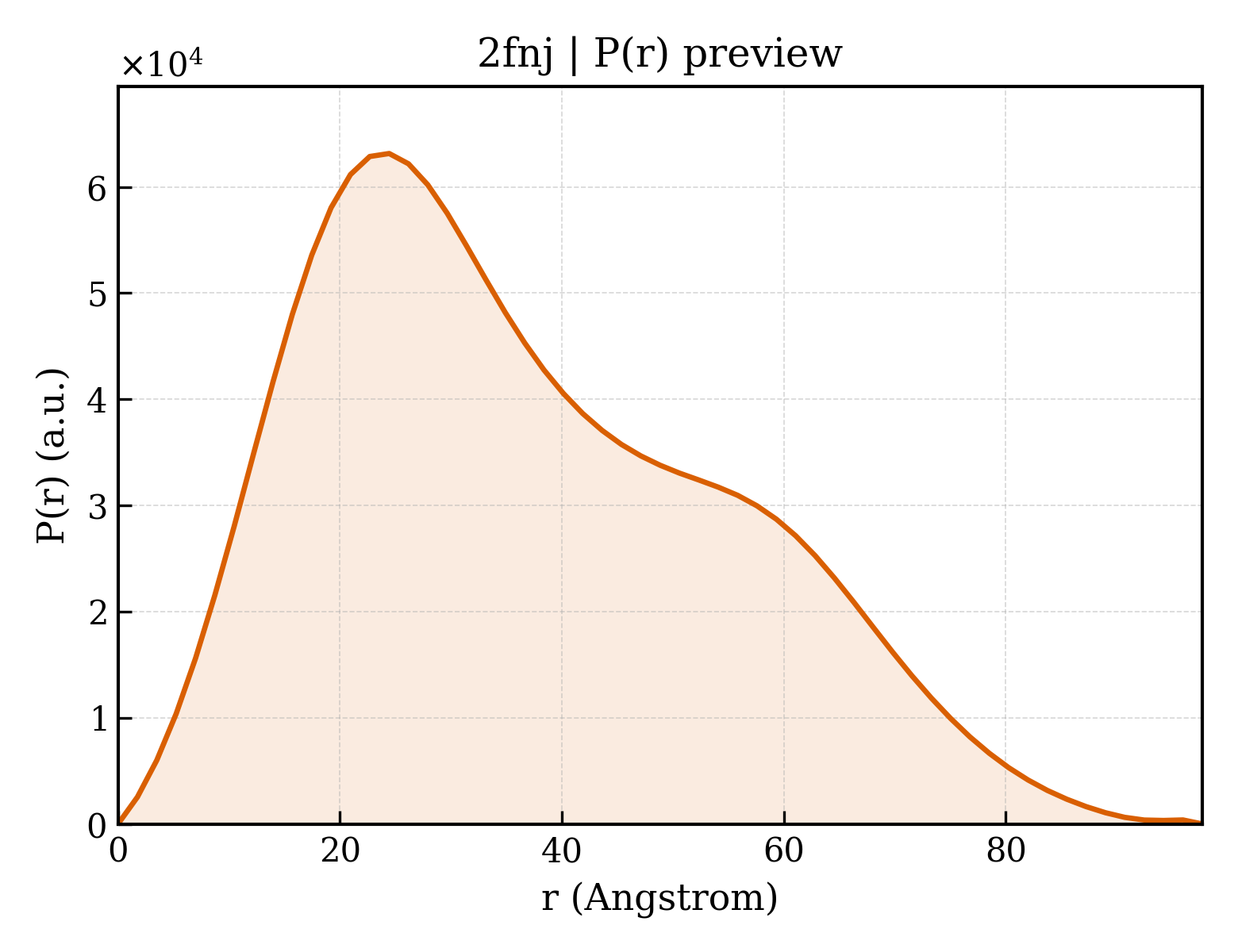

2fnj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.53 Å
Rg (electron density)	27.95 Å
Total Rg	28.39 Å
Atom count	3210
Residues	403
Excluded volume	57373 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2fnj__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CG2944-PF, isoform F
Molecular weight formula_weight	25695.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3508

MRELQADFVKPARIDILLDMPPASRDLQLKHSWNSEDRSLNIFVKEDDKLTFHRHPVAQSTDCIRGKVGLTKGLHIWEIYWPTRQRGTHAVVGVCTADAPLHSVGYQSLVGSTEQSWGWDLGRNKLYHDSKNCAGVTYPAILKNDEAFLVPDKFLVALDMDEGTLSFIVDQQYLGIAFRGLRGKKLYPIVSAVWGHCEITMRYIGGLDPEPLPLMDLCRRTIRQKI

Source Source

Source organism organism	Drosophila melanogaster
Common name common_name	fruit fly
NCBI taxonomy ID ncbi_taxonomy_id	7227
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Transcription elongation factor B polypeptide 2
Molecular weight formula_weight	13185.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MDVFLMIRRHKTTIFTDAKESSTVFELKRIVEGILKRPPEEQRLYKDDQLLDDGKTLGECGFTSQTARPQAPATVGLAFRADDTFEALRIEPFSSPPELPDVMKPQDSGGSANEQAVQ

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Transcription elongation factor B polypeptide 1
Molecular weight formula_weight	10843.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MYVKLISSDGHEFIVKREHALTSGTIKAMLSGPGQFAENETNEVNFREIPSHVLSKVCMYFTYKVRYTNSSTEIPEFPIAPEIALELLMAANFLDC

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	298

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2fnja1
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.22 — SPRY domain

Domain ID domain_id	d2fnjb1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.1 — Ubiquitin-related

Domain ID domain_id	d2fnjc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.42 — POZ domain
Superfamily Superfamily superfamily	d.42.1 — POZ domain
Family Family family	d.42.1.1 — BTB/POZ domain

CATH v4.4 (2 domains)

Domain ID domain_id	2fnjB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	2fnjC00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	710 — Potassium Channel Kv1.1; Chain A
Homologous superfamily homologous superfamily	10 — Potassium Channel Kv1.1; Chain A

▶

Unit-cell length a length_a	50.308 Å
Unit-cell length b length_b	82.489 Å
Unit-cell length c length_c	118.966 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.2183
R_free r_free	0.2472

Crystal structure of a B30.2/SPRY domain-containing protein GUSTAVUS in complex with Elongin B and Elongin C
