9j79

Cryo-EM structure of CRL2-FEM1B bound with TOM20(tetramer)

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cullin-2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 19	Elongin-C × 2 （Q15369） Elongin-B × 2 （Q15370） E3 ubiquitin-protein ligase RBX1, N-terminally processed × 2 （P62877） Protein fem-1 homolog B × 4 （Q9UK73） Mitochondrial import receptor subunit TOM20 homolog × 4 （Q15388） Poly-UNK × 2 Poly-UNK × 1 ZINC ION × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CUL2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain E； PDBConstruct 22–750； UniProt 2–745 Author chain K； PDBConstruct 22–750； UniProt 2–745

Elongin-C

Homo sapiens

UniProt Q15369

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 19	Cullin-2 × 2 （Q13617） Elongin-B × 2 （Q15370） E3 ubiquitin-protein ligase RBX1, N-terminally processed × 2 （P62877） Protein fem-1 homolog B × 4 （Q9UK73） Mitochondrial import receptor subunit TOM20 homolog × 4 （Q15388） Poly-UNK × 2 Poly-UNK × 1 ZINC ION × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ELOC_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain F； PDBConstruct 1–96； UniProt 17–112 Author chain L； PDBConstruct 1–96； UniProt 17–112

Elongin-B

Homo sapiens

UniProt Q15370

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 19	Cullin-2 × 2 （Q13617） Elongin-C × 2 （Q15369） E3 ubiquitin-protein ligase RBX1, N-terminally processed × 2 （P62877） Protein fem-1 homolog B × 4 （Q9UK73） Mitochondrial import receptor subunit TOM20 homolog × 4 （Q15388） Poly-UNK × 2 Poly-UNK × 1 ZINC ION × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ELOB_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain H； PDBConstruct 4–121； UniProt 1–118 Author chain M； PDBConstruct 4–121； UniProt 1–118

E3 ubiquitin-protein ligase RBX1, N-terminally processed

Homo sapiens

UniProt P62877

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 19	Cullin-2 × 2 （Q13617） Elongin-C × 2 （Q15369） Elongin-B × 2 （Q15370） Protein fem-1 homolog B × 4 （Q9UK73） Mitochondrial import receptor subunit TOM20 homolog × 4 （Q15388） Poly-UNK × 2 Poly-UNK × 1 ZINC ION × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RBX1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain I； PDBConstruct 4–96； UniProt 16–108 Author chain N； PDBConstruct 4–96； UniProt 16–108

Protein fem-1 homolog B

Homo sapiens

UniProt Q9UK73

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 19	Cullin-2 × 2 （Q13617） Elongin-C × 2 （Q15369） Elongin-B × 2 （Q15370） E3 ubiquitin-protein ligase RBX1, N-terminally processed × 2 （P62877） Mitochondrial import receptor subunit TOM20 homolog × 4 （Q15388） Poly-UNK × 2 Poly-UNK × 1 ZINC ION × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FEM1B_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain A； PDBConstruct 1–627； UniProt 1–627 Author chain J； PDBConstruct 1–627； UniProt 1–627 Author chain O； PDBConstruct 1–627； UniProt 1–627 Author chain P； PDBConstruct 1–627； UniProt 1–627

Mitochondrial import receptor subunit TOM20 homolog

Homo sapiens

UniProt Q15388

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 19	Cullin-2 × 2 （Q13617） Elongin-C × 2 （Q15369） Elongin-B × 2 （Q15370） E3 ubiquitin-protein ligase RBX1, N-terminally processed × 2 （P62877） Protein fem-1 homolog B × 4 （Q9UK73） Poly-UNK × 2 Poly-UNK × 1 ZINC ION × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TOM20_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain B； PDBConstruct 1–121； UniProt 25–145 Author chain C； PDBConstruct 1–121； UniProt 25–145 Author chain G； PDBConstruct 1–121； UniProt 25–145 Author chain S； PDBConstruct 1–121； UniProt 25–145

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9j79
Deposition date deposition_date	2024-08-18
Structure title title	Cryo-EM structure of CRL2-FEM1B bound with TOM20(tetramer)
Keywords keywords	ubiquitination E3 ligase, Cryo-EM, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9j79__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9j79__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

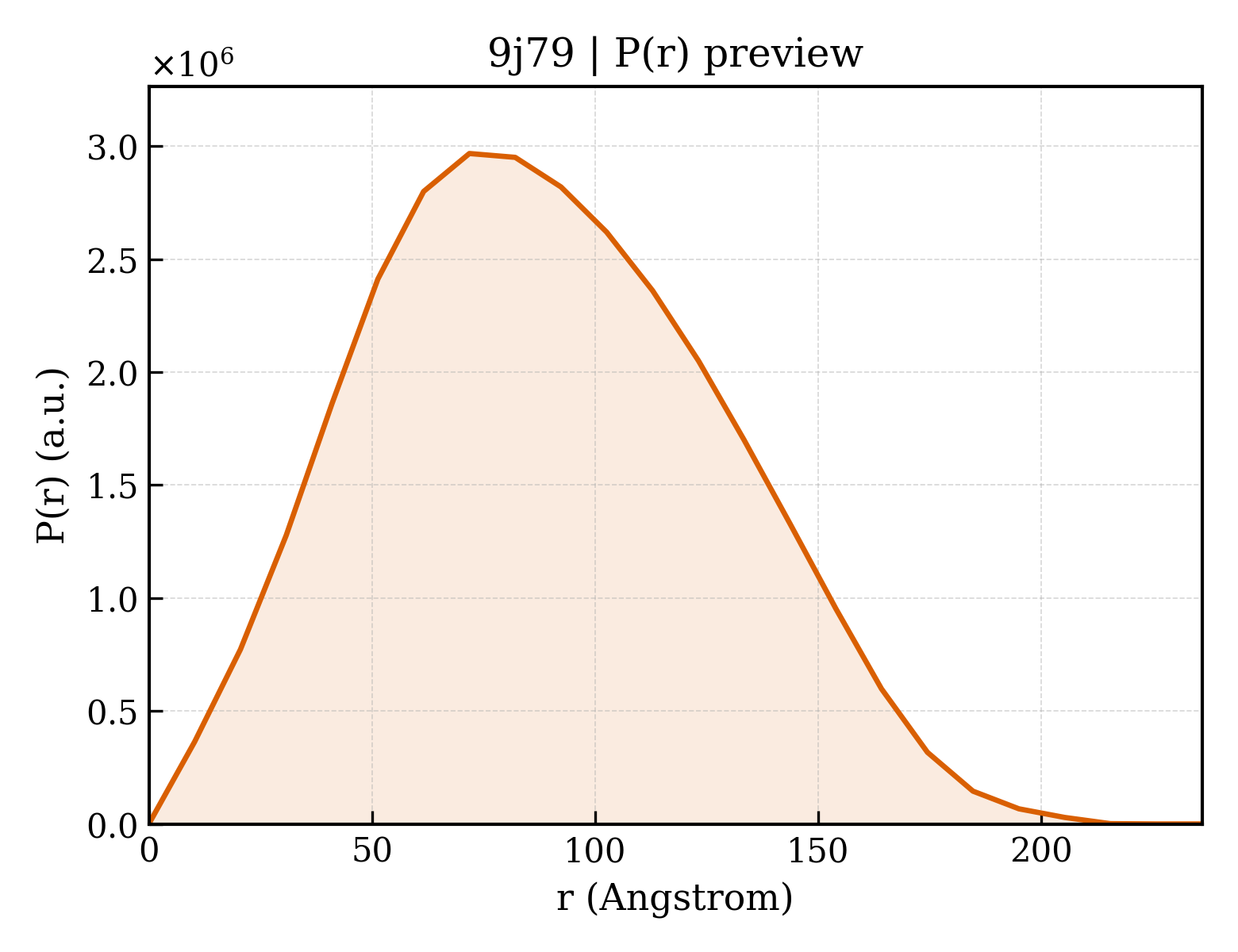

9j79__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	68.49 Å
Rg (electron density)	68.28 Å
Total Rg	68.29 Å
Atom count	36721
Residues	4678
Excluded volume	652130 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9j79__assembly_1__model_1`	19-meric （19）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Cullin-2
Molecular weight formula_weight	87114.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,K
Atom count atom_count	36721

SASWSHPQFEKGGGSGGGSGTSLKPRVVDFDETWNKLLTTIKAVVMLEYVERATWNDRFSDIYALCVAYPEPLGERLYTETKIFLENHVRHLHKRVLESEEQVLVMYHRYWEEYSKGADYMDCLYRYLNTQFIKKNGGGPLMEIGELALDMWRKLMVEPLQAILIRMLLREIKNDRGGEDPNQKVIHGVINSFVHVEQYKKKFPLKFYQEIFESPFLTETGEYYKQEASNLLQESNCSQYMEKVLGRLKDEEIRCRKYLHPSSYTKVIHECQQRMVADHLQFLHAECHNIIRQEKKNDMANMYVLLRAVSTGLPHMIQELQNHIHDEGLRATSNLTQENMPTLFVESVLEVHGKFVQLINTVLNGDQHFMSALDKALTSVVNYREPKSVCKAPELLAKYCDNLLKKSAKGMTENEVEDRLTSFITVFKYIDDKDVFQKFYARMLAKRLIHGLSMSMDSEEAMINKLKQACGYEFTSKLHRMYTDMSVSADLNNKFNNFIKNQDTVIDLGISFQIYVLQAGAWPLTQAPSSTFAIPQELEKSVQMFELFYSQHFSGRKLTWLHYLCTGEVKMNYLGKPYVAMVTTYQMAVLLAFNNSETVSYKELQDSTQMNEKELTKTIKSLLDVKMINHDSEKEDIDAESSFSLNMNFSSKRTKFKITTSMQKDTPQEMEQTRSAVDEDRKMYLQAAIVRIMKARKVLRHNALIQEVISQSRARFNPSISMIKKCIEVLIDKQYIERSQASADEYSYVA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Elongin-C
Molecular weight formula_weight	10843.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,L

MYVKLISSDGHEFIVKREHALTSGTIKAMLSGPGQFAENETNEVNFREIPSHVLSKVCMYFTYKVRYTNSSTEIPEFPIAPEIALELLMAANFLDC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Elongin-B
Molecular weight formula_weight	13349.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,M

GGSMDVFLMIRRHKTTIFTDAKESSTVFELKRIVEGILKRPPDEQRLYKDDQLLDDGKTLGECGFTSQTARPQAPATVGLAFRADDTFEALCIEPFSSPPELPDVMKPQDSGSSANEQAVQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	E3 ubiquitin-protein ligase RBX1, N-terminally processed
Molecular weight formula_weight	11196.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,N

SHMGAGKKRFEVKKWNAVALWAWDIVVDNCAICRNHIMDLCIECQANQASATSEECTVAWGVCNHAFHFHCISRWLKTRQVCPLDNREWEFQKYGH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	Protein fem-1 homolog B
Molecular weight formula_weight	70355.1 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J,A,O,P

MEGLAGYVYKAASEGKVLTLAALLLNRSESDIRYLLGYVSQQGGQRSTPLIIAARNGHAKVVRLLLEHYRVQTQQTGTVRFDGYVIDGATALWCAAGAGHFEVVKLLVSHGANVNHTTVTNSTPLRAACFDGRLDIVKYLVENNANISIANKYDNTCLMIAAYKGHTDVVRYLLEQRADPNAKAHCGATALHFAAEAGHIDIVKELIKWRAAIVVNGHGMTPLKVAAESCKADVVELLLSHADCDRRSRIEALELLGASFANDRENYDIIKTYHYLYLAMLERFQDGDNILEKEVLPPIHAYGNRTECRNPQELESIRQDRDALHMEGLIVRERILGADNIDVSHPIIYRGAVYADNMEFEQCIKLWLHALHLRQKGNRNTHKDLLRFAQVFSQMIHLNETVKAPDIECVLRCSVLEIEQSMNRVKNISDADVHNAMDNYECNLYTFLYLVCISTKTQCSEEDQCKINKQIYNLIHLDPRTREGFTLLHLAVNSNTPVDDFHTNDVCSFPNALVTKLLLDCGAEVNAVDNEGNSALHIIVQYNRPISDFLTLHSIIISLVEAGAHTDMTNKQNKTPLDKSTTGVSEILLKTQMKMSLKCLAARAVRANDINYQDQIPRTLEEFVGFH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	Mitochondrial import receptor subunit TOM20 homolog
Molecular weight formula_weight	13839.9 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,G,S,C

DRKRRSDPNFKNRLRERRKKQKLAKERAGLSKLPDLKDAEAVQKFFLEEIQLGEELLAQGEYEKGVDHLTNAIAVCGQPQQLLQVLQQTLPPPVFQMLLTKLPTISQRIVSAQSLAEDDVE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 7 Entity 7 polymer

Description description	Poly-UNK
Molecular weight formula_weight	869.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,R

XXXXXXXXXX

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 8 Entity 8 polymer

Description description	Poly-UNK
Molecular weight formula_weight	698.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Q

XXXXXXXX

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 9 Entity 9 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	6

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.08 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	92948
