7cng

Structure of CDK5R1 bound FEM1B

Method: X-RAY DIFFRACTION D_max: 115.7 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein fem-1 homolog B,Peptide from Cyclin-dependent kinase 5 activator 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 298–307	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；291 K；1.6M Magnesium sulfate hydrate, 0.1M BIS-TRIS propane pH 6.7	Resolution 3.49 Å R-free 0.267
2	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 298–307	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；291 K；1.6M Magnesium sulfate hydrate, 0.1M BIS-TRIS propane pH 6.7	Resolution 3.49 Å R-free 0.267

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7CNG	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1H4L Structure and regulation of the CDK5-p25(nck5a) complex Deposited 2001-05-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 147–293（147 aa） Fragment：RESIDUES 147-293	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；MICROSEEDING - PEG3350, 100 MM TRIS PH 7.6, 200 MM KI, 10 MM DTT, PROTEIN CONC.:7 MG/ML HANGING DROP 2+2 UL. TEMPERATURE 293K.	Resolution 2.65 Å R-free 0.287
1H4L Structure and regulation of the CDK5-p25(nck5a) complex Deposited 2001-05-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 147–293（147 aa） Fragment：RESIDUES 147-293	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；293 K；MICROSEEDING - PEG3350, 100 MM TRIS PH 7.6, 200 MM KI, 10 MM DTT, PROTEIN CONC.:7 MG/ML HANGING DROP 2+2 UL. TEMPERATURE 293K.	Resolution 2.65 Å R-free 0.287
1UNG Structural mechanism for the inhibition of CDK5-p25 by roscovitine, aloisine and indirubin. Deposited 2003-09-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 100–307（208 aa） Fragment：RESIDUES 100-307	Not recorded	ALH 6-PHENYL[5H]PYRROLO[2,3-B]PYRAZINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；13% PEG 3350, 0.1M KI, 0.1M BISTRISPROPANE PH 7.0, 10MM DTT	Resolution 2.30 Å R-free 0.225
1UNG Structural mechanism for the inhibition of CDK5-p25 by roscovitine, aloisine and indirubin. Deposited 2003-09-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 100–307（208 aa） Fragment：RESIDUES 100-307	Not recorded	ALH 6-PHENYL[5H]PYRROLO[2,3-B]PYRAZINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；13% PEG 3350, 0.1M KI, 0.1M BISTRISPROPANE PH 7.0, 10MM DTT	Resolution 2.30 Å R-free 0.225
1UNH Structural mechanism for the inhibition of CDK5-p25 by roscovitine, aloisine and indirubin. Deposited 2003-09-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 100–307（208 aa） Fragment：RESIDUES 100-307	Not recorded	IXM (Z)-1H,1'H-[2,3']BIINDOLYLIDENE-3,2'-DIONE-3-OXIME × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；13% PEG 3350, 0.1 M KI 0.1 M BISTRISPROPANE PH 7.0, 10 MM DTT	Resolution 2.35 Å R-free 0.230
1UNH Structural mechanism for the inhibition of CDK5-p25 by roscovitine, aloisine and indirubin. Deposited 2003-09-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 100–307（208 aa） Fragment：RESIDUES 100-307	Not recorded	IXM (Z)-1H,1'H-[2,3']BIINDOLYLIDENE-3,2'-DIONE-3-OXIME × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；13% PEG 3350, 0.1 M KI 0.1 M BISTRISPROPANE PH 7.0, 10 MM DTT	Resolution 2.35 Å R-free 0.230
1UNL Structural mechanism for the inhibition of CD5-p25 from the roscovitine, aloisine and indirubin. Deposited 2003-09-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 100–307（208 aa） Fragment：RESIDUES 100-307	Mutation：YES	RRC R-ROSCOVITINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；13% PEG 3350, 0.1 M KI, 0.1 M BISTRISPROPANE PH 7.0, 10 MM DTT	Resolution 2.20 Å R-free 0.219
1UNL Structural mechanism for the inhibition of CD5-p25 from the roscovitine, aloisine and indirubin. Deposited 2003-09-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 100–307（208 aa） Fragment：RESIDUES 100-307	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；13% PEG 3350, 0.1 M KI, 0.1 M BISTRISPROPANE PH 7.0, 10 MM DTT	Resolution 2.20 Å R-free 0.219
3O0G Crystal Structure of Cdk5:p25 in complex with an ATP analogue Deposited 2010-07-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 145–293（149 aa） Fragment：UNP residues 146-293	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；293 K；PEG 3350, KI, Bis-Tris Propane, pH 7, vapor diffusion, temperature 293K	Resolution 1.95 Å R-free 0.256
3O0G Crystal Structure of Cdk5:p25 in complex with an ATP analogue Deposited 2010-07-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 145–293（149 aa） Fragment：UNP residues 146-293	Not recorded	3O0 {4-amino-2-[(4-chlorophenyl)amino]-1,3-thiazol-5-yl}(3-nitrophenyl)methanone × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；293 K；PEG 3350, KI, Bis-Tris Propane, pH 7, vapor diffusion, temperature 293K	Resolution 1.95 Å R-free 0.256
6LDP Structure of CDK5R1-bound FEM1C Deposited 2019-11-22	Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 298–307（10 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2M Lithium sulfate, 0.1M Tris-Hcl pH 7.9	Resolution 2.35 Å R-free 0.258
6LDP Structure of CDK5R1-bound FEM1C Deposited 2019-11-22	Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 298–307（10 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.2M Lithium sulfate, 0.1M Tris-Hcl pH 7.9	Resolution 2.35 Å R-free 0.258
7VDP The structure of cyclin-dependent kinase 5 (CDK5) in complex with p25 and Compound 1 Deposited 2021-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 100–307（208 aa）	Not recorded	65L [1-[3-fluoranyl-4-[(2-piperidin-4-yloxy-1,6-naphthyridin-7-yl)amino]phenyl]pyrazol-3-yl]methanol × 1 EDO 1,2-ETHANEDIOL × 10 PEG DI(HYDROXYETHYL)ETHER × 2 CL CHLORIDE ION × 7 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；0.1M MES pH 5.5, 0.3M MgCl2, 20% PEG3350	Resolution 2.09 Å R-free 0.229
7VDP The structure of cyclin-dependent kinase 5 (CDK5) in complex with p25 and Compound 1 Deposited 2021-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 100–307（208 aa）	Not recorded	65L [1-[3-fluoranyl-4-[(2-piperidin-4-yloxy-1,6-naphthyridin-7-yl)amino]phenyl]pyrazol-3-yl]methanol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；0.1M MES pH 5.5, 0.3M MgCl2, 20% PEG3350	Resolution 2.09 Å R-free 0.229
7VDQ The structure of cyclin-dependent kinase 5 (CDK5) in complex with p25 and Compound 7 Deposited 2021-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 100–307（208 aa）	Not recorded	64V 2-[[7-[[2-fluoranyl-4-[3-(hydroxymethyl)pyrazol-1-yl]phenyl]amino]-1,6-naphthyridin-2-yl]-(1-methylpiperidin-4-yl)amino]ethanoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；0.1M MES pH 5.5, 0.3M MgCl2, 20% PEG3350	Resolution 2.91 Å R-free 0.284
7VDQ The structure of cyclin-dependent kinase 5 (CDK5) in complex with p25 and Compound 7 Deposited 2021-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 100–307（208 aa）	Not recorded	64V 2-[[7-[[2-fluoranyl-4-[3-(hydroxymethyl)pyrazol-1-yl]phenyl]amino]-1,6-naphthyridin-2-yl]-(1-methylpiperidin-4-yl)amino]ethanoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；0.1M MES pH 5.5, 0.3M MgCl2, 20% PEG3350	Resolution 2.91 Å R-free 0.284
7VDR The structure of cyclin-dependent kinase 5 (CDK5) in complex with p25 and Compound 13 Deposited 2021-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 100–307（208 aa）	Not recorded	63I (1R)-1-[7-[(2-fluoranyl-4-pyrazol-1-yl-phenyl)amino]-1,6-naphthyridin-2-yl]-1-(1-methylpiperidin-4-yl)ethanol × 1 PGE TRIETHYLENE GLYCOL × 1 EDO 1,2-ETHANEDIOL × 9	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 5.5；291 K；0.1M MES pH 5.5, 0.3M MgCl2, 20% PEG3350	Resolution 2.55 Å R-free 0.256
7VDR The structure of cyclin-dependent kinase 5 (CDK5) in complex with p25 and Compound 13 Deposited 2021-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 100–307（208 aa）	Not recorded	63I (1R)-1-[7-[(2-fluoranyl-4-pyrazol-1-yl-phenyl)amino]-1,6-naphthyridin-2-yl]-1-(1-methylpiperidin-4-yl)ethanol × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 5.5；291 K；0.1M MES pH 5.5, 0.3M MgCl2, 20% PEG3350	Resolution 2.55 Å R-free 0.256
7VDS The structure of cyclin-dependent kinase 5 (CDK5) in complex with p25 and Compound 24 Deposited 2021-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 100–307（208 aa）	Not recorded	61U 5-fluoranyl-4-[[2-[(1R)-1-(1-methylpiperidin-4-yl)-1-oxidanyl-ethyl]-1,6-naphthyridin-7-yl]amino]-2-morpholin-4-yl-benzenecarbonitrile × 1 GOL GLYCEROL × 8 EDO 1,2-ETHANEDIOL × 17 CL CHLORIDE ION × 19	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；0.1M MES pH 5.5, 0.3M MgCl2, 20% PEG3350	Resolution 3.05 Å R-free 0.272
7VDS The structure of cyclin-dependent kinase 5 (CDK5) in complex with p25 and Compound 24 Deposited 2021-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 100–307（208 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；0.1M MES pH 5.5, 0.3M MgCl2, 20% PEG3350	Resolution 3.05 Å R-free 0.272

10 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CD5R1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 348–357； UniProt 298–307 Author chain B； PDBConstruct 348–357； UniProt 298–307

Protein fem-1 homolog B,Peptide from Cyclin-dependent kinase 5 activator 1

Homo sapiens

UniProt Q9UK73

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–337	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；291 K；1.6M Magnesium sulfate hydrate, 0.1M BIS-TRIS propane pH 6.7	Resolution 3.49 Å R-free 0.267
2	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 1–337	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；291 K；1.6M Magnesium sulfate hydrate, 0.1M BIS-TRIS propane pH 6.7	Resolution 3.49 Å R-free 0.267

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 7CNG	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6LBF Crystal structure of FEM1B Deposited 2019-11-14	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–356（356 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1M Tris-HCl, pH 8.5, 0.1M Guanidine hydrochloride, 0.8M Potassium sodium tartrate tetrahydrate, 0.5% w/v Polyethylene glycol monomethyl ether 5000	Resolution 3.25 Å R-free 0.253
6LBF Crystal structure of FEM1B Deposited 2019-11-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–356（356 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1M Tris-HCl, pH 8.5, 0.1M Guanidine hydrochloride, 0.8M Potassium sodium tartrate tetrahydrate, 0.5% w/v Polyethylene glycol monomethyl ether 5000	Resolution 3.25 Å R-free 0.253
7EL6 Structure of SMCR8 bound FEM1B Deposited 2021-04-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1M Tris pH7.3 4% PEG8000	Resolution 2.80 Å R-free 0.266
8IJ1 Protomer 1 and 2 of the asymmetry trimer of the Cul2-Rbx1-EloBC-FEM1B ubiquitin ligase complex Deposited 2023-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain D 1–627（627 aa） Chain I 1–627（627 aa）	Not recorded	ZN ZINC ION × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
8JE1 An asymmetry dimer of the Cul2-Rbx1-EloBC-FEM1B ubiquitin ligase complexed with BEX2 Deposited 2023-05-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain D 1–627（627 aa） Chain I 1–627（627 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.95 Å
8JE2 Cryo-EM structure of neddylated Cul2-Rbx1-EloBC-FEM1B complexed with FNIP1-FLCN Deposited 2023-05-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–627（627 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.63 Å
8WQA Cryo-EM structure of CUL2-RBX1-ELOB-ELOC-FEM1B bound with the C-degron of CCDC89 (conformation 1) Deposited 2023-10-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain B 1–627（627 aa） Chain D 1–627（627 aa）	Not recorded	ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.39 Å
8WQB Cryo-EM structure of CUL2-RBX1-ELOB-ELOC-FEM1B bound with the C-degron of CCDC89 (conformation 2) Deposited 2023-10-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain F 1–627（627 aa） Chain J 1–627（627 aa）	Not recorded	ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.37 Å
8WQC cryo-EM structure of neddylated CUL2-RBX1-ELOB-ELOC-FEM1B bound with the C-degron of CDK5R1 Deposited 2023-10-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 1–627（627 aa） Chain G 1–627（627 aa）	Not recorded	ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.54 Å
8WQD Local refinement of FEM1B bound with the C-degron of CCC89 Deposited 2023-10-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–627（627 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.55 Å
8WQE Cryo-EM structure of CUL2-RBX1-ELOB-ELOC-FEM1B bound with the C-degron of CUX1 (conformation 1) Deposited 2023-10-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain B 1–627（627 aa） Chain D 1–627（627 aa）	Not recorded	ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.38 Å
8WQF cryo-EM structure of CUL2-RBX1-ELOB-ELOC-FEM1B bound with the C-degron of CUX1 (conformation 2) Deposited 2023-10-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain F 1–627（627 aa） Chain J 1–627（627 aa）	Not recorded	ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.27 Å
8WQG cryo-EM structure of neddylated CUL2-RBX1-ELOB-ELOC-FEM1B bound with the C-degron of CCDC89 (conformation 1) Deposited 2023-10-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 1–627（627 aa） Chain G 1–627（627 aa）	Not recorded	ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.09 Å
8WQH cryo-EM structure of neddylated CUL2-RBX1-ELOB-ELOC-FEM1B bound with the C-degron of CCDC89 (conformation 2) Deposited 2023-10-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain D 1–627（627 aa） Chain H 1–627（627 aa）	Not recorded	ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.44 Å
8WQI Local refinement of FEM1B bound with the C-degron of CUX1 Deposited 2023-10-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–627（627 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
9J64 Cryo-EM structure of neddylated Cul2-Rbx1-EloBC-FEM1B homodimer complexed with FNIP1 degron Deposited 2024-08-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric	Chain I 1–627（627 aa）	Not recorded	ZN ZINC ION × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.28 Å
9J77 Cryo-EM structure of CRL2-FEM1B (dimer 1) Deposited 2024-08-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric	Chain F 1–627（627 aa） Chain J 1–627（627 aa）	Not recorded	ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.56 Å
9J78 Cryo-EM structure of CRL2-FEM1B (dimer 2) Deposited 2024-08-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: 12-meric	Chain F 1–627（627 aa） Chain J 1–627（627 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.88 Å
9J79 Cryo-EM structure of CRL2-FEM1B bound with TOM20(tetramer) Deposited 2024-08-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric	Chain A 1–627（627 aa） Chain J 1–627（627 aa） Chain O 1–627（627 aa） Chain P 1–627（627 aa）	Not recorded	ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.08 Å
9J7A local refinement of FEM1B bound with TOM20 (dimer) Deposited 2024-08-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–627（627 aa） Chain D 1–627（627 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.13 Å
9J7B local refinement of FEM1B bound with TOM20(tetramer) Deposited 2024-08-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: 11-meric	Chain A 1–627（627 aa） Chain J 1–627（627 aa） Chain O 1–627（627 aa） Chain P 1–627（627 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.12 Å
9JCE local refinement of FEM1B bound with TOM20 Deposited 2024-08-29	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–627（627 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.59 Å
9LKX local refinement of FEM1B bound with PLD6 Deposited 2025-01-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain J 1–627（627 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.76 Å
9LKY Dimer of CRL2-FEM1B bound with PLD6 Deposited 2025-01-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: 11-meric	Chain F 1–627（627 aa） Chain J 1–627（627 aa）	Not recorded	ZN ZINC ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.93 Å
9PQ9 Fem-1 homolog B (FEM1B) in complex with VU0421763 Deposited 2025-07-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–337（337 aa）	Not recorded	A1CI7 6-(propylsulfanyl)-1,5-dihydro-4H-pyrazolo[3,4-d]pyrimidin-4-one × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M HEPES pH 7.5, 0.25 % PEG 8000, 1.2-1.6 M Ammonium sulfate, 0.05-0.1 M Sodium thiocyanate	Resolution 2.93 Å R-free 0.304
9PQ9 Fem-1 homolog B (FEM1B) in complex with VU0421763 Deposited 2025-07-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–337（337 aa）	Not recorded	A1CI7 6-(propylsulfanyl)-1,5-dihydro-4H-pyrazolo[3,4-d]pyrimidin-4-one × 1 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M HEPES pH 7.5, 0.25 % PEG 8000, 1.2-1.6 M Ammonium sulfate, 0.05-0.1 M Sodium thiocyanate	Resolution 2.93 Å R-free 0.304
9PQA Fem-1 homolog B (FEM1B) in complex with VU0432623 Deposited 2025-07-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–337（337 aa）	Not recorded	A1CI8 (6R)-6-phenyl-1,3-thiazinane-2,4-dione × 1 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M HEPES pH 7.5, 0.25% PEG 8000, 1.2-1.6 M Ammonium sulfate, 0.05-0.1 M Sodium thiocyanate	Resolution 2.90 Å R-free 0.341
9PQA Fem-1 homolog B (FEM1B) in complex with VU0432623 Deposited 2025-07-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–337（337 aa）	Not recorded	A1CI8 (6R)-6-phenyl-1,3-thiazinane-2,4-dione × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M HEPES pH 7.5, 0.25% PEG 8000, 1.2-1.6 M Ammonium sulfate, 0.05-0.1 M Sodium thiocyanate	Resolution 2.90 Å R-free 0.341
9PQE Fem-1 homolog B (FEM1B) in complex with VU0412674 Deposited 2025-07-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–337（337 aa）	Not recorded	A1CI9 N-[4-(propan-2-yl)phenyl]pyrazine-2-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M HEPES pH 7.5, 0.25% PEG 8000, 1.2-1.6 M Ammonium sulfate, 0.05-0.1 M Sodium thiocyanate	Resolution 3.10 Å R-free 0.326
9PQE Fem-1 homolog B (FEM1B) in complex with VU0412674 Deposited 2025-07-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–337（337 aa）	Not recorded	A1CI9 N-[4-(propan-2-yl)phenyl]pyrazine-2-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M HEPES pH 7.5, 0.25% PEG 8000, 1.2-1.6 M Ammonium sulfate, 0.05-0.1 M Sodium thiocyanate	Resolution 3.10 Å R-free 0.326
9PW8 Fem-1 homolog B (FEM1B) in complex with VU0417412 Deposited 2025-08-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Not recorded	A1CLY N-(4-fluorophenyl)thiophene-2-carboxamide × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M HEPES pH 7.5, 0.25% PEG 8000, 1.2-1.6 M Ammonium sulfate, 0.05-0.1 M Sodium thiocyanate	Resolution 2.80 Å R-free 0.338
9PWJ Fem-1 homolog B (FEM1B) in complex with VU0081201 Deposited 2025-08-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Not recorded	A1CL1 3-(2-oxopyrrolidin-1-yl)benzoic acid × 1 SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；0.1 M HEPES pH 7.5, 0.25% PEG 8000, 1.2 M-1.6 M ammonium sulfate, and 0.05-0.1 M sodium thiocyanate	Resolution 3.00 Å R-free 0.347
9PXO Fem-1 homolog B (FEM1B) in complex with VU0023775 Deposited 2025-08-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–337（337 aa）	Not recorded	A1CMX 2-tert-butyl-1,3-dioxo-2,3-dihydro-1H-isoindole-5-carboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；0.1M HEPES pH 7.5, 0.25% PEG 8000, 1.2 M-1.6 M ammonium sulfate, and 0.05-0.1 M sodium thiocyanate	Resolution 3.05 Å R-free 0.340
9PXO Fem-1 homolog B (FEM1B) in complex with VU0023775 Deposited 2025-08-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–337（337 aa）	Not recorded	A1CMX 2-tert-butyl-1,3-dioxo-2,3-dihydro-1H-isoindole-5-carboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；0.1M HEPES pH 7.5, 0.25% PEG 8000, 1.2 M-1.6 M ammonium sulfate, and 0.05-0.1 M sodium thiocyanate	Resolution 3.05 Å R-free 0.340
9PXP Fem-1 homolog B (FEM1B) in complex with VU0416476 Deposited 2025-08-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Not recorded	A1CMY 2-tert-butyl-4,5-dichloropyridazin-3(2H)-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；0.1M HEPES pH 7.5, 0.25% PEG 8000, 1.2 M-1.6 M ammonium sulfate, and 0.05-0.1 M sodium thiocyanate	Resolution 3.00 Å R-free 0.327

30 other PDB entries and 35 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FEM1B_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–339； UniProt 1–337 Author chain B； PDBConstruct 3–339； UniProt 1–337

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

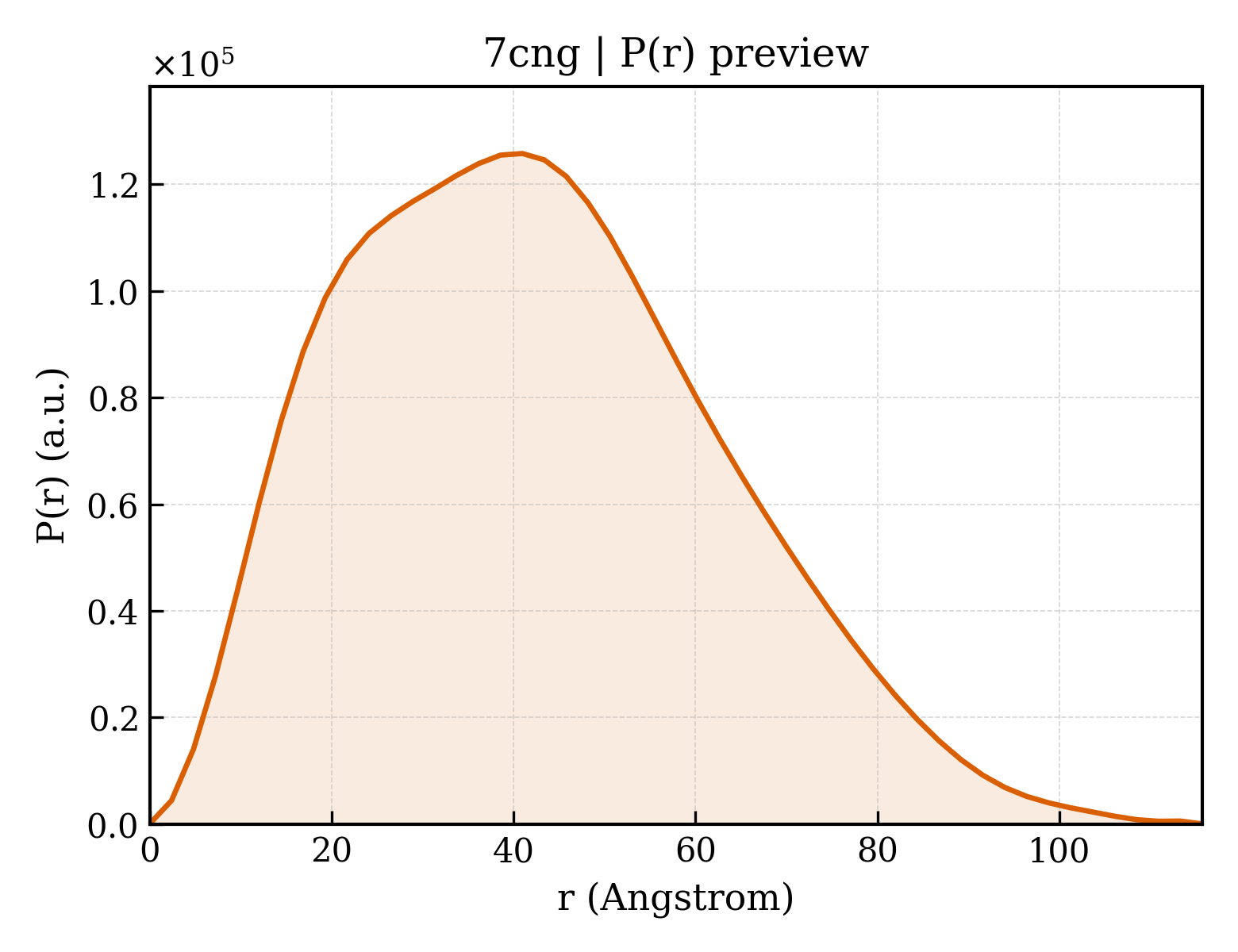

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7cng
Deposition date deposition_date	2020-07-31
Structure title title	Structure of CDK5R1 bound FEM1B
Keywords keywords	ubiquitination, E3 ligase, degron, PEPTIDE BINDING PROTEIN; PEPTIDE BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	32.92 Å
Radius of gyration Rg (electron density) rg_electron	32.84 Å
Forward intensity I(0) i0	85325800.00
Molecular weight molecular_weight	72870.0 kDa
Excluded volume excluded_volume	90985 Å³
Envelope volume envelope_volume	121610 Å³
Hydration-shell volume shell_volume	32121 Å³
Envelope diameter envelope_diameter	120.8 Å
Shell Rg shell_rg	38.08 Å
Envelope Rg envelope_rg	32.38 Å
Shape Rg shape_rg	32.85 Å
Total Rg total_rg	33.26 Å
Total atoms total_atoms	5124
Residues n_residues	686
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	115.7 Å
Rg (real space) rg_real	33.10 Å
Rg uncertainty (real space) rg_real_error	1.10 Å
I(0) (real space) i0_real	8.5330e+07
I(0) uncertainty (real space) i0_real_error	1.4340e+06
Rg (reciprocal space) rg_reciprocal	33.03 Å
I(0) (reciprocal space) i0_reciprocal	85320000.0000
Solution quality estimate total_estimate	0.8588
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	41.0 Å
Skewness Skewness skewness	0.403
Kurtosis Kurtosis kurtosis	-0.331
Angular range angular_range	— – 0.2400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	14110000.0000
Real-space data points n_real_points	49
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.809; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.804; Smooth: 0.928

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Protein fem-1 homolog B,Peptide from Cyclin-dependent kinase 5 activator 1
Molecular weight formula_weight	39295.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5124

GHMEGLAGYVYKAASEGKVLTLAALLLNRSESDIRYLLGYVSQQGGQRSTPLIIAARNGHAKVVRLLLEHYRVQTQQTGTVRFDGYVIDGATALWCAAGAGHFEVVKLLVSHGANVNHTTVTNSTPLRAACFDGRLDIVKYLVENNANISIANKYDNTCLMIAAYKGHTDVVRYLLEQRADPNAKAHCGATALHFAAEAGHIDIVKELIKWRAAIVVNGHGMTPLKVAAESCKADVVELLLSHADCDRRSRIEALELLGASFANDRENYDIIKTYHYLYLAMLERFQDGDNILEKEVLPPIHAYGNRTECRNPQELESIRQDRDALHMEGLIVRERILGGGGSGGGSKKRLLLGLDR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

▶

8. Citations (1)

▶

Unit-cell length a length_a	126.812 Å
Unit-cell length b length_b	126.812 Å
Unit-cell length c length_c	144.489 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 4 21 2
Space-group number int_tables_number	90
Crystal system crystal_system	—

Resolution resolution	3.490 Å
Low-resolution limit resolution_low	28.900 Å
R factor r_factor	0.2251
R_work r_work	0.2204
R_free r_free	0.2672

fit	/app/data/saxs_computation/cn/7cng/7cng.fit
pddf	/app/data/pr_computation/cn/7cng/7cng.pr.out
profile	/app/data/saxs_computation/cn/7cng/7cng.dat
