8pql

K48-linked ubiquitin chain formation with a cullin-RING E3 ligase and Cdc34: NEDD8-CUL2-RBX1-ELOB/C-FEM1C with trapped UBE2R2-donor UB-acceptor UB-SIL1 peptide

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ubiquitin-conjugating enzyme E2 R2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 8	Polyubiquitin-C,Nucleotide exchange factor SIL1 × 1 （P0CG48,Q9H173） Protein fem-1 homolog C × 1 （Q96JP0） E3 ubiquitin-protein ligase RBX1 × 1 （P62877） Ubiquitin × 1 （P0CG48） Cullin-2 × 1 （Q13617） Elongin-C × 1 （Q15369） Elongin-B × 1 （Q15370） 5-azanylpentan-2-one × 1 ZINC ION × 3	Review required

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UB2R2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 1–238； UniProt 1–238

Polyubiquitin-C,Nucleotide exchange factor SIL1

Homo sapiens

UniProt P0CG48

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 8	Ubiquitin-conjugating enzyme E2 R2 × 1 （Q712K3） Protein fem-1 homolog C × 1 （Q96JP0） E3 ubiquitin-protein ligase RBX1 × 1 （P62877） Cullin-2 × 1 （Q13617） Elongin-C × 1 （Q15369） Elongin-B × 1 （Q15370） 5-azanylpentan-2-one × 1 ZINC ION × 3	Review required

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UBC_HUMAN
Isoform	—
PDB entities	2, 5
Chains and sequence ranges	Author chain E； PDBConstruct 1–685； UniProt 1–685 Author chain U； PDBConstruct 1–685； UniProt 1–685

Polyubiquitin-C,Nucleotide exchange factor SIL1

Homo sapiens

UniProt Q9H173

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 8	Ubiquitin-conjugating enzyme E2 R2 × 1 （Q712K3） Protein fem-1 homolog C × 1 （Q96JP0） E3 ubiquitin-protein ligase RBX1 × 1 （P62877） Ubiquitin × 1 （P0CG48） Cullin-2 × 1 （Q13617） Elongin-C × 1 （Q15369） Elongin-B × 1 （Q15370） 5-azanylpentan-2-one × 1 ZINC ION × 3	Review required

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SIL1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 686–704； UniProt 443–461

Protein fem-1 homolog C

Homo sapiens

UniProt Q96JP0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 8	Ubiquitin-conjugating enzyme E2 R2 × 1 （Q712K3） Polyubiquitin-C,Nucleotide exchange factor SIL1 × 1 （P0CG48,Q9H173） E3 ubiquitin-protein ligase RBX1 × 1 （P62877） Ubiquitin × 1 （P0CG48） Cullin-2 × 1 （Q13617） Elongin-C × 1 （Q15369） Elongin-B × 1 （Q15370） 5-azanylpentan-2-one × 1 ZINC ION × 3	Review required

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FEM1C_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain H； PDBConstruct 1–617； UniProt 1–617

E3 ubiquitin-protein ligase RBX1

Homo sapiens

UniProt P62877

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 8	Ubiquitin-conjugating enzyme E2 R2 × 1 （Q712K3） Polyubiquitin-C,Nucleotide exchange factor SIL1 × 1 （P0CG48,Q9H173） Protein fem-1 homolog C × 1 （Q96JP0） Ubiquitin × 1 （P0CG48） Cullin-2 × 1 （Q13617） Elongin-C × 1 （Q15369） Elongin-B × 1 （Q15370） 5-azanylpentan-2-one × 1 ZINC ION × 3	Review required

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RBX1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain K； PDBConstruct 1–108； UniProt 1–108

Cullin-2

Homo sapiens

UniProt Q13617

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 8	Ubiquitin-conjugating enzyme E2 R2 × 1 （Q712K3） Polyubiquitin-C,Nucleotide exchange factor SIL1 × 1 （P0CG48,Q9H173） Protein fem-1 homolog C × 1 （Q96JP0） E3 ubiquitin-protein ligase RBX1 × 1 （P62877） Ubiquitin × 1 （P0CG48） Elongin-C × 1 （Q15369） Elongin-B × 1 （Q15370） 5-azanylpentan-2-one × 1 ZINC ION × 3	Review required

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CUL2_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain A； PDBConstruct 1–745； UniProt 1–745

Elongin-C

Homo sapiens

UniProt Q15369

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 8	Ubiquitin-conjugating enzyme E2 R2 × 1 （Q712K3） Polyubiquitin-C,Nucleotide exchange factor SIL1 × 1 （P0CG48,Q9H173） Protein fem-1 homolog C × 1 （Q96JP0） E3 ubiquitin-protein ligase RBX1 × 1 （P62877） Ubiquitin × 1 （P0CG48） Cullin-2 × 1 （Q13617） Elongin-B × 1 （Q15370） 5-azanylpentan-2-one × 1 ZINC ION × 3	Review required

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ELOC_HUMAN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain D； PDBConstruct 1–112； UniProt 1–112

Elongin-B

Homo sapiens

UniProt Q15370

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 8	Ubiquitin-conjugating enzyme E2 R2 × 1 （Q712K3） Polyubiquitin-C,Nucleotide exchange factor SIL1 × 1 （P0CG48,Q9H173） Protein fem-1 homolog C × 1 （Q96JP0） E3 ubiquitin-protein ligase RBX1 × 1 （P62877） Ubiquitin × 1 （P0CG48） Cullin-2 × 1 （Q13617） Elongin-C × 1 （Q15369） 5-azanylpentan-2-one × 1 ZINC ION × 3	Review required

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ELOB_HUMAN
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain G； PDBConstruct 1–118； UniProt 1–118

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8pql
Deposition date deposition_date	2023-07-11
Structure title title	K48-linked ubiquitin chain formation with a cullin-RING E3 ligase and Cdc34: NEDD8-CUL2-RBX1-ELOB/C-FEM1C with trapped UBE2R2-donor UB-acceptor UB-SIL1 peptide
Keywords keywords	CUL2, FEM1C, ELOBC, SIL1, Ubiquitin, Ubiquitin Ligase, Ubiquitin chain formation, Poliubiquitylation, LIGASE; LIGASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8pql__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8pql__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

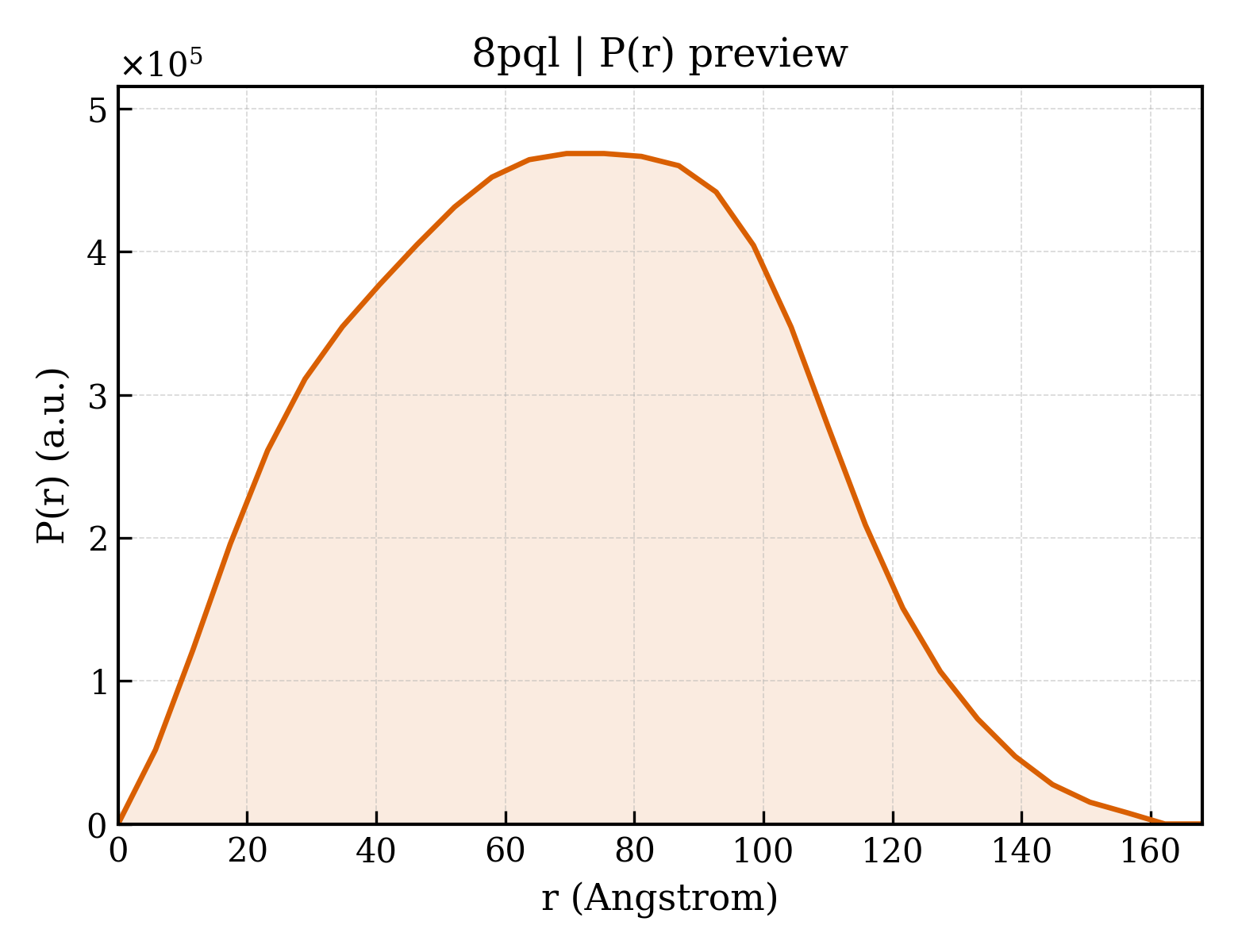

8pql__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	54.26 Å
Rg (electron density)	53.94 Å
Total Rg	53.99 Å
Atom count	13553
Residues	1837
Excluded volume	240540 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8pql__assembly_1__model_1`	nonameric （9）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Description description	Ubiquitin-conjugating enzyme E2 R2
Molecular weight formula_weight	27190.9 kDa
EC 编号 ec_number	2.3.2.23
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C
Atom count atom_count	13553

MAQQQMTSSQKALMLELKSLQEEPVEGFRITLVDESDLYNWEVAIFGPPNTLYEGGYFKAHIKFPIDYPYSPPTFRFLTKMWHPNIYENGDVCISILHPPVDDPQSGELPSERWNPTQNVRTILLSVISLLNEPNTFSPANVDASVMFRKWRDSKGKDKEYAEIIRKQVSATKAEAEKDGVKVPTTLAEYCIKTKVPSNDNSSDLLYDDLYDDDIDDEDEEEEDADCYDDDDSGNEES

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	Polyubiquitin-C,Nucleotide exchange factor SIL1
Molecular weight formula_weight	79226.7 kDa
Mutation mutation	K48C,S455P L456T L457Q K458G E459R L460A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGCQLEDGRTLSDYNIQKESTLHLVLRLRGGMQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGGMQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGGMQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGGMQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGGMQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGGMQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGGMQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGGMQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGGVEGYFQELLGSVNPTQGRAR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 3 Entity 3 polymer

Description description	Protein fem-1 homolog C
Molecular weight formula_weight	68767.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MDLKTAVFNAARDGKLRLLTKLLASKSKEEVSSLISEKTNGATPLLMAARYGHLDMVEFLLEQCSASIEVGGSVNFDGETIEGAPPLWAASAAGHLKVVQSLLNHGASVNNTTLTNSTPLRAACFDGHLEIVKYLVEHKADLEVSNRHGHTCLMISCYKGHKEIAQYLLEKGADVNRKSVKGNTALHDCAESGSLDIMKMLLMYCAKMEKDGYGMTPLLSASVTGHTNIVDFLTHHAQTSKTERINALELLGATFVDKKRDLLGALKYWKKAMNMRYSDRTNIISKPVPQTLIMAYDYAKEVNSAEELEGLIADPDEMRMQALLIRERILGPSHPDTSYYIRYRGAVYADSGNFKRCINLWKYALDMQQSNLDPLSPMTASSLLSFAELFSFMLQDRAKGLLGTTVTFDDLMGILCKSVLEIERAIKQTQCPADPLQLNKALSIILHLICLLEKVPCTLEQDHFKKQTIYRFLKLHPRGKNNFSPLHLAVDKNTTCVGRYPVCKFPSLQVTAILIECGADVNVRDSDDNSPLHIAALNNHPDIMNLLIKSGAHFDATNLHKQTASDLLDEKEIAKNLIQPINHTTLQCLAARVIVNHRIYYKGHIPEKLETFVSLHR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 4 Entity 4 polymer

Description description	E3 ubiquitin-protein ligase RBX1
Molecular weight formula_weight	12290.0 kDa
EC 编号 ec_number	2.3.2.27,2.3.2.32
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

MAAAMDVDTPSGTNSGAGKKRFEVKKWNAVALWAWDIVVDNCAICRNHIMDLCIECQANQASATSEECTVAWGVCNHAFHFHCISRWLKTRQVCPLDNREWEFQKYGH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 5 Entity 5 polymer

Description description	Ubiquitin
Molecular weight formula_weight	77120.4 kDa
Mutation mutation	K48C
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	U

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 6 Entity 6 polymer

Description description	Cullin-2
Molecular weight formula_weight	87098.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MSLKPRVVDFDETWNKLLTTIKAVVMLEYVERATWNDRFSDIYALCVAYPEPLGERLYTETKIFLENHVRHLHKRVLESEEQVLVMYHRYWEEYSKGADYMDCLYRYLNTQFIKKNKLTEADLQYGYGGVDMNEPLMEIGELALDMWRKLMVEPLQAILIRMLLREIKNDRGGEDPNQKVIHGVINSFVHVEQYKKKFPLKFYQEIFESPFLTETGEYYKQEASNLLQESNCSQYMEKVLGRLKDEEIRCRKYLHPSSYTKVIHECQQRMVADHLQFLHAECHNIIRQEKKNDMANMYVLLRAVSTGLPHMIQELQNHIHDEGLRATSNLTQENMPTLFVESVLEVHGKFVQLINTVLNGDQHFMSALDKALTSVVNYREPKSVCKAPELLAKYCDNLLKKSAKGMTENEVEDRLTSFITVFKYIDDKDVFQKFYARMLAKRLIHGLSMSMDSEEAMINKLKQACGYEFTSKLHRMYTDMSVSADLNNKFNNFIKNQDTVIDLGISFQIYVLQAGAWPLTQAPSSTFAIPQELEKSVQMFELFYSQHFSGRKLTWLHYLCTGEVKMNYLGKPYVAMVTTYQMAVLLAFNNSETVSYKELQDSTQMNEKELTKTIKSLLDVKMINHDSEKEDIDAESSFSLNMNFSSKRTKFKITTSMQKDTPQEMEQTRSAVDEDRKMYLQAAIVRIMKARKVLRHNALIQEVISQSRARFNPSISMIKKCIEVLIDKQYIERSQASADEYSYVA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 7 Entity 7 polymer

Description description	Elongin-C
Molecular weight formula_weight	12485.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MDGEEKTYGGCEGPDAMYVKLISSDGHEFIVKREHALTSGTIKAMLSGPGQFAENETNEVNFREIPSHVLSKVCMYFTYKVRYTNSSTEIPEFPIAPEIALELLMAANFLDC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 8 Entity 8 polymer

Description description	Elongin-B
Molecular weight formula_weight	13147.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MDVFLMIRRHKTTIFTDAKESSTVFELKRIVEGILKRPPDEQRLYKDDQLLDDGKTLGECGFTSQTARPQAPATVGLAFRADDTFEALCIEPFSSPPELPDVMKPQDSGSSANEQAVQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 9 Entity 9 non-polymer

Description description	5-azanylpentan-2-one
Molecular weight formula_weight	101.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 10 Entity 10 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	3

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.76 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	61956

K48-linked ubiquitin chain formation with a cullin-RING E3 ligase and Cdc34: NEDD8-CUL2-RBX1-ELOB/C-FEM1C with trapped UBE2R2-donor UB-acceptor UB-SIL1 peptide

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ubiquitin-conjugating enzyme E2 R2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Polyubiquitin-C,Nucleotide exchange factor SIL1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Polyubiquitin-C,Nucleotide exchange factor SIL1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Protein fem-1 homolog C

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

E3 ubiquitin-protein ligase RBX1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Cullin-2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Elongin-C

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Elongin-B

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

8pql__assembly_1__model_1

8pql__assembly_1__model_1 | I(q)

8pql__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

5. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer
