8ol1

cGAS-Nucleosome in complex with SPSB3-ELOBC (composite structure)

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3.2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	Histone H4 × 2 （P62805） Histone H2A type 1-H × 1 （Q96KK5） Histone H2B type 1-H × 1 （Q93079） Histone H2A type 1-J × 1 （Q99878） Histone H2B type 1-N × 1 （Q99877） DNA (145-MER) × 1 DNA (145-MER) × 1 Cyclic GMP-AMP synthase × 1 （Q8N884） SPRY domain-containing SOCS box protein 3 × 1 （Q6PJ21） Elongin-C × 1 （Q15369） Elongin-B × 1 （Q15370） ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H32_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–98； UniProt 38–135 Author chain E； PDBConstruct 1–98； UniProt 38–135

Histone H4

Homo sapiens

UniProt P62805

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	Histone H3.2 × 2 （Q71DI3） Histone H2A type 1-H × 1 （Q96KK5） Histone H2B type 1-H × 1 （Q93079） Histone H2A type 1-J × 1 （Q99878） Histone H2B type 1-N × 1 （Q99877） DNA (145-MER) × 1 DNA (145-MER) × 1 Cyclic GMP-AMP synthase × 1 （Q8N884） SPRY domain-containing SOCS box protein 3 × 1 （Q6PJ21） Elongin-C × 1 （Q15369） Elongin-B × 1 （Q15370） ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H4_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–81； UniProt 23–103 Author chain F； PDBConstruct 1–81； UniProt 23–103

Histone H2A type 1-H

Homo sapiens

UniProt Q96KK5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	Histone H3.2 × 2 （Q71DI3） Histone H4 × 2 （P62805） Histone H2B type 1-H × 1 （Q93079） Histone H2A type 1-J × 1 （Q99878） Histone H2B type 1-N × 1 （Q99877） DNA (145-MER) × 1 DNA (145-MER) × 1 Cyclic GMP-AMP synthase × 1 （Q8N884） SPRY domain-containing SOCS box protein 3 × 1 （Q6PJ21） Elongin-C × 1 （Q15369） Elongin-B × 1 （Q15370） ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2A1H_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–108； UniProt 11–118

Histone H2B type 1-H

Homo sapiens

UniProt Q93079

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	Histone H3.2 × 2 （Q71DI3） Histone H4 × 2 （P62805） Histone H2A type 1-H × 1 （Q96KK5） Histone H2A type 1-J × 1 （Q99878） Histone H2B type 1-N × 1 （Q99877） DNA (145-MER) × 1 DNA (145-MER) × 1 Cyclic GMP-AMP synthase × 1 （Q8N884） SPRY domain-containing SOCS box protein 3 × 1 （Q6PJ21） Elongin-C × 1 （Q15369） Elongin-B × 1 （Q15370） ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2B1H_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–95； UniProt 31–125

Histone H2A type 1-J

Homo sapiens

UniProt Q99878

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	Histone H3.2 × 2 （Q71DI3） Histone H4 × 2 （P62805） Histone H2A type 1-H × 1 （Q96KK5） Histone H2B type 1-H × 1 （Q93079） Histone H2B type 1-N × 1 （Q99877） DNA (145-MER) × 1 DNA (145-MER) × 1 Cyclic GMP-AMP synthase × 1 （Q8N884） SPRY domain-containing SOCS box protein 3 × 1 （Q6PJ21） Elongin-C × 1 （Q15369） Elongin-B × 1 （Q15370） ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2A1J_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain G； PDBConstruct 1–107； UniProt 11–117

Histone H2B type 1-N

Homo sapiens

UniProt Q99877

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	Histone H3.2 × 2 （Q71DI3） Histone H4 × 2 （P62805） Histone H2A type 1-H × 1 （Q96KK5） Histone H2B type 1-H × 1 （Q93079） Histone H2A type 1-J × 1 （Q99878） DNA (145-MER) × 1 DNA (145-MER) × 1 Cyclic GMP-AMP synthase × 1 （Q8N884） SPRY domain-containing SOCS box protein 3 × 1 （Q6PJ21） Elongin-C × 1 （Q15369） Elongin-B × 1 （Q15370） ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H2B1N_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain H； PDBConstruct 1–94； UniProt 32–125

Cyclic GMP-AMP synthase

Homo sapiens

UniProt Q8N884

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	Histone H3.2 × 2 （Q71DI3） Histone H4 × 2 （P62805） Histone H2A type 1-H × 1 （Q96KK5） Histone H2B type 1-H × 1 （Q93079） Histone H2A type 1-J × 1 （Q99878） Histone H2B type 1-N × 1 （Q99877） DNA (145-MER) × 1 DNA (145-MER) × 1 SPRY domain-containing SOCS box protein 3 × 1 （Q6PJ21） Elongin-C × 1 （Q15369） Elongin-B × 1 （Q15370） ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CGAS_HUMAN
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain K； PDBConstruct 1–362； UniProt 161–522

SPRY domain-containing SOCS box protein 3

Homo sapiens

UniProt Q6PJ21

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	Histone H3.2 × 2 （Q71DI3） Histone H4 × 2 （P62805） Histone H2A type 1-H × 1 （Q96KK5） Histone H2B type 1-H × 1 （Q93079） Histone H2A type 1-J × 1 （Q99878） Histone H2B type 1-N × 1 （Q99877） DNA (145-MER) × 1 DNA (145-MER) × 1 Cyclic GMP-AMP synthase × 1 （Q8N884） Elongin-C × 1 （Q15369） Elongin-B × 1 （Q15370） ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPSB3_HUMAN
Isoform	—
PDB entities	10
Chains and sequence ranges	Author chain L； PDBConstruct 1–244； UniProt 83–326

Elongin-C

Homo sapiens

UniProt Q15369

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	Histone H3.2 × 2 （Q71DI3） Histone H4 × 2 （P62805） Histone H2A type 1-H × 1 （Q96KK5） Histone H2B type 1-H × 1 （Q93079） Histone H2A type 1-J × 1 （Q99878） Histone H2B type 1-N × 1 （Q99877） DNA (145-MER) × 1 DNA (145-MER) × 1 Cyclic GMP-AMP synthase × 1 （Q8N884） SPRY domain-containing SOCS box protein 3 × 1 （Q6PJ21） Elongin-B × 1 （Q15370） ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ELOC_HUMAN
Isoform	—
PDB entities	11
Chains and sequence ranges	Author chain M； PDBConstruct 1–112； UniProt 1–112

Elongin-B

Homo sapiens

UniProt Q15370

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 12 DNA 2	Histone H3.2 × 2 （Q71DI3） Histone H4 × 2 （P62805） Histone H2A type 1-H × 1 （Q96KK5） Histone H2B type 1-H × 1 （Q93079） Histone H2A type 1-J × 1 （Q99878） Histone H2B type 1-N × 1 （Q99877） DNA (145-MER) × 1 DNA (145-MER) × 1 Cyclic GMP-AMP synthase × 1 （Q8N884） SPRY domain-containing SOCS box protein 3 × 1 （Q6PJ21） Elongin-C × 1 （Q15369） ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ELOB_HUMAN
Isoform	—
PDB entities	12
Chains and sequence ranges	Author chain N； PDBConstruct 1–118； UniProt 1–118

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ol1
Deposition date deposition_date	2023-03-29
Structure title title	cGAS-Nucleosome in complex with SPSB3-ELOBC (composite structure)
Keywords keywords	cGAS, degradation, UPS, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8ol1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8ol1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

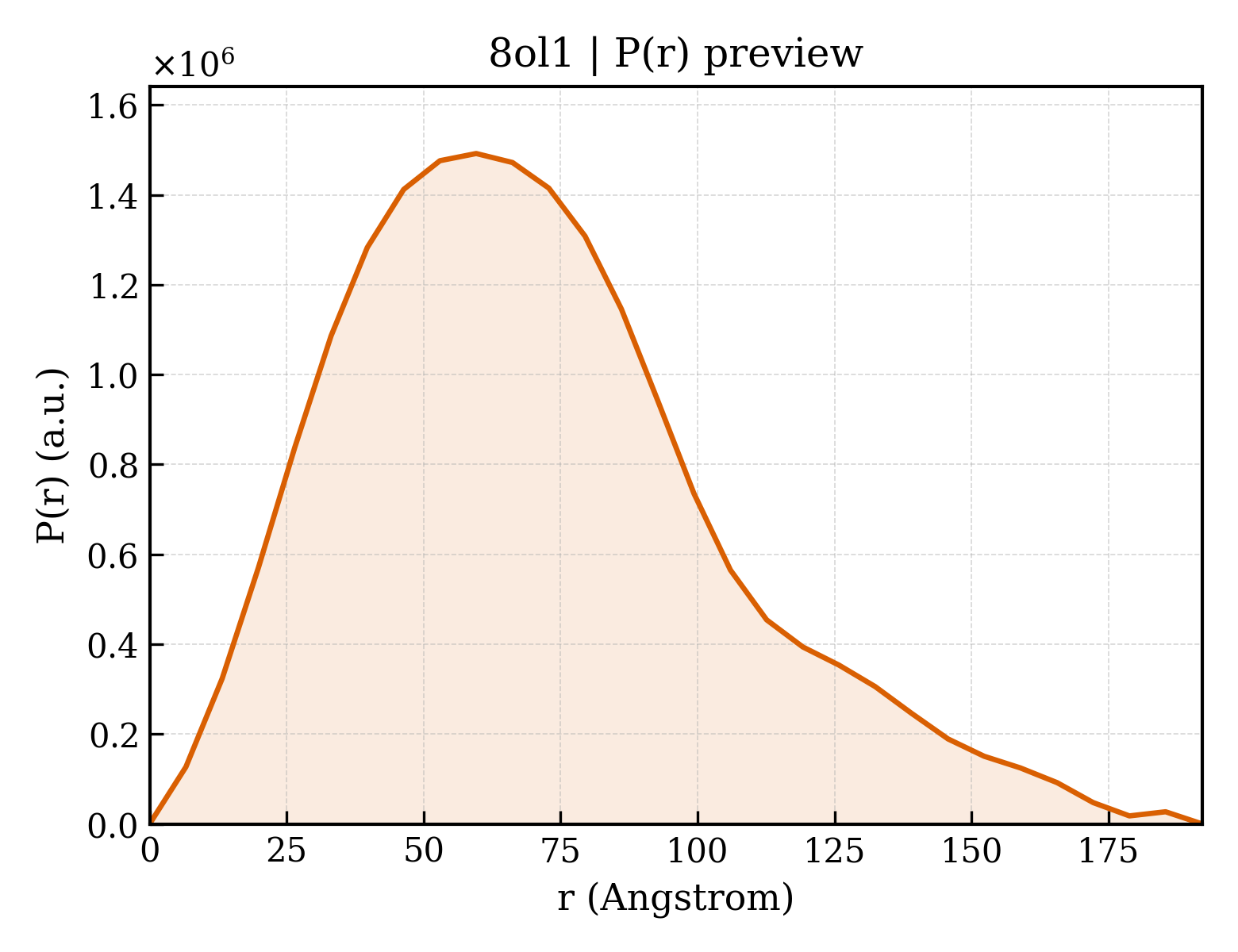

8ol1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	54.50 Å
Rg (electron density)	55.28 Å
Total Rg	55.24 Å
Atom count	18376
Residues	1850
Excluded volume	308780 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8ol1__assembly_1__model_1`	tetradecameric （14）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (13)

Entity 1 Entity 1 polymer

Description description	Histone H3.2
Molecular weight formula_weight	11546.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E
Atom count atom_count	18376

KPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVGLFEDTNLCAIHAKRVTIMPKDIQLARRIRGER

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Histone H4
Molecular weight formula_weight	9180.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F

LRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	Histone H2A type 1-H
Molecular weight formula_weight	11763.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

ARAKAKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAIRNDEELNKLLGKVTIAQGGVLPNIQAVLLP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	Histone H2B type 1-H
Molecular weight formula_weight	10623.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

KRSRKESYSVYVYKVLKQVHPDTGISSKAMGIMNSFVNDIFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 5 Entity 5 polymer

Description description	Histone H2A type 1-J
Molecular weight formula_weight	11666.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

ARAKAKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAIRNDEELNKLLGKVTIAQGGVLPNIQAVLL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 6 Entity 6 polymer

Description description	Histone H2B type 1-N
Molecular weight formula_weight	10494.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

RSRKESYSVYVYKVLKQVHPDTGISSKAMGIMNSFVNDIFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 7 Entity 7 polymer

Description description	DNA (145-MER)
Molecular weight formula_weight	44552.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	I

TGGAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCCTG

Entity 8 Entity 8 polymer

Description description	DNA (145-MER)
Molecular weight formula_weight	44961.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	J

CAGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTCCA

Entity 9 Entity 9 polymer

Description description	Cyclic GMP-AMP synthase
Molecular weight formula_weight	42202.6 kDa
EC 编号 ec_number	2.7.7.86
Mutation mutation	K285A R300A K428A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

GASKLRAVLEKLKLSRDDISTAAGMVKGVVDHLLLRLKCDSAFRGVGLLNTGSYYEHVKISAPNEFDVMFKLEVPRIQLEEYSNTRAYYFVKFKRNPKENPLSQFLEGEILSASKMLSKFRKIIAEEINDIKDTDVIMKAKRGGSPAVTLLISEKISVDITLALESKSSWPASTQEGLRIQNWLSAKVRKQLRLKPFYLVPKHAKEGNGFQEETWRLSFSHIEKEILNNHGKSKTCCENKEEKCCRKDCLKLMKYLLEQLKERFKDKAHLDKFSSYHVKTAFFHVCTQNPQDSQWDRKDLGLCFDNCVTYFLQCLRTEKLENYFIPEFNLFSSNLIDKRSKEFLTKQIEYERNNEFPVFDEF

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 10 Entity 10 polymer

Description description	SPRY domain-containing SOCS box protein 3
Molecular weight formula_weight	27415.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

SSLHSAHRGRDCRCGEEDEYFDWVWDDLNKSSATLLSCDNRKVSFHMEYSCGTAAIRGTKELGEGQHFWEIKMTSPVYGTDMMVGIGTSDVDLDKYRHTFCSLLGRDEDSWGLSYTGLLHHKGDKTSFSSRFGQGSIIGVHLDTWHGTLTFFKNRKCIGVAATKLQNKRFYPMVCSTAARSSMKVTRSCASATSLQYLCCHRLRQLRPDSGDTLEGLPLPPGLKQVLHNKLGWVLSMSCSRRKA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 11 Entity 11 polymer

Description description	Elongin-C
Molecular weight formula_weight	12485.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

MDGEEKTYGGCEGPDAMYVKLISSDGHEFIVKREHALTSGTIKAMLSGPGQFAENETNEVNFREIPSHVLSKVCMYFTYKVRYTNSSTEIPEFPIAPEIALELLMAANFLDC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 12 Entity 12 polymer

Description description	Elongin-B
Molecular weight formula_weight	13147.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

MDVFLMIRRHKTTIFTDAKESSTVFELKRIVEGILKRPPDEQRLYKDDQLLDDGKTLGECGFTSQTARPQAPATVGLAFRADDTFEALCIEPFSSPPELPDVMKPQDSGSSANEQAVQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 13 Entity 13 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.50 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	592494

cGAS-Nucleosome in complex with SPSB3-ELOBC (composite structure)

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3.2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Histone H4

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Histone H2A type 1-H

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Histone H2B type 1-H

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Histone H2A type 1-J

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Histone H2B type 1-N

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Cyclic GMP-AMP synthase

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

SPRY domain-containing SOCS box protein 3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Elongin-C

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Elongin-B

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer
