9bss

45SRbgA particle in complex with RbgA and YphC. Class B

Method: ELECTRON MICROSCOPY D_max: 262.5 Å Quality: GOOD

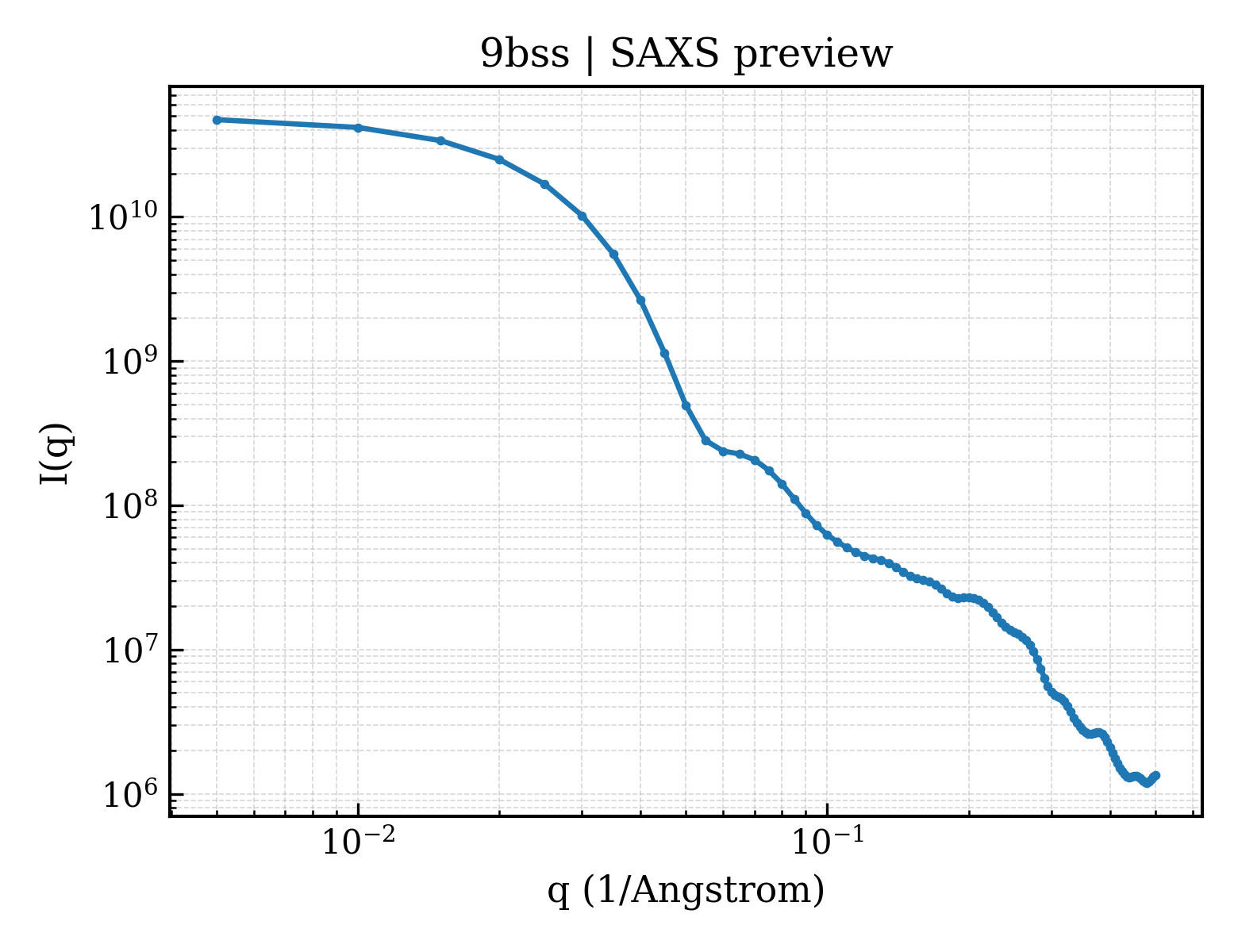

SAXS 散射曲线 SAXS Profile

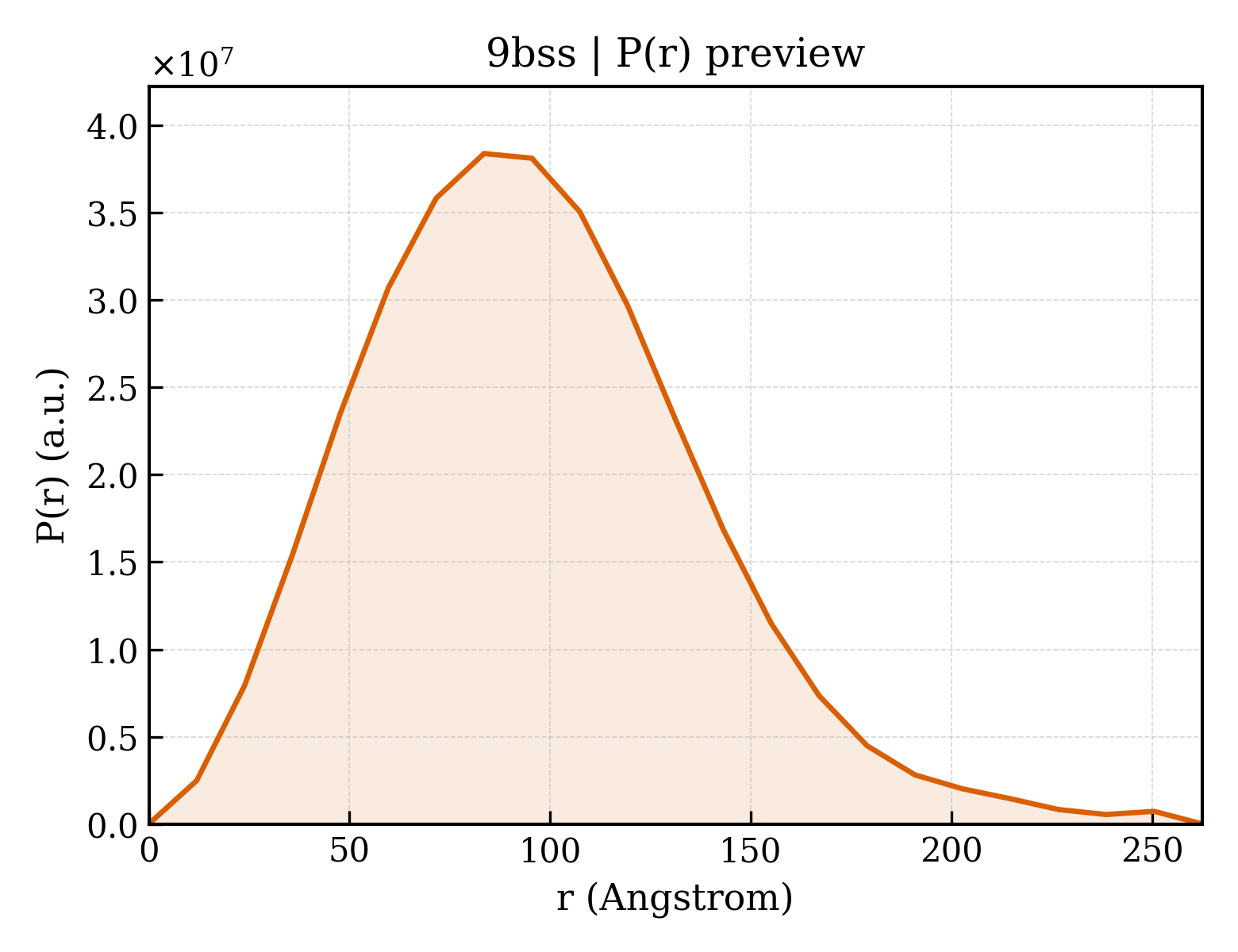

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9bss
沉积日期 deposition_date	2024-05-13
结构标题 title	45SRbgA particle in complex with RbgA and YphC. Class B
关键词 keywords	Ribosome, ribosome assembly, YphC; RIBOSOME
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	70.51 Å
回转半径 Rg (电子) rg_electron	70.90 Å
零角强度 I(0) i0	49296400000.00
分子量 molecular_weight	1214400.0 kDa
排除体积 excluded_volume	1240400 Å³
包络体积 envelope_volume	2287000 Å³
水化壳体积 shell_volume	249700 Å³
包络直径 envelope_diameter	231.5 Å
壳层 Rg shell_rg	82.86 Å
包络 Rg envelope_rg	69.85 Å
形状 Rg shape_rg	70.92 Å
总 Rg total_rg	70.94 Å
总原子数 total_atoms	81609
残基数 n_residues	5782
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	262.5 Å
Rg (实空间) rg_real	73.49 Å
Rg 误差 (实空间) rg_real_error	1.39 Å
I(0) (实空间) i0_real	4.9300e+10
I(0) 误差 (实空间) i0_real_error	9.7570e+08
Rg (倒空间) rg_reciprocal	71.17 Å
I(0) (倒空间) i0_reciprocal	49380000000.0000
解质量估计 total_estimate	0.8776
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	83.5 Å
偏度 Skewness skewness	0.550
峰度 Kurtosis kurtosis	0.424
角度范围 angular_range	— – 0.1100 Å⁻¹
当前正则化参数 α current_alpha	0.9590
最高正则化参数 α highest_alpha	6948000000.0000
实空间数据点数 n_real_points	23
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.638; Stabil: 0.893; Sysdev: 1.000; Positv: 1.000; Valcen: 0.935; Smooth: 0.896

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (25)

Entity 1 polymer

描述 description	23S rRNA
分子量 formula_weight	949300.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	A
原子数 atom_count	81609

GGUUAAGUUAGAAAGGGCGCACGGUGGAUGCCUUGGCACUAGGAGCCGAUGAAGGACGGGACGAACACCGAUAUGCUUCGGGGAGCUGUAAGCAAGCUUUGAUCCGGAGAUUUCCGAAUGGGGAAACCCACCACUCGUAAUGGAGUGGUAUCCAUAUCUGAAUUCAUAGGAUAUGAGAAGGCAGACCCGGGGAACUGAAACAUCUAAGUACCCGGAGGAAGAGAAAGCAAAUGCGAUUCCCUGAGUAGCGGCGAGCGAAACGGGAUCAGCCCAAACCAAGAGGCUUGCCUCUUGGGGUUGUAGGACACUCUGUACGGAGUUACAAAGGAACGAGGUAGAUGAAGAGGUCUGGAAAGGCCCGCCAUAGGAGGUAACAGCCCUGUAGUCAAAACUUCGUUCUCUCCUGAGUGGAUCCUGAGUACGGCGGAACACGUGAAAUUCCGUCGGAAUCCGGGAGGACCAUCUCCCAAGGCUAAAUACUCCCUAGUGACCGAUAGUGAACCAGUACCGUGAGGGAAAGGUGAAAAGCACCCCGGAAGGGGAGUGAAAGAGAUCCUGAAACCGUGUGCCUACAAGUAGUCAGAGCCCGUUAACGGGUGAUGGCGUGCCUUUUGUAGAAUGAACCGGCGAGUUACGAUCUCGUGCAAGGUUAAGCAGAAGAUGCGGAGCCGCAGCGAAAGCGAGUCUGAAUAGGGCGCAUGAGUACGUGGUCGUAGACCCGAAACCAGGUGAUCUACCCAUGUCCAGGGUGAAGUUCAGGUAACACUGAAUGGAGGCCCGAACCCACGCACGUUGAAAAGUGCGGGGAUGAGGUGUGGGUAGGGGUGAAAUGCCAAUCGAACCUGGAGAUAGCUGGUUCUCUCCGAAAUAGCUUUAGGGCUAGCCUCAAGGUAAGAGUCUUGGAGGUAGAGCACUGAUUGGACUAGGGGCCCCUACCGGGUUACCGAAUUCAGUCAAACUCCGAAUGCCAAUGACUUAUCCUUGGGAGUCAGACUGCGAGUGAUAAGAUCCGUAGUCGAAAGGGAAACAGCCCAGACCGCCAGCUAAGGUCCCAAAGUAUACGUUAAGUGGAAAAGGAUGUGGAGUUGCUUAGACAACCAGGAUGUUGGCUUAGAAGCAGCCACCAUUUAAAGAGUGCGUAAUAGCUCACUGGUCGAGUGACUCUGCGCCGAAAAUGUACCGGGGCUAAACGUAUCACCGAAGCUGCGGACUGUUCUUCGAACAGUGGUAGGAGAGCGUUCUAAGGGCUGUGAAGCCAGACCGGAAGGACUGGUGGAGCGCUUAGAAGUGAGAAUGCCGGUAUGAGUAGCGAAAGAGGGGUGAGAAUCCCCUCCACCGAAUGCCUAAGGUUUCCUGAGGAAGGCUCGUCCGCUCAGGGUUAGUCGGGACCUAAGCCGAGGCCGAAAGGCGUAGGCGAUGGACAACAGGUUGAUAUUCCUGUACCACCUCCUCACCAUUUGAGCAAUGGGGGGACGCAGGAGGAUAGGGUAAGCGCGGUAUUGGAUAUCCGCGUCCAAGCAGUUAGGCUGGGAAAUAGGCAAAUCCGUUUCCCAUAAGCCUGAGCUGUGAUGGCGAGCGAAAUAUAGUAGCGAAGUUCCUGAUUCCACACUGCCAAGAAAAGCCUCUAGCGAGGUGAGAGGUGCCCGUACCGCAAACCGACACAGGUAGGCGAGGAGAGAAUCCUAAGGUGAUCGAGAGAACUCUCGUUAAGGAACUCGGCAAAAUGACCCCGUAACUUCGGGAGAAGGGGUGCUCUGUUAGGGUGCAAGCCCGAGAGAGCCGCAGUGAAUAGGCCCAGGCGACUGUUUAGCAAAAACACAGGUCUCUGCGAAGCCGUAAGGCGAAGUAUAGGGGCUGACGCCUGCCCGGUGCUGGAAGGUUAAGAGGAGCGCUUAGCGUAAGCGAAGGUGCGAAUUGAAGCCCCAGUAAACGGCGGCCGUAACUAUAACGGUCCUAAGGUAGCGAAAUUCCUUGUCGGGUAAGUUCCGACCCGCACGAAAGGCGCAACGAUCUGGGCACUGUCUCAACGAGAGACUCGGUGAAAUUAUAGUACCUGUGAAGAUGCAGGUUACCCGCGACAGGACGGAAAGACCCCGUGGAGCUUUACUGCAGCCUGAUAUUGAAUGUUGGUACAGCUUGUACAGGAUAGGUAGGAGCCUUGGAAACCGGAGCGCCAGCUUCGGUGGAGGCAUCGGUGGGAUACUACCCUGGCUGUAUUGACCUUCUAACCCGCCGCCCUUAUCGGGCGGGGAGACAGUGUCAGGUGGGCAGUUUGACUGGGGCGGUCGCCUCCUAAAAGGUAACGGAGGCGCCCAAAGGUUCCCUCAGAAUGGUUGGAAAUCAUUCGCAGAGUGUAAAGGCACAAGGGAGCUUGACUGCGAGACCUACAAGUCGAGCAGGGACGAAAGUCGGGCUUAGUGAUCCGGUGGUUCCGCAUGGAAGGGCCAUCGCUCAACGGAUAAAAGCUACCCCGGGGAUAACAGGCUUAUCUCCCCCAAGAGUCCACAUCGACGGGGAGGUUUGGCACCUCGAUGUCGGCUCAUCGCAUCCUGGGGCUGUAGUCGGUCCCAAGGGUUGGGCUGUUCGCCCAUUAAAGCGGUACGCGAGCUGGGUUCAGAACGUCGUGAGACAGUUCGGUCCCUAUCCGUCGCGGGCGCAGGAAAUUUGAGAGGAGCUGUCCUUAGUACGAGAGGACCGGGAUGGACGCACCGCUGGUGUACCAGUUGUUCUGCCAAGGGCAUCGCUGGGUAGCUAUGUGCGGACGGGAUAAGUGCUGAAAGCAUCUAAGCAUGAAGCCCCCCUCAAGAUGAGAUUUCCCAUUCCGCAAGGAAGUAAGAUCCCUGAAAGAUGAUCAGGUUGAUAGGUCUGAGGUGGAAGUGUGGCGACACAUGGAGCUGACAGAUACUAAUCGAUCGAGGACUUAACCA

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 2 polymer

描述 description	5S rRNA
分子量 formula_weight	38423.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	B

UUUGGUGGCGAUAGCGAAGAGGUCACACCCGUUCCCAUACCGAACACGGAAGUUAAGCUCUUCAGCGCCGAUGGUAGUCGGGGGUUUCCCCCUGUGAGAGUAGGACGCCGCCAAGCAAG

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 3 polymer

描述 description	Large ribosomal subunit protein uL2
分子量 formula_weight	30335.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MAIKKYKPTSNGRRGMTTSDFAEITTDKPEKSLLAPLHKKGGRNNQGKLTVRHQGGGHKRQYRVIDFKRDKDGIPGRVATVEYDPNRSANIALINYADGEKRYILAPKGIQVGTEIMSGPEADIKVGNALPLINIPVGTVVHNIELKPGKGGQLVRSAGTSAQVLGKEGKYVLVRLNSGEVRMILSACRASIGQVGNEQHELINIGKAGRSRWKGIRPTVRGSVMNPNDHPHGGGEGRAPIGRKSPMSPWGKPTLGFKTRKKKNKSDKFIVRRRKNK

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 4 polymer

描述 description	Large ribosomal subunit protein uL3
分子量 formula_weight	22723.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MTKGILGRKIGMTQVFAENGDLIPVTVIEAAPNVVLQKKTAENDGYEAIQLGFDDKREKLSNKPEKGHVAKAETAPKRFVKELRGVEMDAYEVGQEVKVEIFSAGEIVDVTGVSKGKGFQGAIKRHGQSRGPMSHGSRYHRRPGSMGPVDPNRVFKGKLLPGRMGGEQITVQNLEIVKVDAERNLLLIKGNVPGAKKSLITVKSAVKSK

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 5 polymer

描述 description	Large ribosomal subunit protein uL4
分子量 formula_weight	22425.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MPKVALYNQNGSTAGDIELNASVFGIEPNESVVFDAILMQRASLRQGTHKVKNRSEVRGGGRKPWRQKGTGRARQGSIRSPQWRGGGVVFGPTPRSYSYKLPKKVRRLAIKSVLSSKVIDNNIIVLEDLTLDTAKTKEMAAILKGLSVEKKALIVTADANEAVALSARNIPGVTVVEANGINVLDVVNHEKLLITKAAVEKVEEVLA

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 6 polymer

描述 description	Large ribosomal subunit protein uL6
分子量 formula_weight	19543.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MSRVGKKLLEIPSDVTVTLNDNNTVAVKGPKGELTRTFHPDMEIKVEDNVLTVARPSDQKEHRALHGTTRSLLGNMVEGVSKGFERGLELVGVGYRASKSGNKLVLNVGYSHPVEIVPEEGIEIEVPSQTKVVVKGTDKERVGAIAANIRAVRSPEPYKGKGIRYEGEVVRRKEGKSAK

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 7 polymer

描述 description	Large ribosomal subunit protein uL13
分子量 formula_weight	16407.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MRTTPMANASTIERKWLVVDAAGKTLGRLSSEVAAILRGKHKPTYTPHVDTGDHVIIINAEKIELTGKKLTDKIYYRHTQHPGGLKSRTALEMRTNYPEKMLELAIKGMLPKGSLGRQMFKKLNVYRGSEHPHEAQKPEVYELRG

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 8 polymer

描述 description	Large ribosomal subunit protein uL14
分子量 formula_weight	13175.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MIQQETRLKVADNSGAREVLTIKVLGGSGRKTANIGDVIVCTVKQATPGGVVKKGEVVKAVIVRTKSGARRSDGSYISFDENACVIIRDDKSPRGTRIFGPVARELRENNFMKIVSLAPEVI

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 9 polymer

描述 description	Large ribosomal subunit protein uL15
分子量 formula_weight	15410.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MKLHELKPSEGSRKTRNRVGRGIGSGNGKTAGKGHKGQNARSGGGVRPGFEGGQMPLFQRLPKRGFTNINRKEYAVVNLDKLNGFAEGTEVTPELLLETGVISKLNAGVKILGNGKLEKKLTVKANKFSASAKEAVEAAGGTAEVI

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 10 polymer

描述 description	Large ribosomal subunit protein bL17
分子量 formula_weight	13774.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MSYRKLGRTSAQRKAMLRDLTTDLIINERIETTETRAKELRSVVEKMITLGKRGDLHARRQAAAYIRNEVANEENNQDALQKLFSDIATRYEERQGGYTRIMKLGPRRGDGAPMAIIELV

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 11 polymer

描述 description	Large ribosomal subunit protein bL19
分子量 formula_weight	13416.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MQKLIEDITKEQLRTDLPAFRPGDTLRVHVKVVEGNRERIQIFEGVVIKRRGGGISETFTVRKISYGVGVERTFPVHTPKIAKIEVVRYGKVRRAKLYYLRELRGKAARIKEIRR

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 12 polymer

描述 description	Large ribosomal subunit protein bL20
分子量 formula_weight	13538.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

PRVKGGTVTRKRRKKVLKLAKGYFGSKHTLYKVANQQVMKSGNYAFRDRRQKKRDFRKLWITRINAAARMNGLSYSRLMHGLKLSGIEVNRKMLADLAVNDLTAFNQLADAAKAQLNK

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 13 polymer

描述 description	Large ribosomal subunit protein bL21
分子量 formula_weight	11296.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MYAIIKTGGKQIKVEEGQTVYIEKLAAEAGETVTFEDVLFVGGDNVKVGNPTVEGATVTAKVEKQGRAKKITVFRYKPKKNVHKKQGHRQPYTKVTIEKINA

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 14 polymer

描述 description	Large ribosomal subunit protein uL22
分子量 formula_weight	12481.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MQAKAVARTVRIAPRKARLVMDLIRGKQVGEAVSILNLTPRAASPIIEKVLKSAIANAEHNYEMDANNLVISQAFVDEGPTLKRFRPRAMGRASQINKRTSHITIVVSEKKEG

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 15 polymer

描述 description	Large ribosomal subunit protein uL23
分子量 formula_weight	10978.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MKDPRDVLKRPVITERSADLMTEKKYTFEVDVRANKTEVKDAVESIFGVKVDKVNIMNYKGKSKRVGRYTGMTSRRRKAIVKLTADSKEIEIFEA

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 16 polymer

描述 description	Large ribosomal subunit protein uL24
分子量 formula_weight	11166.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MHVKKGDKVMVISGKDKGKQGTILAAFPKKDRVLVEGVNMVKKHSKPTQANPQGGISNQEAPIHVSNVMPLDPKTGEVTRVGYKVEDGKKVRVAKKSGQVLDK

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 17 polymer

描述 description	Large ribosomal subunit protein bL27
分子量 formula_weight	10391.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MLRLDLQFFASKKGVGSTKNGRDSEAKRLGAKRADGQFVTGGSILYRQRGTKIYPGENVGRGGDDTLFAKIDGTVKFERFGRDRKKVSVYPVAQ

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 18 polymer

描述 description	Large ribosomal subunit protein uL29
分子量 formula_weight	7728.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

MKANEIRDLTTAEIEQKVKSLKEELFNLRFQLATGQLENTARIREVRKAIARMKTVIREREIAANK

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 19 polymer

描述 description	Large ribosomal subunit protein uL30
分子量 formula_weight	6650.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MAKLEITLKRSVIGRPEDQRVTVRTLGLKKTNQTVVHEDNAAIRGMINKVSHLVSVKEQ

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 20 polymer

描述 description	Large ribosomal subunit protein bL32
分子量 formula_weight	6745.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MAVPFRRTSKMKKRLRRTHFKLNVPGMTECPSCGEMKLSHRVCKACGSYNGKDINVKSN

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 21 polymer

描述 description	Large ribosomal subunit protein bL34
分子量 formula_weight	5271.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

MKRTFQPNNRKRSKVHGFRSRMSSKNGRLVLARRRRKGRKVLSA

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 22 polymer

描述 description	Ribosome biogenesis GTPase A
分子量 formula_weight	32033.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V

MTIQWFPGHMAKARREVTEKLKLIDIVYELVDARIPMSSRNPMIEDILKNKPRIMLLNKADKADAAVTQQWKEHFENQGIRSLSINSVNGQGLNQIVPASKEILQEKFDRMRAKGVKPRAIRALIIGIPNVGKSTLINRLAKKNIAKTGDRPGITTSQQWVKVGKELELLDTPGILWPKFEDELVGLRLAVTGAIKDSIINLQDVAVFGLRFLEEHYPERLKERYGLDEIPEDIAELFDAIGEKRGCLMSGGLINYDKTTEVIIRDIRTEKFGRLSFEQPTM

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 23 polymer

描述 description	GTPase Der
分子量 formula_weight	48828.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

MGKPVVAIVGRPNVGKSTIFNRIAGERISIVEDTPGVTRDRIYSSAEWLNYDFNLIDTGGIDIGDEPFLAQIRQQAEIAMDEADVIIFMVNGREGVTAADEEVAKILYRTKKPVVLAVNKLDNTEMRANIYDFYSLGFGEPYPISGTHGLGLGDLLDAVAEHFKNIPETKYNEEVIQFCLIGRPNVGKSSLVNAMLGEERVIVSNVAGTTRDAVDTSFTYNQQEFVIVDTAGMRKKGKVYETTEKYSVLRALKAIDRSEVVAVVLDGEEGIIEQDKRIAGYAHEAGKAVVIVVNKWDAVDKDESTMKEFEENIRDHFQFLDYAPILFMSALTKKRIHTLMPAIIKASENHSLRVQTNVLNDVIMDAVAMNPTPTHNGSRLKIYYATQVSVKPPSFVVFVNDPELMHFSYERFLENRIRDAFGFEGTPIKIFARARK

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 24 polymer

描述 description	Large ribosomal subunit protein uL1
分子量 formula_weight	25026.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

MAKKGKKYVEAAKLVDRSKAYDVSEAVALVKKTNTAKFDATVEVAFRLGVDPRKNDQQIRGAVVLPNGTGKTQRVLVFAKGEKAKEAEAAGADFVGDTDYINKIQQGWFDFDVIVATPDMMGEVGKIGRVLGPKGLMPNPKTGTVTFEVEKAIGEIKAGKVEYRVDKAGNIHVPIGKVSFEDEKLVENFTTMYDTILKAKPAAAKGVYVKNVAVTSTMGPGVKVDSSTFNVK

来源 Source

来源生物 organism	Bacillus subtilis subsp. subtilis str. 168
NCBI 分类编号 ncbi_taxonomy_id	224308
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 25 non-polymer

描述 description	PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER
分子量 formula_weight	522.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.10 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	47897

fit	/app/data/saxs_computation/bs/9bss/9bss.fit
pddf	/app/data/pr_computation/bs/9bss/9bss.pr.out
profile	/app/data/saxs_computation/bs/9bss/9bss.dat

45SRbgA particle in complex with RbgA and YphC. Class B

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

冷冻电镜 EM 3D

5. 实体与聚合体信息 (25)

Entity 1 polymer

聚合体 Polymer

来源 Source

Entity 2 polymer

聚合体 Polymer

来源 Source

Entity 3 polymer

聚合体 Polymer

来源 Source

Entity 4 polymer

聚合体 Polymer

来源 Source

Entity 5 polymer

聚合体 Polymer

来源 Source

Entity 6 polymer

聚合体 Polymer

来源 Source

Entity 7 polymer

聚合体 Polymer

来源 Source

Entity 8 polymer

聚合体 Polymer

来源 Source

Entity 9 polymer

聚合体 Polymer

来源 Source

Entity 10 polymer

聚合体 Polymer

来源 Source

Entity 11 polymer

聚合体 Polymer

来源 Source

Entity 12 polymer

聚合体 Polymer

来源 Source

Entity 13 polymer

聚合体 Polymer

来源 Source

Entity 14 polymer

聚合体 Polymer

来源 Source

Entity 15 polymer

聚合体 Polymer

来源 Source

Entity 16 polymer

聚合体 Polymer

来源 Source

Entity 17 polymer

聚合体 Polymer

来源 Source

Entity 18 polymer

聚合体 Polymer

来源 Source

Entity 19 polymer

聚合体 Polymer

来源 Source

Entity 20 polymer

聚合体 Polymer

来源 Source

Entity 21 polymer

聚合体 Polymer

来源 Source

Entity 22 polymer

聚合体 Polymer

来源 Source

Entity 23 polymer

聚合体 Polymer

来源 Source
