9byb

Cryo-EM structure of the magnesium transporter MgtA in the E2 conformation with bound lipids and Mg2+

Method: ELECTRON MICROSCOPY D_max: 200.9 Å Quality: SUSPICIOUS

SAXS 散射曲线 SAXS Profile

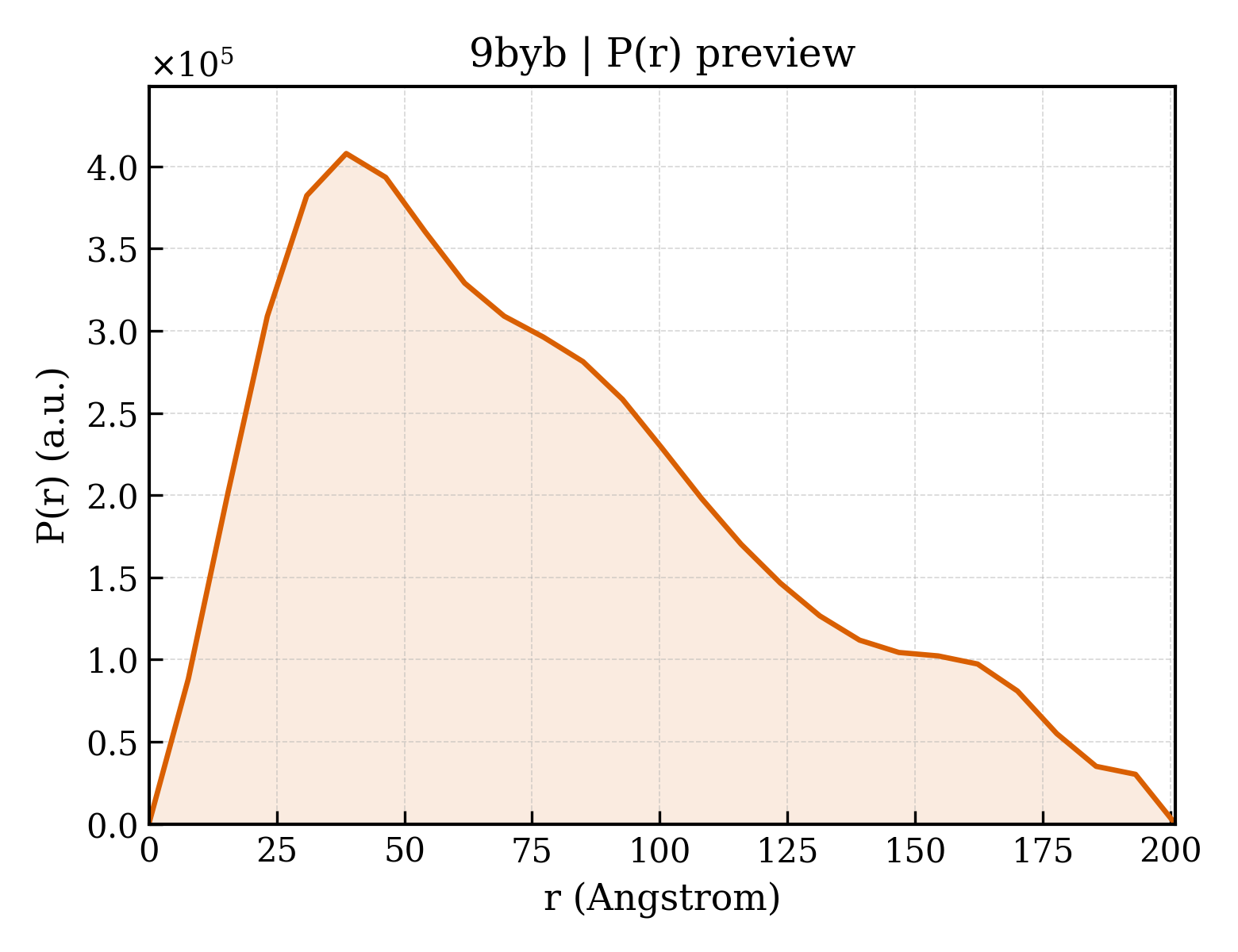

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9byb
沉积日期 deposition_date	2024-05-23
结构标题 title	Cryo-EM structure of the magnesium transporter MgtA in the E2 conformation with bound lipids and Mg2+
关键词 keywords	P-type ATPase, METAL TRANSPORT; METAL TRANSPORT
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	60.47 Å
回转半径 Rg (电子) rg_electron	60.81 Å
零角强度 I(0) i0	495286000.00
分子量 molecular_weight	194790.0 kDa
排除体积 excluded_volume	248350 Å³
包络体积 envelope_volume	355260 Å³
水化壳体积 shell_volume	57764 Å³
包络直径 envelope_diameter	225.1 Å
壳层 Rg shell_rg	47.25 Å
包络 Rg envelope_rg	61.47 Å
形状 Rg shape_rg	60.81 Å
总 Rg total_rg	60.31 Å
总原子数 total_atoms	13664
残基数 n_residues	1764
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	200.9 Å
Rg (实空间) rg_real	61.82 Å
Rg 误差 (实空间) rg_real_error	2.24 Å
I(0) (实空间) i0_real	4.9530e+08
I(0) 误差 (实空间) i0_real_error	9.8040e+06
Rg (倒空间) rg_reciprocal	59.29 Å
I(0) (倒空间) i0_reciprocal	493300000.0000
解质量估计 total_estimate	0.4996
解质量评级 solution_quality	SUSPICIOUS a SUSPICIOUS solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	38.6 Å
偏度 Skewness skewness	0.642
峰度 Kurtosis kurtosis	-0.384
角度范围 angular_range	— – 0.1300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	16170000.0000
实空间数据点数 n_real_points	27
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.590; Stabil: 1.000; Sysdev: 0.025; Positv: 1.000; Valcen: 0.622; Smooth: 0.026

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Magnesium-transporting ATPase, P-type 1
分子量 formula_weight	99350.3 kDa
EC 编号 ec_number	7.2.2.14
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	13664

MHHHHHHHHLEDNNEINARLEFAKTSTKEELFQKFKTSNKGLSEEQVEISREQYGDNTITRGKKSSLIKRLYQAFINPFTIILFVLALVSAFTDIILAAPGEKNPQGLIIITTMVLISGILRFVQETRSGNAAENLLKMITTTTNVHRLESGSQEIPIEEVLVGDIIHLSAGDMVPADLRIIQAKDLFISQASLTGESEPVEKLDLATAAAAASITESVNLAFMGSNVISGSAYGVVIATGDATIFGEMAKSVTEDSTKTTFEKGVNSVSWVLIRFMLVMVPFVLLINGFTKGDWMEAALFALAVAVGLTPEMLPMIVTTCLAKGAVTMSKEKTIIKNLNSIQNLGSMNILCTDKTGTLTQDKVVLMRHLDIHGQENIRVLRHGFLNSYYQTGLKNLMDLAIIEGAEAKQDKNPELGGLSSKYTKVDEIPFDFERRRMSVVVKSNTNGATSKTQMITKGAAEEMLDICTLVEDKGNVVHLTPELRAYILKKVDELNEEGMRVILVAQKTNPSPIDTFSVQDESEMVLMGYLAFLDPPKESTAKAIKALNKYGVSVKILTGDNDKVTRSVCKQVGLPVDKTILGSDIDQLDDNELAAVAAAASVFAKLSPQQKARIVTTLRNSGNSVGYMGDGINDAAAMKSSDVGISVDSAVDIAKESADVILLEKDLMVLEKGIIEGRKTYANMIKYIKMTASSNFGNMFSVLIASAFLPFIPMLSIHILLLNLIYDFSCTAIPWDNVDEEYLVVPRKWDASSVSKFMLWIGPTSSVFDITTYLLMFFVICPATFGPFSSLVPGSVAYIGFIALFHTGWFVESMWTQTLVIHMIRTPKIPFLQSRASAPLTILTFMGIIGLTIIPFTSFGHSIGLMALPINFFPWLILTVVMYMMLVTIFKKIFVSKYGELL

来源 Source

来源生物 organism	Lactococcus lactis subsp. lactis CV56
NCBI 分类编号 ncbi_taxonomy_id	929102
宿主生物 host_organism	Escherichia coli O103:H2 str. 12009

Entity 2 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	CARDIOLIPIN
分子量 formula_weight	1464.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.29 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	172000
