9cm1

Novel designed icosahedral nanoparticle I3-D12

Method: ELECTRON MICROSCOPY
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Phosphosulfolactate synthase

Escherichia coli

UniProt Q57703

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein homooligomer Homooligomer Protein 60 No other associated polymer Consistent with protein count

Other States of the Same Protein in the Database

Monomer

None

Homodimer

None

Homotetramer

None

Other homooligomers
1qwg 9cm1

2 assemblies

Heteromeric or nucleic-acid complex

None

View Construct and Data Evidence
UniProt name PSLS_METJA
Isoform —
PDB entities 1
Chains and sequence ranges Author chain 0； PDBConstruct 1–251； UniProt 1–251 Author chain 1； PDBConstruct 1–251； UniProt 1–251 Author chain 2； PDBConstruct 1–251； UniProt 1–251 Author chain 3； PDBConstruct 1–251； UniProt 1–251 Author chain 4； PDBConstruct 1–251； UniProt 1–251 Author chain 5； PDBConstruct 1–251； UniProt 1–251 Author chain 6； PDBConstruct 1–251； UniProt 1–251 Author chain 7； PDBConstruct 1–251； UniProt 1–251 Author chain 8； PDBConstruct 1–251； UniProt 1–251 Author chain 9； PDBConstruct 1–251； UniProt 1–251 Author chain A； PDBConstruct 1–251； UniProt 1–251 Author chain B； PDBConstruct 1–251； UniProt 1–251 Author chain C； PDBConstruct 1–251； UniProt 1–251 Author chain D； PDBConstruct 1–251； UniProt 1–251 Author chain E； PDBConstruct 1–251； UniProt 1–251 Author chain F； PDBConstruct 1–251； UniProt 1–251 Author chain G； PDBConstruct 1–251； UniProt 1–251 Author chain H； PDBConstruct 1–251； UniProt 1–251 Author chain I； PDBConstruct 1–251； UniProt 1–251 Author chain J； PDBConstruct 1–251； UniProt 1–251 Author chain K； PDBConstruct 1–251； UniProt 1–251 Author chain L； PDBConstruct 1–251； UniProt 1–251 Author chain M； PDBConstruct 1–251； UniProt 1–251 Author chain N； PDBConstruct 1–251； UniProt 1–251 Author chain O； PDBConstruct 1–251； UniProt 1–251 Author chain P； PDBConstruct 1–251； UniProt 1–251 Author chain Q； PDBConstruct 1–251； UniProt 1–251 Author chain R； PDBConstruct 1–251； UniProt 1–251 Author chain S； PDBConstruct 1–251； UniProt 1–251 Author chain T； PDBConstruct 1–251； UniProt 1–251 Author chain U； PDBConstruct 1–251； UniProt 1–251 Author chain V； PDBConstruct 1–251； UniProt 1–251 Author chain W； PDBConstruct 1–251； UniProt 1–251 Author chain X； PDBConstruct 1–251； UniProt 1–251 Author chain Y； PDBConstruct 1–251； UniProt 1–251 Author chain Z； PDBConstruct 1–251； UniProt 1–251 Author chain c； PDBConstruct 1–251； UniProt 1–251 Author chain d； PDBConstruct 1–251； UniProt 1–251 Author chain e； PDBConstruct 1–251； UniProt 1–251 Author chain f； PDBConstruct 1–251； UniProt 1–251 Author chain g； PDBConstruct 1–251； UniProt 1–251 Author chain h； PDBConstruct 1–251； UniProt 1–251 Author chain i； PDBConstruct 1–251； UniProt 1–251 Author chain j； PDBConstruct 1–251； UniProt 1–251 Author chain k； PDBConstruct 1–251； UniProt 1–251 Author chain l； PDBConstruct 1–251； UniProt 1–251 Author chain m； PDBConstruct 1–251； UniProt 1–251 Author chain n； PDBConstruct 1–251； UniProt 1–251 Author chain o； PDBConstruct 1–251； UniProt 1–251 Author chain p； PDBConstruct 1–251； UniProt 1–251 Author chain q； PDBConstruct 1–251； UniProt 1–251 Author chain r； PDBConstruct 1–251； UniProt 1–251 Author chain s； PDBConstruct 1–251； UniProt 1–251 Author chain t； PDBConstruct 1–251； UniProt 1–251 Author chain u； PDBConstruct 1–251； UniProt 1–251 Author chain v； PDBConstruct 1–251； UniProt 1–251 Author chain w； PDBConstruct 1–251； UniProt 1–251 Author chain x； PDBConstruct 1–251； UniProt 1–251 Author chain y； PDBConstruct 1–251； UniProt 1–251 Author chain z； PDBConstruct 1–251； UniProt 1–251

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id9cm1
Deposition date deposition_date2024-07-12
Structure title titleNovel designed icosahedral nanoparticle I3-D12
Keywords keywordsThermophile, nanoparticle, icosahedron, dehydratase, VIRUS LIKE PARTICLE; VIRUS LIKE PARTICLE
Experimental Method methodELECTRON MICROSCOPY
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9cm1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

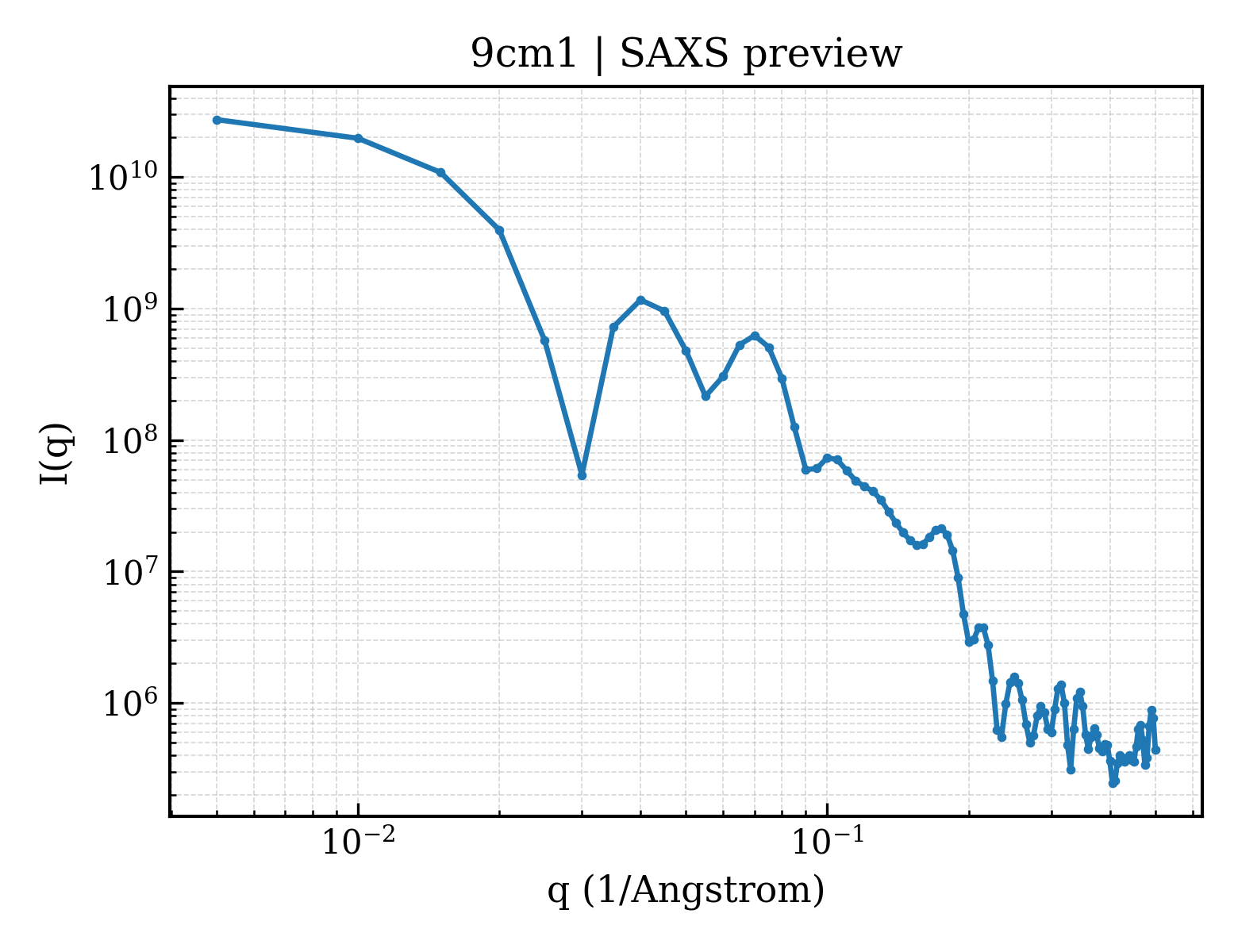

9cm1__assembly_1__model_1 | I(q)

10-2 10-1 106 107 108 109 1010 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

9cm1__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）0.00 Å
Rg (electron density)111.10 Å
Total Rg111.30 Å
Atom count225120
Residues14220
Excluded volume2028000 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 9cm1__assembly_1__model_1 60-meric （60） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▶

7. Citations (1)
