LJF-085 Fab in complex with HIV Env JRFL NFL TD CC3+ trimer and 35O22 Fab

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HIV Env JRFL NFL TD CC3+ gp140

Human immunodeficiency virus 1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 13 其他Polymer 10	35O22 heavy chain Fv × 3 35O22 light chain Fv × 3 LJF-085 heavy chain Fv × 2 LJF-085 light chain Fv × 2 ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 3 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 4 ;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 ;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 ;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 36	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q75760_9HIV1
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain A； PDBConstruct 1–632； UniProt 30–655 Author chain B； PDBConstruct 1–632； UniProt 30–655 Author chain C； PDBConstruct 1–632； UniProt 30–655

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9cu5
Deposition date deposition_date	2024-07-25
Structure title title	LJF-085 Fab in complex with HIV Env JRFL NFL TD CC3+ trimer and 35O22 Fab
Keywords keywords	NHP, rhesus macaque, gp120 interface, HIV, NFL, neutralizing antibody, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9cu5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9cu5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

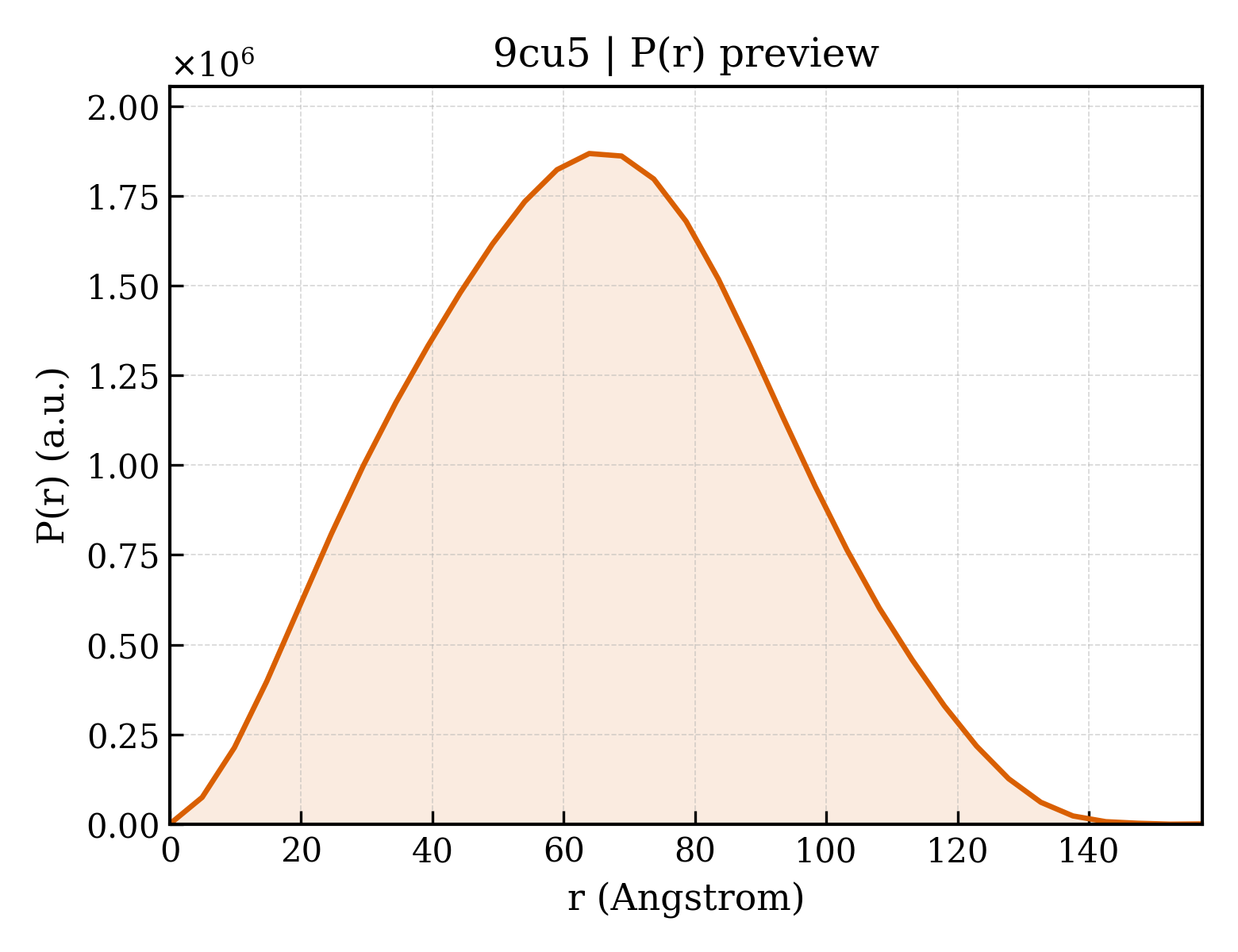

9cu5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	49.90 Å
Rg (electron density)	49.31 Å
Total Rg	49.50 Å
Atom count	23538
Residues	2860
Excluded volume	417690 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9cu5__assembly_1__model_1`	tridecameric （13）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Description description	35O22 heavy chain Fv
Molecular weight formula_weight	14543.4 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,F,J
Atom count atom_count	23538

QGQLVQSGAELKKPGASVKISCKTSGYRFNFYHINWIRQTAGRGPEWMGWISPYSGDKNLAPAFQDRVIMTTDTEVPVTSFTSTGAAYMEIRNLKFDDTGTYFCAKGLLRDGSSTWLPYLWGQGTLLTVSS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	35O22 light chain Fv
Molecular weight formula_weight	12400.7 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,G,K

QSVLTQSASVSGSLGQSVTISCTGPNSVCCSHKSISWYQWPPGRAPTLIIYEDNERAPGISPRFSGYKSYWSAYLTISDLRPEDETTYYCCSYTHNSGCVFGTGTKVSVLGQSK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	LJF-085 heavy chain Fv
Molecular weight formula_weight	13593.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,I

QVQLQESGPGLVKPSETLSLTCTVSGGSIDDYFWNWVRQPPGKPLECIGYIFGRGGGTKYNPSLDNRVTISTDTPNQFSLKLRSVTVADTAIYYCARWNLYDDDFGYNSFAVWGRGVLVTVSS

Source Source

Source organism organism	Macaca mulatta
NCBI taxonomy ID ncbi_taxonomy_id	9544
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	LJF-085 light chain Fv
Molecular weight formula_weight	11850.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,M

DIQMTQSPSSLSASVGDTVTITCQARHAVGKNLNWYQQKPGRGPQLLIYMASSRHSGVPSRFRGSGSGREFTLTINNLQPEDFATYSCQQGYTYPWTFGQGTKVEMK

Source Source

Source organism organism	Macaca mulatta
NCBI taxonomy ID ncbi_taxonomy_id	9544
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	HIV Env JRFL NFL TD CC3+ gp140
Molecular weight formula_weight	72573.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,B,A

VEKLWVTVYYGVPVWKDAETTLFCASDAKAYDTEKHNVWATHACVPTDPNPQEVVLENVTEHFNMWKNNMVEQMQTDIISLWDQSLKPCVKLTPLCVTLNCKDVNATNTTNDSEGTMERGEIKNCSFNITTELRDKVQKVYALFYKLDVVPIDNNNTSYRLISCDTSVITQACPKISFEPIPIHYCAPAGFAILKCNDKTFNGKGPCKNVSTVQCTHGIRPVVSTQLLLNGSLAEEEVVIRSDNFTNNAKTIIVQLKESVEINCTRPNNYTRKSIRIGPGRAFYTMGEIIGDIRQAHCNISRAKWNDTLKQIVIKLREQFENKTIVFNHSSGGDPEIVMHSFNCGGEFFYCNSTQLFNSTWNNNTEGSNNTEGNTITLPCRIKQIINMWQRVGQAMYAPPIRGQIRCSSNITGLLLTRDGGINENGTEIFRPGGGDMRDNWRSELYKYKVVKIEPLGVAPTRCKRRVVQGGGGSGGGGSAVGIGAVRRGFLGAAGSTMGAASMTLTVQARNLLSGIVQPQSNLLRAPEAQQRMLQLGVWGIKQLQARVLAVERYLRDQQLLGIWGCSGKLICTTAVPWNASWSNKSLDRIWNNMTWMEWEREIDNYTSEIYTLIEESQNQQEKNEQELLCLDGGGGSHHHHHHHHGSGC

Source Source

Source organism organism	Human immunodeficiency virus 1
NCBI taxonomy ID ncbi_taxonomy_id	11676
Host organism host_organism	Homo sapiens

Entity 6 Entity 6 branched

Description description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	910.8 kDa
Source method src_method	man
Copy count entity_count	3

Entity 7 Entity 7 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	4

Entity 8 Entity 8 branched

Description description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	910.8 kDa
Source method src_method	man
Copy count entity_count	1

Entity 9 Entity 9 branched

Description description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	1721.5 kDa
Source method src_method	man
Copy count entity_count	1

Entity 10 Entity 10 branched

Description description	;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	748.7 kDa
Source method src_method	man
Copy count entity_count	1

Entity 11 Entity 11 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	36

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.40 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	64443
