1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein mono-ADP-ribosyltransferase PARP4

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–100	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；2M ammonium sulfate, 0.15M Citric Acid pH3.5	Resolution 1.75 Å R-free 0.188

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9DEV	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
11JF RNA Vault bound to PARP4 MINT, focused refinement (MVP/PARP4/TEP1 NADP sample) Deposited 2026-02-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain P 1–1724（1724 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8；50 Tris 8.0, 75 mM NaCl, 1.5 mM MgCl2, 1 mM DTT, 1 mM NADP, 0.025% DDM cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.85 Å
8SWY PARP4 ART domain bound to NADH Deposited 2023-05-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 242–282（41 aa） Chain A 365–573（209 aa）	Not recorded	NAI 1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；21% PEG3350, 0.2M sodium citrate tribasic dihydrate, 1% ethylene glycol, 800uM NADH	Resolution 2.55 Å R-free 0.254
8SWY PARP4 ART domain bound to NADH Deposited 2023-05-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 242–282（41 aa） Chain B 365–573（209 aa）	Not recorded	NAI 1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；21% PEG3350, 0.2M sodium citrate tribasic dihydrate, 1% ethylene glycol, 800uM NADH	Resolution 2.55 Å R-free 0.254
8SWY PARP4 ART domain bound to NADH Deposited 2023-05-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 242–282（41 aa） Chain C 365–573（209 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；21% PEG3350, 0.2M sodium citrate tribasic dihydrate, 1% ethylene glycol, 800uM NADH	Resolution 2.55 Å R-free 0.254
8SWZ PARP4 ART domain bound to EB47 Deposited 2023-05-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 242–282（41 aa） Chain A 365–573（209 aa）	Not recorded	GOL GLYCEROL × 1 UHB 2-[4-[(2S,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]carbonylpiperazin-1-yl]-N-(1-oxidanylidene-2,3-dihydroisoindol-4-yl)ethanamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG3350, 0.2M sodium citrate tribasic dihydrate, 800uM EB47	Resolution 3.00 Å R-free 0.248
8SWZ PARP4 ART domain bound to EB47 Deposited 2023-05-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 242–282（41 aa） Chain B 365–573（209 aa）	Not recorded	GOL GLYCEROL × 1 UHB 2-[4-[(2S,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]carbonylpiperazin-1-yl]-N-(1-oxidanylidene-2,3-dihydroisoindol-4-yl)ethanamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG3350, 0.2M sodium citrate tribasic dihydrate, 800uM EB47	Resolution 3.00 Å R-free 0.248
8SWZ PARP4 ART domain bound to EB47 Deposited 2023-05-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 242–282（41 aa） Chain C 365–573（209 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG3350, 0.2M sodium citrate tribasic dihydrate, 800uM EB47	Resolution 3.00 Å R-free 0.248
8SX1 PARP4 catalytic domain Deposited 2023-05-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 242–573（332 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；23% PEG3350 and 0.1 M Bis-Tris pH 6.5	Resolution 4.20 Å R-free 0.331
8SX1 PARP4 catalytic domain Deposited 2023-05-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 242–573（332 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；23% PEG3350 and 0.1 M Bis-Tris pH 6.5	Resolution 4.20 Å R-free 0.331
8SX1 PARP4 catalytic domain Deposited 2023-05-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 242–573（332 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；23% PEG3350 and 0.1 M Bis-Tris pH 6.5	Resolution 4.20 Å R-free 0.331
8SX1 PARP4 catalytic domain Deposited 2023-05-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 242–573（332 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；23% PEG3350 and 0.1 M Bis-Tris pH 6.5	Resolution 4.20 Å R-free 0.331
8SX1 PARP4 catalytic domain Deposited 2023-05-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 242–573（332 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；23% PEG3350 and 0.1 M Bis-Tris pH 6.5	Resolution 4.20 Å R-free 0.331
8SX1 PARP4 catalytic domain Deposited 2023-05-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain F 242–573（332 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；23% PEG3350 and 0.1 M Bis-Tris pH 6.5	Resolution 4.20 Å R-free 0.331
8SX1 PARP4 catalytic domain Deposited 2023-05-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain G 242–573（332 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；23% PEG3350 and 0.1 M Bis-Tris pH 6.5	Resolution 4.20 Å R-free 0.331
8SX1 PARP4 catalytic domain Deposited 2023-05-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain H 242–573（332 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；23% PEG3350 and 0.1 M Bis-Tris pH 6.5	Resolution 4.20 Å R-free 0.331
8SX2 PARP4 catalytic domain bound to EB47 Deposited 2023-05-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 242–573（332 aa）	Not recorded	UHB 2-[4-[(2S,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]carbonylpiperazin-1-yl]-N-(1-oxidanylidene-2,3-dihydroisoindol-4-yl)ethanamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；23% PEG3350, 0.1 M Bis-Tris pH 6.5, 0.2 M MgCl2, and 600 uM EB47	Resolution 2.95 Å R-free 0.262
8SX2 PARP4 catalytic domain bound to EB47 Deposited 2023-05-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 242–573（332 aa）	Not recorded	UHB 2-[4-[(2S,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]carbonylpiperazin-1-yl]-N-(1-oxidanylidene-2,3-dihydroisoindol-4-yl)ethanamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；23% PEG3350, 0.1 M Bis-Tris pH 6.5, 0.2 M MgCl2, and 600 uM EB47	Resolution 2.95 Å R-free 0.262
9BW6 Human Vault Cage in complex with PARP4 Deposited 2024-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 156 PDB declaration: 156-meric	Chain B 1–1724（1724 aa） Chain D 1–1724（1724 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8；50 mM HEPES, 5 mM MgCl2, 5 mM CaCl2, 0.25 mM DTT cryo-EM vitrification conditions Cryogen ETHANE；Vitrification carried out under standard conditions	Resolution 2.90 Å
9BW6 Human Vault Cage in complex with PARP4 Deposited 2024-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–1724（1724 aa） Chain D 1–1724（1724 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8；50 mM HEPES, 5 mM MgCl2, 5 mM CaCl2, 0.25 mM DTT cryo-EM vitrification conditions Cryogen ETHANE；Vitrification carried out under standard conditions	Resolution 2.90 Å
9BW7 Human Vault Cage in complex with PARP4 and NAD+ Deposited 2024-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 156 PDB declaration: 156-meric	Chain B 1–1724（1724 aa） Chain D 1–1724（1724 aa）	Not recorded	NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 78	ELECTRON MICROSCOPY cryo-EM buffer pH 8；50 mM HEPES, 5 mM MgCl2, 5 mM CaCl2, 0.25 mM DTT cryo-EM vitrification conditions Cryogen ETHANE；Vitrification carried out under standard conditions	Resolution 2.90 Å
9BW7 Human Vault Cage in complex with PARP4 and NAD+ Deposited 2024-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–1724（1724 aa） Chain D 1–1724（1724 aa）	Not recorded	NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8；50 mM HEPES, 5 mM MgCl2, 5 mM CaCl2, 0.25 mM DTT cryo-EM vitrification conditions Cryogen ETHANE；Vitrification carried out under standard conditions	Resolution 2.90 Å
9DFO PARP4 BRCT domain K31Q mutant Deposited 2024-08-30	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–100（100 aa）	Mutation：K31Q	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；31% PEG3350, 0.2M ammonium sulfate and 0.1M sodium acetate pH 4.6	Resolution 1.90 Å R-free 0.208
9DFP PARP4 BRCT domain K23/24Q mutant Deposited 2024-08-30	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–100（100 aa）	Mutation：K23Q,K24Q	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；27% PEG3350, 0.2M ammonium sulfate and 0.1M sodium acetate pH 4.6	Resolution 1.92 Å R-free 0.219
9DFQ PARP4 BRCT domain F39Q mutant Deposited 2024-08-30	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–100（100 aa）	Mutation：F39Q	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；2 M ammonium sulfate and 0.1 M sodium acetate pH 4.6	Resolution 2.10 Å R-free 0.230
9DFR PARP4 BRCT domain F39A mutant Deposited 2024-08-30	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–100（100 aa）	Mutation：F39A	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；27% PEG3350, 0.2M ammonium sulfate and 0.1M sodium acetate pH 4.6	Resolution 1.90 Å R-free 0.218

11 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PARP4_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–100； UniProt 1–100

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9dev
Deposition date deposition_date	2024-08-29
Structure title title	PARP4 BRCT domain
Keywords keywords	PARP family, ADP-ribosyltransferase, marylation, vault, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.37 Å
Radius of gyration Rg (electron density) rg_electron	12.91 Å
Forward intensity I(0) i0	2588320.00
Molecular weight molecular_weight	11417.0 kDa
Excluded volume excluded_volume	14447 Å³
Envelope volume envelope_volume	16140 Å³
Hydration-shell volume shell_volume	10725 Å³
Envelope diameter envelope_diameter	45.1 Å
Shell Rg shell_rg	18.51 Å
Envelope Rg envelope_rg	13.23 Å
Shape Rg shape_rg	12.87 Å
Total Rg total_rg	14.35 Å
Total atoms total_atoms	804
Residues n_residues	97
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

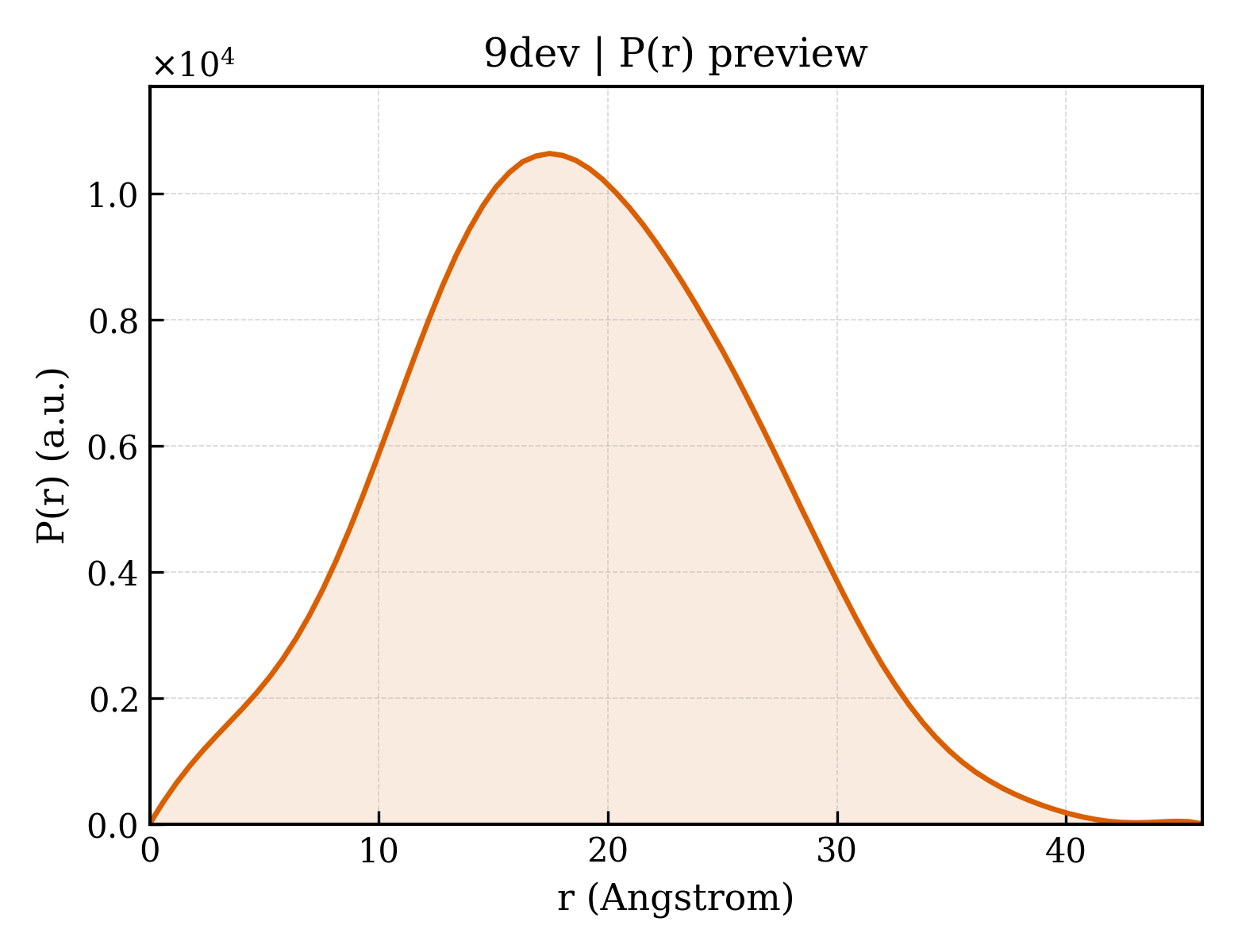

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	45.9 Å
Rg (real space) rg_real	14.28 Å
Rg uncertainty (real space) rg_real_error	0.21 Å
I(0) (real space) i0_real	2.5880e+06
I(0) uncertainty (real space) i0_real_error	2.7760e+04
Rg (reciprocal space) rg_reciprocal	14.29 Å
I(0) (reciprocal space) i0_reciprocal	2588000.0000
Solution quality estimate total_estimate	0.8836
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	17.4 Å
Skewness Skewness skewness	0.125
Kurtosis Kurtosis kurtosis	-0.323
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	474000.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.832; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.995

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Protein mono-ADP-ribosyltransferase PARP4
Molecular weight formula_weight	11711.7 kDa
EC 编号 ec_number	2.4.2.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	918

MVMGIFANCIFCLKVKYLPQQQKKKLQTDIKENGGKFSFSLNPQCTHIILDNADVLSQYQLNSIQKNHVHIANPDFIWKSIREKRLLDVKNYDPYKPLDI

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	81

▶

8. Citations (1)

▶

Unit-cell length a length_a	114.428 Å
Unit-cell length b length_b	114.428 Å
Unit-cell length c length_c	114.428 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	F 2 3
Space-group number int_tables_number	196
Crystal system crystal_system	—

Resolution resolution	1.750 Å
Low-resolution limit resolution_low	19.350 Å
R factor r_factor	0.1753
R_work r_work	0.1746
R_free r_free	0.1876

fit	/app/data/saxs_computation/de/9dev/9dev.fit
pddf	/app/data/pr_computation/de/9dev/9dev.pr.out
profile	/app/data/saxs_computation/de/9dev/9dev.dat
