SAXSdb — 11jf

▼

1. Structure Basics

entry_id	11jf
deposition_date	2026-02-26
title	RNA Vault bound to PARP4 MINT, focused refinement (MVP/PARP4/TEP1 NADP sample)
keywords	RNA Vault, complex, TEP1, PARP4, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	32.89 Å
rg_electron	32.41 Å
i0	93617000.00
molecular_weight	78042.0 kDa
excluded_volume	98394 Å³
envelope_volume	129200 Å³
shell_volume	35030 Å³
envelope_diameter	114.8 Å
shell_rg	37.03 Å
envelope_rg	32.24 Å
shape_rg	32.42 Å
total_rg	32.78 Å
total_atoms	11066
n_residues	683
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	111.8 Å
rg_real	33.05 Å
rg_real_error	0.94 Å
i0_real	9.3620e+07
i0_real_error	1.4510e+06
rg_reciprocal	32.98 Å
i0_reciprocal	93610000.0000
total_estimate	0.8726
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	37.3 Å
skewness	0.445
kurtosis	-0.277
angular_range	— – 0.2400 Å⁻¹
current_alpha	0.0000
highest_alpha	10550000.0000
n_real_points	49
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.842; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.936; Smooth: 0.878

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Major vault protein
formula_weight	99452.8 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	11271

MATEEFIIRIPPYHYIHVLDQNSNVSRVEVGPKTYIRQDNERVLFAPMRMVTVPPRHYCTVANPVSRDAQGLVLFDVTGQVRLRHADLEIRLAQDPFPLYPGEVLEKDITPLQVVLPNTALHLKALLDFEDKDGDKVVAGDEWLFEGPGTYIPRKEVEVVEIIQATIIRQNQALRLRARKECWDRDGKERVTGEEWLVTTVGAYLPAVFEEVLDLVDAVILTEKTALHLRARRNFRDFRGVSRRTGEEWLVTVQDTEAHVPDVHEEVLGVVPITTLGPHNYCVILDPVGPDGKNQLGQKRVVKGEKSFFLQPGEQLEQGIQDVYVLSEQQGLLLRALQPLEEGEDEEKVSHQAGDHWLIRGPLEYVPSAKVEVVEERQAIPLDENEGIYVQDVKTGKVRAVIGSTYMLTQDEVLWEKELPPGVEELLNKGQDPLADRGEKDTAKSLQPLAPRNKTRVVSYRVPHNAAVQVYDYREKRARVVFGPELVSLGPEEQFTVLSLSAGRPKRPHARRALCLLLGPDFFTDVITIETADHARLQLQLAYNWHFEVNDRKDPQETAKLFSVPDFVGDACKAIASRVRGAVASVTFDDFHKNSARIIRTAVFGFETSEAKGPDGMALPRPRDQAVFPQNGLVVSSVDVQSVEPVDQRTRDALQRSVQLAIEITTNSQEAAAKHEAQRLEQEARGRLERQKILDQSEAEKARKELLELEALSMAVESTGTAKAEAESRAEAARIEGEGSVLQAKLKAQALAIETEAELQRVQKVRELELVYARAQLELEVSKAQQLAEVEVKKFKQMTEAIGPSTIRDLAVAGPEMQVKLLQSLGLKSTLITDGSTPINLFNTAFGLLGMGPEGQPLGRRVASGPSPGEGISPQSAQAPQAPGDNHVVPVLR

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	Protein mono-ADP-ribosyltransferase PARP4
formula_weight	192810.2 kDa
ec_number	2.4.2.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	P

MVMGIFANCIFCLKVKYLPQQQKKKLQTDIKENGGKFSFSLNPQCTHIILDNADVLSQYQLNSIQKNHVHIANPDFIWKSIREKRLLDVKNYDPYKPLDITPPPDQKASSSEVKTEGLCPDSATEEEDTVELTEFGMQNVEIPHLPQDFEVAKYNTLEKVGMEGGQEAVVVELQCSRDSRDCPFLISSHFLLDDGMETRRQFAIKKTSEDASEYFENYIEELKKQGFLLREHFTPEATQLASEQLQALLLEEVMNSSTLSQEVSDLVEMIWAEALGHLEHMLLKPVNRISLNDVSKAEGILLLVKAALKNGETAEQLQKMMTEFYRLIPHKGTMPKEVNLGLLAKKADLCQLIRDMVNVCETNLSKPNPPSLAKYRALRCKIEHVEQNTEEFLRVRKEVLQNHHSKSPVDVLQIFRVGRVNETTEFLSKLGNVRPLLHGSPVQNIVGILCRGLLLPKVVEDRGVQRTDVGNLGSGIYFSDSLSTSIKYSHPGETDGTRLLLICDVALGKCMDLHEKDFSLTEAPPGYDSVHGVSQTASVTTDFEDDEFVVYKTNQVKMKYIIKFSMPGDQIKDFHPSDHTELEEYRPEFSNFSKVEDYQLPDAKTSSSTKAGLQDASGNLVPLEDVHIKGRIIDTVAQVIVFQTYTNKSHVPIEAKYIFPLDDKAAVCGFEAFINGKHIVGEIKEKEEAQQEYLEAVTQGHGAYLMSQDAPDVFTVSVGNLPPKAKVLIKITYITELSILGTVGVFFMPATVAPWQQDKALNENLQDTVEKICIKEIGTKQSFSLTMSIEMPYVIEFIFSDTHELKQKRTDCKAVISTMEGSSLDSSGFSLHIGLSAAYLPRMWVEKHPEKESEACMLVFQPDLDVDLPDLASESEVIICLDCSSSMEGVTFLQAKQIALHALSLVGEKQKVNIIQFGTGYKELFSYPKHITSNTMAAEFIMSATPTMGNTDFWKTLRYLSLLYPARGSRNILLVSDGHLQDESLTLQLVKRSRPHTRLFACGIGSTANRHVLRILSQCGAGVFEYFNAKSKHSWRKQIEDQMTRLCSPSCHSVSVKWQQLNPDVPEALQAPAQVPSLFLNDRLLVYGFIPHCTQATLCALIQEKEFRTMVSTTELQKTTGTMIHKLAARALIRDYEDGILHENETSHEMKKQTLKSLIIKLSKENSLITQFTSFVAVEKRDENESPFPDIPKVSELIAKEDVDFLPYMSWQGEPQEAVRNQSLLASSEWPELRLSKRKHRKIPFSKRKMELSQPEVSEDFEEDGLGVLPAFTSNLERGGVEKLLDLSWTESCKPTATEPLFKKVSPWETSTSSFFPILAPAVGSYLPPTARAHSPASLSFASYRQVASFGSAAPPRQFDASQFSQGPVPGTCADWIPQSASCPTGPPQNPPSSPYCGIVFSGSSLSSAQSAPLQHPGGFTTRPSAGTFPELDSPQLHFSLPTDPDPIRGFGSYHPSASSPFHFQPSAASLTANLRLPMASALPEALCSQSRTTPVDLCLLEESVGSLEGSRCPVFAFQSSDTESDELSEVLQDSCFLQIKCDTKDDSILCFLEVKEEDEIVCIQHWQDAVPWTELLSLQTEDGFWKLTPELGLILNLNTNGLHSFLKQKGIQSLGVKGRECLLDLIATMLVLQFIRTRLEKEGIVFKSLMKMDDASISRNIPWAFEAIKQASEWVRRTEGQYPSICPRLELGNDWDSATKQLLGLQPISTVSPLHRVLHYSQG

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	205

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	2.85 Å
resolution_method	—
num_particles	649317

fit	/app/data/saxs_computation/1j/11jf/11jf.fit
pddf	/app/data/pr_computation/1j/11jf/11jf.pr.out
profile	/app/data/saxs_computation/1j/11jf/11jf.dat

RNA Vault bound to PARP4 MINT, focused refinement (MVP/PARP4/TEP1 NADP sample)

SAXS Profile

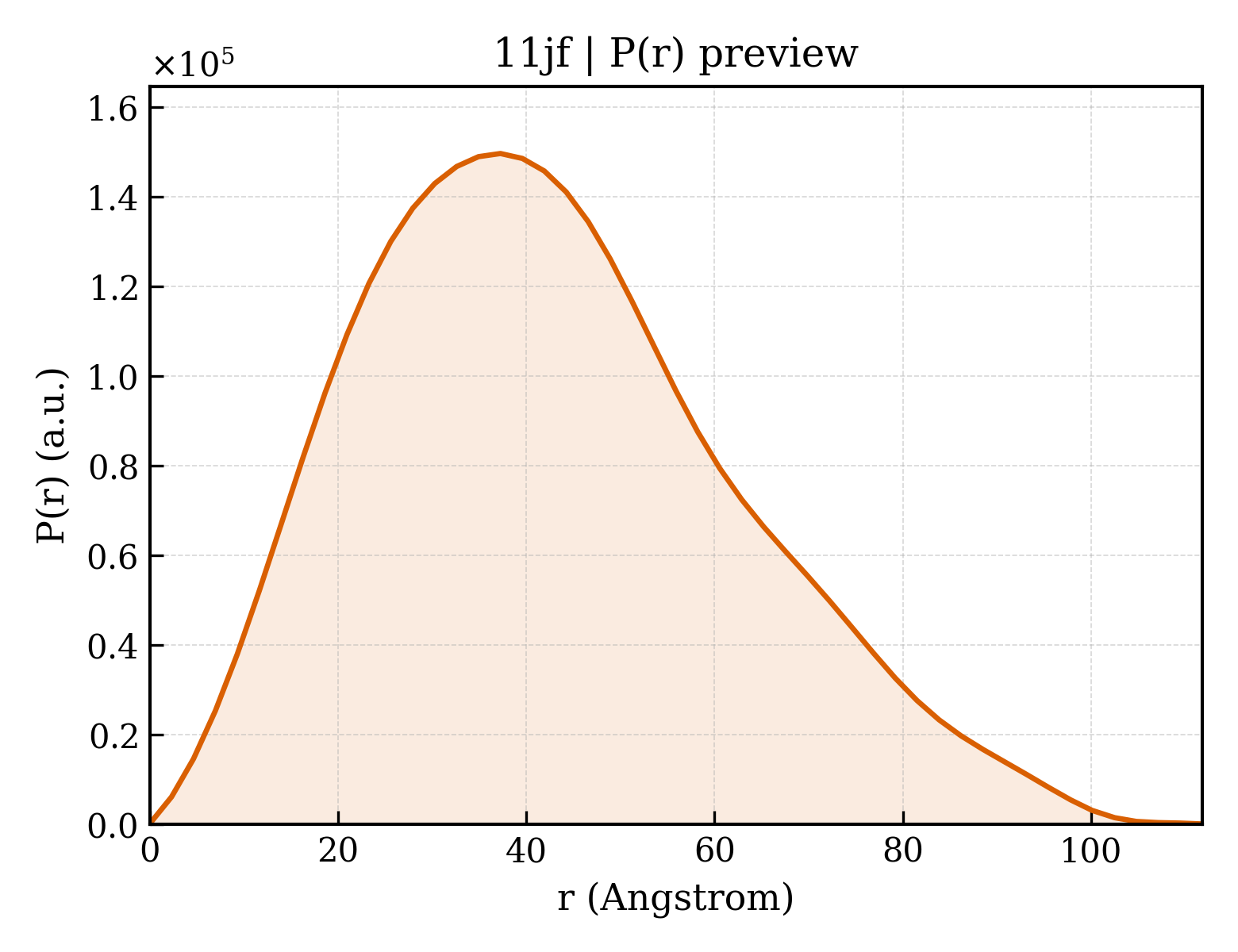

P(r) Distribution
