SAXSdb — 9dg2

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

3-hydroxy-3-methylglutaryl-coenzyme A reductase

;Pseudomonas sp. 'mevalonii' ;

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	COENZYME A × 1 (R)-MEVALONATE × 2 SULFATE ION × 1 NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MVAA_PSEMV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–428； UniProt 1–428 Author chain B； PDBConstruct 1–428； UniProt 1–428

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9dg2
Deposition date deposition_date	2024-09-01
Last revision last_revision	2026-03-18
Structure title title	PmHMGR bound to mevalonate, CoA, and NAD, buffer-exchanged to ammonium acetate environment at pH 6.7
Keywords keywords	Non-Rossmann fold, Homodimer, Reductase, HMG-CoA, STRUCTURAL PROTEIN, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9dg2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9dg2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

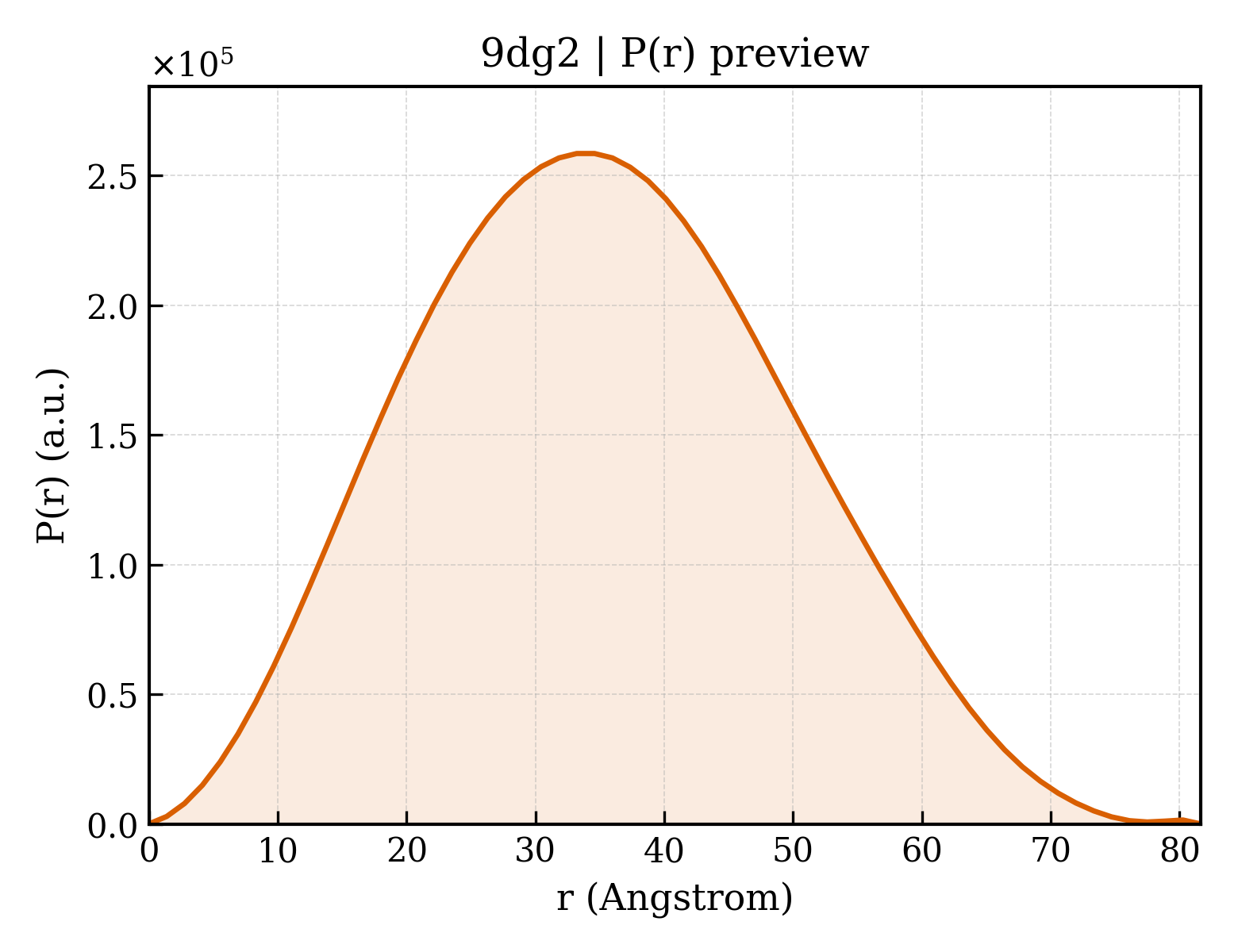

9dg2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.00 Å
Rg (electron density)	25.79 Å
Total Rg	26.60 Å
Atom count	5992
Residues	796
Excluded volume	106300 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9dg2__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	3-hydroxy-3-methylglutaryl-coenzyme A reductase
Molecular weight formula_weight	45641.2 kDa
EC 编号 ec_number	1.1.1.88
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6479

MSLDSRLPAFRNLSPAARLDHIGQLLGLSHDDVSLLANAGALPMDIANGMIENVIGTFELPYAVASNFQINGRDVLVPLVVEEPSIVAAASYMAKLARANGGFTTSSSAPLMHAQVQIVGIQDPLNARLSLLRRKDEIIELANRKDQLLNSLGGGCRDIEVHTFADTPRGPMLVAHLIVDVRDAMGANTVNTMAEAVAPLMEAITGGQVRLRILSNLADLRLARAQVRITPQQLETAEFSGEAVIEGILDAYAFAAVDPYRAATHNKGIMNGIDPLIVATGNDWRAVEAGAHAYACRSGHYGSLTTWEKDNNGHLVGTLEMPMPVGLVGGATKTHPLAQLSLRILGVKTAQALAEIAVAVGLAQNLGAMRALATEGIQRGHMALHARNIAVVAGARGDEVDWVARQLVEYHDVRADRAVALLKQKRGQ

Source Source

Source organism organism	;Pseudomonas sp. 'mevalonii' ;
NCBI taxonomy ID ncbi_taxonomy_id	32044
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	COENZYME A
Molecular weight formula_weight	767.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	(R)-MEVALONATE
Molecular weight formula_weight	147.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
Molecular weight formula_weight	663.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	448

▶

Unit-cell length a length_a	225.674 Å
Unit-cell length b length_b	225.674 Å
Unit-cell length c length_c	225.674 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	96

Space group space_group	I 41 3 2
Space-group number int_tables_number	214
Crystal system crystal_system	—

Resolution resolution	1.930 Å
Low-resolution limit resolution_low	48.110 Å
R factor r_factor	0.1801
R_work r_work	0.1781
R_free r_free	0.2173

PmHMGR bound to mevalonate, CoA, and NAD, buffer-exchanged to ammonium acetate environment at pH 6.7
