SAXSdb — 9dpq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Growth/differentiation factor 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 320–429	Mutation：A321S	GOL GLYCEROL × 4 CL CHLORIDE ION × 20 NA SODIUM ION × 12	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 3.5；289.15 K；1M NaCl, 3.5% PEG8K, 0.3M Sodium Citrate pH 3.5	Resolution 2.35 Å R-free 0.249

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9DPQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1ZKZ Crystal Structure of BMP9 Deposited 2005-05-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 320–429（110 aa） Fragment：Growth/differentiation factor 2, residues 320-429	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；296 K；1-1.2 M Sodium Chloride, 7-10 mM Hexadecyltrimethylammonium Bromide 10 mM Magnesium Chloride, pH 7.5, temperature 296K, VAPOR DIFFUSION, HANGING DROP	Resolution 2.33 Å R-free 0.272
4FAO Specificity and Structure of a high affinity Activin-like 1 (ALK1) signaling complex Deposited 2012-05-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 320–429（110 aa） Chain B 320–429（110 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；20% PEG 3350, 0.2 M sodium malonate, 0.1 M Bis-Tris propane, pH 6.5, vapor diffusion, temperature 293K	Resolution 3.36 Å R-free 0.261
4FAO Specificity and Structure of a high affinity Activin-like 1 (ALK1) signaling complex Deposited 2012-05-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain G 320–429（110 aa） Chain H 320–429（110 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；20% PEG 3350, 0.2 M sodium malonate, 0.1 M Bis-Tris propane, pH 6.5, vapor diffusion, temperature 293K	Resolution 3.36 Å R-free 0.261
4FAO Specificity and Structure of a high affinity Activin-like 1 (ALK1) signaling complex Deposited 2012-05-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain M 320–429（110 aa） Chain N 320–429（110 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；20% PEG 3350, 0.2 M sodium malonate, 0.1 M Bis-Tris propane, pH 6.5, vapor diffusion, temperature 293K	Resolution 3.36 Å R-free 0.261
4FAO Specificity and Structure of a high affinity Activin-like 1 (ALK1) signaling complex Deposited 2012-05-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain S 320–429（110 aa） Chain T 320–429（110 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；20% PEG 3350, 0.2 M sodium malonate, 0.1 M Bis-Tris propane, pH 6.5, vapor diffusion, temperature 293K	Resolution 3.36 Å R-free 0.261
4FAO Specificity and Structure of a high affinity Activin-like 1 (ALK1) signaling complex Deposited 2012-05-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain a 320–429（110 aa） Chain b 320–429（110 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；20% PEG 3350, 0.2 M sodium malonate, 0.1 M Bis-Tris propane, pH 6.5, vapor diffusion, temperature 293K	Resolution 3.36 Å R-free 0.261
4FAO Specificity and Structure of a high affinity Activin-like 1 (ALK1) signaling complex Deposited 2012-05-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain g 320–429（110 aa） Chain h 320–429（110 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；20% PEG 3350, 0.2 M sodium malonate, 0.1 M Bis-Tris propane, pH 6.5, vapor diffusion, temperature 293K	Resolution 3.36 Å R-free 0.261
4MPL Crystal structure of BMP9 at 1.90 Angstrom Deposited 2013-09-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 321–429（109 aa） Fragment：UNP residues 321-429	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；298 K；0.12M magnesium nitrate, 12% PEG3350, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.224
4YCG Pro-bone morphogenetic protein 9 Deposited 2015-02-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 320–429（110 aa） Chain D 320–429（110 aa）	Not recorded	ZN ZINC ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；277 K；0.15 M zinc acetate, 0.1 M sodium cacodylate pH 5.8, 4% isopropanol, 0.15 M nondetergent sulfobetaine (NDSB-211)	Resolution 3.30 Å R-free 0.230
4YCI non-latent pro-bone morphogenetic protein 9 Deposited 2015-02-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 320–429（110 aa） Chain D 320–429（110 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ZN ZINC ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；277 K；0.15 M zinc acetate, 0.1 M sodium cacodylate pH 5.8, 4% isopropanol, 0.15 M nondetergent sulfobetaine (NDSB-211)	Resolution 3.25 Å R-free 0.260
5HZW Crystal structure of the orphan region of human endoglin/CD105 in complex with BMP9 Deposited 2016-02-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 320–429（110 aa） Fragment：UNP residues 320-429	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；1.1 M AMMONIUM TARTRATE	Resolution 4.45 Å R-free 0.318
5I05 Crystal structure of human BMP9 at 1.87 A resolution Deposited 2016-02-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 320–429（110 aa） Fragment：UNP residues 320-429	Not recorded	GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 3.5；293 K；1.0 M LiCl, 4% (v/v) PEG6000, 0.1 M NA-CITRATE	Resolution 1.87 Å R-free 0.233
6SF2 Ternary complex of human bone morphogenetic protein 9 (BMP9) growth factor domain, its prodomain and extracellular domain of activin receptor-like kinase 1 (ALK1). Deposited 2019-07-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 320–429（110 aa） Chain C 23–319（297 aa） Chain E 320–429（110 aa） Chain F 23–319（297 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.14 M potassium sodium tartrate, 14% PEG 3350	Resolution 3.30 Å R-free 0.274
9DPM BMP-9 Monomer Growth Factor with Cysteinylation Deposited 2024-09-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 320–429（110 aa）	Mutation：A321S	CYS CYSTEINE × 1 NA SODIUM ION × 3 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289.15 K；0.9 M sodium chloride, 133 mM HEPES, 166 mM MES	Resolution 1.90 Å R-free 0.242
9DPN BMP-9 Wild-Type Dimer Without Radiation Damage in Neutral pH Deposited 2024-09-23	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 320–429（110 aa）	Mutation：A321S	GOL GLYCEROL × 2 CL CHLORIDE ION × 10 NA SODIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289.15 K；1M NaCl, 17% Glycerol, 0.1 M HEPEs pH 7.5	Resolution 2.24 Å R-free 0.206
9DPO BMP-9 Wild-Type Dimer With Radiation Damage in Neutral pH Deposited 2024-09-23	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 320–429（110 aa）	Mutation：A321S	CL CHLORIDE ION × 10 NA SODIUM ION × 8 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289.15 K；1M NaCl, 17% Glycerol, 0.1 M HEPEs pH 7.5	Resolution 2.34 Å R-free 0.245
9DPP BMP-9 Wild-Type Dimer in Acidic pH Deposited 2024-09-23	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 320–429（110 aa）	Mutation：A321S	GOL GLYCEROL × 4 CL CHLORIDE ION × 18 NA SODIUM ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 3.5；289.15 K；1M NaCl, 3.5% PEG8K, 0.3M Citrate pH 3.5	Resolution 2.12 Å R-free 0.258
9DPR BMP-9 Wild-Type Dimer with Radiation Damage in Acidic pH Deposited 2024-09-23	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 320–429（110 aa）	Mutation：A321S	GOL GLYCEROL × 2 CL CHLORIDE ION × 20 NA SODIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 3.5；289.15 K；1M NaCl, 3.5% PEG8K, 0.3M Sodium Citrate pH 3.5	Resolution 2.61 Å R-free 0.266
9DPS BMP-9 G389S Dimer Without Radiation Damage in Neutral pH Deposited 2024-09-23	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 320–429（110 aa）	Mutation：A321S, G389S	CL CHLORIDE ION × 12 NA SODIUM ION × 8 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289.15 K；1M NaCl, 22-26% glycerol, 0.1 M HEPES pH 7.5	Resolution 2.06 Å R-free 0.249
9DPT BMP-9 G389S Dimer With Radiation Damage in Neutral pH Deposited 2024-09-23	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 320–429（110 aa）	Mutation：A321S, G389S	CL CHLORIDE ION × 10 NA SODIUM ION × 8 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289.15 K；1M NaCl, 22-26% glycerol, 0.1 M HEPEs pH 7.5	Resolution 2.49 Å R-free 0.279
9DPU BMP-9 G389S Dimer in Acidic pH Deposited 2024-09-23	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 320–429（110 aa）	Mutation：A321S, G389S	CL CHLORIDE ION × 10 NA SODIUM ION × 2 GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；293 K；1M NaCl, 0.1M Acetic Acid pH 4, 27% Glycerol	Resolution 2.10 Å R-free 0.224
9DPV BMP-9 K357R G389S Dimer Without Radiation Damage in Neutral pH Deposited 2024-09-23	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 320–429（110 aa）	Mutation：A321S, K357R, G389S	GOL GLYCEROL × 2 CL CHLORIDE ION × 10 NA SODIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289.15 K；1M NaCl, 22-26% glycerol, 0.1 M HEPES pH 7.5	Resolution 1.99 Å R-free 0.265
9DPW BMP-9 K357R G389S Dimer With Radiation Damage in Neutral pH Deposited 2024-09-23	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 320–429（110 aa）	Mutation：A321S, K357R, G389S	GOL GLYCEROL × 4 CL CHLORIDE ION × 18 NA SODIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289.15 K；1M NaCl, 22-26% glycerol, 0.1 M HEPES pH 7.5	Resolution 2.71 Å R-free 0.299
9DPX BMP-9 G389S K357R Dimer in Acidic pH Deposited 2024-09-23	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 320–429（110 aa）	Mutation：A321S, K357R, G389S	GOL GLYCEROL × 4 CL CHLORIDE ION × 12 NA SODIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；293 K；1M NaCl , 0.1M Acetic Acid pH 4, 32% Glycerol	Resolution 2.10 Å R-free 0.268

19 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GDF2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–110； UniProt 320–429

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9dpq
Deposition date deposition_date	2024-09-23
最后修订 last_revision	2025-03-05
Structure title title	BMP-9 Wild-Type Dimer without Radiation Damage in Acidic pH
Keywords keywords	SIGNALING PROTEIN, BMP, bone morphogenetic protein, TGF-beta family; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.40 Å
Radius of gyration Rg (electron density) rg_electron	18.47 Å
Forward intensity I(0) i0	2980170.00
Molecular weight molecular_weight	12477.0 kDa
Excluded volume excluded_volume	15584 Å³
Envelope volume envelope_volume	19572 Å³
Hydration-shell volume shell_volume	10011 Å³
Envelope diameter envelope_diameter	68.2 Å
Shell Rg shell_rg	22.32 Å
Envelope Rg envelope_rg	18.66 Å
Shape Rg shape_rg	18.47 Å
Total Rg total_rg	19.19 Å
Total atoms total_atoms	1677
Residues n_residues	106
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	69.3 Å
Rg (real space) rg_real	18.58 Å
Rg uncertainty (real space) rg_real_error	0.77 Å
I(0) (real space) i0_real	2.9800e+06
I(0) uncertainty (real space) i0_real_error	3.9860e+04
Rg (reciprocal space) rg_reciprocal	18.56 Å
I(0) (reciprocal space) i0_reciprocal	2980000.0000
Solution quality estimate total_estimate	0.7787
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	16.1 Å
Skewness Skewness skewness	0.475
Kurtosis Kurtosis kurtosis	-0.442
Angular range angular_range	— – 0.4300 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	294800.0000
Real-space data points n_real_points	74
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.595; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.337; Smooth: 0.997

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Growth/differentiation factor 2
Molecular weight formula_weight	12119.0 kDa
Mutation mutation	A321S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1753

SSGAGSHCQKTSLRVNFEDIGWDSWIIAPKEYEAYECKGGCFFPLADDVTPTKHAIVQTLVHLKFPTKVGKACCVPTKLSPISVLYKDDMGVPTLKYHYEGMSVAECGCR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	10

Entity 4 Entity 4 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	62

▶

8. Citations (1)

▶

Unit-cell length a length_a	71.045 Å
Unit-cell length b length_b	71.045 Å
Unit-cell length c length_c	145.567 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 41 2 2
Space-group number int_tables_number	98
Crystal system crystal_system	tetragonal

Resolution resolution	2.350 Å
Low-resolution limit resolution_low	41.340 Å
R factor r_factor	0.2027
R_work r_work	0.2000
R_free r_free	0.2489

fit	/app/data/saxs_computation/dp/9dpq/9dpq.fit
pddf	/app/data/pr_computation/dp/9dpq/9dpq.pr.out
profile	/app/data/saxs_computation/dp/9dpq/9dpq.dat

BMP-9 Wild-Type Dimer without Radiation Damage in Acidic pH

1. Protein Identity and Related Structures Protein Identity & Related Structures

Growth/differentiation factor 2

State in the Current Structure

Other States of the Same Protein in the Database

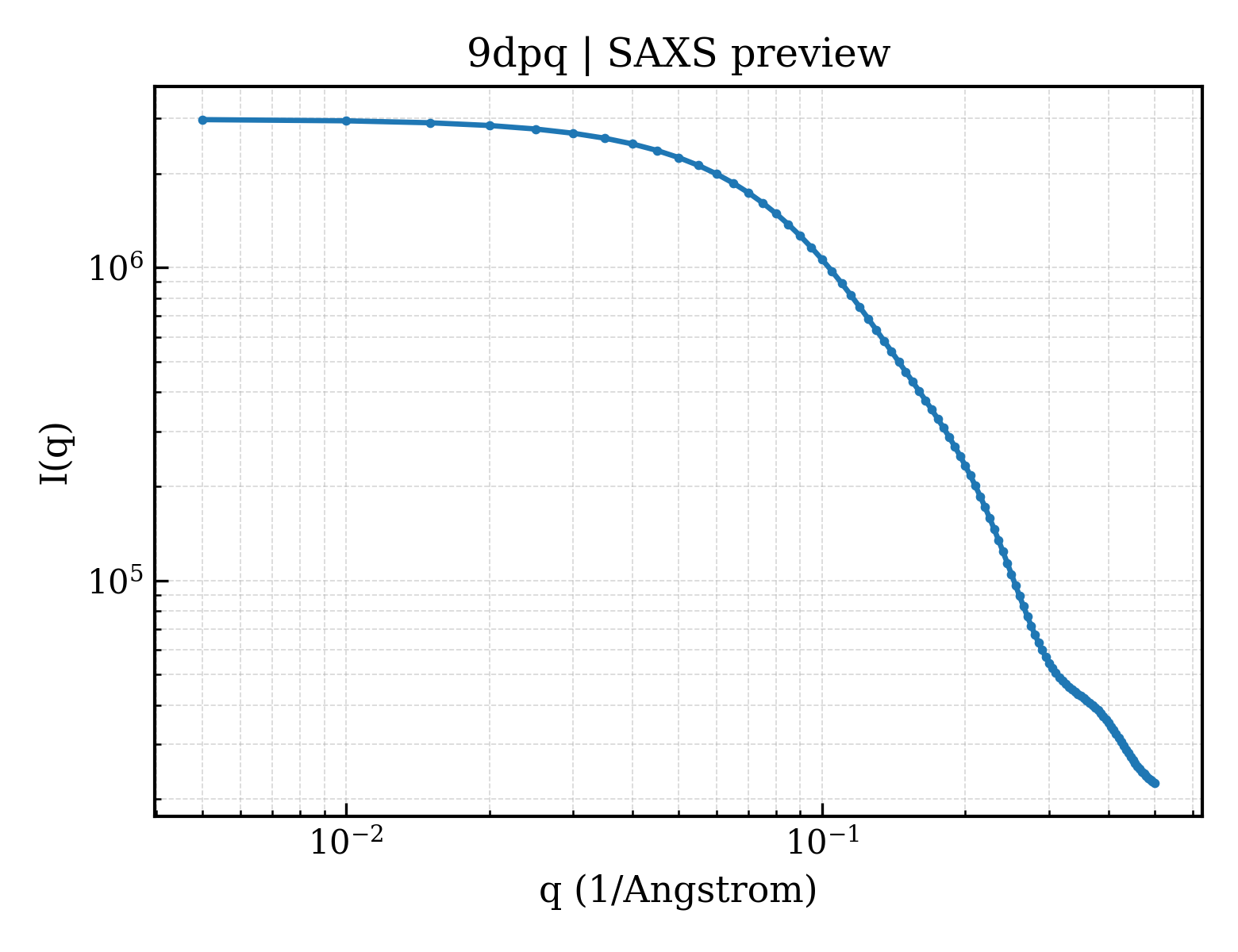

SAXS scattering curve SAXS Profile

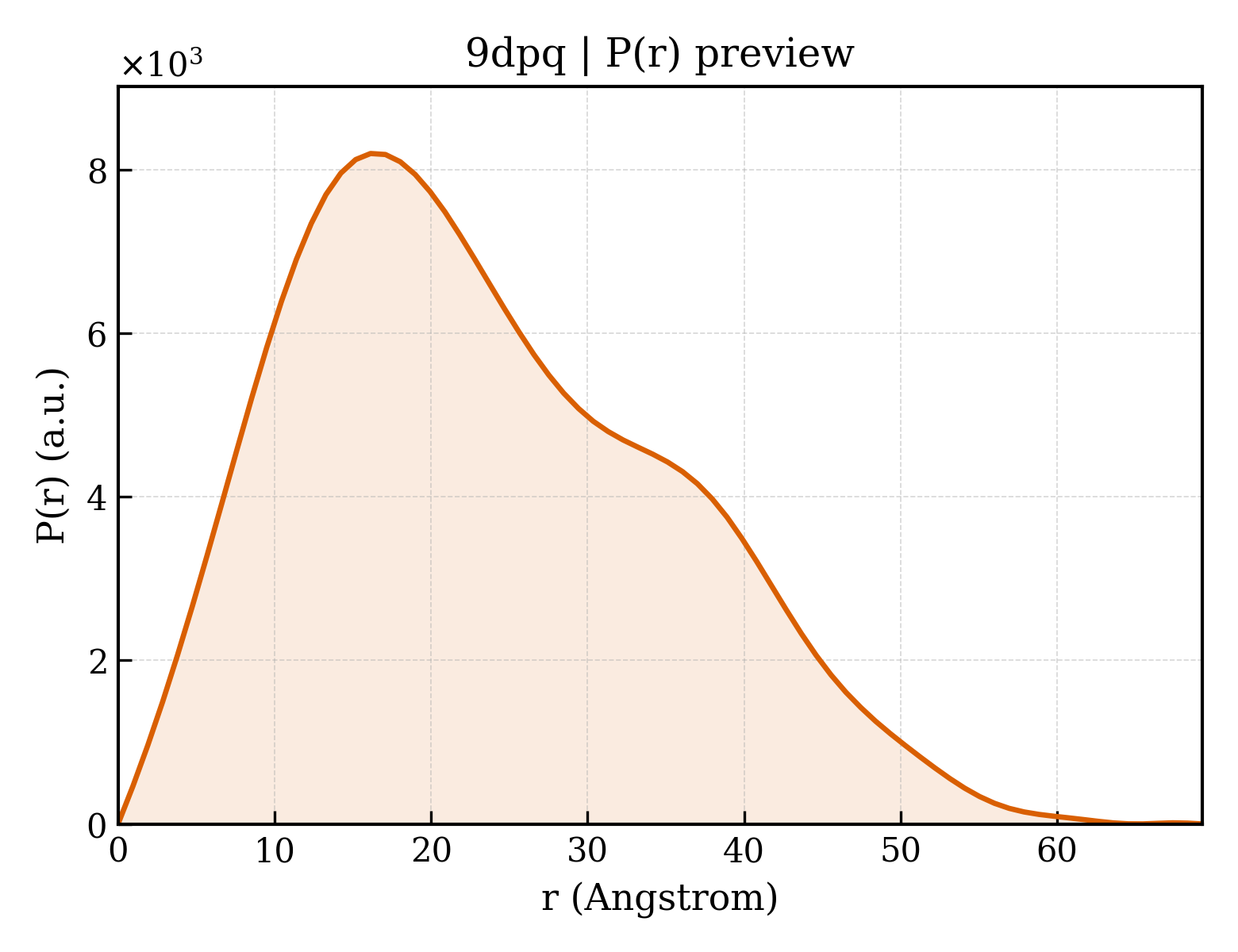

P(r) Distance Distribution P(r) Distribution
