SAXSdb — 9dx2

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cytosolic arginine sensor for mTORC1 subunit 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain E； UniProt 1–328 Chain F； UniProt 1–328 Chain G； UniProt 1–328	Not recorded	GATOR2 complex protein MIOS × 2 Nucleoporin SEH1 × 1 Protein SEC13 homolog × 1 GATOR2 complex protein WDR24 × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.40 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9DX2	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5GS9 Crystal structure of CASTOR1-arginine Deposited 2016-08-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–329（329 aa） Chain B 1–329（329 aa）	Not recorded	ARG ARGININE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；289 K；0.1M sodium citrate (pH 5.0), 20% (w/v) PEG 8000	Resolution 2.50 Å R-free 0.224
5GS9 Crystal structure of CASTOR1-arginine Deposited 2016-08-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–329（329 aa） Chain D 1–329（329 aa）	Not recorded	ARG ARGININE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；289 K；0.1M sodium citrate (pH 5.0), 20% (w/v) PEG 8000	Resolution 2.50 Å R-free 0.224
5GT7 Crystal Structure of Arg-bound CASTOR1 Deposited 2016-08-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–323（323 aa） Chain B 1–323（323 aa）	Not recorded	ARG ARGININE × 2 MLI MALONATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；291 K；5 % (w/v) PEG3350, 0.1 M Na Malonate pH 5.0	Resolution 2.05 Å R-free 0.211
5GT7 Crystal Structure of Arg-bound CASTOR1 Deposited 2016-08-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–323（323 aa） Chain D 1–323（323 aa）	Not recorded	ARG ARGININE × 2 MLI MALONATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；291 K；5 % (w/v) PEG3350, 0.1 M Na Malonate pH 5.0	Resolution 2.05 Å R-free 0.211
5GT8 Crystal Structure of apo-CASTOR1 Deposited 2016-08-18	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–329（329 aa） Chain C 1–329（329 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；21%(w/v) PEG3350, 0.1M Tris pH 5.0, 0.2M MgCl2, 0.2% n- dodecyl- N, N- dimethylamine-N-oxide	Resolution 2.80 Å R-free 0.265
5GT8 Crystal Structure of apo-CASTOR1 Deposited 2016-08-18	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 1–329（329 aa） Chain D 1–329（329 aa） Fragment：UNP residues A285I	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；21%(w/v) PEG3350, 0.1M Tris pH 5.0, 0.2M MgCl2, 0.2% n- dodecyl- N, N- dimethylamine-N-oxide	Resolution 2.80 Å R-free 0.265
5GV2 Crystal structure of Arginine-bound CASTOR1 from Homo sapiens Deposited 2016-09-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–329（329 aa） Chain C 1–329（329 aa）	Not recorded	MG MAGNESIUM ION × 1 ARG ARGININE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；287 K；PEG 3350, Magnesium acetate tetrahydrate	Resolution 2.06 Å R-free 0.238
5I2C Arginine-bound CASTOR1 from Homo sapiens Deposited 2016-02-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–329（329 aa） Chain B 1–329（329 aa）	Not recorded	ARG ARGININE × 2 ACT ACETATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；291.15 K；0.1 M sodium acetate, 0.25 M ammonium acetate, 22.5% PEG 3350	Resolution 1.80 Å R-free 0.204
5I2C Arginine-bound CASTOR1 from Homo sapiens Deposited 2016-02-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–329（329 aa） Chain D 1–329（329 aa）	Not recorded	ARG ARGININE × 2 ACT ACETATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；291.15 K；0.1 M sodium acetate, 0.25 M ammonium acetate, 22.5% PEG 3350	Resolution 1.80 Å R-free 0.204
9KP4 Crystal structure of human CASTOR1 in apo form Deposited 2024-11-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–329（329 aa） Chain B 1–329（329 aa）	Not recorded	NH4 AMMONIUM ION × 2 ACY ACETIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；0.1 M Barium chloride, 30% v/v ethanol, 0.2 M NH4Ac, 0.1 M Tris pH 8.5, and 25% PEG 3350.	Resolution 3.08 Å R-free 0.264
9KP4 Crystal structure of human CASTOR1 in apo form Deposited 2024-11-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–329（329 aa） Chain D 1–329（329 aa）	Not recorded	NH4 AMMONIUM ION × 2 ACY ACETIC ACID × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；0.1 M Barium chloride, 30% v/v ethanol, 0.2 M NH4Ac, 0.1 M Tris pH 8.5, and 25% PEG 3350.	Resolution 3.08 Å R-free 0.264
9LVK Cryo-EM structure of CASTOR1 bound human GATOR2 complex Deposited 2025-02-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric	Chain U 1–329（329 aa） Chain V 1–329（329 aa）	Mutation：D304A Mutation：D304A	ZN ZINC ION × 31	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.59 Å
9LWF Cryo-EM structure of dual sensor bound GATOR2 complex Deposited 2025-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric	Chain U 1–329（329 aa） Chain V 1–329（329 aa）	Mutation：D304A Mutation：D304A	ZN ZINC ION × 32	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.41 Å
9OTI GATOR2 complex bound to arginine sensor CASTOR1 Deposited 2025-05-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric	Chain U 1–329（329 aa） Chain V 1–329（329 aa）	Mutation：D304A, S111A Mutation：D304A, S111A	ZN ZINC ION × 29	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å

9 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CAST1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain E； PDBConstruct 1–328； UniProt 1–328 Author chain F； PDBConstruct 1–328； UniProt 1–328 Author chain G； PDBConstruct 1–328； UniProt 1–328

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9dx2
Deposition date deposition_date	2024-10-10
Structure title title	Human GATOR2 complex - CASTOR1 bound state
Keywords keywords	Signaling protein, nutrient sensor, mTORC1 pathway, stress-responsive protein; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	79.08 Å
Radius of gyration Rg (electron density) rg_electron	78.99 Å
Forward intensity I(0) i0	3352700000.00
Molecular weight molecular_weight	485960.0 kDa
Excluded volume excluded_volume	604830 Å³
Envelope volume envelope_volume	1171400 Å³
Hydration-shell volume shell_volume	124360 Å³
Envelope diameter envelope_diameter	241.7 Å
Shell Rg shell_rg	79.92 Å
Envelope Rg envelope_rg	75.27 Å
Shape Rg shape_rg	79.05 Å
Total Rg total_rg	78.77 Å
Total atoms total_atoms	34252
Residues n_residues	4631
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

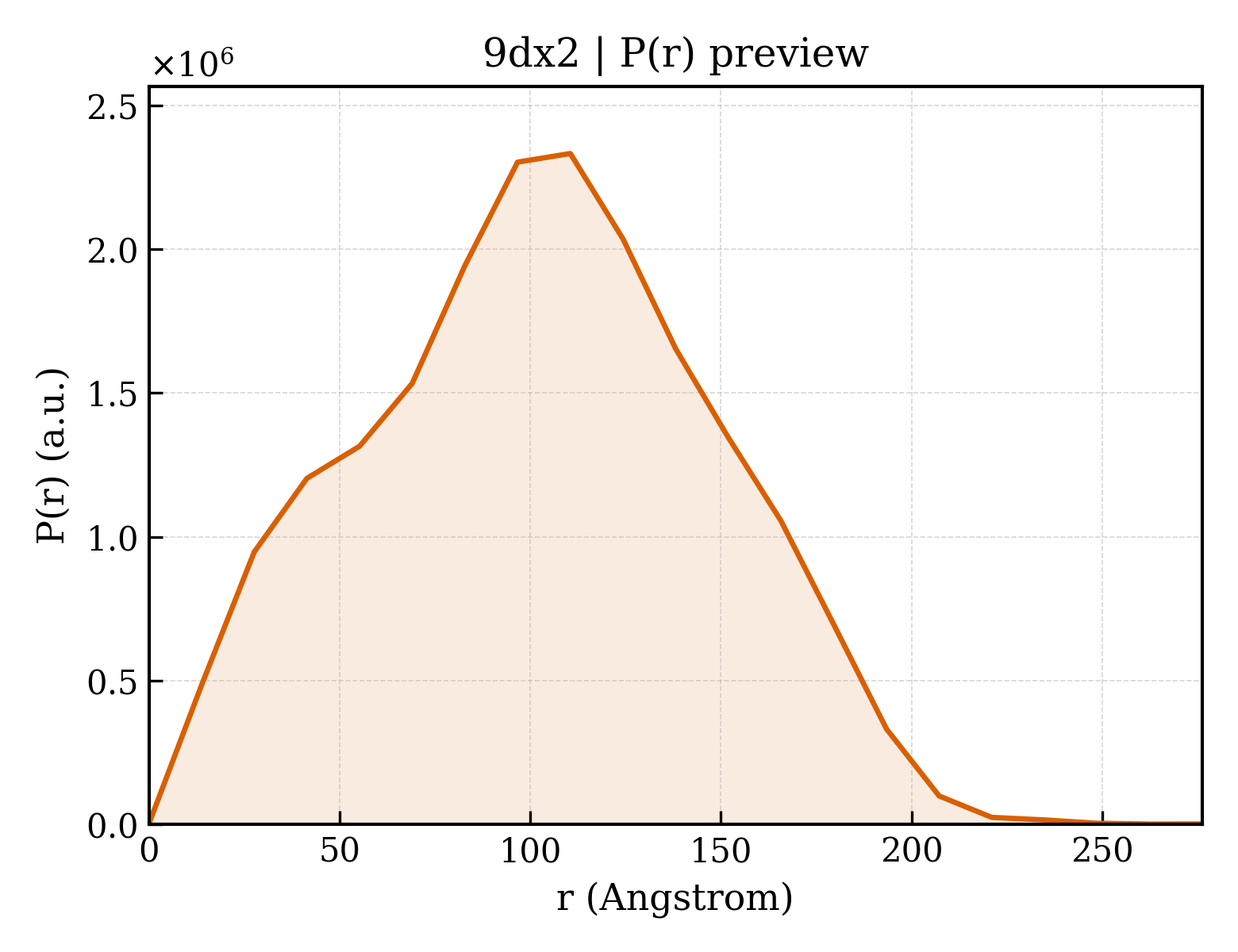

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	276.2 Å
Rg (real space) rg_real	79.09 Å
Rg uncertainty (real space) rg_real_error	2.42 Å
I(0) (real space) i0_real	3.3540e+09
I(0) uncertainty (real space) i0_real_error	7.6550e+07
Rg (reciprocal space) rg_reciprocal	79.60 Å
I(0) (reciprocal space) i0_reciprocal	3357000000.0000
Solution quality estimate total_estimate	0.7839
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	110.5 Å
Skewness Skewness skewness	0.030
Kurtosis Kurtosis kurtosis	-0.613
Angular range angular_range	— – 0.1000 Å⁻¹
Current regularization parameter α current_alpha	0.0679
Highest regularization parameter α highest_alpha	80370000.0000
Real-space data points n_real_points	21
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.730; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	GATOR2 complex protein MIOS
Molecular weight formula_weight	88741.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	34252

ERISLAWSPITSLMWACGRHLYECTEMFVARSIAADHKDLIHDVSFDFHGRRMATCSSDQSVKVWDKSESGDWHCTASWKTHSGSVWRVTWAHPEFGQVLASCSFDRTAAVWEEIVGESNDKLRGQSHWVKRTTLVDSRTSVTDVKFAPKHMGLMLATCSADGIVRIYEAPDVMNLSQWSLQHEISCKLSCSCISWNPSSSRAHSPMIAVGSDDSSPNAMAKVQIFEYNENTRKYAKAETLMTVTDPVHDIAFAPNLGRSFHILAIATKDVRIFTLKPVRKELTSSGGPTKFEIHIVAQFDNHNSQVWRVSWNITGTVLASSGDDGCVRLWKANYMDNWKCTGILKGNGSPVEKDIATKMRLRALSRYGLDTEQVWRNHILAGNEDPQLKSLWYTLHFMKQYTEDMDQKSPGNKGSLVYAGIKSIVKSSLGMVESSRHNWSGDIQNLNEERILALQLCGWIKKGTDVDVGPFLNSLVQEGEWERAAAVALFNLDIRRAIQILNEGASSEKGDLNLNVVAMALSGYTDEKNSLWREMCSTLRLQLNNPYLCVMFAFLTSETGSYDGVLYENKVAVRDRVAFACKFLSDTQLNRYIEKLTNEMKEAGNLEGILLTGLTKDGVDLMESYVDRTGDVQTASYCMLQGSPLDVLKDERVQYWIENYRNLLDAWRFWHKRAEFDIHRSKLDPSSKPLAQVFVSCNFCGKSISYSKVTSCPGCRKPLPRCALCLINMGTPVSKDKKLAQFNNWFTWCHNCRHGGHAGHMLSWFRDHAECPVSACTCKCMQLDT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Nucleoporin SEH1
Molecular weight formula_weight	63832.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

AAKESLVAEPFAGLASSALSVFETEPMFVARSIAADHKDLIHDVSFDFHGRRMATCSSDQSVKVWDKSESGDWHCTASWKTHSGSVWRVTWAHPEFGQVLASCSFDRTAAVWEEIVSHWVKRTTLVDSRTSVTDVKFAPKHMGLMLATCSADGIVRIYEAPDVMNLSQWSLQHEISCKLSCSCISWNPSSSRAHSPMIAVGSDDSSPNAMAKVQIFEYNENTRKYAKAETLMTVTDPVHDIAFAPNLGRSFHILAIATKDVRIFTLKPVRKELTSSGGPTKFEIHIVAQFDNHNSQVWRVSWNITGTVLASSGDDGCVRLWKANYMDNWKCTGILKGGGMRWFVDTAERYALAGRPLAELCDHNAKVARELGRNQVAQTWTMLRIIYCSPSSSFSLLSVSHALYDSRLPPDFFGVLVRDMLHFYAEQGDVQMAVSVLIVLGERVRKDIDEQTQEHWYTSYIDLLQRFRLWNVSNEVVKLSTSRAVSCLNQASTTLHVNCSHCKRPMSSRGWVCDRCHRCASMCAVCHHVVKGLFVWCQGCSHGGHLQHIMKWLEGSSHCPAGCGHLCEYS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Protein SEC13 homolog
Molecular weight formula_weight	60774.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

AYGSYQDANIPFPRTSGARFCGAGYLVYFTRPMTMHRAVSPTEPTPRSLSALSAYHTKREGSDSGNRQIKAAGKVIIQDGSGSGMVSVINTVDTSHEDMIHDAQMDYYGTRLATCSSDRSVKIFDVRNGGQILIADLRGHEGPVWQVAWAHPMYGNILASCSYDRKVIIWREENGTWEKSHEHAGHDSSVNSVCWAPHDYGLILACGSSDGAISLLTYTGEGQWEVKKINNAHTIGCNAVSWAPAVVPGSLIDHPSGQKPNYIKRFASGGCDNLIKLWKEEEDGQWKEEQKLEAHSDWVRDVAWAPSIGLPTSTIASCSQDGRVFIWTCDDASSNTWSPKLLHKFNDVVWHVSWSITANILAVSGGDNKVTLWKESVDGQWVCISIACLLPVHKSLGELYILNVNDIQETCQKNAASALLVGRKDLVQVWSLATVATDLCLGPKSDPDLETPWARHPFGRQLLESLLAHYCRLRDVQTLAMLCSVFEAQSLDPRERERDQHDKNKRLLDPANTQQFDDFKKCYGEILYRWGLREKRAEVLKFVSC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Cytosolic arginine sensor for mTORC1 subunit 1
Molecular weight formula_weight	36222.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,G

MELHILEHRVRVLSVARPGLWLYTHPLIKLLFLPRRSRCKFFSLTETPEDYTLMVDEEGFKELPPSEFLQVAEATWLVLNVSSHSGAAVQAAGVTKIARSVIAPLAEHHVSVLMLSTYQTDFILVREQDLSVVIHTLAQEFDIYREVGGEPVPVTRDDSSNGFPRTQHGPSPTVHPIQSPQNRFCVLTLDPETLPAIATTLIDVLFYSHSTPKEAASSSPEPSSITFFAFSLIEGYISIVMDAETQKKFPSDLLLTSSSGELWRMVRIGGQPLGFDECGIVAQIAGPLAAADISAYYISTFNFDHALVPEDGIGSVIEVLQRRQEGLA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	GATOR2 complex protein WDR24
Molecular weight formula_weight	118434.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

TKPDILWAPHHVDRFVVCDSELSLYHVESTVNSELKAGSLRLSEDSAATLLSINSDTPYMKCVAWYLNYDPECLLAVGEANGRVVLTSLGQDHNSKFKDLIGKEYVPKHARQCNTLAWNPLDSDWLAAGLDKHRADFSVLIWDICLLTKPLYELGQNDACLSLCWLPRDQKLLLAGMHRNLAIFDLRNTSEKMFVNTKAVQGVTVDPYFHDRVASFYEGQVAIWDLRKFEKPVLTLTEQPKPLTKVAWCPTRTGLLATLTRDSNIIRLYDMQHTPTPIGPTIIERSVQPCDNYIASFAWHPTSQNRMIVVTPNRTMSDFTVFTKPDILWAPHHVDRFVVCDSELSLYHVESTVNSELKAGSLRLSEDSAATLLSINSDTPYMKCVAWYLNYDPECLLAVGQANGRVVLTSLGQDHNSKFKDLIGKEFVPKHARQCNTLAWNPLDSNWLAAGLDKHRADFSVLIWDICLVTKPLYELGQNDACLSLCWLPRDQKLLLAGMHRNLAIFDLRNTSQKMFVNTKAVQGVTVDPYFHDRVASFYEGQVAIWDLRKFEKPVLTLTEQPKPLTKVAWCPTRTGLLATLTRDSNIIRLYDMQHTIIERSVQPCDDYIASFAWHPTSQNRMIVVTPNRTMSDFTVFVLTGRTMHCHLDAPANAISVCRDAAQVVVAGRSIFKIYAIEEEQFVEKLNLRVGRKPSLNLSCADVVWHQMDENLLATAATNGVVVTWNLGRPSRNKQDQLFTEHKRTVNKVCFHPTEAHVLLSGSQDGFMKCFDLRRKDSVSTFSGQSESVRDVQFSIRDYFTFASTFENGNVQLWDIRRPDRCERMFTAHNGPVFCCDWHPEDRGWLATGGRDKMVKVWDMTTHRAKEMHCVQTIASVARVKWRPECRHHLATCSMMVDHNIYVWDVRRPFVPAAMFEEHRDVTTGIAWRHPHDPSFLLSGSKDSSLCQHLFRDASQPVERANPEGLCYGLFGDLAFPPFGVYCSHCRSTFQCAICHVAVRGSSNFCLTCGHGGHTSHMMEWFRTQEVCPTGCGCHCLLESTF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.40 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	865410

fit	/app/data/saxs_computation/dx/9dx2/9dx2.fit
pddf	/app/data/pr_computation/dx/9dx2/9dx2.pr.out
profile	/app/data/saxs_computation/dx/9dx2/9dx2.dat
