9oti

GATOR2 complex bound to arginine sensor CASTOR1

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GATOR2 complex protein MIOS

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 18	GATOR complex protein WDR24 × 2 （Q96S15） GATOR complex protein WDR59 × 2 （Q6PJI9） Nucleoporin SEH1 × 6 （Q96EE3） Protein SEC13 homolog × 2 （P55735） Cytosolic arginine sensor for mTORC1 subunit 1 × 2 （Q8WTX7） ZINC ION × 29	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MIOS_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–875； UniProt 1–875 Author chain B； PDBConstruct 1–875； UniProt 1–875 Author chain L； PDBConstruct 1–875； UniProt 1–875 Author chain T； PDBConstruct 1–875； UniProt 1–875

GATOR complex protein WDR24

Homo sapiens

UniProt Q96S15

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 18	GATOR2 complex protein MIOS × 4 （Q9NXC5） GATOR complex protein WDR59 × 2 （Q6PJI9） Nucleoporin SEH1 × 6 （Q96EE3） Protein SEC13 homolog × 2 （P55735） Cytosolic arginine sensor for mTORC1 subunit 1 × 2 （Q8WTX7） ZINC ION × 29	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	WDR24_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–790； UniProt 1–790 Author chain M； PDBConstruct 1–790； UniProt 1–790

GATOR complex protein WDR59

Homo sapiens

UniProt Q6PJI9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 18	GATOR2 complex protein MIOS × 4 （Q9NXC5） GATOR complex protein WDR24 × 2 （Q96S15） Nucleoporin SEH1 × 6 （Q96EE3） Protein SEC13 homolog × 2 （P55735） Cytosolic arginine sensor for mTORC1 subunit 1 × 2 （Q8WTX7） ZINC ION × 29	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	WDR59_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 1–974； UniProt 1–974 Author chain N； PDBConstruct 1–974； UniProt 1–974

Nucleoporin SEH1

Homo sapiens

UniProt Q96EE3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 18	GATOR2 complex protein MIOS × 4 （Q9NXC5） GATOR complex protein WDR24 × 2 （Q96S15） GATOR complex protein WDR59 × 2 （Q6PJI9） Protein SEC13 homolog × 2 （P55735） Cytosolic arginine sensor for mTORC1 subunit 1 × 2 （Q8WTX7） ZINC ION × 29	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SEH1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain E； PDBConstruct 1–360； UniProt 1–360 Author chain F； PDBConstruct 1–360； UniProt 1–360 Author chain G； PDBConstruct 1–360； UniProt 1–360 Author chain O； PDBConstruct 1–360； UniProt 1–360 Author chain P； PDBConstruct 1–360； UniProt 1–360 Author chain Q； PDBConstruct 1–360； UniProt 1–360

Protein SEC13 homolog

Homo sapiens

UniProt P55735

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 18	GATOR2 complex protein MIOS × 4 （Q9NXC5） GATOR complex protein WDR24 × 2 （Q96S15） GATOR complex protein WDR59 × 2 （Q6PJI9） Nucleoporin SEH1 × 6 （Q96EE3） Cytosolic arginine sensor for mTORC1 subunit 1 × 2 （Q8WTX7） ZINC ION × 29	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SEC13_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain H； PDBConstruct 1–322； UniProt 1–322 Author chain R； PDBConstruct 1–322； UniProt 1–322

Cytosolic arginine sensor for mTORC1 subunit 1

Homo sapiens

UniProt Q8WTX7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 18	GATOR2 complex protein MIOS × 4 （Q9NXC5） GATOR complex protein WDR24 × 2 （Q96S15） GATOR complex protein WDR59 × 2 （Q6PJI9） Nucleoporin SEH1 × 6 （Q96EE3） Protein SEC13 homolog × 2 （P55735） ZINC ION × 29	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CAST1_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain U； PDBConstruct 1–329； UniProt 1–329 Author chain V； PDBConstruct 1–329； UniProt 1–329

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9oti
Deposition date deposition_date	2025-05-27
Structure title title	GATOR2 complex bound to arginine sensor CASTOR1
Keywords keywords	Complex, mTORC1, Signaling, Nutrients, Amino Acid Sensing, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9oti__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9oti__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

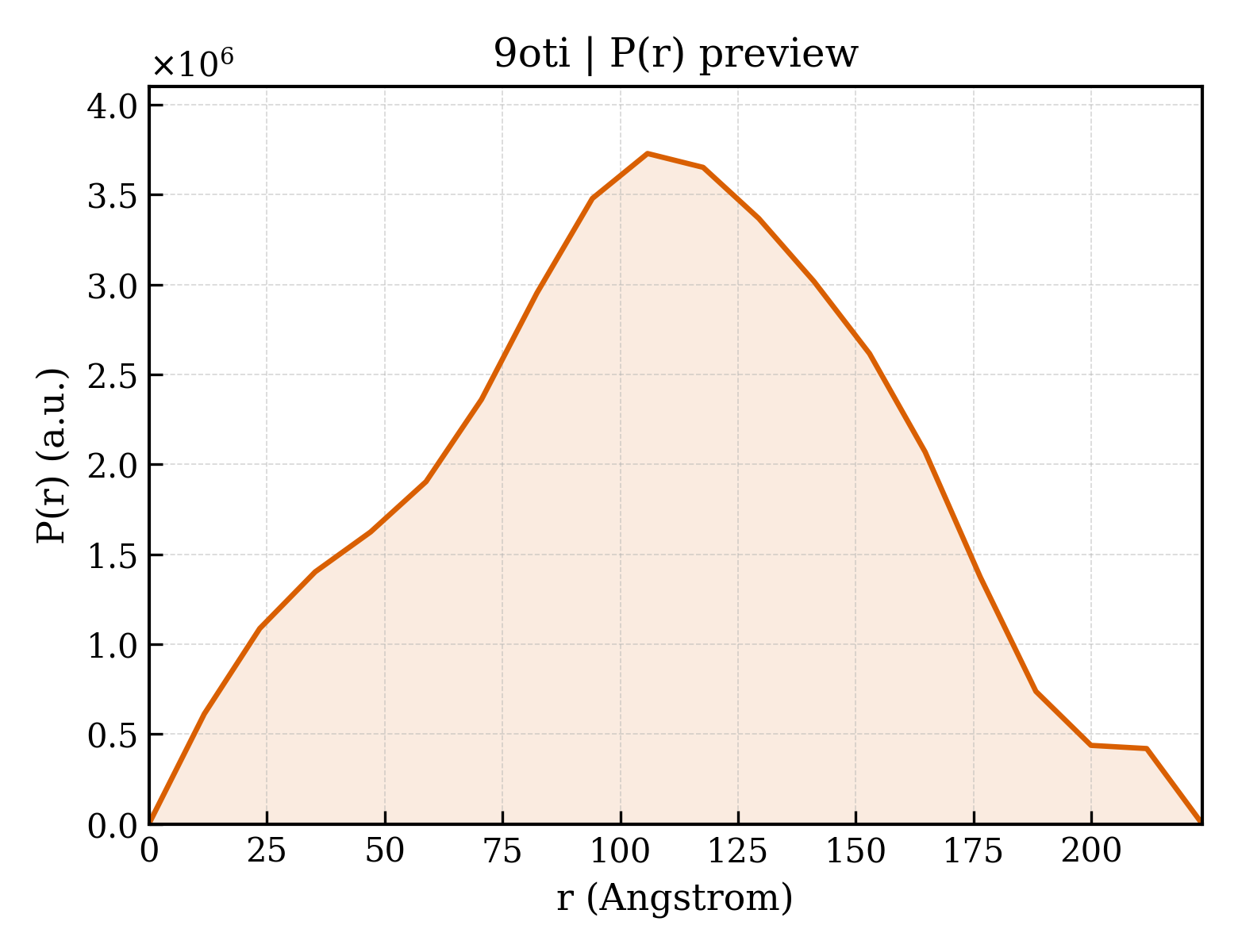

9oti__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	83.43 Å
Rg (electron density)	82.83 Å
Total Rg	83.11 Å
Atom count	43325
Residues	6065
Excluded volume	761980 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9oti__assembly_1__model_1`	octadecameric （18）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	GATOR2 complex protein MIOS
Molecular weight formula_weight	98700.4 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,L,T
Atom count atom_count	43325

MSGTKPDILWAPHHVDRFVVCDSELSLYHVESTVNSELKAGSLRLSEDSAATLLSINSDTPYMKCVAWYLNYDPECLLAVGQANGRVVLTSLGQDHNSKFKDLIGKEFVPKHARQCNTLAWNPLDSNWLAAGLDKHRADFSVLIWDICSKYTPDIVPMEKVKLSAGETETTLLVTKPLYELGQNDACLSLCWLPRDQKLLLAGMHRNLAIFDLRNTSQKMFVNTKAVQGVTVDPYFHDRVASFYEGQVAIWDLRKFEKPVLTLTEQPKPLTKVAWCPTRTGLLATLTRDSNIIRLYDMQHTPTPIGDETEPTIIERSVQPCDNYIASFAWHPTSQNRMIVVTPNRTMSDFTVFERISLAWSPITSLMWACGRHLYECTEEENDNSLEKDIATKMRLRALSRYGLDTEQVWRNHILAGNEDPQLKSLWYTLHFMKQYTEDMDQKSPGNKGSLVYAGIKSIVKSSLGMVESSRHNWSGLDKQSDIQNLNEERILALQLCGWIKKGTDVDVGPFLNSLVQEGEWERAAAVALFNLDIRRAIQILNEGASSEKGDLNLNVVAMALSGYTDEKNSLWREMCSTLRLQLNNPYLCVMFAFLTSETGSYDGVLYENKVAVRDRVAFACKFLSDTQLNRYIEKLTNEMKEAGNLEGILLTGLTKDGVDLMESYVDRTGDVQTASYCMLQGSPLDVLKDERVQYWIENYRNLLDAWRFWHKRAEFDIHRSKLDPSSKPLAQVFVSCNFCGKSISYSCSAVPHQGRGFSQYGVSGSPTKSKVTSCPGCRKPLPRCALCLINMGTPVSSCPGGTKSDEKVDLSKDKKLAQFNNWFTWCHNCRHGGHAGHMLSWFRDHAECPVSACTCKCMQLDTTGNLVPAETVQP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	GATOR complex protein WDR24
Molecular weight formula_weight	88327.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,M

MEKMSRVTTALGGSVLTGRTMHCHLDAPANAISVCRDAAQVVVAGRSIFKIYAIEEEQFVEKLNLRVGRKPSLNLSCADVVWHQMDENLLATAATNGVVVTWNLGRPSRNKQDQLFTEHKRTVNKVCFHPTEAHVLLSGSQDGFMKCFDLRRKDSVSTFSGQSESVRDVQFSIRDYFTFASTFENGNVQLWDIRRPDRCERMFTAHNGPVFCCDWHPEDRGWLATGGRDKMVKVWDMTTHRAKEMHCVQTIASVARVKWRPECRHHLATCSMMVDHNIYVWDVRRPFVPAAMFEEHRDVTTGIAWRHPHDPSFLLSGSKDSSLCQHLFRDASQPVERANPEGLCYGLFGDLAFAAKESLVAAESGRKPYTGDRRHPIFFKRKLDPAEPFAGLASSALSVFETEPGGGGMRWFVDTAERYALAGRPLAELCDHNAKVARELGRNQVAQTWTMLRIIYCSPGLVPTANLNHSVGKGGSCGLPLMNSFNLKDMAPGLGSETRLDRSKGDARSDTVLLDSSATLITNEDNEETEGSDVPADYLLGDVEGEEDELYLLDPEHAHPEDPECVLPQEAFPLRHEIVDTPPGPEHLQDKADSPHVSGSEADVASLAPVDSSFSLLSVSHALYDSRLPPDFFGVLVRDMLHFYAEQGDVQMAVSVLIVLGERVRKDIDEQTQEHWYTSYIDLLQRFRLWNVSNEVVKLSTSRAVSCLNQASTTLHVNCSHCKRPMSSRGWVCDRCHRCASMCAVCHHVVKGLFVWCQGCSHGGHLQHIMKWLEGSSHCPAGCGHLCEYS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	GATOR complex protein WDR59
Molecular weight formula_weight	109938.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,N

MAARWSSENVVVEFRDSQATAMSVDCLGQHAVLSGRRFLYIVNLDAPFEGHRKISRQSKWDIGAVQWNPHDSFAHYFAASSNQRVDLYKWKDGSGEVGTTLQGHTRVISDLDWAVFEPDLLVTSSVDTYIYIWDIKDTRKPTVALSAVAGASQVKWNKKNANCLATSHDGDVRIWDKRKPSTAVEYLAAHLSKIHGLDWHPDSEHILATSSQDNSVKFWDYRQPRKYLNILPCQVPVWKARYTPFSNGLVTVMVPQLRRENSLLLWNVFDLNTPVHTFVGHDDVVLEFQWRKQKEGSKDYQLVTWSRDQTLRMWRVDSQMQRLCANDILDGVDEFIESISLLPEPEKTLHTEDTDHQHTASHGEEEALKEDPPRNLLEERKSDQLGLPQTLQQEFSLINVQIRNVNVEMDAADRSCTVSVHCSNHRVKMLVKFPAQYPNNAAPSFQFINPTTITSTMKAKLLKILKDTALQKVKRGQSCLEPCLRQLVSCLESFVNQEDSASSNPFALPNSVTPPLPTFARVTTAYGSYQDANIPFPRTSGARFCGAGYLVYFTRPMTMHRAVSPTEPTPRSLSALSAYHTGLIAPMKIRTEAPGNLRLYSGSPTRSEKEQVSISSFYYKERKSRRWKSKREGSDSGNRQIKAAGKVIIQDIACLLPVHKSLGELYILNVNDIQETCQKNAASALLVGRKDLVQVWSLATVATDLCLGPKSDPDLETPWARHPFGRQLLESLLAHYCRLRDVQTLAMLCSVFEAQSRPQGLPNPFGPFPNRSSNLVVSHSRYPSFTSSGSCSSMSDPGLNTGGWNIAGREAEHLSSPWGESSPEELRFGSLTYSDPRERERDQHDKNKRLLDPANTQQFDDFKKCYGEILYRWGLREKRAEVLKFVSCPPDPHKGIEFGVYCSHCRSEVRGTQCAICKGFTFQCAICHVAVRGSSNFCLTCGHGGHTSHMMEWFRTQEVCPTGCGCHCLLESTF

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Nucleoporin SEH1
Molecular weight formula_weight	39700.6 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,G,O,P,Q

MFVARSIAADHKDLIHDVSFDFHGRRMATCSSDQSVKVWDKSESGDWHCTASWKTHSGSVWRVTWAHPEFGQVLASCSFDRTAAVWEEIVGESNDKLRGQSHWVKRTTLVDSRTSVTDVKFAPKHMGLMLATCSADGIVRIYEAPDVMNLSQWSLQHEISCKLSCSCISWNPSSSRAHSPMIAVGSDDSSPNAMAKVQIFEYNENTRKYAKAETLMTVTDPVHDIAFAPNLGRSFHILAIATKDVRIFTLKPVRKELTSSGGPTKFEIHIVAQFDNHNSQVWRVSWNITGTVLASSGDDGCVRLWKANYMDNWKCTGILKGNGSPVNGSSQQGTSNPSLGSTIPSLQNSLNGSSAGRKHS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	Protein SEC13 homolog
Molecular weight formula_weight	35578.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,R

MVSVINTVDTSHEDMIHDAQMDYYGTRLATCSSDRSVKIFDVRNGGQILIADLRGHEGPVWQVAWAHPMYGNILASCSYDRKVIIWREENGTWEKSHEHAGHDSSVNSVCWAPHDYGLILACGSSDGAISLLTYTGEGQWEVKKINNAHTIGCNAVSWAPAVVPGSLIDHPSGQKPNYIKRFASGGCDNLIKLWKEEEDGQWKEEQKLEAHSDWVRDVAWAPSIGLPTSTIASCSQDGRVFIWTCDDASSNTWSPKLLHKFNDVVWHVSWSITANILAVSGGDNKVTLWKESVDGQWVCISDVNKGQGSVSASVTEGQQNEQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 6 Entity 6 polymer

Description description	Cytosolic arginine sensor for mTORC1 subunit 1
Molecular weight formula_weight	36249.2 kDa
Mutation mutation	D304A, S111A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	U,V

MELHILEHRVRVLSVARPGLWLYTHPLIKLLFLPRRSRCKFFSLTETPEDYTLMVDEEGFKELPPSEFLQVAEATWLVLNVSSHSGAAVQAAGVTKIARSVIAPLAEHHVAVLMLSTYQTDFILVREQDLSVVIHTLAQEFDIYREVGGEPVPVTRDDSSNGFPRTQHGPSPTVHPIQSPQNRFCVLTLDPETLPAIATTLIDVLFYSHSTPKEAASSSPEPSSITFFAFSLIEGYISIVMDAETQKKFPSDLLLTSSSGELWRMVRIGGQPLGFDECGIVAQIAGPLAAADISAYYISTFNFAHALVPEDGIGSVIEVLQRRQEGLAS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 7 Entity 7 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	29

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.50 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	140606
