9ea9

Crystal structure of BoNT/A-NTNH-HA70 -VHH_F12-VHH_H7-Fab_NTNH complex

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Botulinum neurotoxin type A

Clostridium botulinum

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	Non-toxic nonhemagglutinin type A × 1 （Q45914） Nanobody ciA-F12 × 1 Nanobody ciA-H7 × 1 HA-70 × 5 （Q8KHU9） HA70/A1 × 1 （Q8KHU9） anti-NTNH Fab × 1 anti-NTNH Fab × 1 anti-NTNH Fab × 1 anti-NTNH Fab × 1 SULFATE ION × 10 ZINC ION × 1 MAGNESIUM ION × 10 water × 10	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BXA1_CLOBO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1296； UniProt 1–1296

Non-toxic nonhemagglutinin type A

Clostridium botulinum

UniProt Q45914

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	Botulinum neurotoxin type A × 1 （P0DPI0） Nanobody ciA-F12 × 1 Nanobody ciA-H7 × 1 HA-70 × 5 （Q8KHU9） HA70/A1 × 1 （Q8KHU9） anti-NTNH Fab × 1 anti-NTNH Fab × 1 anti-NTNH Fab × 1 anti-NTNH Fab × 1 SULFATE ION × 10 ZINC ION × 1 MAGNESIUM ION × 10 water × 10	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BXAN_CLOBO
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–1193； UniProt 1–1193

HA-70

Clostridium botulinum

UniProt Q8KHU9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	Botulinum neurotoxin type A × 1 （P0DPI0） Non-toxic nonhemagglutinin type A × 1 （Q45914） Nanobody ciA-F12 × 1 Nanobody ciA-H7 × 1 anti-NTNH Fab × 1 anti-NTNH Fab × 1 anti-NTNH Fab × 1 anti-NTNH Fab × 1 SULFATE ION × 10 ZINC ION × 1 MAGNESIUM ION × 10 water × 10	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8KHU9_CLOBO
Isoform	—
PDB entities	5, 6
Chains and sequence ranges	Author chain D； PDBConstruct 1–626； UniProt 1–626 Author chain G； PDBConstruct 1–626； UniProt 1–626 Author chain H； PDBConstruct 1–626； UniProt 1–626 Author chain I； PDBConstruct 1–626； UniProt 1–626 Author chain J； PDBConstruct 1–626； UniProt 1–626 Author chain E； PDBConstruct 1–626； UniProt 1–626

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ea9
Deposition date deposition_date	2024-11-10
Last revision last_revision	2025-09-17
Structure title title	Crystal structure of BoNT/A-NTNH-HA70 -VHH_F12-VHH_H7-Fab_NTNH complex
Keywords keywords	Botulinum neurotoxin, Progenitor toxin complex (PTC), TOXIN, TOXIN-IMMUNE SYSTEM complex; TOXIN/IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9ea9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

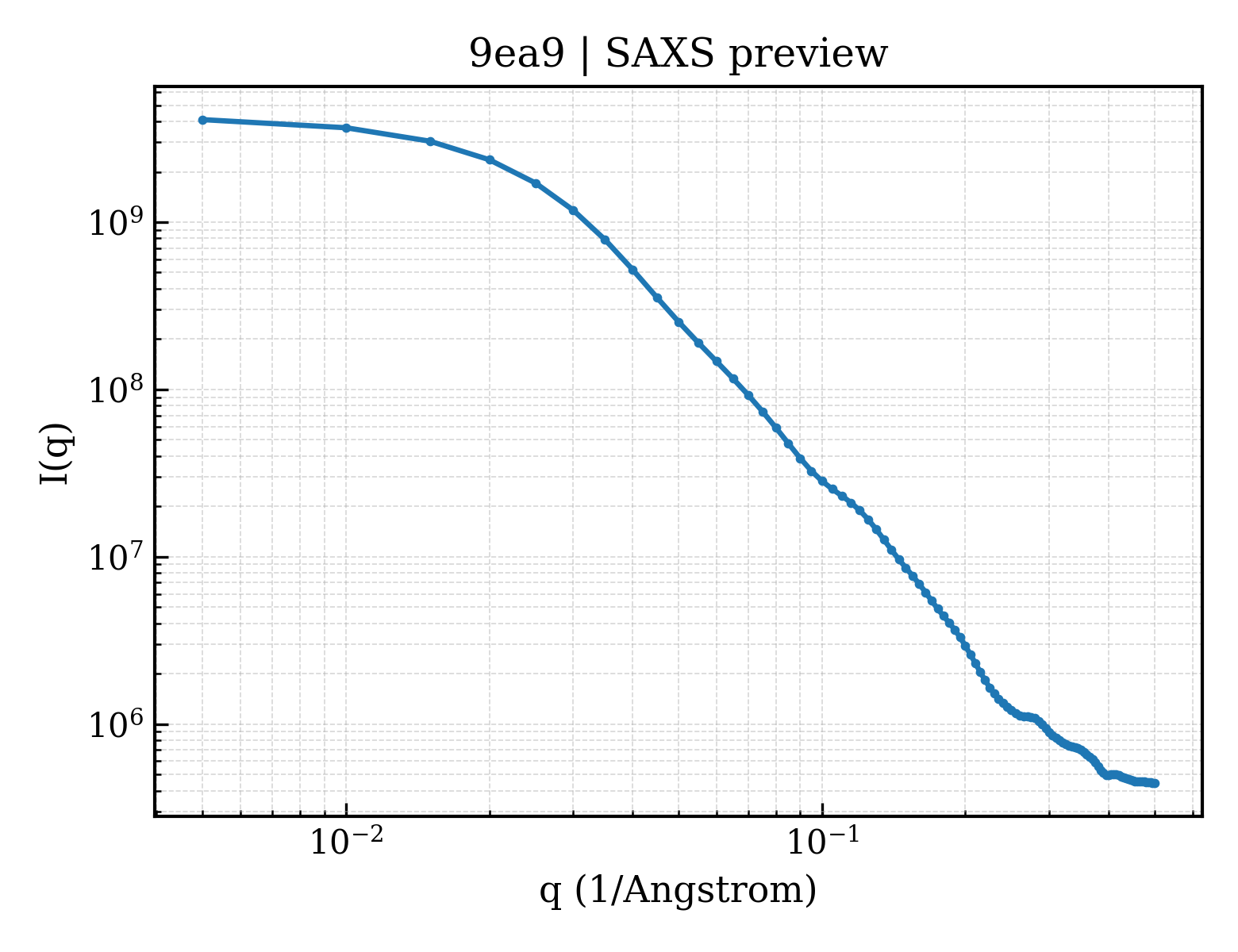

9ea9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

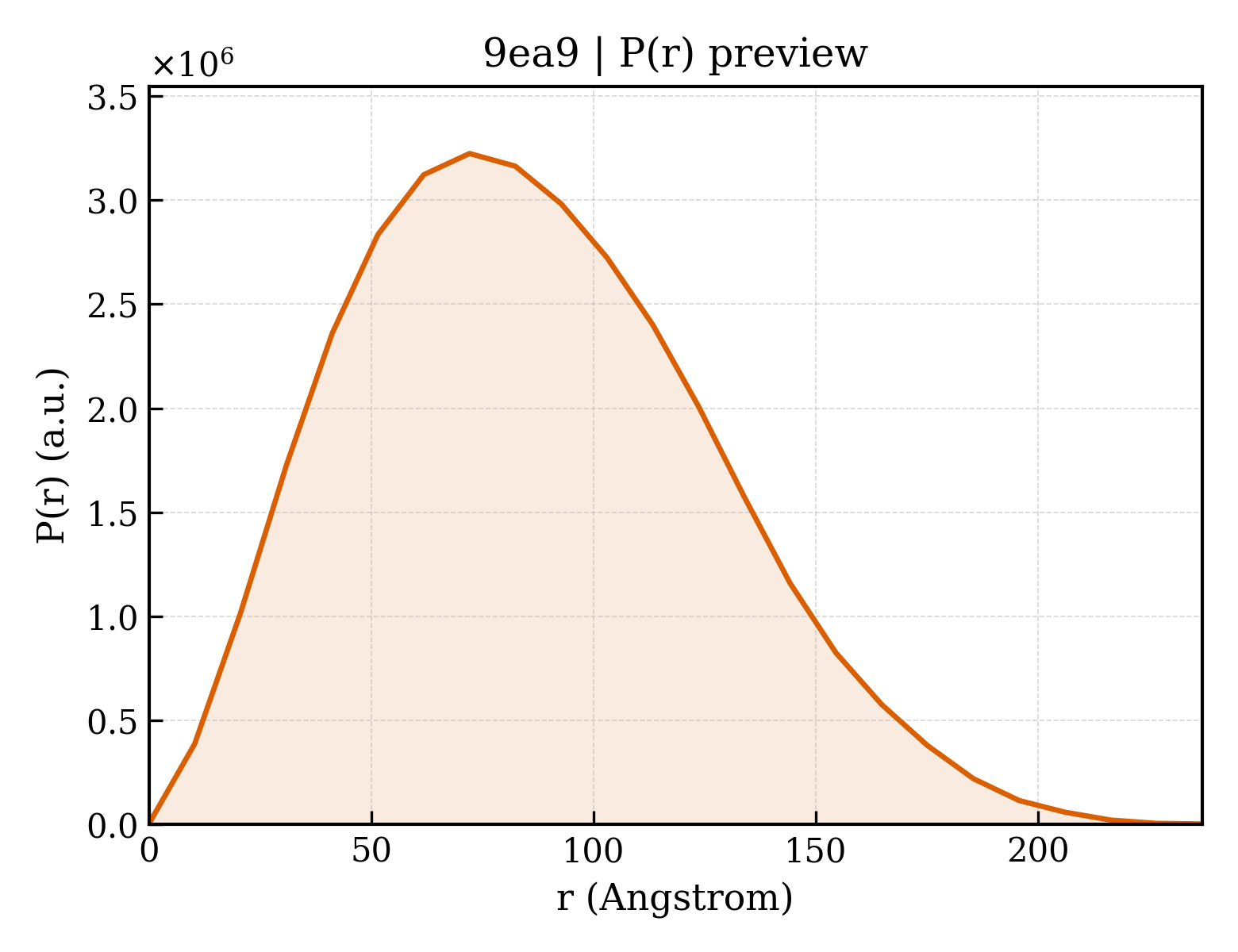

9ea9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	66.83 Å
Rg (electron density)	66.50 Å
Total Rg	66.51 Å
Atom count	39153
Residues	4888
Excluded volume	695070 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9ea9__assembly_1__model_1`	14-meric （14）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (14)

Entity 1 Entity 1 polymer

Description description	Botulinum neurotoxin type A
Molecular weight formula_weight	149479.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	39218

MPFVNKQFNYKDPVNGVDIAYIKIPNAGQMQPVKAFKIHNKIWVIPERDTFTNPEEGDLNPPPEAKQVPVSYYDSTYLSTDNEKDNYLKGVTKLFERIYSTDLGRMLLTSIVRGIPFWGGSTIDTELKVIDTNCINVIQPDGSYRSEELNLVIIGPSADIIQFECKSFGHEVLNLTRNGYGSTQYIRFSPDFTFGFEESLEVDTNPLLGAGKFATDPAVTLAHQLIHAGHRLYGIAINPNRVFKVNTNAYYEMSGLEVSFEELRTFGGHDAKFIDSLQENEFRLYYYNKFKDIASTLNKAKSIVGTTASLQYMKNVFKEKYLLSEDTSGKFSVDKLKFDKLYKMLTEIYTEDNFVKFFKVLNAKTFLNFDKAVFKINIVPKVNYTIYDGFNLRNTNLAANFNGQNTEINNMNFTKLKNFTGLFEFYKLLCVRGIITSKTKSLDKGYNKALNDLCIKVNNWDLFFSPSEDNFTNDLNKGEEITSDTNIEAAEENISLDLIQQYYLTFNFDNEPENISIENLSSDIIGQLELMPNIERFPNGKKYELDKYTMFHYLRAQEFEHGKSRIALTNSVNEALLNPSRVYTFFSSDYVKKVNKATEAAMFLGWVEQLVYDFTDETSEVSTTDKIADITIIIPYIGPALNIGNMLYKDDFVGALIFSGAVILLEFIPEIAIPVLGTFALVSYIANKVLTVQTIDNALSKRNEKWDEVYKYIVTNWLAKVNTQIDLIRKKMKEALENQAEATKAIINYQYNQYTEEEKNNINFNIDDLSSKLNESINKAMININKFLNQCSVSYLMNSMIPYGVKRLEDFDASLKDALLKYIYDNRGTLIGQVDRLKDKVNNTLSTDIPFQLSKYVDNQRLLSTFTEYIKNIINTSILNLRYESNHLIDLSRYASKINIGSKVNFDPIDKNQIQLFNLESSKIEVILKNAIVYNSMYENFSTSFWIRIPKYFNSISLNNEYTIINCMENNSGWKVSLNYGEIIWTLQDTQEIKQRVVFKYSQMINISDYINRWIFVTITNNRLNNSKIYINGRLIDQKPISNLGNIHASNNIMFKLDGCRDTHRYIWIKYFNLFDKELNEKEIKDLYDNQSNSGILKDFWGDYLQYDKPYYMLNLYDPNKYVDVNNVGIRGYMYLKGPRGSVMTTNIYLNSSLYRGTKFIIKKYASGNKDNIVRNNDRVYINVVVKNKEYRLATNASQAGVEKILSALEIPDVGNLSQVVVMKSKNDQGITNKCKMNLQDNNGNDIGFIGFHQFNNIAKLVASNWYNRQIERSSRTLGCSWEFIPVDDGWGERPL

Source Source

Source organism organism	Clostridium botulinum
NCBI taxonomy ID ncbi_taxonomy_id	1491
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Non-toxic nonhemagglutinin type A
Molecular weight formula_weight	138292.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MNINDNLSINSPVDNKNVVVVRARKTDTVFKAFKVAPNIWVAPERYYGESLSIDEEYKVDGGIYDSNFLSQDSEKDKFLQAIITLLKRINSTNAGEKLLSLISTAIPFPYGYIGGGYYAPNMITFGSAPKSNKKLNSLISSTIPFPYAGYRETNYLSSEDNKSFYASNIVIFGPGANIVENNTVFYKKEDAENGMGTMTEIWFQPFLTYKYDEFYIDPAIELIKCLIKSLYFLYGIKPSDDLVIPYRLRSELENIEYSQLNIVDLLVSGGIDPKFINTDPYWFTDNYFSNAKKVFEDHRNIYETEIEGNNAIGNDIKLRLKQKFRININDIWELNLNYFSKEFSIMMPDRFNNALKHFYRKQYYKIDYPENYSINGFVNGQINAQLSLSDRNQDIINKPEEIINLLNGNNVSLMRSNIYGDGLKSSVDDFYSNYKIPYNRAYEYHFNNSNDSSLDNVNIGVIDNIPEIIDVNPYKENCDKFSPVQKITSTREINTNIPWPINYLQAQNTNNEKFSLSSDFVEVVSSKDKSLVYSFLSNVMFYLDSIKDNSPIDTDKKYYLWLREIFRNYSFDITATQEINTNCGINKVVTWFGKALNILNTSDSFVEEFQNLGAISLINKKENLSMPIIESYEIPNDMLGLPLNDLNEKLFNIYSKNTAYFKKIYYNFLDQWWTQYYSQYFDLICMAKRSVLAQETLIKRIIQKKLSYLIGNSNISSDNLALMNLTTTNTLRDISNESQIAMNNVDSFLNNAAICVFESNIYPKFISFMEQCINNINIKTKEFIQKCTNINEDEKLQLINQNVFNSLDFEFLNIQNMKSLFSSETALLIKEETWPYELVLYAFKEPGNNVIGDASGKNTSIEYSKDIGLVYGINSDALYLNGSNQSISFSNDFFENGLTNSFSIYFWLRNLGKDTIKSKLIGSKEDNCGWEIYFQDTGLVFNMIDSNGNEKNIYLSDVSNNSWHYITISVDRLKEQLLIFIDDNLVANESIKEILNIYSSNIISLLSENNPSYIEGLTILNKPTTSQEVLSNYFEVLNNSYIRDSNEERLEYNKTYQLYNYVFSDKPICEVKQNNNIYLTINNTNNLNLQASKFKLLSINPNKQYVQKLDEVIISVLDNMEKYIDISEDNRLQLIDNKNNAKKMIISNDIFISNCLTLSYNGKYICLSMKDENHNWMICNNDMSKYLYLWSFKP

Source Source

Source organism organism	Clostridium botulinum
NCBI taxonomy ID ncbi_taxonomy_id	1491
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Nanobody ciA-F12
Molecular weight formula_weight	13698.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

QVQLVESGGGLVQPGGSLRLSCAASGFTLGSRYMSWVRQAPGEGFEWVSSIEPSGTAWDGDSAKGRFTTSRDDAKNTLYLQMSNLQPEDTGVYYCATGYRTDTRIPGGSWGQGTQVTVSSEPKTPKPQ

Source Source

Source organism organism	Vicugna pacos
NCBI taxonomy ID ncbi_taxonomy_id	30538
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Nanobody ciA-H7
Molecular weight formula_weight	12989.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

QVQLVESGGGLVQVGGSLRLSCVVSGSDISGIAMGWYRQAPGKRREMVADIFSGGSTDYAGSVKGRFTISRDNAKKTSYLQMNNVKPEDTGVYYCRLYGSGDYWGQGTQVTVSSAHHSEDP

Source Source

Source organism organism	Vicugna pacos
NCBI taxonomy ID ncbi_taxonomy_id	30538
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	HA-70
Molecular weight formula_weight	71450.5 kDa
Source method src_method	man
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,J,D,G,H

MNSSIKKIYNDIQEKVINYSDTIDLADGNYVVRRGDGWILSRQNQILGGSVISNGSTGIVGDLRVNDNAIPYYYPTPSFNEEYIKNNIQTVFTNFTEANQIPIGFEFSKTAPSNKNLYMYLQYTYIRYEIIKVLQHEIIERAVLYVPSLGYVKSIEFNPGEKINKDFYFLTNDKCILNEQFLYKKILETTKNIPTNNIFNSKVSSTQRVLPYSNGLYVINKGDGYIRTNDKDLIGTLLIEAGSSGSIIQPRLRNTTRPLFTTSNDTKFSQQYTEERLKDAFNVQLFNTSTSLFKFVEEAPSDKNICIKAYNTYEKYELIDYQNGSIVNKAEYYLPSLGYCEVTNAPSPESEVVKMQVAEDGFIQNGPEEEIVVGVIDPSENIQEINTAISDNYTYNIPGIVNNNPFYILFTVNTTGIYKINAQNNLPSLKIYEAIGSGNRNFQSGNLCDDDIKAINYITGFDSPNAKSYLVVLLNKDKNYYIRVPQTSSNIENQIQFKREEGDLRNLMNSSVNIIDNLNSTGAHYYTRQSPDVHDYISYEFTIPGNFNNKDTSNIRLYTSYNQGIGTLFRVTETIDGYNLINIQQNLHLLNNTNSIRLLNGAIYILKVEVTELNNYNIRLHIDITN

Source Source

Source organism organism	Clostridium botulinum
NCBI taxonomy ID ncbi_taxonomy_id	1491
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	HA70/A1
Molecular weight formula_weight	71408.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MNSSIKKIYNDIQEKVINYSDTIDLADGNYVVRRGDGWILSRQNQILGGSVISNGSTGIVGDLRVNDNAIPYYYPTPSFNEEYIKNNIQTVFTNFTEANQIPIGFEFSKTAPSNKNLYMYLQYTYIRYEIIKVLQHEIIERAVLYVPSLGYVKSIEFNPGEKINKDFYFLTNDKCILNEQFLYKKILETTKNIPTNNIFNSKVSSTQRVLPYSNGLYVINKGDGYIRTNDKDLIGTLLIEAGSSGSIIQPRLRNTTRPLFTTSNDTKFSQQYTEERLKDAFNVQLFNTSTSLFKFVEEAPSDKNICIKAYNTYEKYELIDYQNGSIVNKAEYYLPSLGYCEVTNAPSPESEVVKMQVAEDGFIQNGPEEEIVVGVIDPSENIQEINTAISDNYTYNIPGIVNNNPFYILFTVNTTGIYKINAQNNLPSLKIYEAIGSGNRNFQSGNLCDDDIKAINYITGFDSPNAKSYLVVLLNKDKNYYIRVPQTSSNIENQIQFKREEGDLRNLMNSSVNIIDNLNSTGAHYYTRQSPDVHDYISYEFTIPGNFNNKDTSNIRLYTSYNQGIGTLFRVTETDAGYNLINIQQNLHLLNNTNSIRLLNGAIYILKVEVTELNNYNIRLHIDITN

Source Source

Source organism organism	Clostridium botulinum
NCBI taxonomy ID ncbi_taxonomy_id	1491
Host organism host_organism	Escherichia coli

Entity 7 Entity 7 polymer

Description description	anti-NTNH Fab
Molecular weight formula_weight	11629.9 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

DIVLTQSPATLSVTPGDDVSLSCRASQSISNNLHWYQQKSHESPRLLIKYASQSISGIPSKFGRGSGTDFTLIINRVETEDFGVYFCQQSDSWPYTFGGTKLEII

Entity 8 Entity 8 polymer

Description description	anti-NTNH Fab
Molecular weight formula_weight	12743.2 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

QVQLQQSGAELARPGTSVKLSCKASGYTFTTYWIQWVKQRPGQGLEWIGTIYPGDGDTRYTQKFKGKATLTADKSSSTAYMQLISLASEDSAVYYCVAGYDTSGTMGYWGQGTSVTV

Entity 9 Entity 9 polymer

Description description	anti-NTNH Fab
Molecular weight formula_weight	9845.1 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

AKTTAPSVYPLAPSVTLGCLVKGYFPEPVTLTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVTSSTWPSQSITCNVAHPASSTKVDKKIEPRGP

Entity 10 Entity 10 polymer

Description description	anti-NTNH Fab
Molecular weight formula_weight	11500.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

AAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNE

Entity 11 Entity 11 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	10

Entity 12 Entity 12 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 13 Entity 13 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	nat
Copy count entity_count	10

Entity 14 Entity 14 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	65

▶

Unit-cell length a length_a	203.650 Å
Unit-cell length b length_b	203.650 Å
Unit-cell length c length_c	479.910 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	40

Space group space_group	P 42 21 2
Space-group number int_tables_number	94
Crystal system crystal_system	—

Resolution resolution	2.930 Å
Low-resolution limit resolution_low	99.610 Å
R factor r_factor	0.2867
R_work r_work	0.2864
R_free r_free	0.3084
