1. Protein Identity and Related Structures Protein Identity & Related Structures

Probable transcription repressor NiaR

Thermotoga maritima

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	FE (II) ION × 2 NICOTINIC ACID × 2 PROLINE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NIAR_THEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–175； UniProt 1–175

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ebr
Deposition date deposition_date	2024-11-13
Structure title title	The structure of NiaR from Thermotoga maritima bound to nicotinic acid
Keywords keywords	Corepressor, regulatory protein, metalloprotein, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9ebr__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

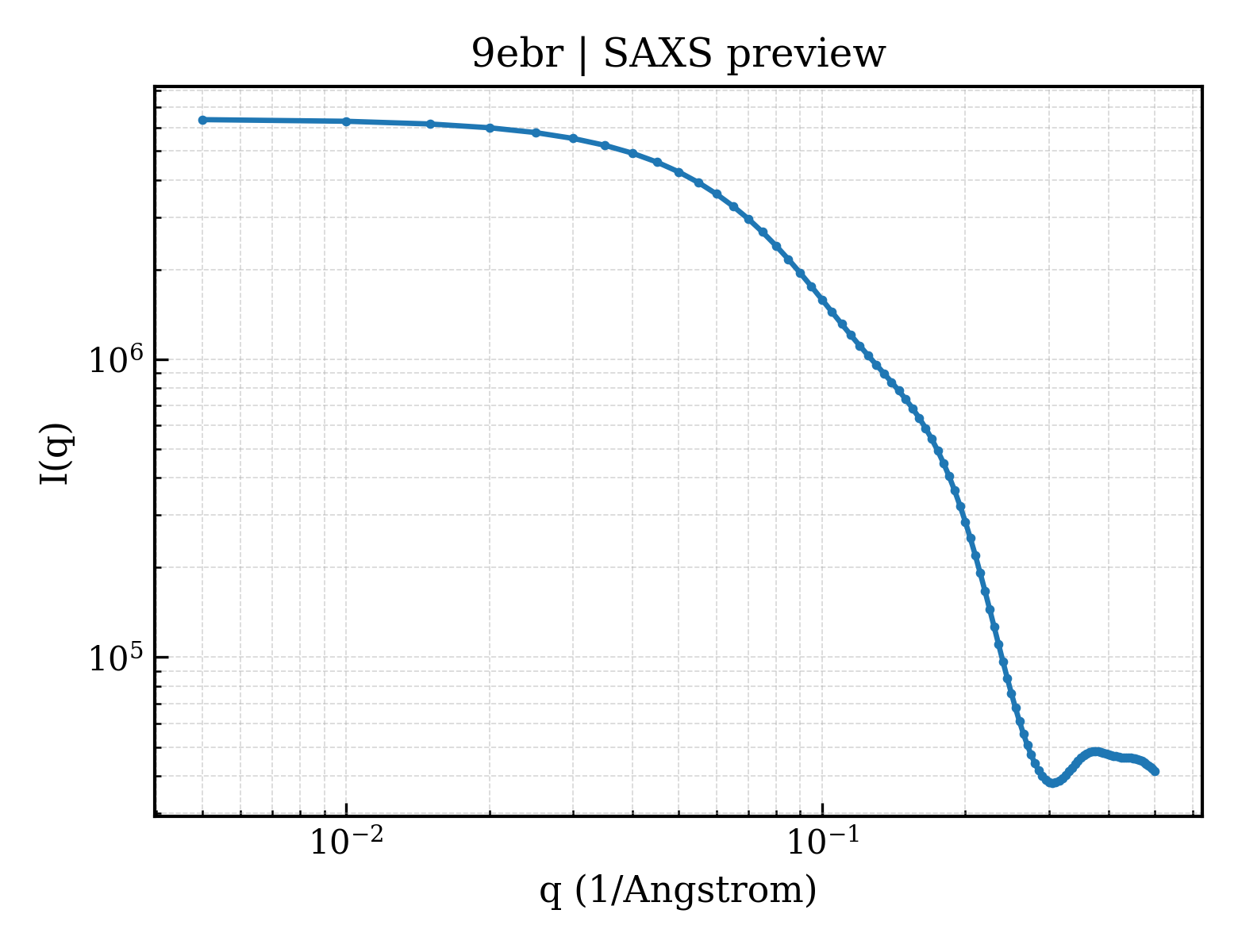

9ebr__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

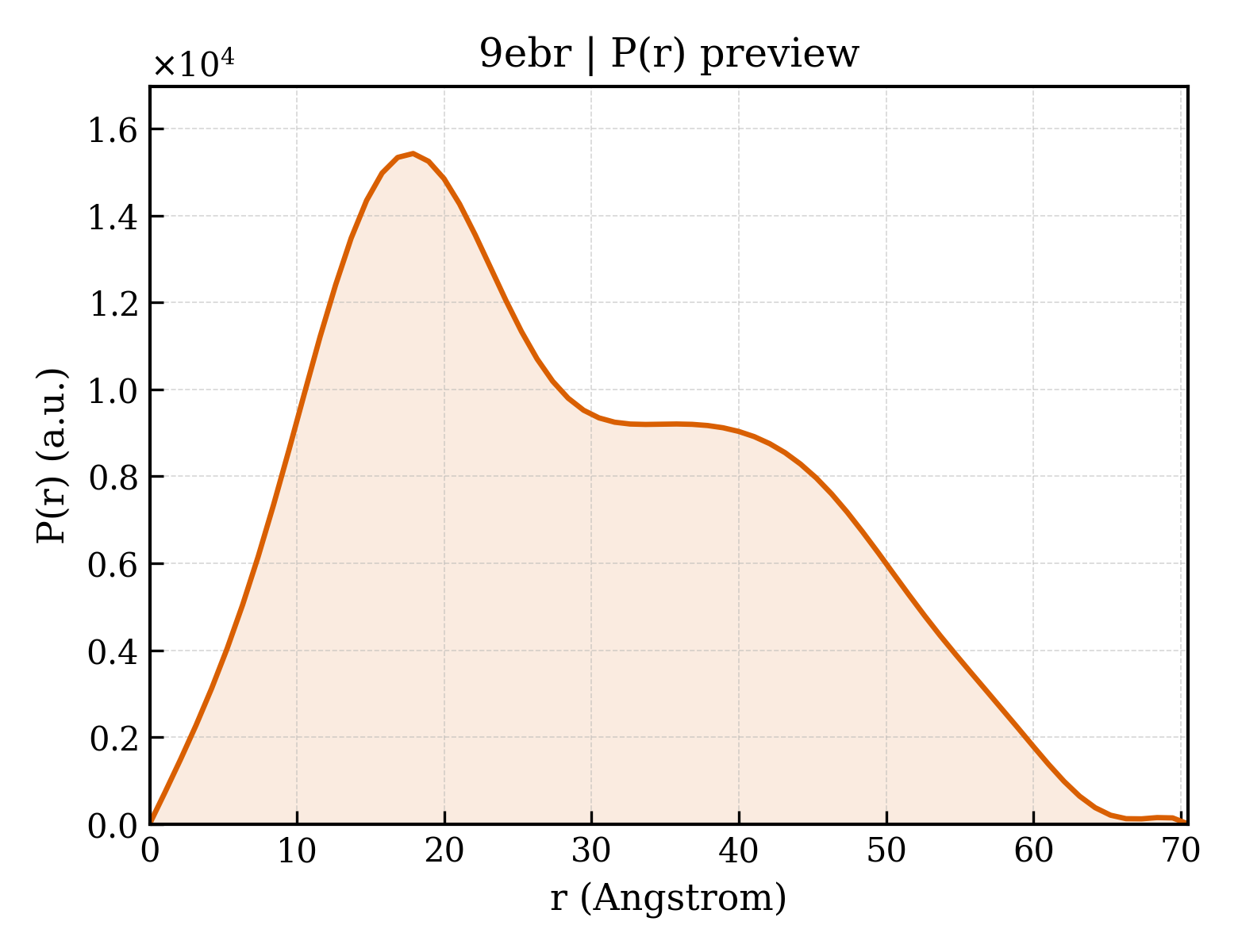

9ebr__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.92 Å
Rg (electron density)	30.45 Å
Total Rg	30.96 Å
Atom count	2672
Residues	336
Excluded volume	48037 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9ebr__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Probable transcription repressor NiaR
Molecular weight formula_weight	19583.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1351

MHMKTVRQERLKSIVRILERSKEPVSGAQLAEELSVSRQVIVQDIAYLRSLGYNIVATPRGYVLAGGKSGVSRLVAVKHAPEEIKEELLCVVRNGGRIVDVIVEHPVYGEIRGIIDVSSEEEVLKFVNLMEMAKTEPLLTLSGGVHLHTIEAPDEETMERIMRELKKKGFLIEEG

Source Source

Source organism organism	Thermotoga maritima
NCBI taxonomy ID ncbi_taxonomy_id	2336
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	FE (II) ION
Molecular weight formula_weight	55.8 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	NICOTINIC ACID
Molecular weight formula_weight	123.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	PROLINE
Molecular weight formula_weight	115.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	9

▶

Unit-cell length a length_a	83.243 Å
Unit-cell length b length_b	83.243 Å
Unit-cell length c length_c	66.838 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	trigonal

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	35.330 Å
R factor r_factor	0.2197
R_work r_work	0.2174
R_free r_free	0.2603

The structure of NiaR from Thermotoga maritima bound to nicotinic acid
