1. Protein Identity and Related Structures Protein Identity & Related Structures

LLGL scribble cell polarity complex component 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 13–978	Not recorded	Protein kinase C iota type × 1 （P41743） Partitioning defective 6 homolog beta × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.48 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9EJL	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3WP0 Crystal structure of Dlg GK in complex with a phosphor-Lgl2 peptide Deposited 2014-01-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 640–654（15 aa） Fragment：UNP residues 640-654	Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；291 K；0.2M lithium chloride, 20% PEG3350, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.04 Å R-free 0.202
3WP1 Phosphorylation-dependent interaction between tumor suppressors Dlg and Lgl Deposited 2014-01-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 646–657（12 aa） Fragment：UNP residues 646-657	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å R-free 0.268
6N8P Crystal structure of the human cell polarity protein Lethal Giant Larvae 2 (Lgl2). Unphosphorylated, crystal form 1. Deposited 2018-11-30	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 13–978（966 aa）	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295.15 K；19.8 % PEG 3350, 0.29 M Na2SO4, 0.1 M bis-tris propane pH 7.5, 3% methanol	Resolution 3.19 Å R-free 0.250
6N8Q Crystal structure of the human cell polarity protein Lethal Giant Larvae 2 (Lgl2). Unphosphorylated, crystal form 2. Deposited 2018-11-30	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 13–978（966 aa）	Not recorded	CL CHLORIDE ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；295.15 K；18-21 % PEG 2000 MME, 80-100 mM SPG pH 6.0	Resolution 2.20 Å R-free 0.226
6N8R Crystal structure of the human cell polarity protein Lethal Giant Larvae 2 (Lgl2). aPKC phosphorylated, crystal form 2. Deposited 2018-11-30	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 13–978（966 aa）	Not recorded	CL CHLORIDE ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；295.15 K；25% PEG 1500, 100 mM SPG pH 8.0	Resolution 1.91 Å R-free 0.219
6N8S Crystal structure of the human cell polarity protein Lethal Giant Larvae 2 (Lgl2). aPKC phosphorylated, crystal form 3. Deposited 2018-11-30	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 13–978（966 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295.15 K；1.4 M ammonium sulfate, 100 mM Hepes pH 7.5, 150 mM NaCl, 1.07% 1,6-hexanediol	Resolution 3.90 Å R-free 0.298
6N8S Crystal structure of the human cell polarity protein Lethal Giant Larvae 2 (Lgl2). aPKC phosphorylated, crystal form 3. Deposited 2018-11-30	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 13–978（966 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295.15 K；1.4 M ammonium sulfate, 100 mM Hepes pH 7.5, 150 mM NaCl, 1.07% 1,6-hexanediol	Resolution 3.90 Å R-free 0.298
8R3X Crystal structure of aPKC Iota kinase domain with LLGL2 peptide Deposited 2023-11-10	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 641–660（20 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；300 K；Morpheus Condition: 25% (v/v) MPD, 25% (v/v) PEG 1000, 25% (v/v) PEG 3350, 0.3 M NaNO3, 0.3 M Na2HPO4, 0.3 M (NH4)2SO4, 0.1 M MES/imidazole pH 6.5	Resolution 2.59 Å R-free 0.269
8R3X Crystal structure of aPKC Iota kinase domain with LLGL2 peptide Deposited 2023-11-10	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 641–660（20 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；300 K；Morpheus Condition: 25% (v/v) MPD, 25% (v/v) PEG 1000, 25% (v/v) PEG 3350, 0.3 M NaNO3, 0.3 M Na2HPO4, 0.3 M (NH4)2SO4, 0.1 M MES/imidazole pH 6.5	Resolution 2.59 Å R-free 0.269
9EJK Lgl2 bound to the aPKCiota-Par6b complex in nucleotide-free form. Head sub-complex region subtracted Deposited 2024-11-28	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 13–978（966 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.08 Å
9EJM Lgl2 bound to the aPKCiota-Par6B complex in its ADP-bound form Deposited 2024-11-28	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 13–978（966 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.33 Å

9 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	L2GL2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–967； UniProt 13–978

Protein kinase C iota type

Homo sapiens

UniProt P41743

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 1–596	Non-standard monomer：Yes (specific site not provided by mmCIF)	LLGL scribble cell polarity complex component 2 × 1 （Q6P1M3） Partitioning defective 6 homolog beta × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.48 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9EJL	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1VD2 Solution Structure of the PB1 domain of PKCiota Deposited 2004-03-18	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 16–99（84 aa） Fragment：PB1 domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 50mM phosphate buffer; 150mM sodium chloride；Pressure ambient NMR sample composition 1mM PKCiota PB1 U-15N, U-13C; 50mM phosphate buffer; 150mM sodium chloride; 5mM ditiothreitol; 0.05%(w/v) sodium azide; 90% H2O, 10% D2O \| 90% H2O/10% D2O NMR sample composition 1mM PKCiota PB1 U-15N, U-13C; 50mM phosphate buffer; 150mM sodium chloride; 5mM ditiothreitol; 0.05%(w/v) sodium azide; 100% D2O \| 100% D2O	Resolution not provided
1WMH Crystal structure of a PB1 domain complex of Protein kinase c iota and Par6 alpha Deposited 2004-07-09	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 16–99（84 aa） Fragment：PB1 domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；sodium formate, Tris, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.50 Å R-free 0.224
1ZRZ Crystal Structure of the Catalytic Domain of Atypical Protein Kinase C-iota Deposited 2005-05-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 224–587（364 aa） Fragment：catalytic domain, residues 224-587	Non-standard monomer：Yes (specific site not provided by mmCIF)	BI1 3-{1-[3-(DIMETHYLAMINO)PROPYL]-1H-INDOL-3-YL}-4-(1H-INDOL-3-YL)-1H-PYRROLE-2,5-DIONE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；PEG 400, sodium acetate, MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.00 Å R-free 0.333
3A8W Crystal Structure of PKCiota kinase domain Deposited 2009-10-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 249–588（340 aa） Fragment：UNP residues 249-588	Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；293 K；PEG3350, ammonium sulfate, pH 5.5, VAPOR DIFFUSION, temperature 293K	Resolution 2.10 Å R-free 0.301
3A8W Crystal Structure of PKCiota kinase domain Deposited 2009-10-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 249–588（340 aa） Fragment：UNP residues 249-588	Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；293 K；PEG3350, ammonium sulfate, pH 5.5, VAPOR DIFFUSION, temperature 293K	Resolution 2.10 Å R-free 0.301
3A8W Crystal Structure of PKCiota kinase domain Deposited 2009-10-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 249–588（340 aa） Fragment：UNP residues 249-588 Chain B 249–588（340 aa） Fragment：UNP residues 249-588	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 2 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.5；293 K；PEG3350, ammonium sulfate, pH 5.5, VAPOR DIFFUSION, temperature 293K	Resolution 2.10 Å R-free 0.301
3A8X Crystal Structure of PKCiota kinase domain Deposited 2009-10-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 249–588（340 aa） Fragment：UNP residues 249-588	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；293 K；HEPES, ammonium sulfate, PEG400, pH 7.5, VAPOR DIFFUSION, temperature 293K	Resolution 2.00 Å R-free 0.271
3A8X Crystal Structure of PKCiota kinase domain Deposited 2009-10-11	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 249–588（340 aa） Fragment：UNP residues 249-588	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；293 K；HEPES, ammonium sulfate, PEG400, pH 7.5, VAPOR DIFFUSION, temperature 293K	Resolution 2.00 Å R-free 0.271
3A8X Crystal Structure of PKCiota kinase domain Deposited 2009-10-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 249–588（340 aa） Fragment：UNP residues 249-588 Chain B 249–588（340 aa） Fragment：UNP residues 249-588	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；293 K；HEPES, ammonium sulfate, PEG400, pH 7.5, VAPOR DIFFUSION, temperature 293K	Resolution 2.00 Å R-free 0.271
3ZH8 A novel small molecule aPKC inhibitor Deposited 2012-12-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 248–596（349 aa） Fragment：KINASE DOMAIN, RESIDUES 248-596	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	IOD IODIDE ION × 4 CL CHLORIDE ION × 1 C58 (2S)-3-phenyl-N~1~-[2-(pyridin-4-yl)-5,6,7,8-tetrahydro[1]benzothieno[2,3-d]pyrimidin-4-yl]propane-1,2-diamine × 1 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions 0.2M AMMONIUM IODIDE AND 20%(W/V) PEG3350.	Resolution 2.74 Å R-free 0.257
3ZH8 A novel small molecule aPKC inhibitor Deposited 2012-12-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 248–596（349 aa） Fragment：KINASE DOMAIN, RESIDUES 248-596	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	IOD IODIDE ION × 4 CL CHLORIDE ION × 1 C58 (2S)-3-phenyl-N~1~-[2-(pyridin-4-yl)-5,6,7,8-tetrahydro[1]benzothieno[2,3-d]pyrimidin-4-yl]propane-1,2-diamine × 1 EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions 0.2M AMMONIUM IODIDE AND 20%(W/V) PEG3350.	Resolution 2.74 Å R-free 0.257
3ZH8 A novel small molecule aPKC inhibitor Deposited 2012-12-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 248–596（349 aa） Fragment：KINASE DOMAIN, RESIDUES 248-596	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	IOD IODIDE ION × 4 CL CHLORIDE ION × 1 C58 (2S)-3-phenyl-N~1~-[2-(pyridin-4-yl)-5,6,7,8-tetrahydro[1]benzothieno[2,3-d]pyrimidin-4-yl]propane-1,2-diamine × 1 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions 0.2M AMMONIUM IODIDE AND 20%(W/V) PEG3350.	Resolution 2.74 Å R-free 0.257
5LI1 Structure of a Par3-inhibitory peptide bound to PKCiota core kinase domain Deposited 2016-07-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 248–596（349 aa） Fragment：UNP residues 246-589	Non-standard monomer：Yes (specific site not provided by mmCIF)	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 GOL GLYCEROL × 1 K POTASSIUM ION × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；32% Peg 2000 MME, 0.08 M KSCN	Resolution 2.00 Å R-free 0.217
5LI9 Structure of a nucleotide-bound form of PKCiota core kinase domain Deposited 2016-07-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 248–596（349 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ACP PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER × 1 FMT FORMIC ACID × 7 IMD IMIDAZOLE × 1 MRD (4R)-2-METHYLPENTANE-2,4-DIOL × 1 PEG DI(HYDROXYETHYL)ETHER × 3 ACT ACETATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.3；293 K；25% Morpheus precipitant mix 4, 10% Morpheus Carboxylic acids, Morpheus Buffer system 1	Resolution 1.79 Å R-free 0.231
5LIH Structure of a peptide-substrate bound to PKCiota core kinase domain Deposited 2016-07-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 248–596（349 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ADP ADENOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 2 MN MANGANESE (II) ION × 3 SCN THIOCYANATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；32% Peg 2000 MME, 0.08 M KSCN	Resolution 3.25 Å R-free 0.284
5LIH Structure of a peptide-substrate bound to PKCiota core kinase domain Deposited 2016-07-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 248–596（349 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ADP ADENOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 2 MN MANGANESE (II) ION × 2 SCN THIOCYANATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；32% Peg 2000 MME, 0.08 M KSCN	Resolution 3.25 Å R-free 0.284
6ILZ Crystal structure of PKCiota in complex with inhibitor Deposited 2018-10-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 249–588（340 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	AFU 2-amino-5-[3-(piperazin-1-yl)phenyl]-N-(pyridin-4-yl)pyridine-3-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M BIS-TRIS 6.5, 28 % w/v Polyethylene glycol monomethyl ether 2000	Resolution 3.26 Å R-free 0.348
6ILZ Crystal structure of PKCiota in complex with inhibitor Deposited 2018-10-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 249–588（340 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	AFU 2-amino-5-[3-(piperazin-1-yl)phenyl]-N-(pyridin-4-yl)pyridine-3-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M BIS-TRIS 6.5, 28 % w/v Polyethylene glycol monomethyl ether 2000	Resolution 3.26 Å R-free 0.348
6ILZ Crystal structure of PKCiota in complex with inhibitor Deposited 2018-10-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 249–588（340 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	AFU 2-amino-5-[3-(piperazin-1-yl)phenyl]-N-(pyridin-4-yl)pyridine-3-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M BIS-TRIS 6.5, 28 % w/v Polyethylene glycol monomethyl ether 2000	Resolution 3.26 Å R-free 0.348
6ILZ Crystal structure of PKCiota in complex with inhibitor Deposited 2018-10-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain G 249–588（340 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	AFU 2-amino-5-[3-(piperazin-1-yl)phenyl]-N-(pyridin-4-yl)pyridine-3-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M BIS-TRIS 6.5, 28 % w/v Polyethylene glycol monomethyl ether 2000	Resolution 3.26 Å R-free 0.348
8R3X Crystal structure of aPKC Iota kinase domain with LLGL2 peptide Deposited 2023-11-10	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 241–596（356 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；300 K；Morpheus Condition: 25% (v/v) MPD, 25% (v/v) PEG 1000, 25% (v/v) PEG 3350, 0.3 M NaNO3, 0.3 M Na2HPO4, 0.3 M (NH4)2SO4, 0.1 M MES/imidazole pH 6.5	Resolution 2.59 Å R-free 0.269
8R3X Crystal structure of aPKC Iota kinase domain with LLGL2 peptide Deposited 2023-11-10	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 241–596（356 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；300 K；Morpheus Condition: 25% (v/v) MPD, 25% (v/v) PEG 1000, 25% (v/v) PEG 3350, 0.3 M NaNO3, 0.3 M Na2HPO4, 0.3 M (NH4)2SO4, 0.1 M MES/imidazole pH 6.5	Resolution 2.59 Å R-free 0.269
8R3Y Cryo EM structure of a stable LGL/aPKC Iota/Par-6 complex Deposited 2023-11-10	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 248–585（338 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；4 ul of aPKCiota-Par6-Llgl1 complex at a concentration of 0.4 mg/ml was applied to R1.2/1.3 Quantifoil 300 mesh copper grids which had been glow-discharged for 45 s at 45 mA . Grids were blotted for 2.5 s at 100% humidity using an FEI Vitrobot MK IV.	Resolution 3.68 Å
9EJK Lgl2 bound to the aPKCiota-Par6b complex in nucleotide-free form. Head sub-complex region subtracted Deposited 2024-11-28	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–596（596 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.08 Å
9EJM Lgl2 bound to the aPKCiota-Par6B complex in its ADP-bound form Deposited 2024-11-28	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–596（596 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.33 Å

14 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	KPCI_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–596； UniProt 1–596

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ejl
Deposition date deposition_date	2024-11-28
Structure title title	Lgl2 bound to the aPKCiota-Par6B complex in nucleotide-free form. Conformation with visible head sub-complex.
Keywords keywords	Cell Polarity, Kinase, Complex., LIPID BINDING PROTEIN; LIPID BINDING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	38.63 Å
Radius of gyration Rg (electron density) rg_electron	37.81 Å
Forward intensity I(0) i0	409926000.00
Molecular weight molecular_weight	166510.0 kDa
Excluded volume excluded_volume	209170 Å³
Envelope volume envelope_volume	298210 Å³
Hydration-shell volume shell_volume	63840 Å³
Envelope diameter envelope_diameter	120.9 Å
Shell Rg shell_rg	45.60 Å
Envelope Rg envelope_rg	36.99 Å
Shape Rg shape_rg	37.84 Å
Total Rg total_rg	38.23 Å
Total atoms total_atoms	11764
Residues n_residues	1562
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

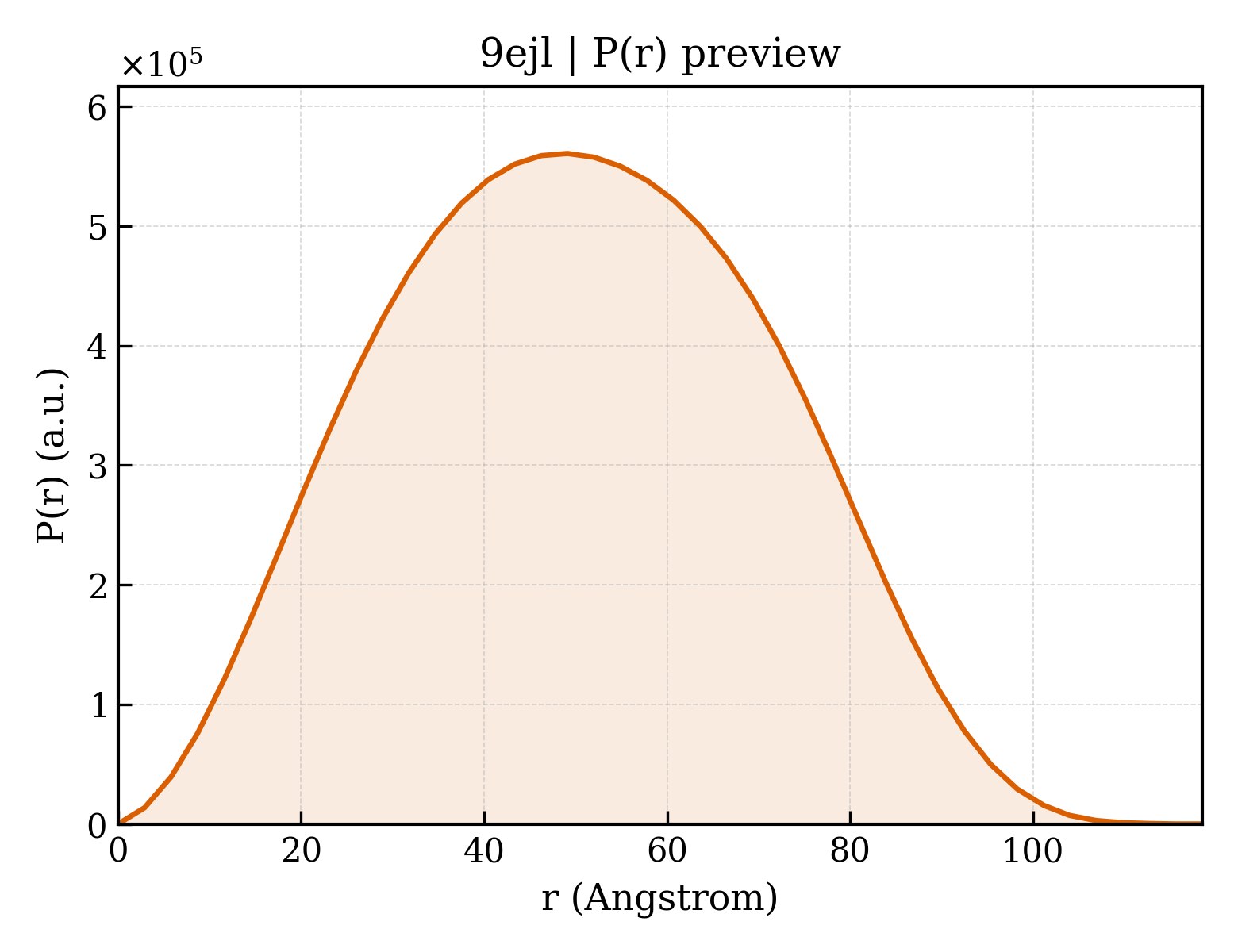

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	118.5 Å
Rg (real space) rg_real	38.36 Å
Rg uncertainty (real space) rg_real_error	0.70 Å
I(0) (real space) i0_real	4.0990e+08
I(0) uncertainty (real space) i0_real_error	5.7970e+06
Rg (reciprocal space) rg_reciprocal	38.53 Å
I(0) (reciprocal space) i0_reciprocal	410000000.0000
Solution quality estimate total_estimate	0.9076
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	49.1 Å
Skewness Skewness skewness	0.064
Kurtosis Kurtosis kurtosis	-0.667
Angular range angular_range	— – 0.2050 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	94390000.0000
Real-space data points n_real_points	42
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.951; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.959

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	LLGL scribble cell polarity complex component 2
Molecular weight formula_weight	109362.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	11764

MRERLKRDLFQFNKTVEHGFPHQPSALGYSPSLRILAIGTRSGAIKLYGAPGVEFMGLHQENNAVTQIHLLPGQCQLVTLLDDNSLHLWSLKVKGGASELQEDESFTLRGPPGAAPSATQITVVLPHSSCELLYLGTESGNVFVVQLPAFRALEDRTISSDAVLQRLPEEARHRRVFEMVEALQEHPRDPNQILIGYSRGLVVIWDLQGSRVLYHFLSSQQLENIWWQRDGRLLVSCHSDGSYCQWPVSSEAQQPEPLRSLVPYGPFPCKAITRILWLTTRQGLPFTIFQGGMPRASYGDRHCISVIHDGQQTAFDFTSRVIGFTVLTEADPAATFDDPYALVVLAEEELVVIDLQTAGWPPVQLPYLASLHCSAITCSHHVSNIPLKLWERIIAAGSRQNAHFSTMEWPIDGGTSLTPAPPQRDLLLTGHEDGTVRFWDASGVCLRLLYKLSTVRVFLTDTDPNENFSAQGEDEWPPLRKVGSFDPYSDDPRLGIQKIFLCKYSGYLAVAGTAGQVLVLELNDEAAEQAVEQVEADLLQDQEGYRWKGHERLAARSGPVRFEPGFQPFVLVQCQPPAVVTSLALHSEWRLVAFGTSHGFGLFDHQQRRQVFVKCTLHPSDQLALEGPLSRVKSLKKSLRQSFRRMRRSRVSSRKRHPAGPPGEAQEGSAKAERPGLQNMELAPVQRKIEARSAEDSFTGFVRTLYFADTYLKDSSRHCPSLWAGTNGGTIYAFSLRVPPAERRMDEPVRAEQAKEIQLMHRAPVVGILVLDGHSVPLPEPLEVAHDLSKSPDMQGSHQLLVVSEEQFKVFTLPKVSAKLKLKLTALEGSRVRRVSVAHFGSRRAEDYGEHHLAVLTNLGDIQVVSLPLLKPQVRYSCIRREDVSGIASCVFTKYGQGFYLISPSEFERFSLSTKWLVEPRCLVDSAETKNHRPGNGAGPKKAPSRARNSGTQSDGEEKQPGLVMEREFTTSASENLYFQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Protein kinase C iota type
Molecular weight formula_weight	68512.3 kDa
EC 编号 ec_number	2.7.11.13
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MPTQRDSSTMSHTVAGGGSGDHSHQVRVKAYYRGDIMITHFEPSISFEGLCNEVRDMCSFDNEQLFTMKWIDEEGDPCTVSSQLELEEAFRLYELNKDSELLIHVFPCVPERPGMPCPGEDKSIYRRGARRWRKLYCANGHTFQAKRFNRRAHCAICTDRIWGLGRQGYKCINCKLLVHKKCHKLVTIECGRHSLPQEPVMPMDQSSMHSDHAQTVIPYNPSSHESLDQVGEEKEAMNTRESGKASSSLGLQDFDLLRVIGRGSYAKVLLVRLKKTDRIYAMKVVKKELVNDDEDIDWVQTEKHVFEQASNHPFLVGLHSCFQTESRLFFVIEYVNGGDLMFHMQRQRKLPEEHARFYSAEISLALNYLHERGIIYRDLKLDNVLLDSEGHIKLTDYGMCKEGLRPGDTTSTFCGTPNYIAPEILRGEDYGFSVDWWALGVLMFEMMAGRSPFDIVGSSDNPDQNTEDYLFQVILEKQIRIPRSLSVKAASVLKSFLNKDPKERLGCHPQTGFADIQGHPFFRNVDWDMMEQKQVVPPFKPNISGEFGLDNFDSQFTNEPVQLTPDDDDIVRKIDQSEFEGFEYINPLLMSAEECV

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	Partitioning defective 6 homolog beta
Molecular weight formula_weight	42472.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MNRGHRHGASSGCLGTMEVKSKFGAEFRRFSLERSKPGKFEEFYGLLQHVHKIPNVDVLVGYADIHGDLPPINNDDNYHKAVSTANPLLRIFIQKKEEADYSAFGTDTLIRKKNMLSNVLRPDNHRKKPHIVISMPQDFRPVSSIIDVDILPETHRRVRLCKYGTEKPLGFYIRDGSSVRVTPHGLEKVPGIFISRLVPGGLAQSTGLLAVNDEVLEVNGIEVSGKSLDQVTDMMIANSRNLIITVRPANQRNNVVRNSRTSGSSSQSTDNSLLGFPQQVEASFEPEDQDSDEDDIIIEDSGEPQQIPKATPAQSLESLTQIELSFESGQNGFSPPQDTSLVPVPGSLDTELESRAPDQKLLEEDGTIITLEFTTASENLYFQ

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Spodoptera frugiperda

▶

8. Citations (1)

▶

Resolution resolution	3.48 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	251742

fit	/app/data/saxs_computation/ej/9ejl/9ejl.fit
pddf	/app/data/pr_computation/ej/9ejl/9ejl.pr.out
profile	/app/data/saxs_computation/ej/9ejl/9ejl.dat
