9eq3

Structure of IgE HMM5 bound to FceRIa cryo-EM class 8

Method: ELECTRON MICROSCOPY D_max: 184.4 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

High affinity immunoglobulin epsilon receptor subunit alpha

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 5 其他Polymer 9 PDB declaration: pentameric（5） Consistent with protein copy count	Chain R； UniProt 29–199	Not recorded	IgE HMM5 heavy chain × 2 IgE HMM5 light chain × 2 ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 3 ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 4 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 6.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9EQ3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1F2Q CRYSTAL STRUCTURE OF THE HUMAN HIGH-AFFINITY IGE RECEPTOR Deposited 2000-05-28	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 26–201（176 aa） Fragment：EXTRACELLULAR DOMAIN	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；297 K；PEG 4000, Tris, Sodium Acetate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 297K	Resolution 2.40 Å R-free 0.254
1F6A Structure of the human ige-fc bound to its high affinity receptor fc(epsilon)ri(alpha) Deposited 2000-06-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 26–201（176 aa） Fragment：EXTRACELLULAR DOMAIN	Mutation：N74A,N135A,T142A,V143A	SO4 SULFATE ION × 5 CPS 3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；296 K；Ammonium Sulfate, Tris, CHAPS, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 3.50 Å R-free 0.273
1J86 HUMAN HIGH AFFINITY FC RECEPTOR FC(EPSILON)RI(ALPHA), MONOCLINIC CRYSTAL FORM 2 Deposited 2001-05-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 26–201（176 aa） Fragment：EXTRACELLULAR FRAGMENT	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PEG 4000, HEPES, ISOPROPANOL. pH 7.5, VAPOR DIFFUSION, HANGING DROP at 293K	Resolution 3.20 Å R-free 0.278
1J86 HUMAN HIGH AFFINITY FC RECEPTOR FC(EPSILON)RI(ALPHA), MONOCLINIC CRYSTAL FORM 2 Deposited 2001-05-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain B 26–201（176 aa） Fragment：EXTRACELLULAR FRAGMENT	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PEG 4000, HEPES, ISOPROPANOL. pH 7.5, VAPOR DIFFUSION, HANGING DROP at 293K	Resolution 3.20 Å R-free 0.278
1J87 HUMAN HIGH AFFINITY FC RECEPTOR FC(EPSILON)RI(ALPHA), HEXAGONAL CRYSTAL FORM 1 Deposited 2001-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 26–197（172 aa） Fragment：EXTRACELLULAR FRAGMENT	Mutation：I170C	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；PEG 4000, Sodium Citrate, Sodium Chloride, HECAMEG, pH 5.6, VAPOR DIFFUSION, HANGING DROP at 293K	Resolution 3.20 Å R-free 0.306
1J88 HUMAN HIGH AFFINITY FC RECEPTOR FC(EPSILON)RI(ALPHA), TETRAGONAL CRYSTAL FORM 1 Deposited 2001-05-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 26–197（172 aa） Fragment：EXTRACELLULAR FRAGMENT	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；PEG 10000, Ammonium Citrate, Sodium Chloride, pH 5.6, VAPOR DIFFUSION, HANGING DROP at 293K, VAPOR DIFFUSION, HANGING DROP	Resolution 3.20 Å R-free 0.310
1J88 HUMAN HIGH AFFINITY FC RECEPTOR FC(EPSILON)RI(ALPHA), TETRAGONAL CRYSTAL FORM 1 Deposited 2001-05-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain B 26–197（172 aa） Fragment：EXTRACELLULAR FRAGMENT	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；PEG 10000, Ammonium Citrate, Sodium Chloride, pH 5.6, VAPOR DIFFUSION, HANGING DROP at 293K, VAPOR DIFFUSION, HANGING DROP	Resolution 3.20 Å R-free 0.310
1J88 HUMAN HIGH AFFINITY FC RECEPTOR FC(EPSILON)RI(ALPHA), TETRAGONAL CRYSTAL FORM 1 Deposited 2001-05-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain C 26–197（172 aa） Fragment：EXTRACELLULAR FRAGMENT	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；PEG 10000, Ammonium Citrate, Sodium Chloride, pH 5.6, VAPOR DIFFUSION, HANGING DROP at 293K, VAPOR DIFFUSION, HANGING DROP	Resolution 3.20 Å R-free 0.310
1J88 HUMAN HIGH AFFINITY FC RECEPTOR FC(EPSILON)RI(ALPHA), TETRAGONAL CRYSTAL FORM 1 Deposited 2001-05-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain D 26–197（172 aa） Fragment：EXTRACELLULAR FRAGMENT	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；PEG 10000, Ammonium Citrate, Sodium Chloride, pH 5.6, VAPOR DIFFUSION, HANGING DROP at 293K, VAPOR DIFFUSION, HANGING DROP	Resolution 3.20 Å R-free 0.310
1J88 HUMAN HIGH AFFINITY FC RECEPTOR FC(EPSILON)RI(ALPHA), TETRAGONAL CRYSTAL FORM 1 Deposited 2001-05-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain E 26–197（172 aa） Fragment：EXTRACELLULAR FRAGMENT	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；PEG 10000, Ammonium Citrate, Sodium Chloride, pH 5.6, VAPOR DIFFUSION, HANGING DROP at 293K, VAPOR DIFFUSION, HANGING DROP	Resolution 3.20 Å R-free 0.310
1J89 HUMAN HIGH AFFINITY FC RECEPTOR FC(EPSILON)RI(ALPHA), TETRAGONAL CRYSTAL FORM 2 Deposited 2001-05-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 26–197（172 aa） Fragment：EXTRACELLULAR FRAGMENT	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；PEG 10000, Ammonium Citrate, Sodium Chloride, pH 5.6. VAPOR DIFFUSION, HANGING DROP at 293K	Resolution 4.10 Å R-free 0.291
1J89 HUMAN HIGH AFFINITY FC RECEPTOR FC(EPSILON)RI(ALPHA), TETRAGONAL CRYSTAL FORM 2 Deposited 2001-05-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain B 26–197（172 aa） Fragment：EXTRACELLULAR FRAGMENT	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；PEG 10000, Ammonium Citrate, Sodium Chloride, pH 5.6. VAPOR DIFFUSION, HANGING DROP at 293K	Resolution 4.10 Å R-free 0.291
1J89 HUMAN HIGH AFFINITY FC RECEPTOR FC(EPSILON)RI(ALPHA), TETRAGONAL CRYSTAL FORM 2 Deposited 2001-05-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain C 26–197（172 aa） Fragment：EXTRACELLULAR FRAGMENT	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；PEG 10000, Ammonium Citrate, Sodium Chloride, pH 5.6. VAPOR DIFFUSION, HANGING DROP at 293K	Resolution 4.10 Å R-free 0.291
1J89 HUMAN HIGH AFFINITY FC RECEPTOR FC(EPSILON)RI(ALPHA), TETRAGONAL CRYSTAL FORM 2 Deposited 2001-05-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain D 26–197（172 aa） Fragment：EXTRACELLULAR FRAGMENT	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；PEG 10000, Ammonium Citrate, Sodium Chloride, pH 5.6. VAPOR DIFFUSION, HANGING DROP at 293K	Resolution 4.10 Å R-free 0.291
1J89 HUMAN HIGH AFFINITY FC RECEPTOR FC(EPSILON)RI(ALPHA), TETRAGONAL CRYSTAL FORM 2 Deposited 2001-05-20	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain E 26–197（172 aa） Fragment：EXTRACELLULAR FRAGMENT	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；PEG 10000, Ammonium Citrate, Sodium Chloride, pH 5.6. VAPOR DIFFUSION, HANGING DROP at 293K	Resolution 4.10 Å R-free 0.291
1RPQ High Affinity IgE Receptor (alpha chain) Complexed with Tight-Binding E131 'zeta' Peptide from Phage Display Deposited 2003-12-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 26–201（176 aa） Fragment：alpha chain extracellular domains	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；292 K；PEG 2000 monomethyl ether, ammonium sulfate, sodium citrate, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 3.00 Å R-free 0.349
1RPQ High Affinity IgE Receptor (alpha chain) Complexed with Tight-Binding E131 'zeta' Peptide from Phage Display Deposited 2003-12-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 26–201（176 aa） Fragment：alpha chain extracellular domains	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；292 K；PEG 2000 monomethyl ether, ammonium sulfate, sodium citrate, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 3.00 Å R-free 0.349
1RPQ High Affinity IgE Receptor (alpha chain) Complexed with Tight-Binding E131 'zeta' Peptide from Phage Display Deposited 2003-12-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 26–201（176 aa） Fragment：alpha chain extracellular domains	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CIT CITRIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；292 K；PEG 2000 monomethyl ether, ammonium sulfate, sodium citrate, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 3.00 Å R-free 0.349
1RPQ High Affinity IgE Receptor (alpha chain) Complexed with Tight-Binding E131 'zeta' Peptide from Phage Display Deposited 2003-12-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 26–201（176 aa） Fragment：alpha chain extracellular domains	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SO4 SULFATE ION × 1 CIT CITRIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；292 K；PEG 2000 monomethyl ether, ammonium sulfate, sodium citrate, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 3.00 Å R-free 0.349
1RPQ High Affinity IgE Receptor (alpha chain) Complexed with Tight-Binding E131 'zeta' Peptide from Phage Display Deposited 2003-12-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 26–201（176 aa） Fragment：alpha chain extracellular domains Chain C 26–201（176 aa） Fragment：alpha chain extracellular domains	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 SO4 SULFATE ION × 1 CIT CITRIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；292 K；PEG 2000 monomethyl ether, ammonium sulfate, sodium citrate, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 3.00 Å R-free 0.349
1RPQ High Affinity IgE Receptor (alpha chain) Complexed with Tight-Binding E131 'zeta' Peptide from Phage Display Deposited 2003-12-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 6 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 26–201（176 aa） Fragment：alpha chain extracellular domains Chain D 26–201（176 aa） Fragment：alpha chain extracellular domains	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 SO4 SULFATE ION × 1 CIT CITRIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.2；292 K；PEG 2000 monomethyl ether, ammonium sulfate, sodium citrate, pH 4.2, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 3.00 Å R-free 0.349
2Y7Q THE HIGH-AFFINITY COMPLEX BETWEEN IGE AND ITS RECEPTOR FC EPSILON RI Deposited 2011-02-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 26–201（176 aa） Fragment：SOLUBLE EXTRACELLULAR DOMAINS, RESIDUES 26-201	Mutation：YES	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；SITTING DROP VAPOR DIFFUSION. RESERVOIR SOLUTION CONTAINED 2.8M SODIUM ACETATE PH 7.	Resolution 3.40 Å R-free 0.292
7SHT Structure of a partially disrupted IgE high affinity receptor complex bound to an omalizumab variant Deposited 2021-10-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 30–197（168 aa） Fragment：extracellular portion	Mutation：W156C	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.29 Å
8C1B Focused map for structure of IgE bound to the ectodomain of FceRIa Deposited 2022-12-20	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain R 29–197（169 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8C1C Structure of IgE bound to the ectodomain of FceRIa Deposited 2022-12-20	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 29–199（171 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
8K7R Human Fc epsilon RI in complex with hIgE Fc (TMD disordered) Deposited 2023-07-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–257（257 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.56 Å
8YVU structure of Ige receptor Deposited 2024-03-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 201–237（37 aa） Chain E 201–237（37 aa）	Not recorded	CLR CHOLESTEROL × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
8YWA The structure of IgE receptor binding to IgE Deposited 2024-03-30	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 26–257（232 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.14 Å
8Z0T Structure of the human ige-fc bound to its high affinity receptor fc(epsilon) Deposited 2024-04-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–257（257 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.58 Å
9EQ4 Structure of IgE HMM5 bound to FceRIa cryo-EM class 5 Deposited 2024-03-20	Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 29–199（171 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.40 Å

16 other PDB entries and 30 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FCERA_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain R； PDBConstruct 1–171； UniProt 29–199

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

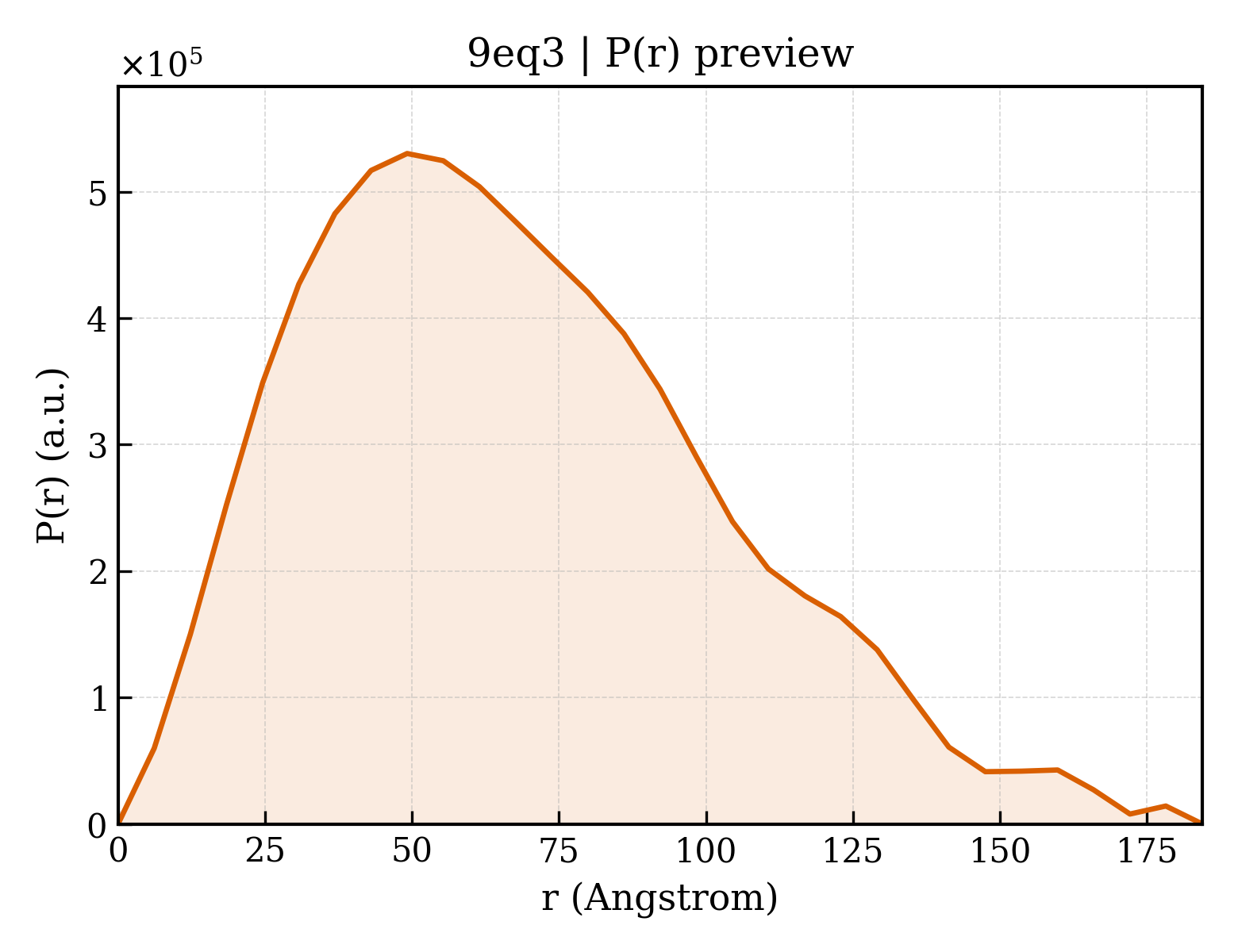

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9eq3
Deposition date deposition_date	2024-03-20
Structure title title	Structure of IgE HMM5 bound to FceRIa cryo-EM class 8
Keywords keywords	IgE, Fc receptor, allergy, antibody, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	53.23 Å
Radius of gyration Rg (electron density) rg_electron	53.95 Å
Forward intensity I(0) i0	573054000.00
Molecular weight molecular_weight	193350.0 kDa
Excluded volume excluded_volume	240120 Å³
Envelope volume envelope_volume	369610 Å³
Hydration-shell volume shell_volume	63976 Å³
Envelope diameter envelope_diameter	194.7 Å
Shell Rg shell_rg	48.84 Å
Envelope Rg envelope_rg	53.18 Å
Shape Rg shape_rg	54.00 Å
Total Rg total_rg	53.61 Å
Total atoms total_atoms	13588
Residues n_residues	1697
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	184.4 Å
Rg (real space) rg_real	53.67 Å
Rg uncertainty (real space) rg_real_error	2.31 Å
I(0) (real space) i0_real	5.7310e+08
I(0) uncertainty (real space) i0_real_error	1.2780e+07
Rg (reciprocal space) rg_reciprocal	52.86 Å
I(0) (reciprocal space) i0_reciprocal	572400000.0000
Solution quality estimate total_estimate	0.8239
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	49.2 Å
Skewness Skewness skewness	0.563
Kurtosis Kurtosis kurtosis	-0.138
Angular range angular_range	— – 0.1500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	37960000.0000
Real-space data points n_real_points	31
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.795; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.944; Smooth: 0.377

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	IgE HMM5 heavy chain
Molecular weight formula_weight	60203.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,X
Atom count atom_count	13588

QSLEESGGRLVTPGTPLTLTCTVSGFSLSTYNIHWVRQAPGKGLEWIGVIDTGGGTYFASWAKGRFAISKTSSTTVDLKMTSLTAADTATYFCAKGFDYSASTNLWGPGTLVTISSASTQSPSVFPLTRCCKNIPSNATSVTLGCLATGYFPEPVMVTWDTGSLNGTTMTLPATTLTLSGHYATISLLTVSGAWAKQMFTCRVAHTPSSTDWVDNKTFSVCSRDFTPPTVKILQSSCDGGGHFPPTIQLLCLVSGYTPGTINITWLEDGQVMDVDLSTASTTQEGELASTQSELTLSQKHWLSDRTYTCQVTYQGHTFEDSTKKCADSNPRGVSAYLSRPSPFDLFIRKSPTITCLVVDLAPSKGTVNLTWSRASGKPVNHSTRKEEKQRNGTLTVTSTLPVGTRDWIEGETYQCRVTHPHLPRALMRSTTKTSGPRAAPEVYAFATPEWPGSRDKRTLACLIQNFMPEDISVQWLHNEVQLPDARHSTTQPRKTKGSGFFVFSRLEVTRAEWEQKDEFICRAVHEAASPSQTVQRAVSSVNPGKHHHHHH

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	IgE HMM5 light chain
Molecular weight formula_weight	23384.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,Y

ELDMTQTPSSVSAPVGGSVTINCQSSQSVYGNNYLAWYQQKAGQPPKLLIYRASTLASGAPSRFKGSGSGTQFTLTISDLESDDAATYYCLGYYNGVINVFGGGTNVEIKRTVGAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	High affinity immunoglobulin epsilon receptor subunit alpha
Molecular weight formula_weight	19880.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

KPKVSLNPPWNRIFKGENVTLTCNGNNFFEVSSTKWFHNGSLSEETNSSLNIVNAKFEDSGEYKCQHQQVNESEPVYLEVFSDWLLLQASAEVVMEGQPLFLRCHGWRNWDVYKVIYYKDGEALKYWYENHNISITNATVEDSGTYYCTGKVWQLDYESEPLNITVIKAPR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 Entity 4 branched

Description description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	910.8 kDa
Source method src_method	man
Copy count entity_count	3

Entity 5 Entity 5 branched

Description description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	910.8 kDa
Source method src_method	man
Copy count entity_count	1

Entity 6 Entity 6 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	4

Entity 7 Entity 7 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	8

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	6.90 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	19161

fit	/app/data/saxs_computation/eq/9eq3/9eq3.fit
pddf	/app/data/pr_computation/eq/9eq3/9eq3.pr.out
profile	/app/data/saxs_computation/eq/9eq3/9eq3.dat
