Cryo-EM structure of the full-length Pseudomonas aeruginosa bacteriophytochrome in its Pfr state

Method: ELECTRON MICROSCOPY D_max: 108.8 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

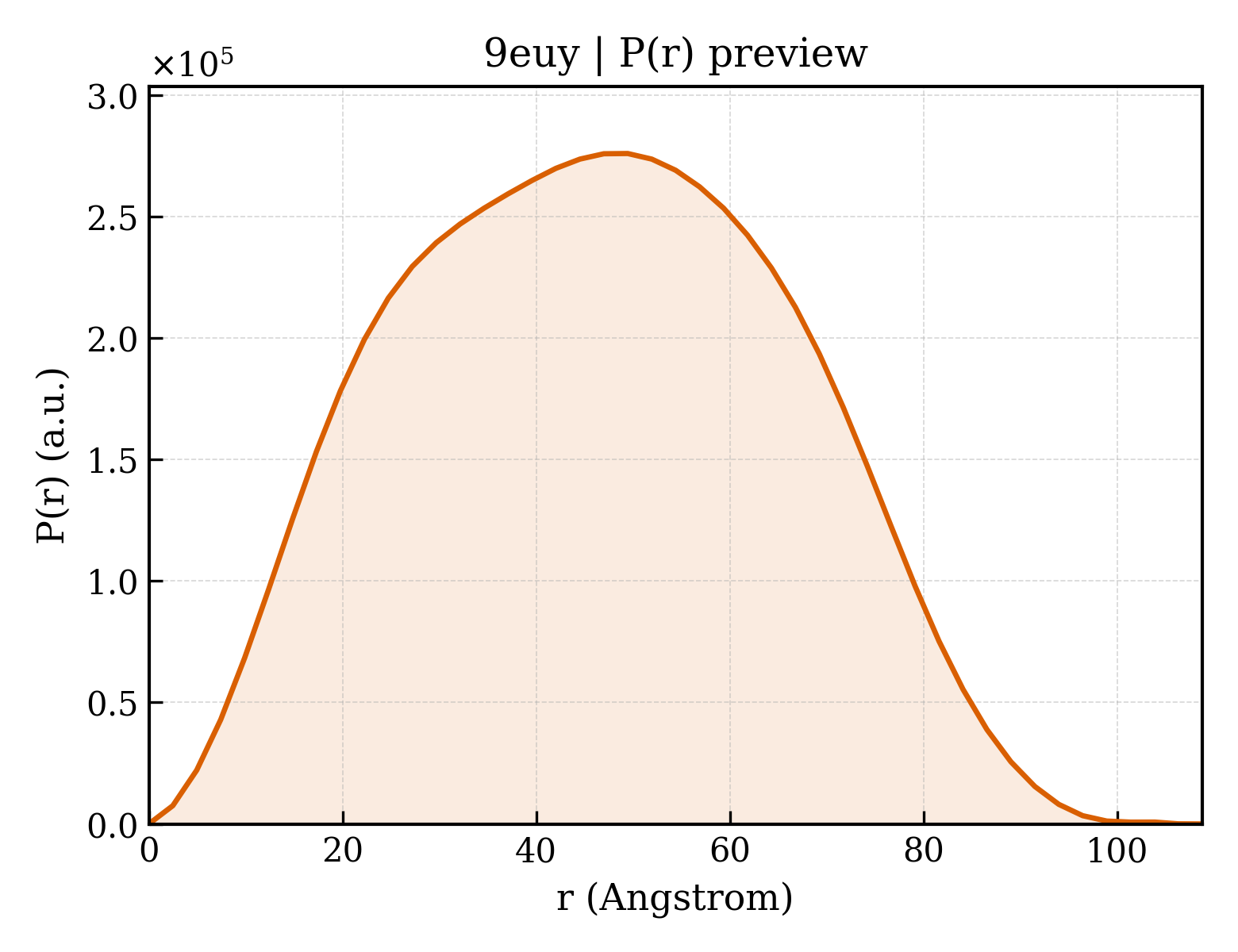

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9euy
沉积日期 deposition_date	2024-03-28
结构标题 title	Cryo-EM structure of the full-length Pseudomonas aeruginosa bacteriophytochrome in its Pfr state
关键词 keywords	Photosensor, Photoreceptor, Phytochrome, Bacterial protein, CYTOSOLIC PROTEIN; CYTOSOLIC PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	35.64 Å
回转半径 Rg (电子) rg_electron	34.67 Å
零角强度 I(0) i0	198815000.00
分子量 molecular_weight	111400.0 kDa
排除体积 excluded_volume	138640 Å³
包络体积 envelope_volume	186980 Å³
水化壳体积 shell_volume	44311 Å³
包络直径 envelope_diameter	112.1 Å
壳层 Rg shell_rg	41.69 Å
包络 Rg envelope_rg	34.50 Å
形状 Rg shape_rg	34.68 Å
总 Rg total_rg	35.15 Å
总原子数 total_atoms	7846
残基数 n_residues	984
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	108.8 Å
Rg (实空间) rg_real	35.48 Å
Rg 误差 (实空间) rg_real_error	0.88 Å
I(0) (实空间) i0_real	1.9880e+08
I(0) 误差 (实空间) i0_real_error	3.6450e+06
Rg (倒空间) rg_reciprocal	35.58 Å
I(0) (倒空间) i0_reciprocal	198800000.0000
解质量估计 total_estimate	0.9130
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	49.5 Å
偏度 Skewness skewness	0.059
峰度 Kurtosis kurtosis	-0.758
角度范围 angular_range	— – 0.2200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	40480000.0000
实空间数据点数 n_real_points	45
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.967; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.965

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Bacteriophytochrome
分子量 formula_weight	82094.9 kDa
EC 编号 ec_number	2.7.13.3
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	7846

MTSITPVTLANCEDEPIHVPGAIQPHGALVTLRADGMVLAASENIQALLGFVASPGSYLTQEQVGPEVLRMLEEGLTGNGPWSNSVETRIGEHLFDVIGHSYKEVFYLEFEIRTADTLSITSFTLNAQRIIAQVQLHNDTASLLSNVTDELRRMTGYDRVMAYRFRHDDSGEVVAESRREDLESYLGQRYPASDIPAQARRLYIQNPIRLIADVAYTPMRVFPALNPETNESFDLSYSVLRSVSPIHCEYLTNMGVRASMSISIVVGGKLWGLFSCHHMSPKLIPYPVRMSFQIFSQVCSAIVERLEQGRIAELLRVSTERRLALARRARDADDLFGALAHPDDGIAALIPCDGALVMLGGRTLSIRGDFERQAGNVLQRLQRDPERDIYHTDNWPQPSEDSPDGGDCCGVLAIRFHRQESGWIFWFRHEEVHRIRWGGKPEKLLTIGPSGPRLTPRGSFEAWEEVVRGHSTPWSETDLAIAEKLRLDLMELCLNHAAEVDRMRQRLIAVLGHDLRNPLQSISMAAALLSSSDTRTTELRQHISASSSRMERLVSQILDMSRLQSGIGLTVNPVDTDVSQLVRQIVCETDVAYPGLVIEIAIDPQVRAVVDPDRYAQVAANLLSNARHHGLPGRPVLVTLTRQGDEVCLSVLNETSGLSEAQLANLFEPFKRESADNQRNRNGLGIGLYISQAIAQAHQGRIDVDCRDDVITFCLRLPVRQAETGSSSLEHHHHHH

来源 Source

来源生物 organism	Pseudomonas aeruginosa
NCBI 分类编号 ncbi_taxonomy_id	287
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	;3-[2-[(Z)-[3-(2-carboxyethyl)-5-[(Z)-(4-ethenyl-3-methyl-5-oxidanylidene-pyrrol-2-ylidene)methyl]-4-methyl-pyrrol-1-ium -2-ylidene]methyl]-5-[(Z)-[(3E)-3-ethylidene-4-methyl-5-oxidanylidene-pyrrolidin-2-ylidene]methyl]-4-methyl-1H-pyrrol-3- yl]propanoic acid ;
分子量 formula_weight	585.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.95 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	239820
