SAXSdb — 9exh

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Adenine-specific methyltransferase BrxX

Escherichia coli

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–1205	Not recorded	No other associated polymer	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9EXH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9EWZ Cryo-EM structure of the E. coli BrxX methyltransferase in complex with DNA Deposited 2024-04-05	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain C 1–1205（1205 aa）	Not recorded	MG MAGNESIUM ION × 1 SAM S-ADENOSYLMETHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.22 Å
9EX7 Cryo-EM structure of the E. coli BrxX methyltransferase in complex with Ocr Deposited 2024-04-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–1205（1205 aa） Chain B 1–1205（1205 aa）	Not recorded	MG MAGNESIUM ION × 2 SAM S-ADENOSYLMETHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.91 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PGLX_ECOHS
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1205； UniProt 1–1205

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9exh
Deposition date deposition_date	2024-04-08
Structure title title	Cryo-EM structure of the Apo E. coli BrxX methyltransferase
Keywords keywords	Methyltransferase, phage defense, BREX, DNA binding, TRANSFERASE; TRANSFERASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	43.40 Å
Radius of gyration Rg (electron density) rg_electron	42.83 Å
Forward intensity I(0) i0	279913000.00
Molecular weight molecular_weight	137940.0 kDa
Excluded volume excluded_volume	172910 Å³
Envelope volume envelope_volume	252790 Å³
Hydration-shell volume shell_volume	49570 Å³
Envelope diameter envelope_diameter	142.0 Å
Shell Rg shell_rg	47.89 Å
Envelope Rg envelope_rg	41.55 Å
Shape Rg shape_rg	42.83 Å
Total Rg total_rg	43.10 Å
Total atoms total_atoms	9728
Residues n_residues	1205
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

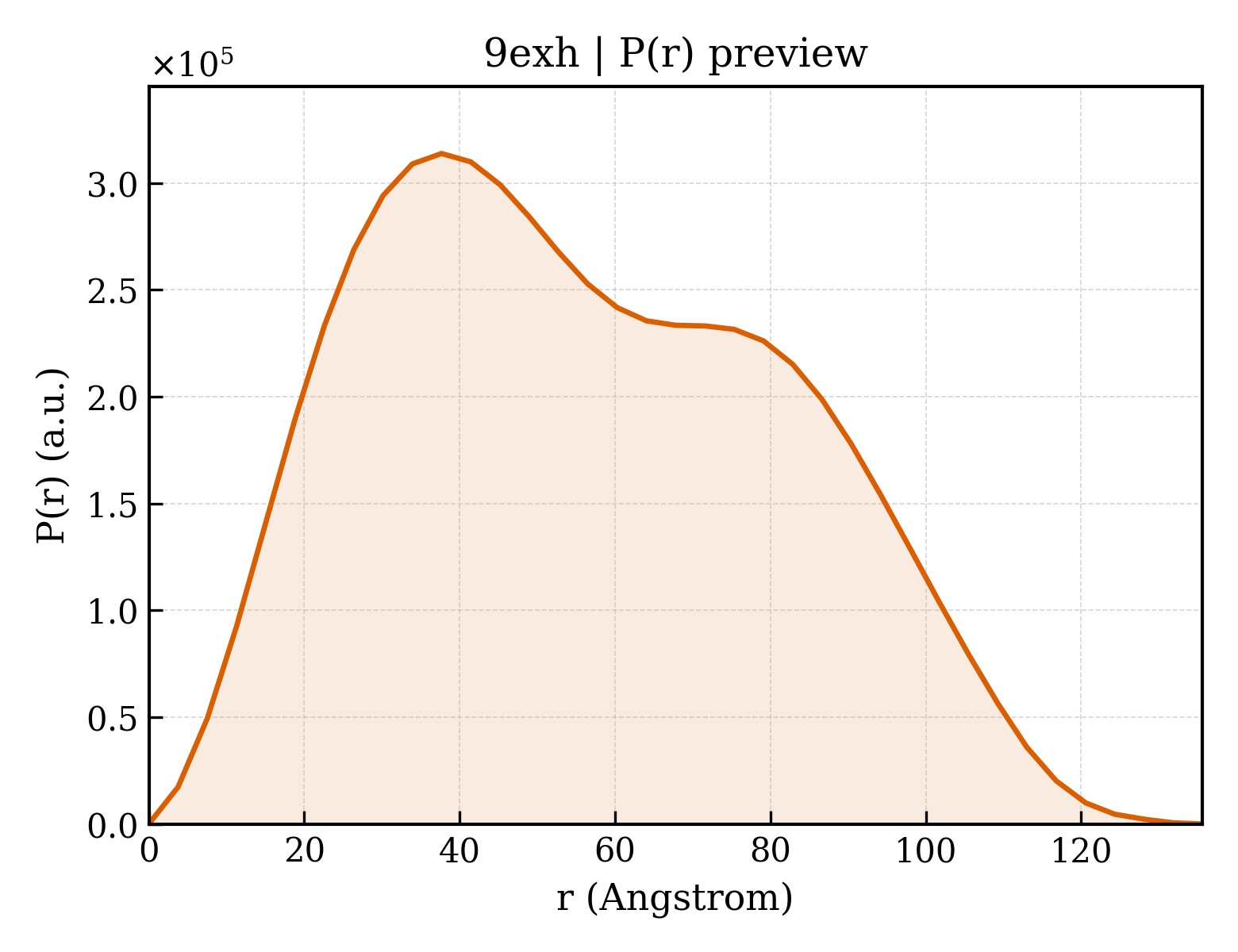

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	135.6 Å
Rg (real space) rg_real	43.49 Å
Rg uncertainty (real space) rg_real_error	1.20 Å
I(0) (real space) i0_real	2.7990e+08
I(0) uncertainty (real space) i0_real_error	5.1970e+06
Rg (reciprocal space) rg_reciprocal	43.40 Å
I(0) (reciprocal space) i0_reciprocal	279900000.0000
Solution quality estimate total_estimate	0.8534
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	37.7 Å
Skewness Skewness skewness	0.252
Kurtosis Kurtosis kurtosis	-0.830
Angular range angular_range	— – 0.1800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	39500000.0000
Real-space data points n_real_points	37
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.903; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.934; Smooth: 0.448

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Description description	Adenine-specific methyltransferase BrxX
Molecular weight formula_weight	138128.3 kDa
EC 编号 ec_number	2.1.1.72
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	9728

MNTNNIKKYAPQARNDFRDAVIQKLTTLGIAADKKGNLQIAEAETIGETVRYGQFDYPLSTLPRRERLVKRAREQGFEVLVEHCAYTWFNRLCAIRYMELHGYLDHGFRMLSHPETPTAFEVLDHVPEVAEALLPESKAQLVEMKLSGNQDEALYRELLLGQCHALHHAMPFLFEAVDDEAELLLPDNLTRTDSILRGLVDDIPEEDWEQVEVIGWLYQFYISEKKDAVIGKVVKSEDIPAATQLFTPNWIVQYLVQNSVGRQWLQTYPDSPLKDKMEYYIEPAEQTPEVQAQLAAITPASIEPESIKVLDPACGSGHILTEAYNVLKAIYEERGYRTRDIPQLILENNIFGLDIDDRAAQLSGFAMLMLARQDDRRILGRGVRLNIVSLQESKLDIAEVWTKLNFHQHMQRGSMGDMFTQGTALANTDSAEYKLLMRTLALFTSAKTLGSLIQVPQEDEAALKAFLERLYRLAVEGDIQQKEAAAELIPYIQQAWILAQRYDAVVANPPYMGGKGMNGDLKEFAKKQFPDSKSDLFAMFMQHAFSLLKENGFNAQVNMQSWMFLSSYEALRGWLLDNKTFITMAHLGARAFGQISGEVVQTTAWVIKNNHSGFYKPVFFRLVDDNEEHKKNNLLNRMNCFKNTLQNDFKKIPGSPIAYWATLAFINSFLKLPALGTRAVKGLDTNGSIDVFLRRWPEVSINSFDALGKGNSKWFPIAKGGELRKWFGNHEYIINYENDGIELRKNKANLRNKDMYFQEGGTWTVVSTTGFSMRYMPKGFLFDQGGSAVFCENNDELSIYNILACMNSKYINYSASLICPTLNFTTGDVRKFPVIKNNHLEDLAKKAIEISKADWNQFETSWEFSKNKLIEHKGNVAYSYASYCNFQDKLYEQLVNIEKNINNIIEEILGFKIETTENSELITLNSNKIYRYGQSETNDTFLNRHRSDTISELISYSVGCQMGRYSLDREGLVYAHEGNKGFAELAAEGAYKTFPADNDGILPLMDDEWFEDDVTSRVKEFVRTVWGEEHLQENLEFIAESLCLYAIKPKKGESALETIRRYLSTQFWKDHMKMYKKRPIYWLFSSGKEKAFECLVYLHRYNDATLSRMRTEYVVPLLARYQANIDRLNDQLDEASGGEATRLKRERDSLIKKFSELRSYDDRLRHYADMRISIDLDDGVKVNYGKFGDLLADVKAITGNAPEAI

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli B

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.90 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	24284

fit	/app/data/saxs_computation/ex/9exh/9exh.fit
pddf	/app/data/pr_computation/ex/9exh/9exh.pr.out
profile	/app/data/saxs_computation/ex/9exh/9exh.dat
