SAXSdb — 9f0n

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

cellulase

Thermoascus aurantiacus ATCC 26904

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	GLYCEROL × 8 SULFATE ION × 3 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8TG26_THEAU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–306； UniProt 31–335 Author chain B； PDBConstruct 2–306； UniProt 31–335

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9f0n
Deposition date deposition_date	2024-04-17
Structure title title	Crystal structure of Ta_Cel5A E133A variant, apoform
Keywords keywords	cellulase, TIM barrel, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9f0n__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

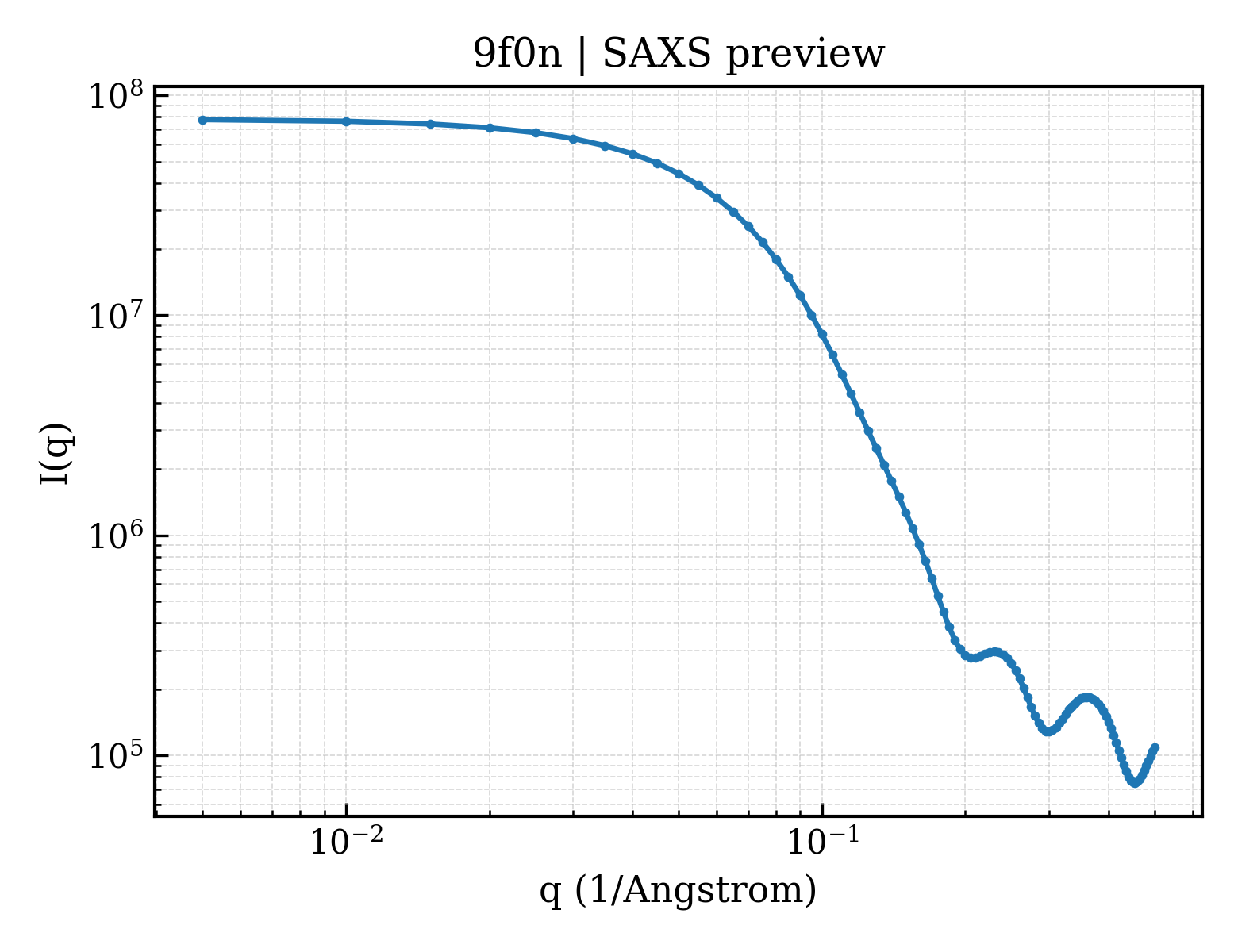

9f0n__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9f0n__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.10 Å
Rg (electron density)	25.37 Å
Total Rg	26.22 Å
Atom count	4806
Residues	609
Excluded volume	84700 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9f0n__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	cellulase
Molecular weight formula_weight	33802.5 kDa
EC 编号 ec_number	3.2.1.4
Mutation mutation	E133A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5879

MAKVFQWFGSNESGAEFGSQNLPGVEGKDYIWPDPNTIDTLISKGMNIFRVPFMMERLVPNSMTGSPDPNYLADLIATVNAITQKGAYAVVDPHNYGRYYNSIISSPSDFQTFWKTVASQFASNPLVIFDTNNAYHDMDQTLVLNLNQAAIDGIRSAGATSQYIFVEGNSWTGAWTWTNVNDNMKSLTDPSDKIIYEMHQYLDSDGSGTSATCVSSTIGQERITSATQWLRANGKKGIIGEFAGGANDVCETAITGMLDYMAQNTDVWTGAIWWAAGPWWGDYIFSMEPDNGIAYQQILPILTPYL

Source Source

Source organism organism	Thermoascus aurantiacus ATCC 26904
NCBI taxonomy ID ncbi_taxonomy_id	1133049
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	nat
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	743

▶

Unit-cell length a length_a	76.560 Å
Unit-cell length b length_b	84.920 Å
Unit-cell length c length_c	89.270 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.180 Å
Low-resolution limit resolution_low	39.510 Å
R factor r_factor	0.1492
R_work r_work	0.1487
R_free r_free	0.1591
