1. Protein Identity and Related Structures Protein Identity & Related Structures

HTH-type transcriptional regulator CysB

Klebsiella aerogenes

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	N-ACETYL-SERINE × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CYSB_KLEPN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–324； UniProt 1–324 Author chain B； PDBConstruct 1–324； UniProt 1–324

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9f14
Deposition date deposition_date	2024-04-18
Structure title title	The crystal structure of full length tetramer CysB from Klebsiella aerogenes in complex with N-acetylserine
Keywords keywords	CysB, cysteine biosynthesis, LysR family, transcriptional regulator, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9f14__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9f14__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

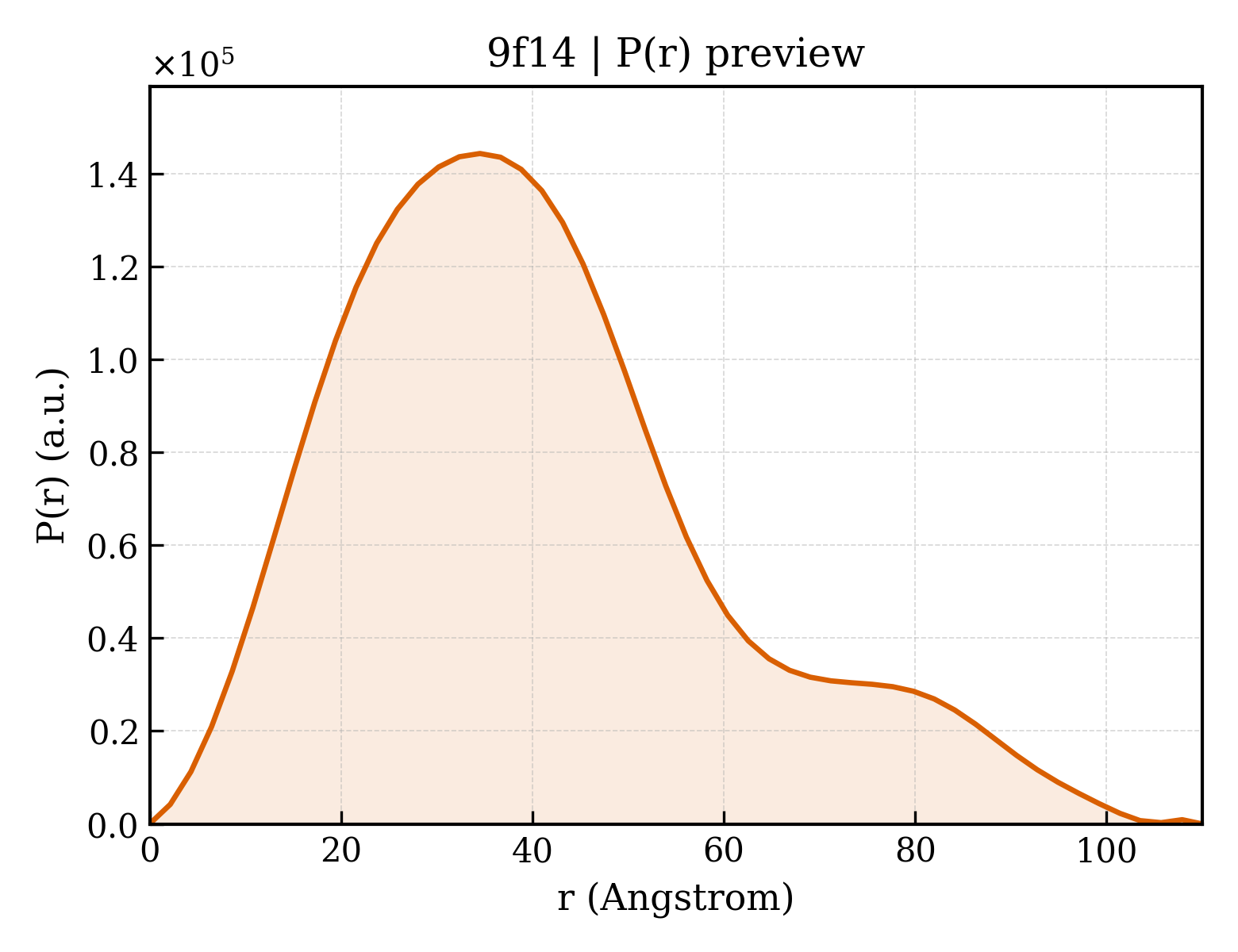

9f14__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.43 Å
Rg (electron density)	35.86 Å
Total Rg	36.39 Å
Atom count	20426
Residues	1294
Excluded volume	181510 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9f14__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	HTH-type transcriptional regulator CysB
Molecular weight formula_weight	36008.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	10473

MKLQQLRYIVEVVNHNLNVSSTAEGLYTSQPGISKQVRMLEDELGIQIFARSGKHLTQVTPAGQEIIRIAREVLSKVDAIKSVAGEHTWPDKGSLYVATTHTQARYALPGVIKGFIERYPRVSLHMHQGSPTQIAEAVSKGNADFAIATEALHLYDDLVMLPCYHWNRSIVVTPEHPLATKGSVSIEELAQYPLVTYTFGFTGRSELDTAFNRAGLTPRIVFTATDADVIKTYVRLGLGVGVIASMAVDPVSDPDLVKLDANGIFSHSTTKIGFRRSTFLRSYMYDFIQRFAPHLTRDVVDTAVALRSNEDIEAMFKDIKLPEK

Source Source

Source organism organism	Klebsiella aerogenes
NCBI taxonomy ID ncbi_taxonomy_id	548
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	N-ACETYL-SERINE
Molecular weight formula_weight	147.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	242

▶

Unit-cell length a length_a	185.864 Å
Unit-cell length b length_b	185.864 Å
Unit-cell length c length_c	113.043 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	36

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	19.817 Å
R factor r_factor	—
R_work r_work	0.2106
R_free r_free	0.2898
