SAXSdb — 9fjn

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Inverted formin-2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 2–19	Not recorded	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 5.5；298 K；Ionic strength (raw mmCIF value) 0；Pressure 1 NMR sample composition：1 mM INF2(2-19), 7 % v/v [U-2H] D2O, 63 % v/v H2O, 30 % v/v [U-98% 2H] TFE, 0.1 mM DSS, trifluoroethanol/water \| trifluoroethanol/water	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9FJN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8RV2 Structure of the formin INF2 bound to the barbed end of F-actin. Deposited 2024-01-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 469–1240（772 aa） Chain F 469–1240（772 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 3 MG MAGNESIUM ION × 4 PO4 PHOSPHATE ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.1；12 mM HEPES pH 7.1, 100 mM KCl, 2.1 mM MgCl2, 1 mM EGTA, 1 mM TCEP, 0.2 mM ATP cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；3 seconds, force 0.	Resolution 3.41 Å
9AZ4 INF2 at the Barbed End of F-Actin Deposited 2024-03-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain G 551–987（437 aa） Chain H 551–987（437 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.37 Å
9AZP INF2 at the Barbed End of F-Actin with Incoming Profilin-Actin Deposited 2024-03-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain G 1–1249（1249 aa） Chain H 1–1249（1249 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 7 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.79 Å
9AZQ INF2 at the Barbed End of F-Actin with Incoming Actin Deposited 2024-03-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain G 551–610（60 aa） Chain H 625–947（323 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 7 MG MAGNESIUM ION × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.82 Å
9B03 INF2 in the Middle of F-Actin (Up state) Deposited 2024-03-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain G 551–987（437 aa） Chain H 551–987（437 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.95 Å
9B0K INF2 in the Middle of F-Actin (Down state) Deposited 2024-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain G 551–987（437 aa） Chain H 551–987（437 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.03 Å
9FJW Solution NMR structure of a peptide encompassing residues 2-36 of the human formin INF2 Deposited 2024-05-31	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–36（35 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.5；298 K；Ionic strength (raw mmCIF value) 0；Pressure 1 NMR sample composition 1 mM INF2(2-36), 7 % v/v [U-2H] D2O, 63 % v/v H2O, 30 % v/v [U-98% 2H] TFE, 0.1 mM DSS, trifluoroethanol/water \| trifluoroethanol/water	Resolution not provided
9G7T Solution NMR structure of a peptide encompassing residues 967-991 of the human formin INF2 Deposited 2024-07-22	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 967–991（25 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.5；298 K；Ionic strength (raw mmCIF value) 0；Pressure 1 NMR sample composition 1 mM DAD, 63 % v/v H2O, 7 % v/v [U-2H] D2O, 30 % v/v [U-99% 2H] TFE, 0.1 mM DSS, trifluoroethanol/water \| trifluoroethanol/water NMR sample composition 0.5 mM DAD, 70 % v/v [U-2H] D2O, 30 % v/v [U-99% 2H] TFE, 0.1 mM DSS, trifluoroethanol/water \| trifluoroethanol/water	Resolution not provided
9RWF Solution NMR structure of a peptide encompassing residues 967-991 of the human formin INF2 Deposited 2025-07-09	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 967–991（25 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.5；298 K；Ionic strength (raw mmCIF value) 0；Pressure 1 NMR sample composition 0.5 mM DAD, 0.1 mM DSS, 10 % v/v [U-2H] D2O, 90 % H2O, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM DAD, 0.1 mM DSS, 100 % [U-2H] D2O, 100% D2O \| 100% D2O	Resolution not provided

9 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	INF2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–18； UniProt 2–19

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9fjn
Deposition date deposition_date	2024-05-31
最后修订 last_revision	2024-09-11
Structure title title	Solution NMR structure of a peptide encompassing residues 2-19 of the human formin INF2
Keywords keywords	formins, actin, microtubules, inherited disease, CELL ADHESION; CELL ADHESION
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	8.09 Å
Radius of gyration Rg (electron density) rg_electron	8.80 Å
Forward intensity I(0) i0	21095400.00
Molecular weight molecular_weight	39707.0 kDa
Excluded volume excluded_volume	50732 Å³
Envelope volume envelope_volume	5978 Å³
Hydration-shell volume shell_volume	5744 Å³
Envelope diameter envelope_diameter	34.2 Å
Shell Rg shell_rg	14.38 Å
Envelope Rg envelope_rg	10.22 Å
Shape Rg shape_rg	8.72 Å
Total Rg total_rg	9.38 Å
Total atoms total_atoms	5840
Residues n_residues	360
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

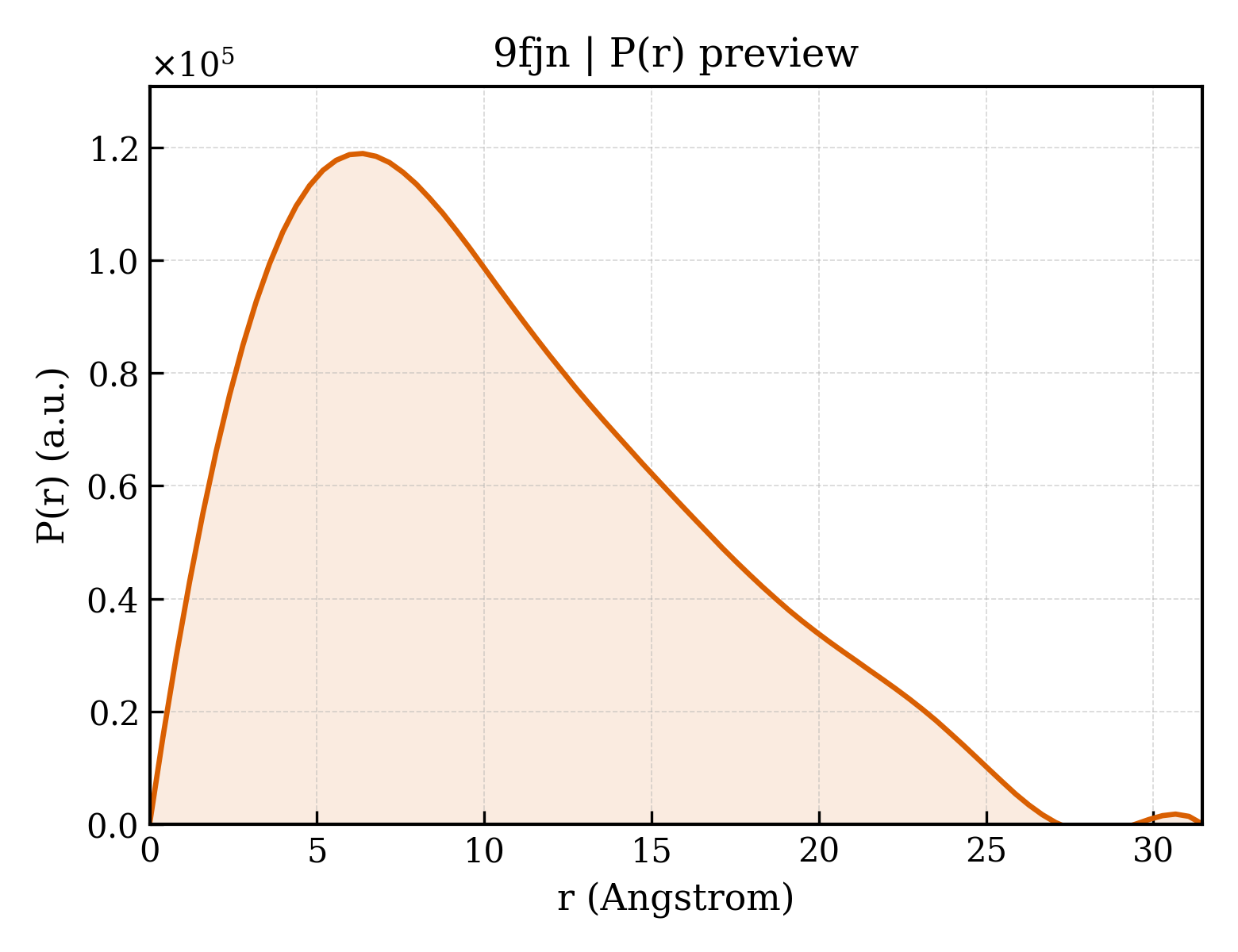

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	31.5 Å
Rg (real space) rg_real	8.28 Å
Rg uncertainty (real space) rg_real_error	0.43 Å
I(0) (real space) i0_real	2.1100e+07
I(0) uncertainty (real space) i0_real_error	2.3160e+05
Rg (reciprocal space) rg_reciprocal	8.28 Å
I(0) (reciprocal space) i0_reciprocal	21100000.0000
Solution quality estimate total_estimate	0.7036
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	6.4 Å
Skewness Skewness skewness	0.574
Kurtosis Kurtosis kurtosis	-0.402
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1241.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.425; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.044; Smooth: 0.823

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▶

8. Citations (1)

▶

Description description	Inverted formin-2
Molecular weight formula_weight	2004.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5840

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	synthetic construct

fit	/app/data/saxs_computation/fj/9fjn/9fjn.fit
pddf	/app/data/pr_computation/fj/9fjn/9fjn.pr.out
profile	/app/data/saxs_computation/fj/9fjn/9fjn.dat
