SAXSdb — 9azp

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Actin, alpha skeletal muscle

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Inverted formin-2 × 2 （Q27J81） Profilin-1 × 1 （P07737） ADENOSINE-5'-DIPHOSPHATE × 6 MAGNESIUM ION × 7 ADENOSINE-5'-TRIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACTS_RABIT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–371； UniProt 7–377 Author chain B； PDBConstruct 1–371； UniProt 7–377 Author chain C； PDBConstruct 1–371； UniProt 7–377 Author chain D； PDBConstruct 1–371； UniProt 7–377 Author chain E； PDBConstruct 1–371； UniProt 7–377 Author chain F； PDBConstruct 1–371； UniProt 7–377 Author chain I； PDBConstruct 1–371； UniProt 7–377

Inverted formin-2

Homo sapiens

UniProt Q27J81

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Actin, alpha skeletal muscle × 7 （P68135） Profilin-1 × 1 （P07737） ADENOSINE-5'-DIPHOSPHATE × 6 MAGNESIUM ION × 7 ADENOSINE-5'-TRIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	INF2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain G； PDBConstruct 1–1249； UniProt 1–1249 Author chain H； PDBConstruct 1–1249； UniProt 1–1249

Profilin-1

Homo sapiens

UniProt P07737

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Actin, alpha skeletal muscle × 7 （P68135） Inverted formin-2 × 2 （Q27J81） ADENOSINE-5'-DIPHOSPHATE × 6 MAGNESIUM ION × 7 ADENOSINE-5'-TRIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PROF1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain J； PDBConstruct 1–139； UniProt 2–140

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9azp
Deposition date deposition_date	2024-03-11
Structure title title	INF2 at the Barbed End of F-Actin with Incoming Profilin-Actin
Keywords keywords	Actin, Filament, Elongation, Ends, CYTOSOLIC PROTEIN; CYTOSOLIC PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9azp__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9azp__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

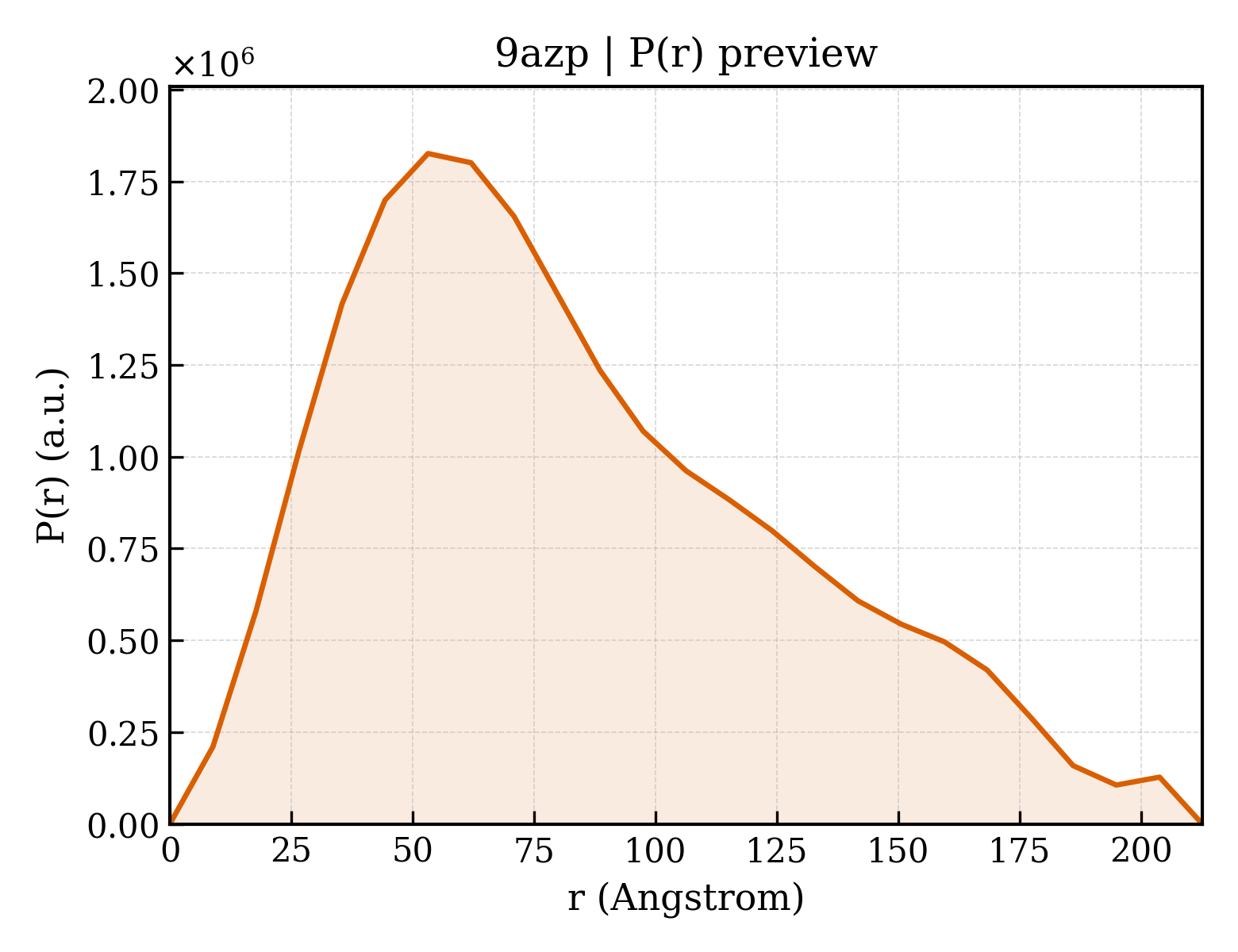

9azp__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	65.24 Å
Rg (electron density)	66.51 Å
Total Rg	66.31 Å
Atom count	27674
Residues	3495
Excluded volume	493040 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9azp__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Actin, alpha skeletal muscle
Molecular weight formula_weight	41387.2 kDa
EC 编号 ec_number	3.6.4.-
Source method src_method	nat
Copy count entity_count	7

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,I
Atom count atom_count	27674

TTALVCDNGSGLVKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIITNWDDMEKIWHHTFYNELRVAPEEHPTLLTEAPLNPKANREKMTQIMFETFNVPAMYVAIQAVLSLYASGRTTGIVLDSGDGVTHNVPIYEGYALPHAIMRLDLAGRDLTDYLMKILTERGYSFVTTAEREIVRDIKEKLCYVALDFENEMATAASSSSLEKSYELPDGQVITIGNERFRCPETLFQPSFIGMESAGIHETTYNSIMKCDIDIRKDLYANNVMSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWITKQEYDEAGPSIVHRKCF

Entity 2 Entity 2 polymer

Description description	Inverted formin-2
Molecular weight formula_weight	135778.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H

MSVKEGAQRKWAALKEKLGPQDSDPTEANLESADPELCIRLLQMPSVVNYSGLRKRLEGSDGGWMVQFLEQSGLDLLLEALARLSGRGVARISDALLQLTCVSCVRAVMNSRQGIEYILSNQGYVRQLSQALDTSNVMVKKQVFELLAALCIYSPEGHVLTLDALDHYKTVCSQQYRFSIVMNELSGSDNVPYVVTLLSVINAVILGPEDLRARTQLRNEFIGLQLLDVLARLRDLEDADLLIQLEAFEEAKAEDEEELLRVSGGVDMSSHQEVFASLFHKVSCSPVSAQLLSVLQGLLHLEPTLRSSQLLWEALESLVNRAVLLASDAQECTLEEVVERLLSVKGRPRPSPLVKAHKSVQANLDQSQRGSSPQNTTTPKPSVEGQQPAAAAACEPVDHAQSESILKVSQPRALEQQASTPPPPPPPPLLPGSSAEPPPPPPPPPLPSVGAKALPTAPPPPPLPGLGAMAPPAPPLPPPLPGSCEFLPPPPPPLPGLGCPPPPPPLLPGMGWGPPPPPPPLLPCTCSPPVAGGMEEVIVAQVDHGLGSAWVPSHRRVNPPTLRMKKLNWQKLPSNVAREHNSMWASLSSPDAEAVEPDFSSIERLFSFPAAKPKEPTMVAPRARKEPKEITFLDAKKSLNLNIFLKQFKCSNEEVAAMIRAGDTTKFDVEVLKQLLKLLPEKHEIENLRAFTEERAKLASADHFYLLLLAIPCYQLRIECMLLCEGAAAVLDMVRPKAQLVLAACESLLTSRQLPIFCQLILRIGNFLNYGSHTGDADGFKISTLLKLTETKSQQNRVTLLHHVLEEAEKSHPDLLQLPRDLEQPSQAAGINLEIIRSEASSNLKKLLETERKVSASVAEVQEQYTERLQASISAFRALDELFEAIEQKQRELADYLCEDAQQLSLEDTFSTMKAFRDLFLRALKENKDRKEQAAKAERRKQQLAEEEARRPRGEDGKPVRKGPGKQEEVCVIDALLADIRKGFQLRKTARGRGDTDGGSKAASMDPPRATEPVATSNPAGDPVGSTRCPASEPGLDATTASESRGWDLVDAVTPGPQPTLEQLEEGGPRPLERRSSWYVDASDVLTTEDPQCPQPLEGAWPVTLGDAQALKPLKFSSNQPPAAGSSRQDAKDPTSLLGVLQAEADSTSEGLEDAVHSRGARPPAAGPGGDEDEDEEDTAPESALDTSLDKSFSEDAVTDSSGSGTLPRARGRASKGTGKRRKKRPSRSQEEVPPDSDDNKTKKLCVIQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Profilin-1
Molecular weight formula_weight	14940.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J

AGWNAYIDNLMADGTCQDAAIVGYKDSPSVWAAVPGKTFVNITPAEVGVLVGKDRSSFYVNGLTLGGQKCSVIRDSLLQDGEFSMDLRTKSTGGAPTFNVTVTKTDKTLVLLMGKEGVHGGLINKKCYEMASHLRRSQY

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 6 Entity 6 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.79 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	20093
