1awi
HUMAN PLATELET PROFILIN COMPLEXED WITH THE L-PRO10 PEPTIDE
SAXS Profile

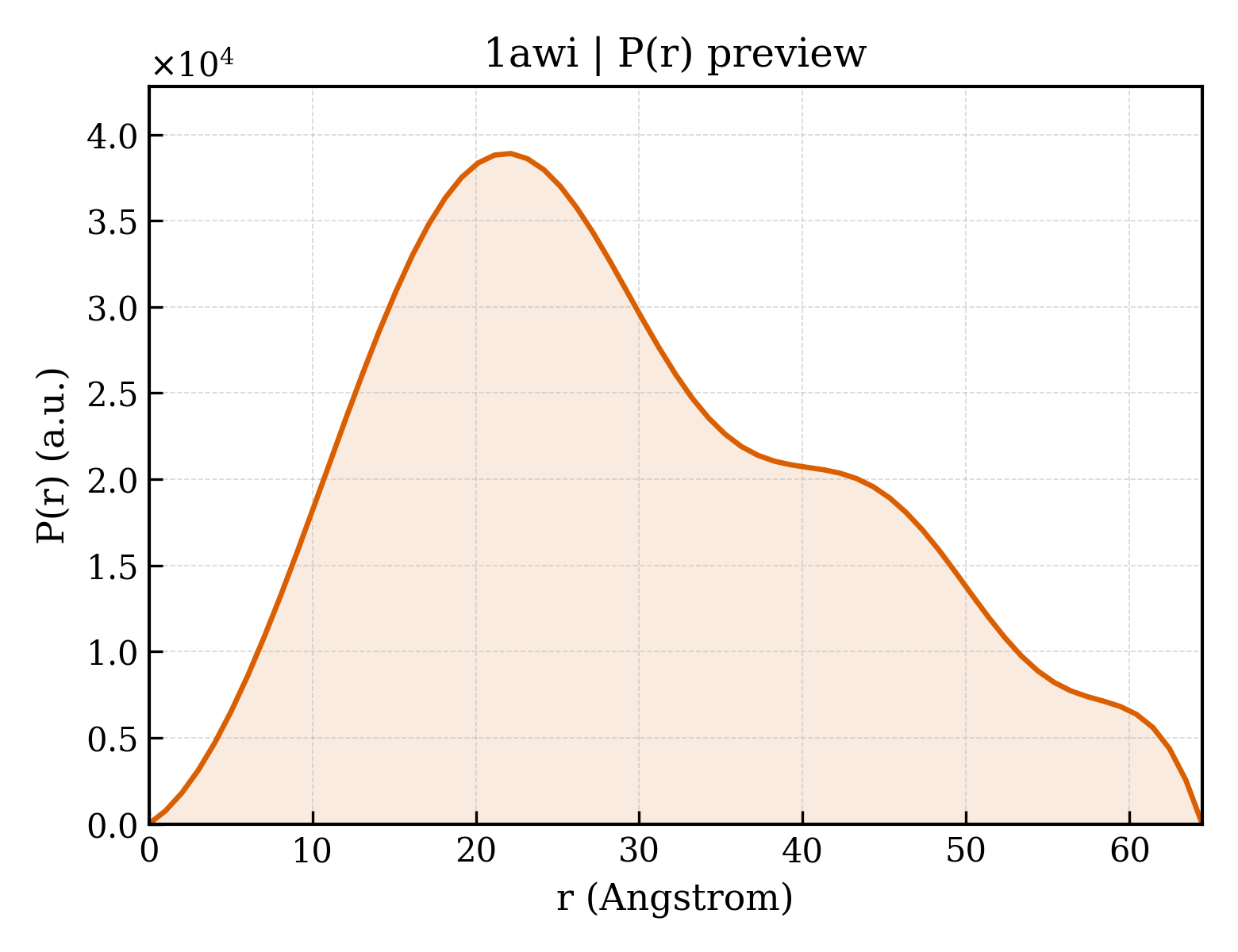

P(r) Distribution
1. Structure Basics
| entry_id | 1awi |
| deposition_date | 1997-10-02 |
| title | HUMAN PLATELET PROFILIN COMPLEXED WITH THE L-PRO10 PEPTIDE |
| keywords | ;PROFILIN, POLY-L-PROLINE, ACTIN CYTOSKELETON, COMPLEX (ACTIN-BINDING PROTEIN-PEPTIDE), COMPLEX (ACTIN-BINDING PROTEIN-PEPTIDE) complex ;; COMPLEX (ACTIN-BINDING PROTEIN/PEPTIDE) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 23.64 Å |
| rg_electron | 22.96 Å |
| i0 | 16563300.00 |
| molecular_weight | 30697.0 kDa |
| excluded_volume | 38428 ų |
| envelope_volume | 46441 ų |
| shell_volume | 18123 ų |
| envelope_diameter | 81.5 Å |
| shell_rg | 28.22 Å |
| envelope_rg | 23.15 Å |
| shape_rg | 22.94 Å |
| total_rg | 23.72 Å |
| total_atoms | 2639 |
| n_residues | 286 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 64.5 Å |
| rg_real | 22.69 Å |
| rg_real_error | 0.13 Å |
| i0_real | 1.5880e+07 |
| i0_real_error | 1.6380e+05 |
| rg_reciprocal | 23.80 Å |
| i0_reciprocal | 16560000.0000 |
| total_estimate | 0.6640 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 22.1 Å |
| skewness | 0.422 |
| kurtosis | -0.596 |
| angular_range | — – 0.3350 Å−1 |
| current_alpha | 3.3230 |
| highest_alpha | 8069000.0000 |
| n_real_points | 65 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.915; Stabil: 0.981; Sysdev: 0.000; Positv: 1.000; Valcen: 0.945; Smooth: 0.000 |
