SAXSdb — 1cf0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (PROFILIN)

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	PROTEIN (L-PRO10-IODOTYROSINE) × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PROF1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–138； UniProt 2–139 Author chain B； PDBConstruct 1–138； UniProt 2–139

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1cf0
Deposition date deposition_date	1999-03-23
Structure title title	HUMAN PLATELET PROFILIN COMPLEXED WITH AN L-PRO10-IODOTYROSINE PEPTIDE
Keywords keywords	;COMPLEX (ACTIN-BINDING PROTEIN-PEPTIDE), PROFILIN, POLY-L-PROLINE, ACTIN CYTOSKELETON, COMPLEX (ACTIN-BINDING PROTEIN-PEPTIDE) complex ;; COMPLEX (ACTIN-BINDING PROTEIN/PEPTIDE)
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1cf0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

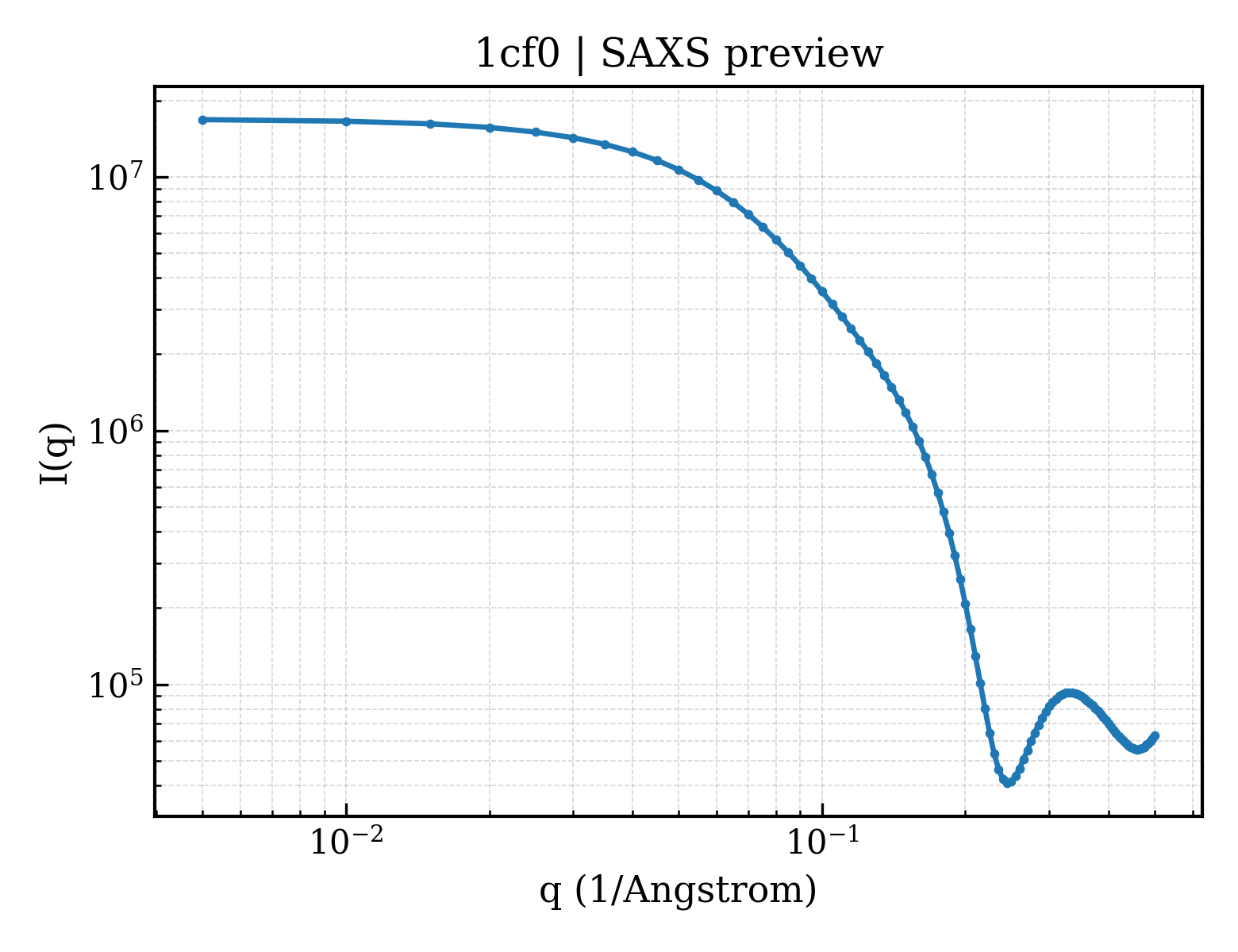

1cf0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

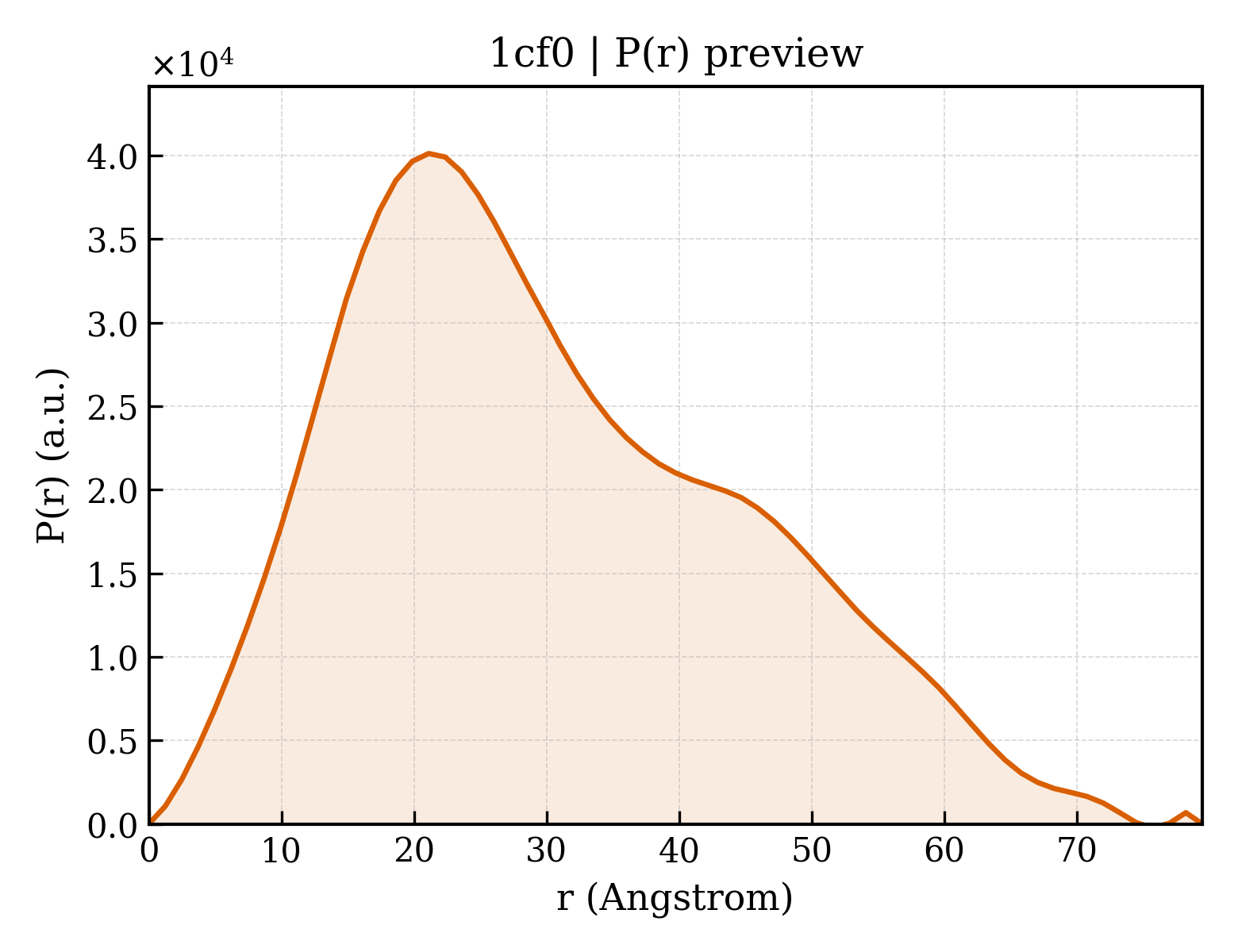

1cf0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	15.66 Å
Rg (electron density)	14.23 Å
Total Rg	15.47 Å
Atom count	1111
Residues	146
Excluded volume	19860 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1cf0__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1cf0__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	PROTEIN (PROFILIN)
Molecular weight formula_weight	14868.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2191

GWNAYIDNLMADGTCQDAAIVGYKDSPSVWAAVPGKTFVNITPAEVGVLVGKDRSSFYVNGLTLGGQKCSVIRDSLLQDGEFSMDLRTKSTGGAPTFNVTVTKTDKTLVLLMGKEGVHGGLINKKCYEMASHLRRSQY

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	PROTEIN (L-PRO10-IODOTYROSINE)
Molecular weight formula_weight	1084.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

PPPPPPPPY

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	39

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1cf0a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.110 — Profilin-like
Superfamily Superfamily superfamily	d.110.1 — Profilin (actin-binding protein)
Family Family family	d.110.1.1 — Profilin (actin-binding protein)

Domain ID domain_id	d1cf0b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.110 — Profilin-like
Superfamily Superfamily superfamily	d.110.1 — Profilin (actin-binding protein)
Family Family family	d.110.1.1 — Profilin (actin-binding protein)

CATH v4.4 (2 domains)

Domain ID domain_id	1cf0A00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	30 — Dynein light chain 2a, cytoplasmic

Domain ID domain_id	1cf0B00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	30 — Dynein light chain 2a, cytoplasmic

▶

Unit-cell length a length_a	68.290 Å
Unit-cell length b length_b	97.650 Å
Unit-cell length c length_c	38.970 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	—
R_work r_work	0.2100
R_free r_free	0.3100

HUMAN PLATELET PROFILIN COMPLEXED WITH AN L-PRO10-IODOTYROSINE PEPTIDE
