9fkc

Crystal structure of human Glucose-6-phosphate isomerase with citraconate ligand

Method: X-RAY DIFFRACTION Dmax: 133.5 Å Quality: GOOD

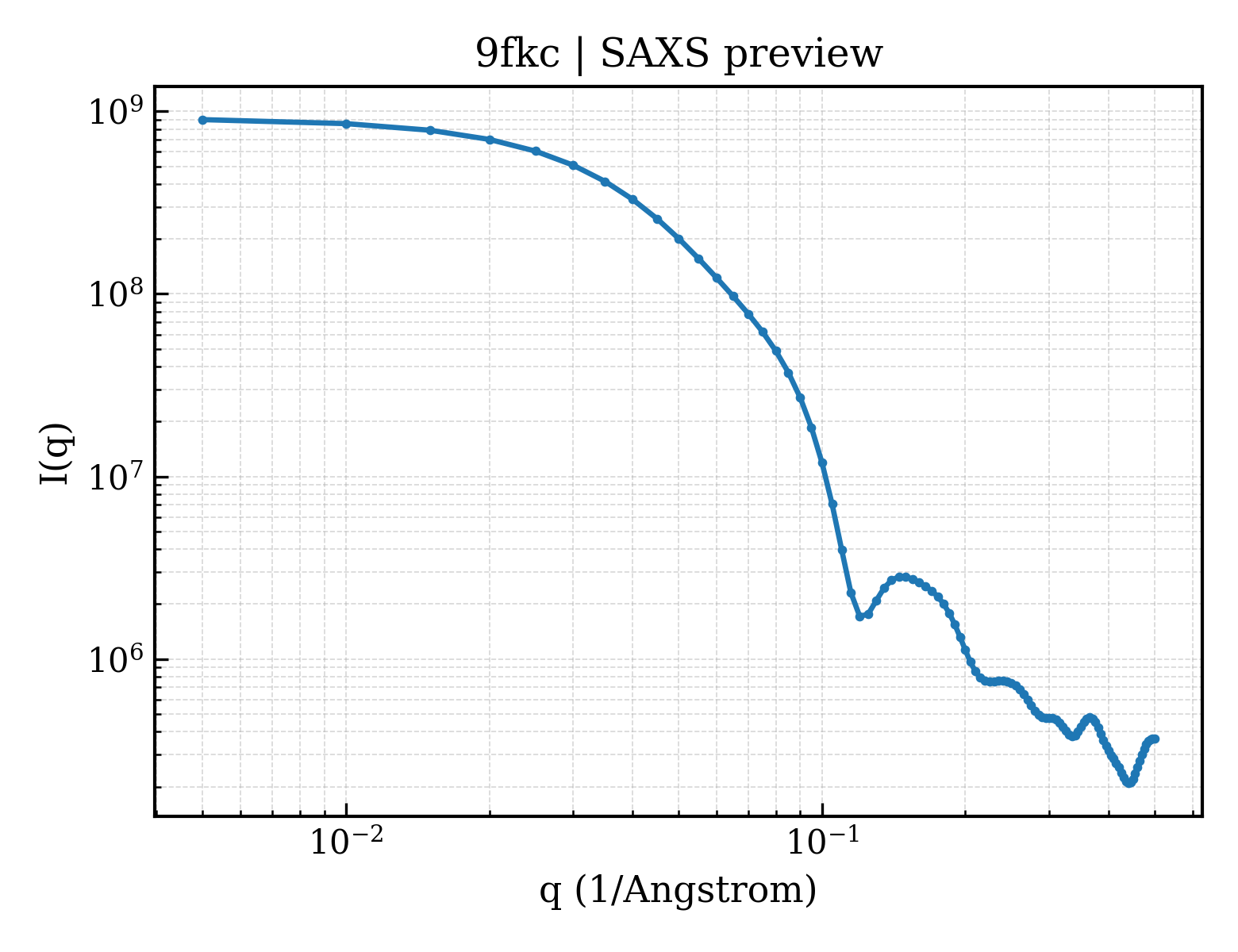

SAXS 散射曲线 SAXS Profile

SAXS profile for 9fkc

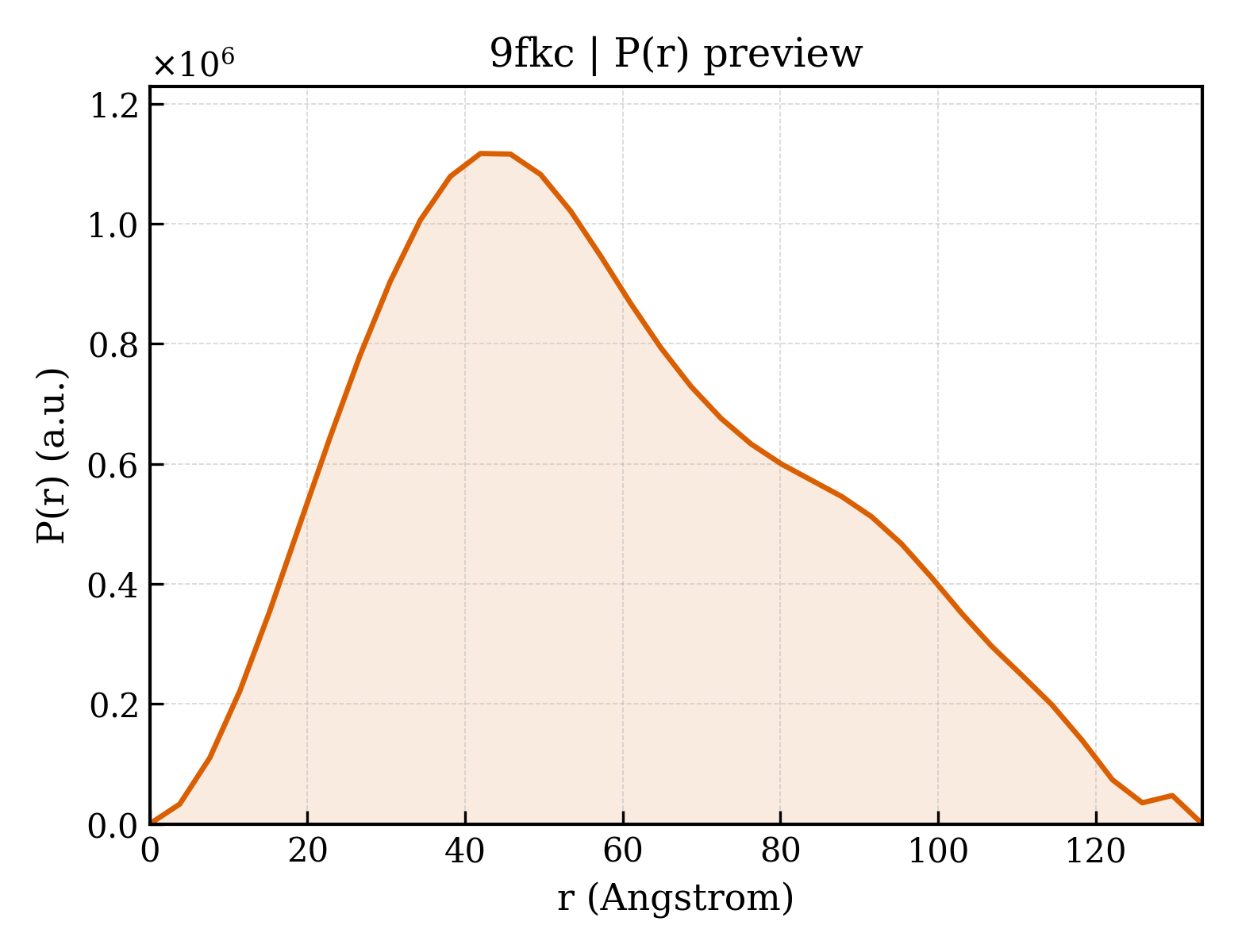

P(r) 距离分布 P(r) Distribution

P(r) distribution for 9fkc
下载 Download

1. 结构基本信息 1. Structure Basics

条目编号 entry_id9fkc
沉积日期 deposition_date2024-06-03
结构标题 titleCrystal structure of human Glucose-6-phosphate isomerase with citraconate ligand
关键词 keywordsMetabolic regulation, glycolysis, modular inhibition, ISOMERASE; ISOMERASE
实验方法 methodX-RAY DIFFRACTION

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier44.67
回转半径 Rg (电子) rg_electron44.48
零角强度 I(0) i0916010000.00
分子量 molecular_weight252870.0 kDa
排除体积 excluded_volume317220 ų
包络体积 envelope_volume387460 ų
水化壳体积 shell_volume71892 ų
包络直径 envelope_diameter144.2
壳层 Rg shell_rg49.20
包络 Rg envelope_rg44.29
形状 Rg shape_rg44.48
总 Rg total_rg44.69
总原子数 total_atoms35510
残基数 n_residues2222
球谐函数阶数 n_harmonics20
q 范围 q_range— – 0.5000 −1
数据点数 n_points101
壳层类型 shell_typedirectional
溶剂电子密度 solvent_density0.3340 e/ų
壳层衬度 contrast_shell0.0300 e/ų
CRYSOL 版本 crysol_version4.1.3

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax133.5
Rg (实空间) rg_real44.82
Rg 误差 (实空间) rg_real_error1.02
I(0) (实空间) i0_real9.1600e+08
I(0) 误差 (实空间) i0_real_error1.5980e+07
Rg (倒空间) rg_reciprocal44.67
I(0) (倒空间) i0_reciprocal915800000.0000
解质量估计 total_estimate0.8277
解质量评级 solution_quality GOOD a GOOD solution
P(r) 峰数 n_peaks2
主峰位置 r_peak_primary42.0
偏度 Skewness skewness0.408
峰度 Kurtosis kurtosis-0.582
角度范围 angular_range— – 0.1750 −1
当前正则化参数 α current_alpha0.0000
最高正则化参数 α highest_alpha311700000.0000
实空间数据点数 n_real_points36
GNOM 版本 gnom_version4.1.3
质量判据 quality_criteria AN1: 0.000; Oscil: 0.921; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.011

4. 晶体学与实验 4. Crystallography & Experiment

5. 实体与聚合体信息 (7)

7. 引用文献 (1)

8. 文件与曲线 (10)
