1. Protein Identity and Related Structures Protein Identity & Related Structures

Potassium channel subfamily K member 13

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	LINOLEIC ACID × 2 POTASSIUM ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KCNKD_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–290； UniProt 9–297 Author chain B； PDBConstruct 2–290； UniProt 9–297

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ft7
Deposition date deposition_date	2024-06-24
Structure title title	Structure of the human two pore domain potassium ion channel THIK-1 (K2P13.1) in a closed conformation
Keywords keywords	Potassium channel, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9ft7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

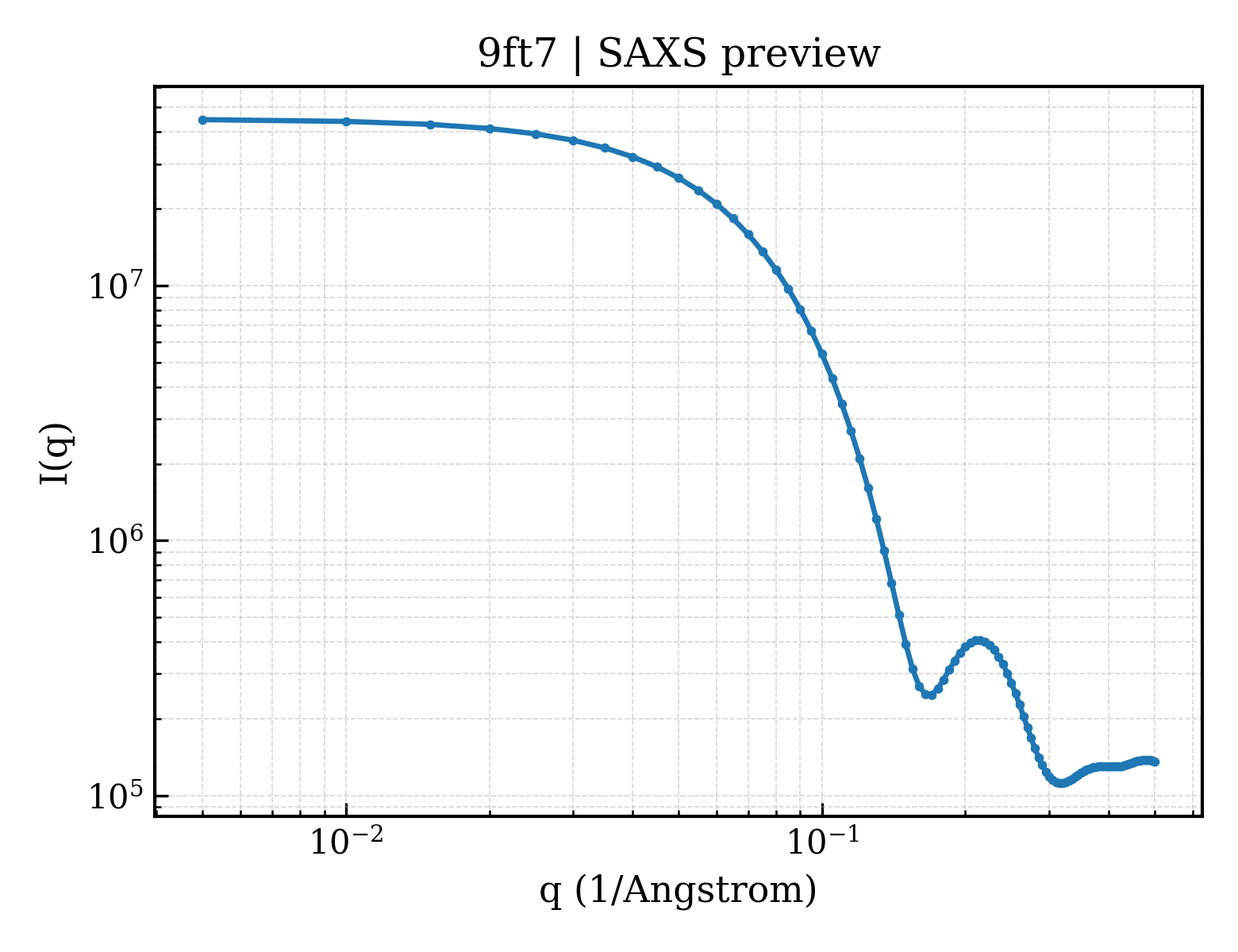

9ft7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9ft7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.28 Å
Rg (electron density)	23.96 Å
Total Rg	24.73 Å
Atom count	4016
Residues	516
Excluded volume	72907 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9ft7__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Potassium channel subfamily K member 13
Molecular weight formula_weight	33638.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4016

MGPGHLNEDNARFLLLAALIVLYLLGGAAVFSALELAHERQAKQRWEERLANFSRGHNLSRDELRGFLRHYEEATRAGIRVDNVRPRWDFTGAFYFVGTVVSTIGFGMTTPATVGGKIFLIFYGLVGCSSTILFFNLFLERLITIIAYIMKSCHQRQLRRRGALPQESLKDAGQCEVDSLAGWKPSVYYVMLILCTASILISCCASAMYTPIEGWSYFDSLYFCFVAFSTIGFGDLVSSQNAHYESQGLYRFANFVFILMGVCCIYSLFNVISILIKQSLNWILRKMDSGAELEVLFQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 non-polymer

Description description	LINOLEIC ACID
Molecular weight formula_weight	280.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.16 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	302189
