1. Protein Identity and Related Structures Protein Identity & Related Structures

Non-structural protein 10

Severe acute respiratory syndrome coronavirus 2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Guanine-N7 methyltransferase nsp14 × 1 （P0DTD1） 7-METHOXY-1H-INDAZOLE × 1 DIMETHYL SULFOXIDE × 1 ZINC ION × 4 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	R1A_SARS2
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–131； UniProt 4254–4384

Guanine-N7 methyltransferase nsp14

Severe acute respiratory syndrome coronavirus 2

UniProt P0DTD1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Non-structural protein 10 × 1 （P0DTC1） 7-METHOXY-1H-INDAZOLE × 1 DIMETHYL SULFOXIDE × 1 ZINC ION × 4 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	R1AB_SARS2
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–290； UniProt 5926–6214

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9fws
Deposition date deposition_date	2024-06-30
Structure title title	Crystal Structure of SARS-CoV-2 NSP10-NSP14 (ExoN) in complex with VT00258
Keywords keywords	exoribonuclease, nsp10, nsp14, fragment screen, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9fws__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

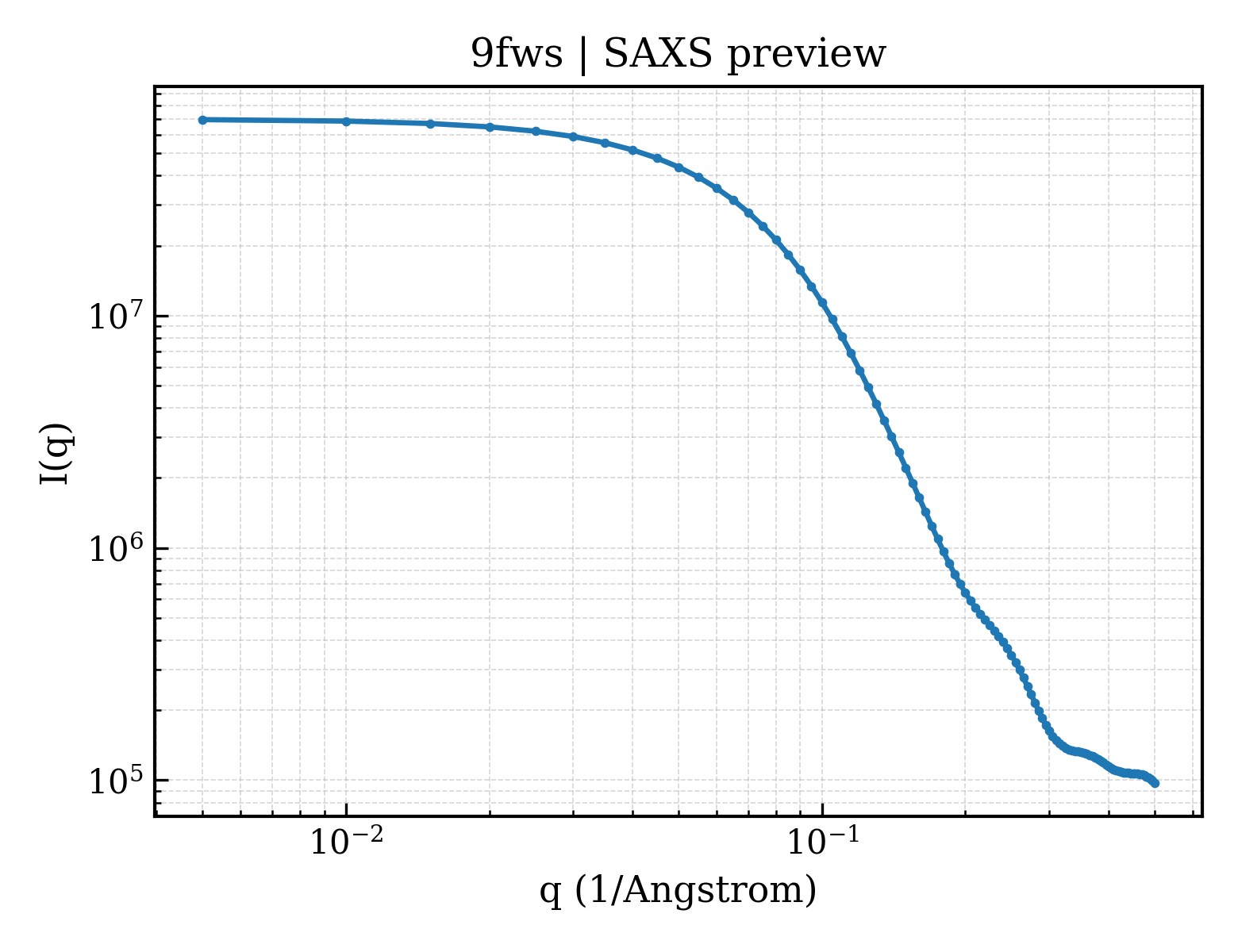

9fws__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9fws__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.14 Å
Rg (electron density)	23.18 Å
Total Rg	24.18 Å
Atom count	3231
Residues	417
Excluded volume	57536 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9fws__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Non-structural protein 10
Molecular weight formula_weight	13805.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3649

AGNATEVPANSTVLSFCAFAVDAAKAYKDYLASGGQPITNCVKMLCTHTGTGQAITVTPEANMDQESFGGASCCLYCRCHIDHPNPKGFCDLKGKYVQIPTTCANDPVGFTLKNTVCTVCGMWKGYGCSCD

Source Source

Source organism organism	Severe acute respiratory syndrome coronavirus 2
NCBI taxonomy ID ncbi_taxonomy_id	2697049
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Guanine-N7 methyltransferase nsp14
Molecular weight formula_weight	32753.8 kDa
EC 编号 ec_number	2.1.1.56,3.1.13.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MAENVTGLFKDCSKVITGLHPTQAPTHLSVDTKFKTEGLCVDIPGIPKDMTYRRLISMMGFKMNYQVNGYPNMFITREEAIRHVRAWIGFDVEGCHATREAVGTNLPLQLGFSTGVNLVAVPTGYVDTPNNTDFSRVSAKPPPGDQFKHLIPLMYKGLPWNVVRIKIVQMLSDTLKNLSDRVVFVLWAHGFELTSMKYFVKIGPERTCCLCDRRATCFSTASDTYACWHHSIGFDYVYNPFMIDVQQWGFTGNLQSNHDLYCQVHGNAHVASCDAIMTRCLAVHECFVKR

Source Source

Source organism organism	Severe acute respiratory syndrome coronavirus 2
NCBI taxonomy ID ncbi_taxonomy_id	2697049
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	7-METHOXY-1H-INDAZOLE
Molecular weight formula_weight	148.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	DIMETHYL SULFOXIDE
Molecular weight formula_weight	78.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	383

▶

Unit-cell length a length_a	44.042 Å
Unit-cell length b length_b	100.035 Å
Unit-cell length c length_c	51.384 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	114.83 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.433 Å
Low-resolution limit resolution_low	20.260 Å
R factor r_factor	0.1928
R_work r_work	0.1917
R_free r_free	0.2130

Crystal Structure of SARS-CoV-2 NSP10-NSP14 (ExoN) in complex with VT00258
