9g2u

Endophilin B1 dimer bound to nanodisc center

Method: ELECTRON MICROSCOPY
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Endophilin-B1

Homo sapiens

UniProt Q9Y371

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein homooligomer Homooligomer Protein 2 No other associated polymer Consistent with protein count

Other States of the Same Protein in the Database

Monomer

None

Homodimer
9g2u 9g2w

2 assemblies

Homotetramer

None

Other homooligomers
6up6 6upn 9g2r

3 assemblies

Heteromeric or nucleic-acid complex

None

View Construct and Data Evidence
UniProt name SHLB1_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–365； UniProt 1–365 Author chain B； PDBConstruct 1–365； UniProt 1–365

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id9g2u
Deposition date deposition_date2024-07-11
Structure title titleEndophilin B1 dimer bound to nanodisc center
Keywords keywordsBAR, N-BAR, endophilin, membrane, curvature, cardiolipin, MSP2N2, nanodisc, peripheral membrane protein, APOPTOSIS; APOPTOSIS
Experimental Method methodELECTRON MICROSCOPY
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9g2u__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9g2u__assembly_1__model_1 | I(q)

10-2 10-1 105 106 107 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

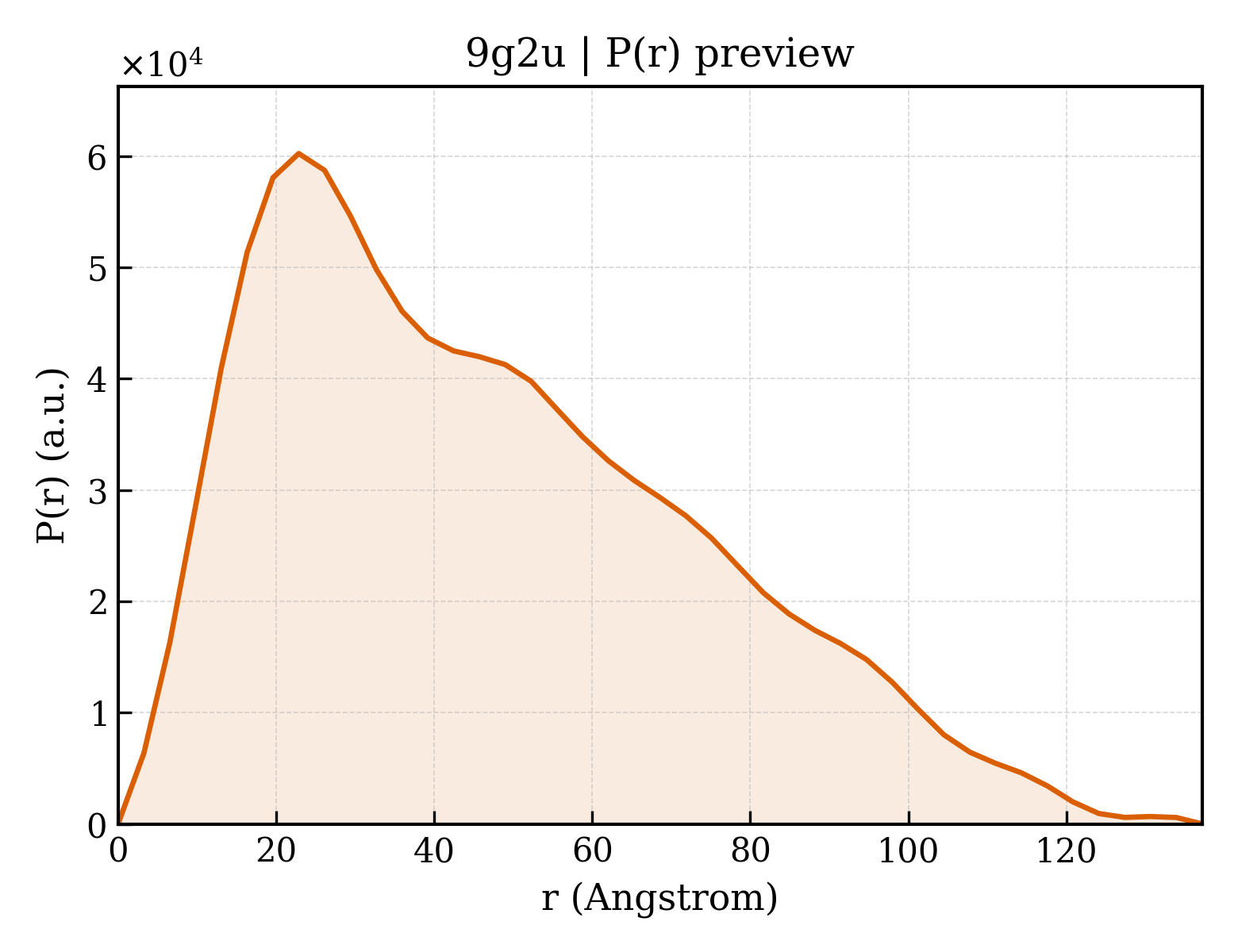

9g2u__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）37.29 Å
Rg (electron density)37.88 Å
Total Rg37.80 Å
Atom count3634
Residues456
Excluded volume64626 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 9g2u__assembly_1__model_1 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▶

7. Citations (2)
