SAXSdb — 9gcp

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

14-3-3 protein beta/alpha, N-terminally processed

Homo sapiens

UniProt P31946

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 3–232 Chain E； UniProt 3–232	Not recorded	Carbohydrate-responsive element-binding protein × 2 （Q9NP71） AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；50 mM MES ph 6.0 2.2M Sodium Malonate	Resolution 2.59 Å R-free 0.271
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain C； UniProt 3–232 Chain G； UniProt 3–232	Not recorded	Carbohydrate-responsive element-binding protein × 2 （Q9NP71） AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；50 mM MES ph 6.0 2.2M Sodium Malonate	Resolution 2.59 Å R-free 0.271

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9GCP	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2BQ0 14-3-3 Protein Beta (Human) Deposited 2005-04-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–238（238 aa） Chain B 1–238（238 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；0.05M MGCL2,0.1M HEPES PH7.5, 30% PEG MME 550, pH 8.00	Resolution 2.50 Å R-free 0.273
2BQ0 14-3-3 Protein Beta (Human) Deposited 2005-04-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–238（238 aa） Chain B 1–238（238 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；0.05M MGCL2,0.1M HEPES PH7.5, 30% PEG MME 550, pH 8.00	Resolution 2.50 Å R-free 0.273
2C23 14-3-3 Protein Beta (Human) in complex with exoenzyme S peptide Deposited 2005-09-26	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–238（238 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；0.05M MGCL2,0.1M HEPES PH7.5, 30% PEG MME 550, pH 8.00	Resolution 2.65 Å R-free 0.286
4DNK Crystal structure of a tyrosine 3-monooxygenase/tryptophan 5-monooxygenase activation protein, beta polypeptide (YWHAB) from homo sapiens at 2.20 A resolution. Deposited 2012-02-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–246（246 aa） Chain B 1–246（246 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	PO4 PHOSPHATE ION × 3 EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；20.00% polyethylene glycol 3350, 0.20M magnesium acetate, NANODROP, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.20 Å R-free 0.226
5N10 Cucurbit[8]uril and 14-3-3 based binary bivalent supramolecular-protein assembly platform Deposited 2017-02-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–246（246 aa） Chain B 1–246（246 aa）	Not recorded	GOL GLYCEROL × 1 C8L Cucurbit[8]uril × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277.15 K；PEG 1500, sodium citrate	Resolution 1.60 Å R-free 0.194
6A5Q Structure of 14-3-3 beta in complex with TFEB 14-3-3 binding motif Deposited 2018-06-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–246（246 aa） Chain B 1–246（246 aa）	Not recorded	MLA MALONIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 4；289 K；0.1 M sodium malonate, and 12% (w/v) PEG 3350	Resolution 2.00 Å R-free 0.230
6A5Q Structure of 14-3-3 beta in complex with TFEB 14-3-3 binding motif Deposited 2018-06-25	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–246（246 aa）	Not recorded	MLA MALONIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 4；289 K；0.1 M sodium malonate, and 12% (w/v) PEG 3350	Resolution 2.00 Å R-free 0.230
6BYK Structure of 14-3-3 beta/alpha bound to O-ClcNAc peptide Deposited 2017-12-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 3–232（230 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；30% PEG 4000, 200 mM sodium acetate, 0.1 M Tris pH 8.5	Resolution 3.00 Å R-free 0.268
6BYK Structure of 14-3-3 beta/alpha bound to O-ClcNAc peptide Deposited 2017-12-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 3–232（230 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；30% PEG 4000, 200 mM sodium acetate, 0.1 M Tris pH 8.5	Resolution 3.00 Å R-free 0.268
6BYK Structure of 14-3-3 beta/alpha bound to O-ClcNAc peptide Deposited 2017-12-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 3–232（230 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；30% PEG 4000, 200 mM sodium acetate, 0.1 M Tris pH 8.5	Resolution 3.00 Å R-free 0.268
6BYK Structure of 14-3-3 beta/alpha bound to O-ClcNAc peptide Deposited 2017-12-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 3–232（230 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；30% PEG 4000, 200 mM sodium acetate, 0.1 M Tris pH 8.5	Resolution 3.00 Å R-free 0.268
6GN0 Exoenzyme S from Pseudomonas aeruginosa in complex with human 14-3-3 protein beta, tetrameric crystal form Deposited 2018-05-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–239（239 aa） Chain B 1–239（239 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；12% PEG 3350, 4% Tacsimate	Resolution 3.24 Å R-free 0.294
6GN0 Exoenzyme S from Pseudomonas aeruginosa in complex with human 14-3-3 protein beta, tetrameric crystal form Deposited 2018-05-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–239（239 aa） Chain D 1–239（239 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；12% PEG 3350, 4% Tacsimate	Resolution 3.24 Å R-free 0.294
6GN8 Exoenzyme S from Pseudomonas aeruginosa in complex with human 14-3-3 protein beta, trimeric crystal form Deposited 2018-05-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–234（234 aa） Chain B 1–234（234 aa）	Not recorded	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；40% MPD, 8% PEG 8000, 0.1M Sodium Cacodylate	Resolution 2.34 Å R-free 0.248
6GNJ Exoenzyme S from Pseudomonas aeruginosa in complex with human 14-3-3 protein beta, trimeric crystal form in complex with STO1101 Deposited 2018-05-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–234（234 aa） Chain B 1–234（234 aa）	Not recorded	F4W 3-(12-oxidanylidene-7-thia-9,11-diazatricyclo[6.4.0.0^{2,6}]dodeca-1(8),2(6),9-trien-10-yl)propanoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；40% MPD, 7% PEG 8000, 0.1M Sodium Cacodylate	Resolution 3.24 Å R-free 0.221
6GNK Exoenzyme S from Pseudomonas aeruginosa in complex with human 14-3-3 protein beta, trimeric crystal form bound to Carba-NAD Deposited 2018-05-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–234（234 aa） Chain B 1–234（234 aa）	Not recorded	CNA CARBA-NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；50% MPD, 8% PEG 8000, 0.1M Sodium Cacodylate	Resolution 2.55 Å R-free 0.239
6GNN Exoenzyme T from Pseudomonas aeruginosa in complex with human 14-3-3 protein beta, tetrameric crystal form bound to STO1101 Deposited 2018-05-31	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–239（239 aa）	Not recorded	F4W 3-(12-oxidanylidene-7-thia-9,11-diazatricyclo[6.4.0.0^{2,6}]dodeca-1(8),2(6),9-trien-10-yl)propanoic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293 K；12% PEG 6000, 0.1M Citrate	Resolution 3.79 Å R-free 0.385
6HEP Crystal structure of human 14-3-3 beta in complex with CFTR R-domain peptide pS753-pS768 Deposited 2018-08-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–232（232 aa） Chain B 1–232（232 aa）	Not recorded	ETE 2-{2-[2-2-(METHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；278 K；0.1M Tris, 25% v/v PEG350 MME	Resolution 1.86 Å R-free 0.251
6HEP Crystal structure of human 14-3-3 beta in complex with CFTR R-domain peptide pS753-pS768 Deposited 2018-08-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–232（232 aa） Chain D 1–232（232 aa）	Not recorded	ETE 2-{2-[2-2-(METHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；278 K；0.1M Tris, 25% v/v PEG350 MME	Resolution 1.86 Å R-free 0.251
6YGJ small-molecule stabilizer of 14-3-3 and the Carbohydrate Response Element Binding Protein (ChREBP) protein-protein interaction Deposited 2020-03-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 4–232（229 aa） Chain F 2–232（231 aa）	Not recorded	OQE [2-[2-oxidanylidene-2-(2-phenylethylamino)ethoxy]phenyl]phosphonic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.1M HEPES (pH 7.1), 30% MPD, 1% PEG 4000, 0.1 M Ni(II)Cl 6H2O	Resolution 2.07 Å R-free 0.277
8DP5 Structure of the PEAK3/14-3-3 complex Deposited 2022-07-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 1–246（246 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；A final concentration of 0.1% of Octyl-beta-Glucoside (C14H28O6) was added to the sample before freezing. cryo-EM vitrification conditions Cryogen ETHANE；blot time = 7s blot force = 4	Resolution 3.10 Å
8EQ8 The crystal structure of 14-3-3 Beta containing 3-nitrotyrosine at position Y130 Deposited 2022-10-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–239（239 aa） Chain B 1–239（239 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20%-30% PEG 550 MME, 50 mM MgCl2, 100 mM HEPES pH 7-8.3	Resolution 1.50 Å R-free 0.205
8EQH The crystal structure of 14-3-3 Beta containing 3-nitrotyrosine at position Y213 Deposited 2022-10-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–239（239 aa） Chain B 1–239（239 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20%-27% PEG 3350, +/- 50 mM MgCl2, 100 mM Bis-Tris pH 5.5-6.5	Resolution 1.90 Å R-free 0.218

16 other PDB entries and 23 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	1433B_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–230； UniProt 3–232 Author chain C； PDBConstruct 1–230； UniProt 3–232 Author chain E； PDBConstruct 1–230； UniProt 3–232 Author chain G； PDBConstruct 1–230； UniProt 3–232

Carbohydrate-responsive element-binding protein

OrganismNot specified

UniProt Q9NP71

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 117–136 Chain F； UniProt 117–136	Not recorded	14-3-3 protein beta/alpha, N-terminally processed × 2 （P31946） AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；50 mM MES ph 6.0 2.2M Sodium Malonate	Resolution 2.59 Å R-free 0.271
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain D； UniProt 117–136 Chain H； UniProt 117–136	Not recorded	14-3-3 protein beta/alpha, N-terminally processed × 2 （P31946） AMP ADENOSINE MONOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；50 mM MES ph 6.0 2.2M Sodium Malonate	Resolution 2.59 Å R-free 0.271

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9GCP	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6YGJ small-molecule stabilizer of 14-3-3 and the Carbohydrate Response Element Binding Protein (ChREBP) protein-protein interaction Deposited 2020-03-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 117–137（21 aa） Chain I 117–137（21 aa）	Not recorded	OQE [2-[2-oxidanylidene-2-(2-phenylethylamino)ethoxy]phenyl]phosphonic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295 K；0.1M HEPES (pH 7.1), 30% MPD, 1% PEG 4000, 0.1 M Ni(II)Cl 6H2O	Resolution 2.07 Å R-free 0.277
8BTQ Small molecule stabilizer for 14-3-3/ChREBP (Cmd1-soaking) Deposited 2022-11-29	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 117–135（19 aa）	Not recorded	MG MAGNESIUM ION × 6 OQE [2-[2-oxidanylidene-2-(2-phenylethylamino)ethoxy]phenyl]phosphonic acid × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.095 M HEPES pH = 7.5 27% PEG400 0.19 M CaCl2 5% glycerol	Resolution 1.60 Å R-free 0.199

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MLXPL_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–20； UniProt 117–136 Author chain D； PDBConstruct 1–20； UniProt 117–136 Author chain F； PDBConstruct 1–20； UniProt 117–136 Author chain H； PDBConstruct 1–20； UniProt 117–136

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9gcp
Deposition date deposition_date	2024-08-02
最后修订 last_revision	2025-08-13
Structure title title	ChREBP/14-3-3 complex stabilized by AMP
Keywords keywords	AMP, carbohydrate and lipid homeostasis, lipogenesis, ChREBP, transcription factor, allosteric regulation, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.77 Å
Radius of gyration Rg (electron density) rg_electron	32.80 Å
Forward intensity I(0) i0	204384000.00
Molecular weight molecular_weight	112210.0 kDa
Excluded volume excluded_volume	139640 Å³
Envelope volume envelope_volume	188140 Å³
Hydration-shell volume shell_volume	46519 Å³
Envelope diameter envelope_diameter	97.4 Å
Shell Rg shell_rg	41.31 Å
Envelope Rg envelope_rg	31.28 Å
Shape Rg shape_rg	32.81 Å
Total Rg total_rg	33.49 Å
Total atoms total_atoms	7894
Residues n_residues	993
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	96.9 Å
Rg (real space) rg_real	33.70 Å
Rg uncertainty (real space) rg_real_error	0.17 Å
I(0) (real space) i0_real	1.9880e+08
I(0) uncertainty (real space) i0_real_error	2.2920e+06
Rg (reciprocal space) rg_reciprocal	33.68 Å
I(0) (reciprocal space) i0_reciprocal	204400000.0000
Solution quality estimate total_estimate	0.7258
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	49.5 Å
Skewness Skewness skewness	-0.056
Kurtosis Kurtosis kurtosis	-0.616
Angular range angular_range	— – 0.2350 Å⁻¹
Current regularization parameter α current_alpha	4.0850
Highest regularization parameter α highest_alpha	19010000.0000
Real-space data points n_real_points	48
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.966; Stabil: 0.926; Sysdev: 0.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.793

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	14-3-3 protein beta/alpha, N-terminally processed
Molecular weight formula_weight	26479.8 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G
Atom count atom_count	7894

MDKSELVQKAKLAEQAERYDDMAAAMKAVTEQGHELSNEERNLLSVAYKNVVGARRSSWRVISSIEQKTERNEKKQQMGKEYREKIEAELQDICNDVLELLDKYLIPNATQPESKVFYLKMKGDYFRYLSEVASGDNKQTTVSNSQQAYQEAFEISKKEMQPTHPIRLGLALNFSVFYYEILNSPEKACSLAKTAFDEAIAELDTLNEESYKDSTLIMQLLRDNLTLWTS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Carbohydrate-responsive element-binding protein
Molecular weight formula_weight	2611.0 kDa
Source method src_method	syn
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H

RDKIRLNNAIWRAWYIQYVQ

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE MONOPHOSPHATE
Molecular weight formula_weight	347.2 kDa
Source method src_method	syn
Copy count entity_count	4

▶

8. Citations (2)

▶

Unit-cell length a length_a	58.515 Å
Unit-cell length b length_b	80.279 Å
Unit-cell length c length_c	244.276 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	2.590 Å
Low-resolution limit resolution_low	48.600 Å
R factor r_factor	0.2301
R_work r_work	0.2279
R_free r_free	0.2713

fit	/app/data/saxs_computation/gc/9gcp/9gcp.fit
pddf	/app/data/pr_computation/gc/9gcp/9gcp.pr.out
profile	/app/data/saxs_computation/gc/9gcp/9gcp.dat

ChREBP/14-3-3 complex stabilized by AMP

1. Protein Identity and Related Structures Protein Identity & Related Structures

14-3-3 protein beta/alpha, N-terminally processed

State in the Current Structure

Other States of the Same Protein in the Database

Carbohydrate-responsive element-binding protein

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

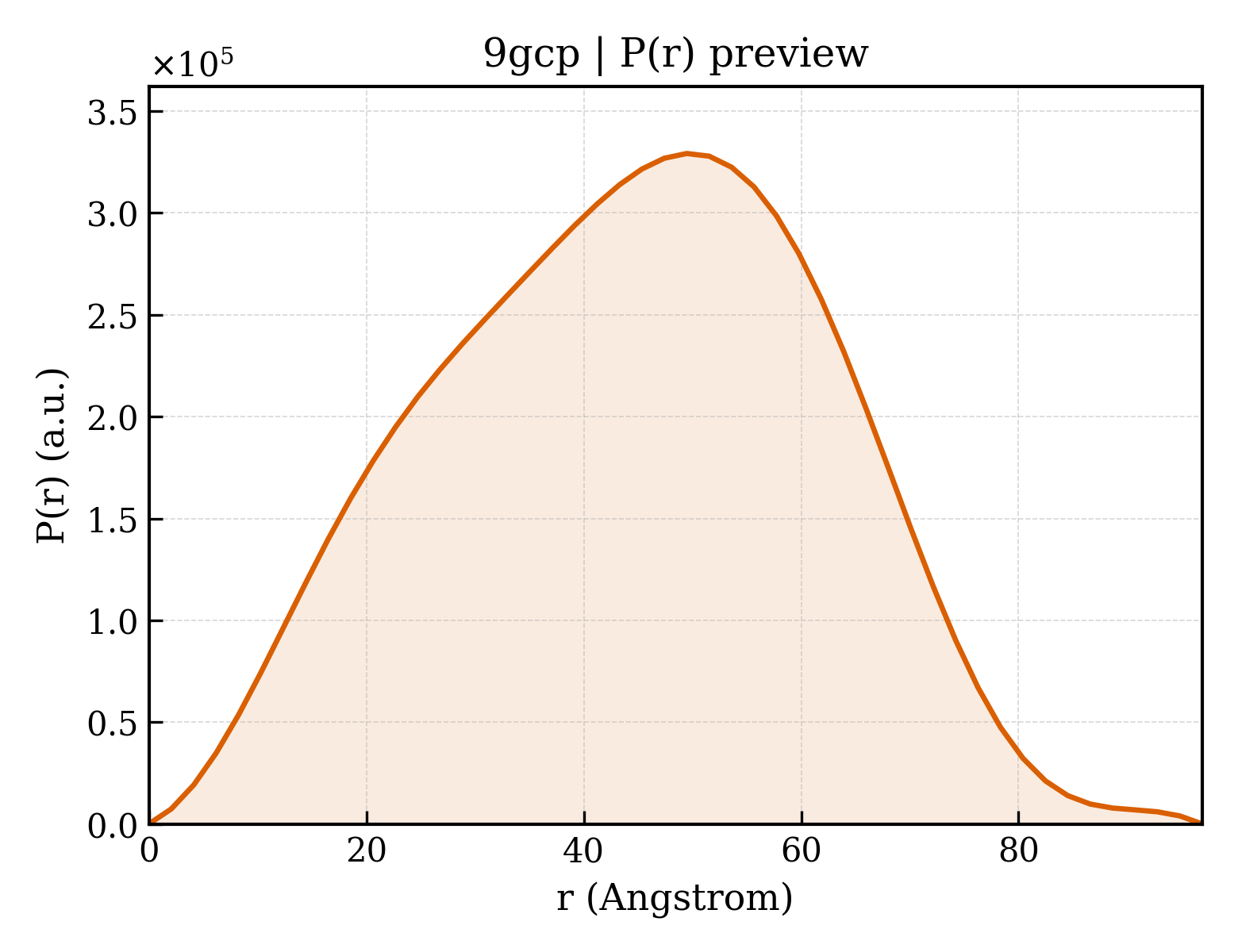

P(r) Distance Distribution P(r) Distribution
