9gju

Structure of replicating Nipah Virus RNA Polymerase Complex - RNA-bound state

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Phosphoprotein

Henipavirus nipahense

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 5 RNA 2	;RNA (5'-R(PAPCPCPAPAPAPCPAPA)-3') ; × 1 ;RNA (5'-R(PCPCPCPUPUPGPUPUPUPGPGP*U)-3') ; × 1 RNA-directed RNA polymerase L × 1 （Q997F0） PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 ZINC ION × 2 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PHOSP_NIPAV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–709； UniProt 1–709 Author chain C； PDBConstruct 1–709； UniProt 1–709 Author chain D； PDBConstruct 1–709； UniProt 1–709 Author chain E； PDBConstruct 1–709； UniProt 1–709

RNA-directed RNA polymerase L

Henipavirus nipahense

UniProt Q997F0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 5 RNA 2	Phosphoprotein × 4 （Q9IK91） ;RNA (5'-R(PAPCPCPAPAPAPCPAPA)-3') ; × 1 ;RNA (5'-R(PCPCPCPUPUPGPUPUPUPGPGP*U)-3') ; × 1 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 ZINC ION × 2 MAGNESIUM ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	L_NIPAV
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain A； PDBConstruct 4–2246； UniProt 2–2244

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9gju
Deposition date deposition_date	2024-08-22
Structure title title	Structure of replicating Nipah Virus RNA Polymerase Complex - RNA-bound state
Keywords keywords	RNA Polymerase, Nipah Virus, negative strand RNA Virus, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9gju__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

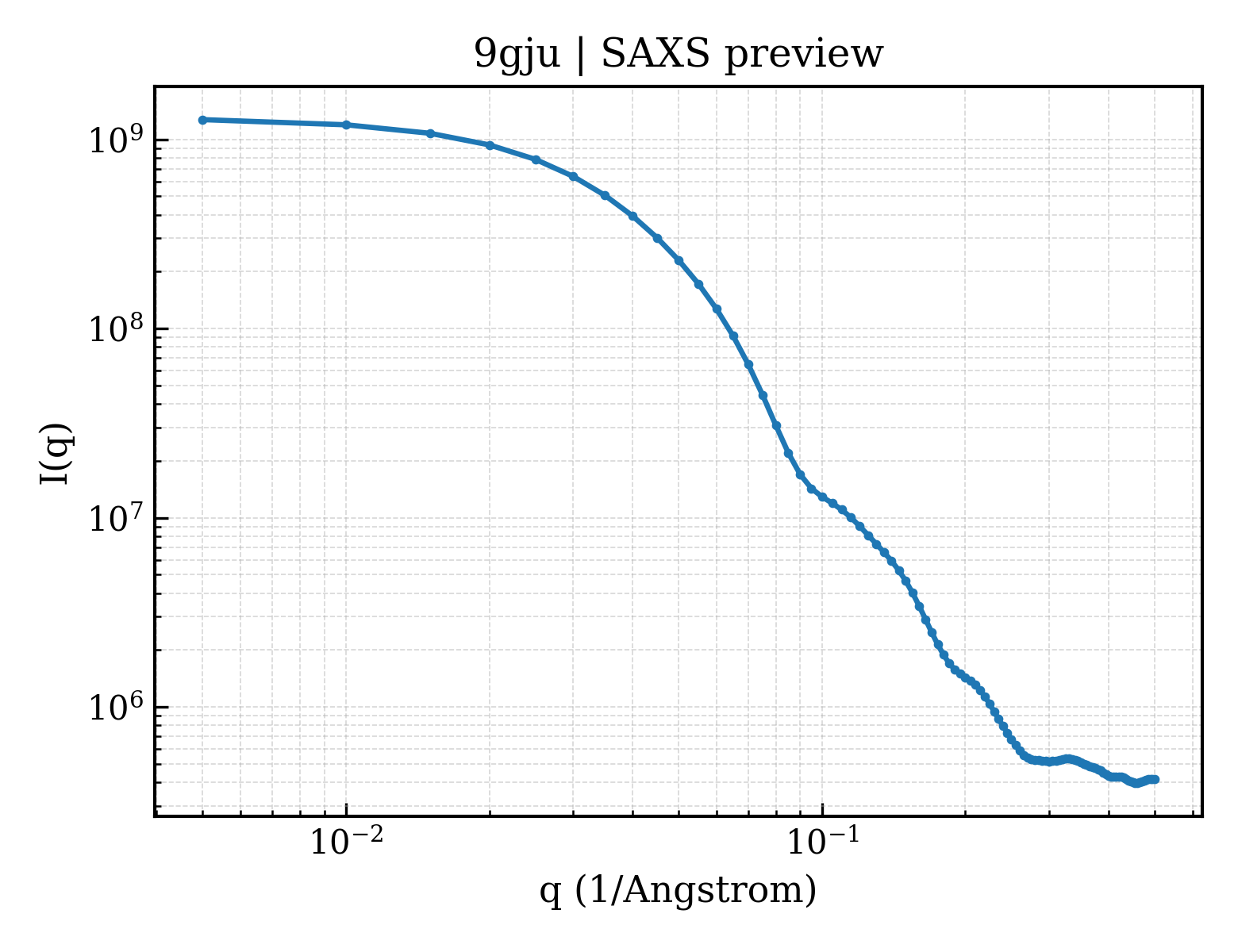

9gju__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9gju__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	49.62 Å
Rg (electron density)	50.10 Å
Total Rg	50.09 Å
Atom count	20935
Residues	2561
Excluded volume	373490 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9gju__assembly_1__model_1`	heptameric （7）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Phosphoprotein
Molecular weight formula_weight	78390.3 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D,E,B
Atom count atom_count	20935

MDKLELVNDGLNIIDFIQKNQKEIQKTYGRSSIQQPSIKDQTKAWEDFLQCTSGESEQVEGGMSKDDGDVERRNLEDLSSTSPTDGTIGKRVSNTRDWAEGSDDIQLDPVVTDVVYHDHGGECTGYGFTSSPERGWSDYTSGANNGNVCLVSDAKMLSYAPEIAVSKEDRETDLVHLENKLSTTGLNPTAVPFTLRNLSDPAKDSPVIAEHYYGLGVKEQNVGPQTSRNVNLDSIKLYTSDDEEADQLEFEDEFAGSSSEVIVGISPEDEEPSSVGGKPNESIGRTIEGQSIRDNLQAKDNKSTDVPGAGPKDSAVKEEPPQKRLPMLAEEFECSGSEDPIIRELLKENSLINCQQGKDAQPPYHWSIERSISPDKTEIVNGAVQTADRQRPGTPMPKSRGIPIKKGTDAKYPSAGTENVPGSKSGATRHVRGSPPYQEGKSVNAENVQLNASTAVKETDKSEVNPVDDNDSLDDKYIMPSDDFSNTFFPHDTDRLNYHADHLGDYDLETLCEESVLMGVINSIKLINLDMRLNHIEEQVKEIPKIINKLESIDRVLAKTNTALSTIEGHLVSMMIMIPGKGKGERKGKNNPELKPVIGRDILEQQSLFSFDNVKNFRDGSLTNEPYGAAVQLREDLILPELNFEETNASQFVPMADDSSRDVIKTLIRTHIKDRELRSELIGYLNKAENDEEIQEIANTVNDIIDGNI

Source Source

Source organism organism	Henipavirus nipahense
NCBI taxonomy ID ncbi_taxonomy_id	3052225
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	;RNA (5'-R(PAPCPCPAPAPAPCPAP*A)-3') ;
Molecular weight formula_weight	2845.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	F

ACCAAACAA

Entity 3 Entity 3 polymer

Description description	;RNA (5'-R(PCPCPCPUPUPGPUPUPUPGPGPU)-3') ;
Molecular weight formula_weight	3743.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	G

CCCUUGUUUGGU

Entity 4 Entity 4 polymer

Description description	RNA-directed RNA polymerase L
Molecular weight formula_weight	257706.2 kDa
EC 编号 ec_number	2.7.7.48,3.6.1.-,2.7.7.88,2.1.1.375
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

SNAADELSISDIIYPECHLDSPIVSGKLISAIEYAQLRHNQPSDDKRLSENIRLNLHGKRKSLYILRQSKQGDYIRNNIKNLKEFMHIAYPECNNILFSITSQGMTSKLDNIMKKSFKAYNIISKKVIGMLQNITRNLITQDRRDEIINIHECRRLGDLGKNMSQSKWYECFLFWFTIKTEMRAVIKNSQKPKFRSDSCIIHMRDKSTEIILNPNLICIFKSDKTGKKCYYLTPEMVLMYCDVLEGRMMMETTVKSDIKYQPLISRSNALWGLIDPLFPVMGNRIYNIVSMIEPLVLALLQLKDEARILRGAFLHHCIKEMHQELSECGFTDQKIRSMFIDDLLSILNIDNIHLLAEFFSFFRTFGHPILEAKVAAEKVREHMLADKVLEYAPIMKAHAIFCGTIINGYRDRHGGAWPPLYLPAHASKHIIRLKNSGESLTIDDCVKNWESFCGIQFDCFMELKLDSDLSMYMKDKALSPIKDEWDSVYPREVLSYTPPKSTEPRRLVDVFVNDENFDPYNMLEYVLSGAYLEDEQFNVSYSLKEKETKQAGRLFAKMTYKMRACQVIAEALIASGVGKYFKENGMVKDEHELLKTLFQLSISSVPRGNSQGNDPQSINNIERDFQYFKGVTTNVKDKKNNSFNKVKSALNNPCQADGVHHNMSPNTRNRYKCSNTSKSFLDYHTEFNPHNHYKSDNTEAAVLSRYEDNTGTKFDTVSAFLTTDLKKFCLNWRYESMAIFAERLDEIYGLPGFFNWMHKRLERSVIYVADPNCPPNIDKHMELEKTPEDDIFIHYPKGGIEGYSQKTWTIATIPFLFLSAYETNTRIAAIVQGDNESIAITQKVHPNLPYKVKKEICAKQAQLYFERLRMNLRALGHNLKATETIISTHLFIYSKKIHYDGAVLSQALKSMSRCCFWSETLVDETRSACSNISTTIAKAIENGLSRNVGYCINILKVIQQLLISTEFSINETLTLDVTSPISNNLDWLITAALIPAPIGGFNYLNLSRIFVRNIGDPVTASLADLKRMIDHSIMTESVLQKVMNQEPGDASFLDWASDPYSGNLPDSQSITKTIKNITARTILRNSPNPMLKGLFHDKSFDEDLELASFLMDRRVILPRAAHEILDNSLTGAREEIAGLLDTTKGLIRSGLRKSGLQPKLVSRLSHHDYNQFLILNKLLSNRRQNDLISSNTCSVDLARALRSHMWRELALGRVIYGLEVPDALEAMVGRYITGSLECQICEQGNTMYGWFFVPRDSQLDQVDREHSSIRVPYVGSSTDERSDIKLGNVKRPTKALRSAIRIATVYTWAYGDNEECWYEAWYLASQRVNIDLDVLKAITPVSTSNNLSHRLRDKSTQFKFAGSVLNRVSRYVNISNDNLDFRIEGEKVDTNLIYQQAMLLGLSVLEGKFRLRLETDDYNGIYHLHVKDNCCVKEVADVGQVDAELPIPEYTEVDNNHLIYDPDPVSEIDCSRLSNQESKSRELDFPLWSTEELHDVLAKTVAQTVLEIITKADKDVLKQHLAIDSDDNINSLITEFLIVDPELFALYLGQSISIKWAFEIHHRRPRGRHTMVDLLSDLVSNTSKHTYKVLSNALSHPRVFKRFVNCGLLLPTQGPYLHQQDFEKLSQNLLVTSYMIYLMNWCDFKKSPFLIAEQDETVISLREDIITSKHLCVIIDLYANHHKPPWIIDLNPQEKICVLRDFISKSRHVDTSSRSWNTSDLDFVIFYASLTYLRRGIIKQLRIRQVTEVIDTTTMLRDNIIVENPPIKTGVLDIRGCIIYNLEEILSMNTKSASKKIFNLNSRPSVENHKYRRIGLNSSSCYKALNLSPLIQRYLPSGAQRLFIGEGSGSMMLLYQSTLGQSISFYNSGIDGDYIPGQRELKLFPSEYSIAEEDPSLTGKLKGLVVPLFNGRPETTWIGNLDSYEYIINRTAGRSIGLVHSDMESGIDKNVEEILVEHSHLISIAINVMMEDGLLVSKIAYTPGFPISRLFNMYRSYFGLVLVCFPVYSNPDSTEVYLLCLQKTVKTIVPPQKVLEHSNLHDEVNDQGITSVIFKIKNSQSKQFHDDLKKYYQIDQPFFVPTKITSDEQVLLQAGLKLNGPEILKSEISYDIGSDINTLRDTIIIMLNEAMNYFDDNRSPSHHLEPYPVLERTRIKTIMNCVTKKVIVYSLIKFKDTKSSELYHIKNNIRRKVLILDFRSKLMTKTLPKGMQERREKNGFKEVWIVDLSNREVKIWWKIIGYISII

Source Source

Source organism organism	Henipavirus nipahense
NCBI taxonomy ID ncbi_taxonomy_id	3052225
Host organism host_organism	Trichoplusia ni

Entity 5 Entity 5 non-polymer

Description description	PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER
Molecular weight formula_weight	522.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.80 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	330750
