9gnk

Nitratidesulfovibrio vulgaris [FeFe]-hydrogenase variant with both subunits linked by a 13 amino acid linker peptide derived from CpI of Clostridium pasteurianum

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Periplasmic [Fe] hydrogenase large subunit,Periplasmic [Fe] hydrogenase small subunit

Nitratidesulfovibrio vulgaris

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 2	CARBON MONOXIDE × 2 dicarbonyl[bis(cyanide-kappaC)]-mu-(iminodimethanethiolatato-1kappaS:2kappaS)-mu-(oxomethylidene)diiron(2+) × 2 IRON/SULFUR CLUSTER × 6 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 2 TETRAETHYLENE GLYCOL × 6 DI(HYDROXYETHYL)ETHER × 6 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PHFL_NITV2
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–390； UniProt 1–390

Periplasmic [Fe] hydrogenase large subunit,Periplasmic [Fe] hydrogenase small subunit

Nitratidesulfovibrio vulgaris

UniProt P07603

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 2	CARBON MONOXIDE × 2 dicarbonyl[bis(cyanide-kappaC)]-mu-(iminodimethanethiolatato-1kappaS:2kappaS)-mu-(oxomethylidene)diiron(2+) × 2 IRON/SULFUR CLUSTER × 6 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 2 TETRAETHYLENE GLYCOL × 6 DI(HYDROXYETHYL)ETHER × 6 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PHFS_NITV2
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 404–482； UniProt 45–123

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9gnk
Deposition date deposition_date	2024-09-03
Structure title title	Nitratidesulfovibrio vulgaris [FeFe]-hydrogenase variant with both subunits linked by a 13 amino acid linker peptide derived from CpI of Clostridium pasteurianum
Keywords keywords	[FeFe] hydrogenase, iron-sulfur cluster, metalloenzyme, hydrogen production, fusion protein, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9gnk__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9gnk__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

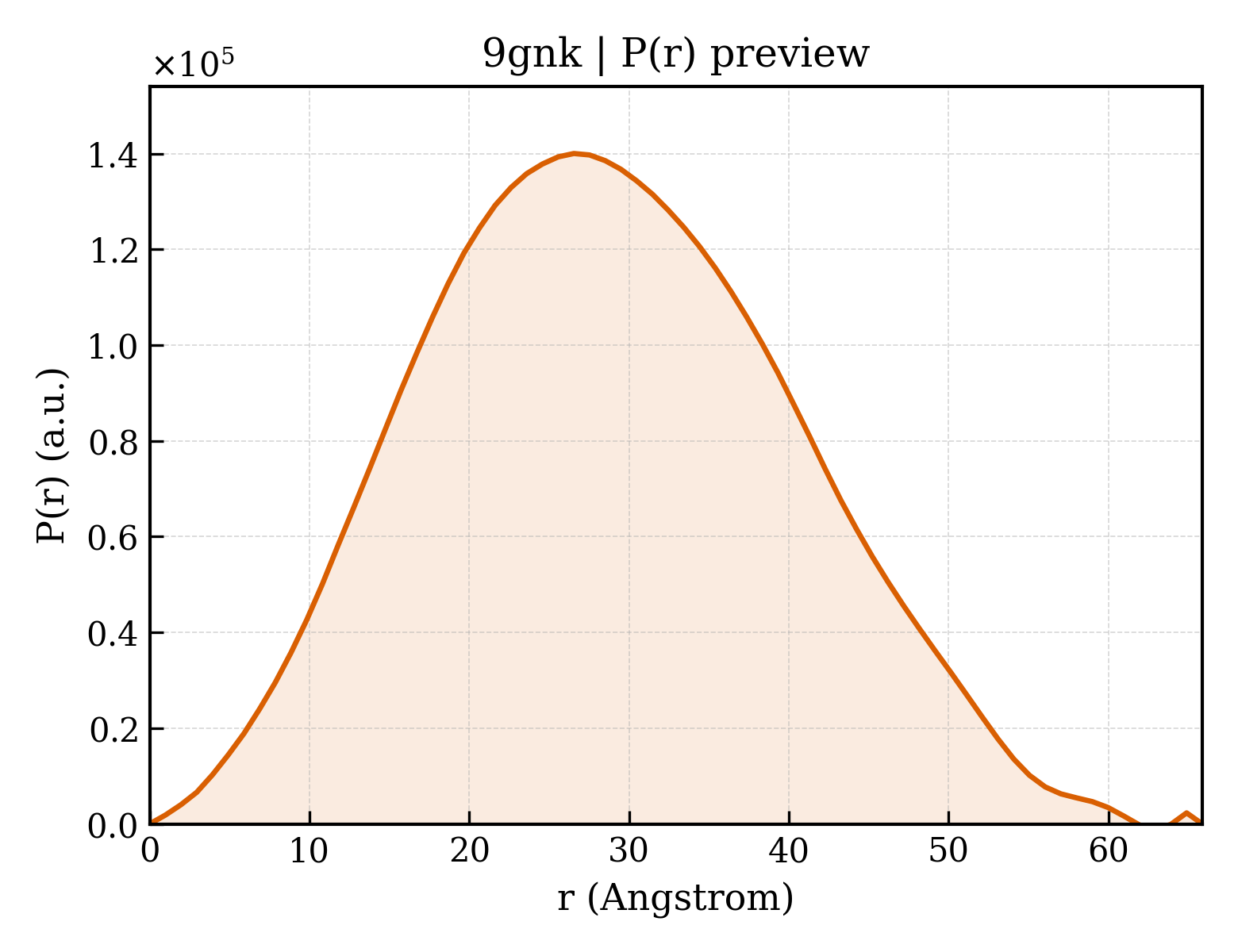

9gnk__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.14 Å
Rg (electron density)	31.82 Å
Total Rg	32.20 Å
Atom count	15228
Residues	970
Excluded volume	137620 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9gnk__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Periplasmic [Fe] hydrogenase large subunit,Periplasmic [Fe] hydrogenase small subunit
Molecular weight formula_weight	54312.2 kDa
EC 编号 ec_number	1.12.7.2
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	8357

MSRTVMERIEYEMHTPDPKADPDKLHFVQIDEAKCIGCDTCSQYCPTAAIFGEMGEPHSIPHIEACINCGQCLTHCPENAIYEAQSWVPEVEKKLKDGKVKCIAMPAPAVRYALGDAFGMPVGSVTTGKMLAALQKLGFAHCWDTEFTADVTIWEEGSEFVERLTKKSDMPLPQFTSCCPGWQKYAETYYPELLPHFSTCKSPIGMNGALAKTYGAERMKYDPKQVYTVSIMPCIAKKYEGLRPELKSSGMRDIDATLTTRELAYMIKKAGIDFAKLPDGKRDSLMGESTGGATIFGVTGGVMEAALRFAYEAVTGKKPDSWDFKAVRGLDGIKEATVNVGGTDVKVAVVHGAKRFKQVCDDVKAGKSPYHFIEYMACPGGCVCGGGQPVVNPKDLEKVDIKKDRINGVYGADAKFPVRASQDNTQVKALYKSYLEKPLGHKSHDLLHTHWFDKSKGVKELTTAGKLPNPRASEFEGPYPYESAWSHPQFEK

Source Source

Source organism organism	Nitratidesulfovibrio vulgaris
NCBI taxonomy ID ncbi_taxonomy_id	881
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	CARBON MONOXIDE
Molecular weight formula_weight	28.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	dicarbonyl[bis(cyanide-kappaC)]-mu-(iminodimethanethiolatato-1kappaS:2kappaS)-mu-(oxomethylidene)diiron(2+)
Molecular weight formula_weight	355.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	IRON/SULFUR CLUSTER
Molecular weight formula_weight	351.6 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
Molecular weight formula_weight	238.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	TETRAETHYLENE GLYCOL
Molecular weight formula_weight	194.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 7 Entity 7 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	543

▶

Unit-cell length a length_a	49.137 Å
Unit-cell length b length_b	89.213 Å
Unit-cell length c length_c	106.449 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.050 Å
Low-resolution limit resolution_low	45.750 Å
R factor r_factor	—
R_work r_work	0.1683
R_free r_free	0.1854
